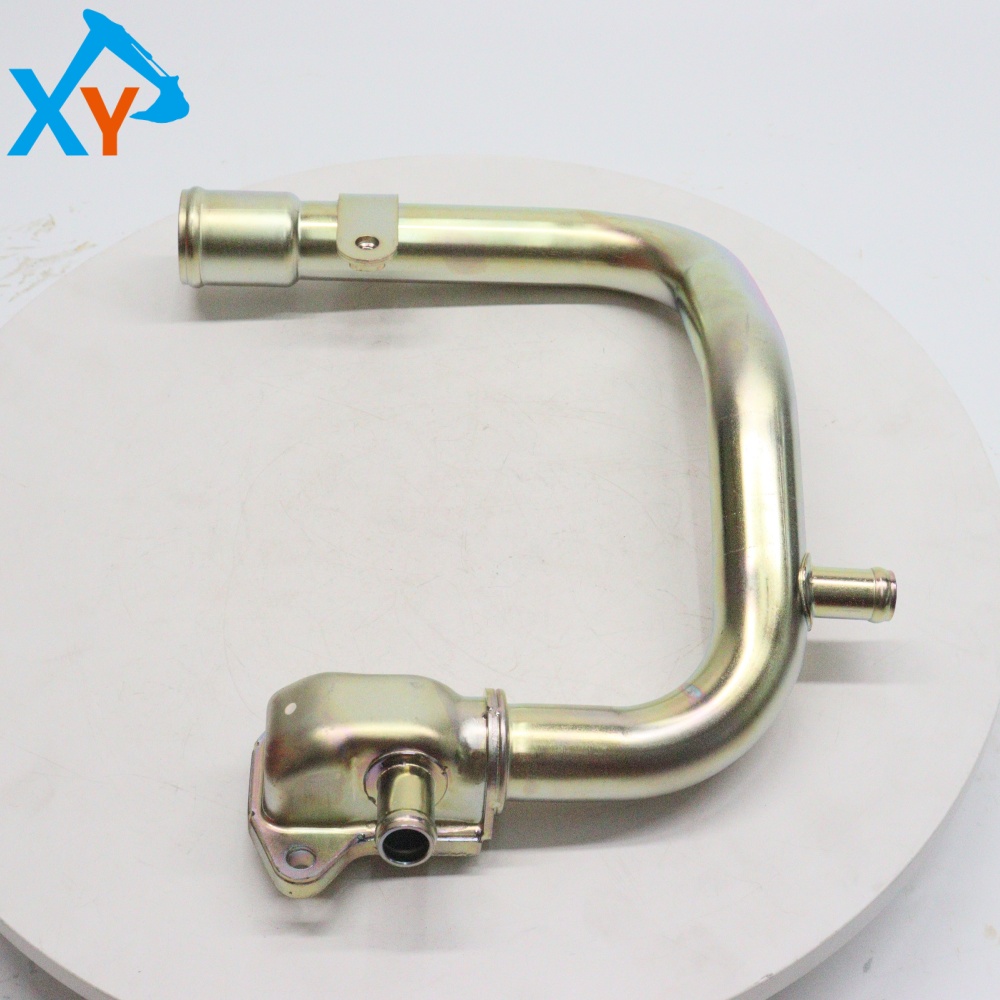

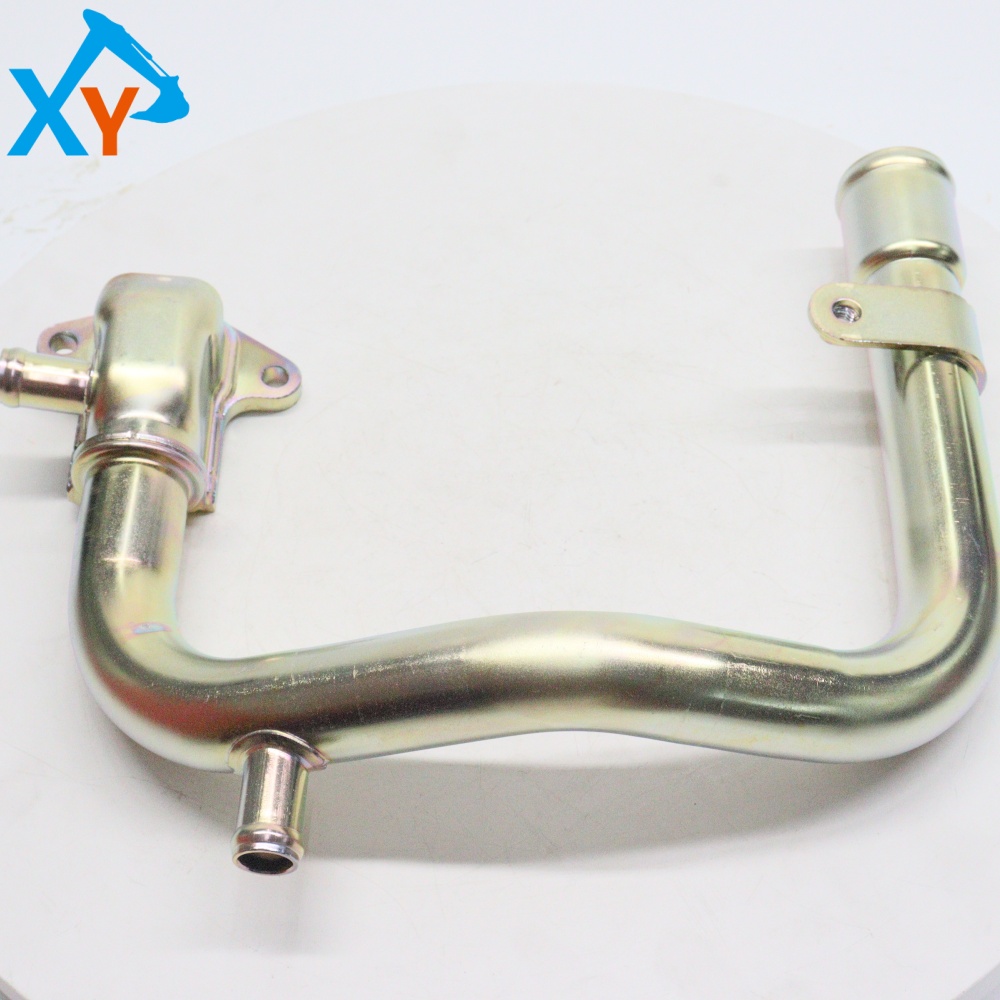

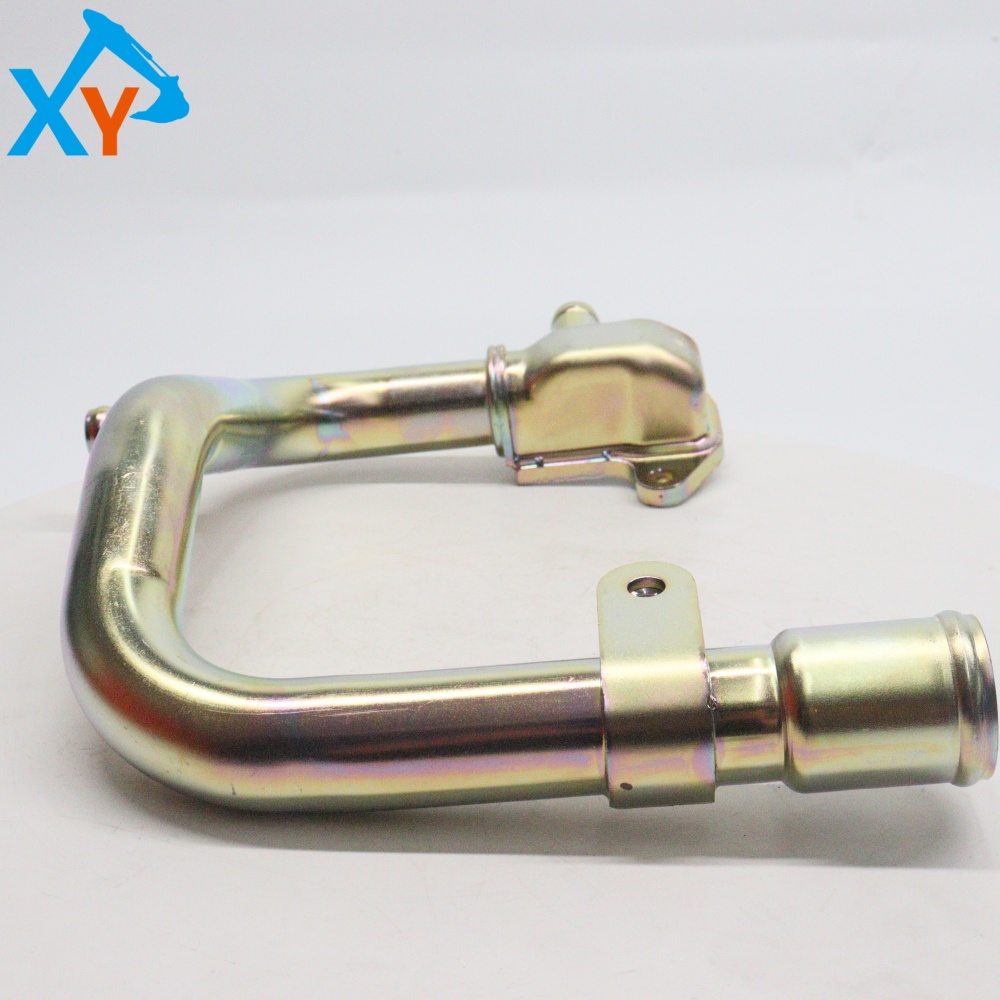

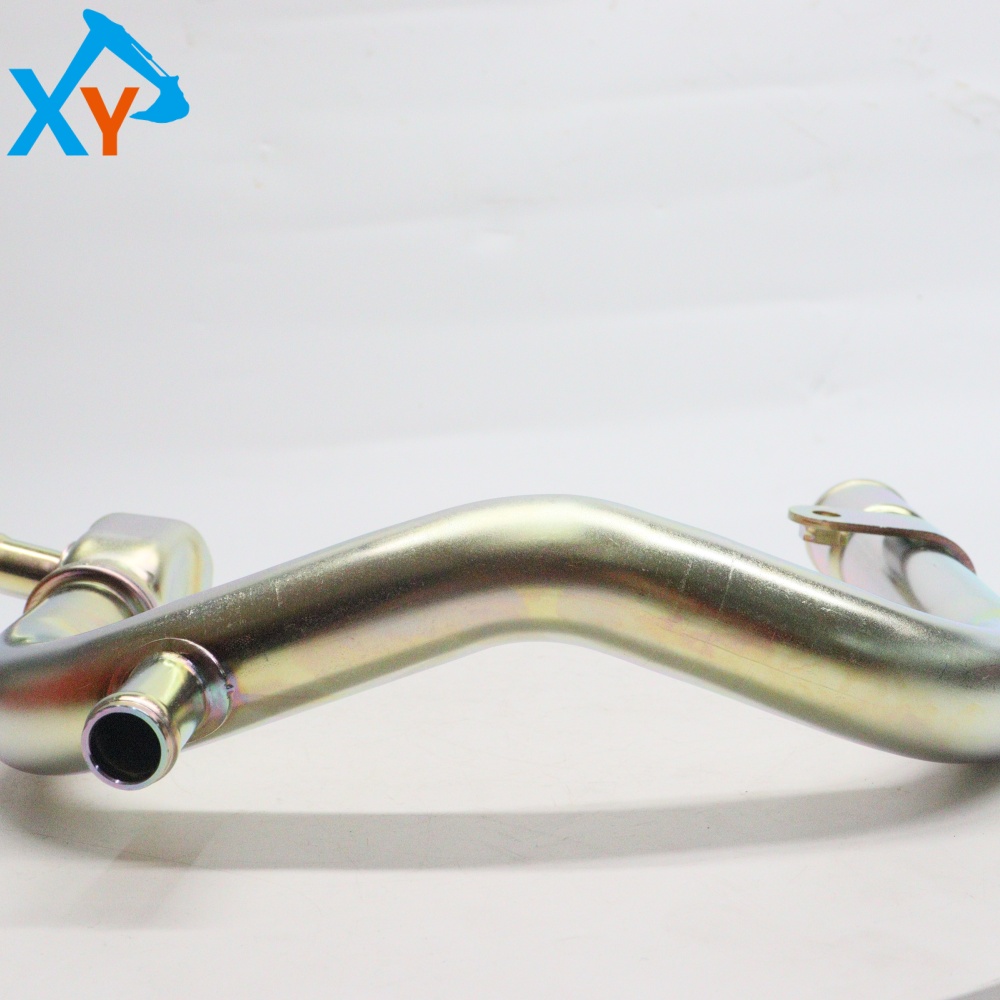

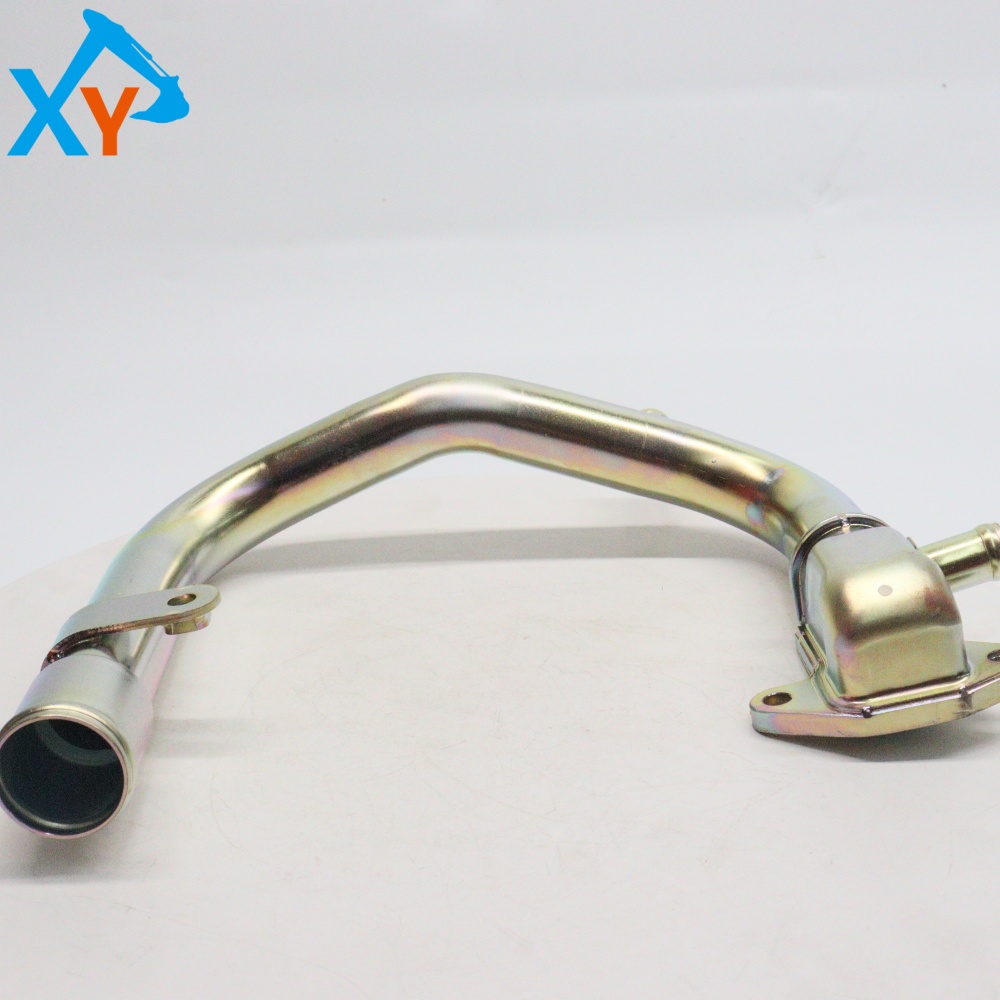

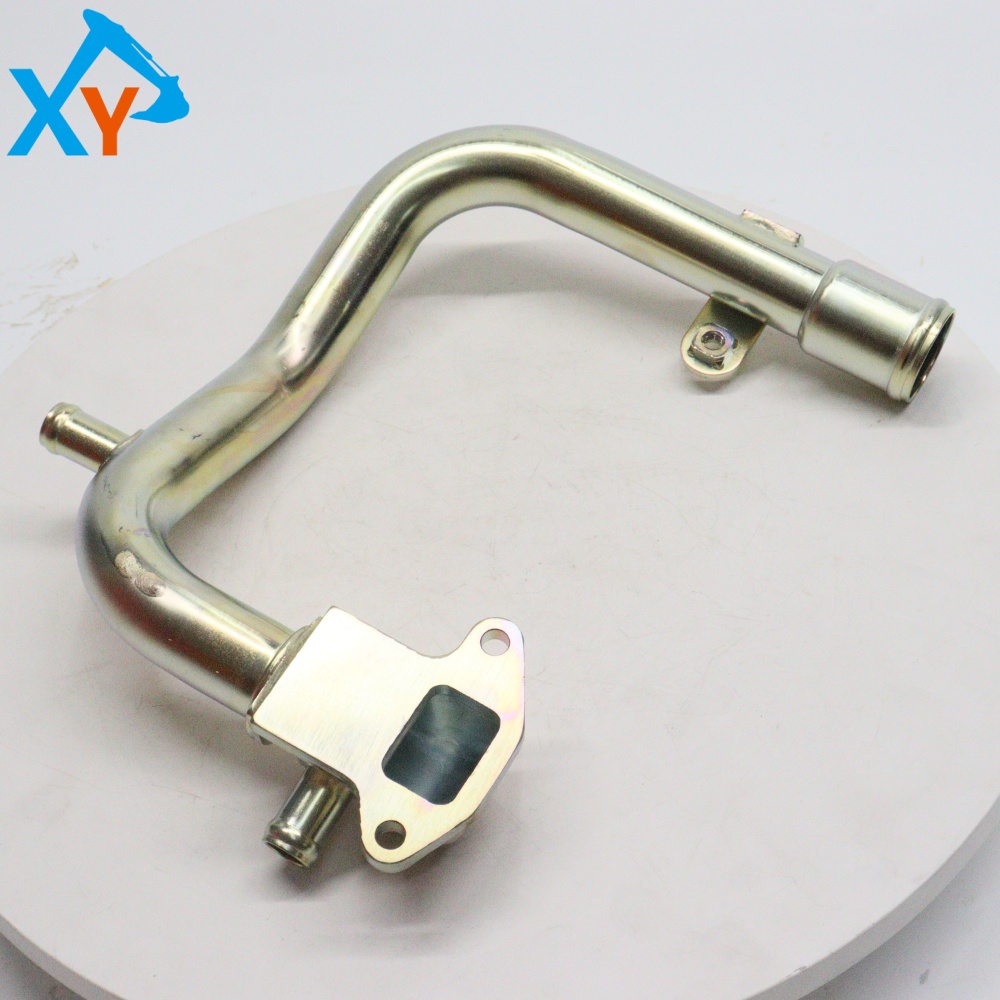

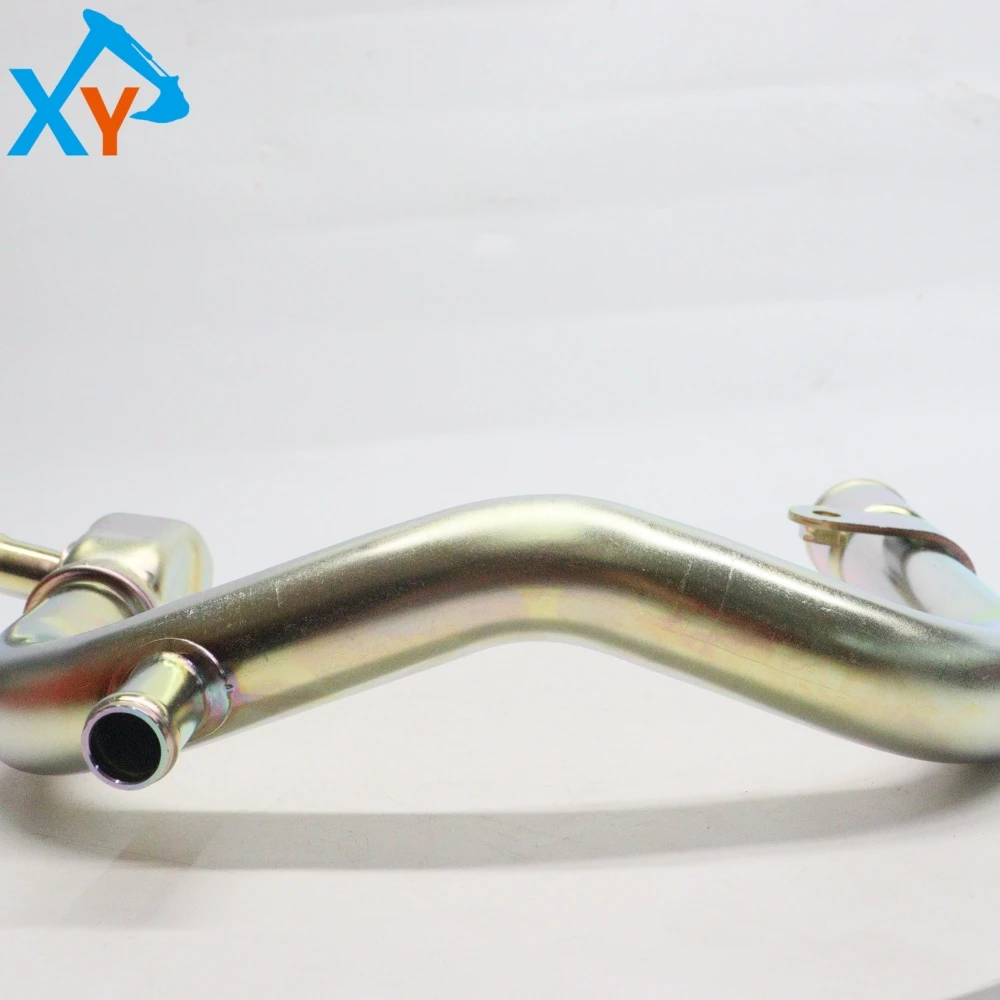

8972633980 Excavator 4JG1 Engine Parts Cooling Water Bypass Pipe

The original cooling water bypass pipe of Isuzu 4JG1 engine, with part number 8972633980, is a genuine original accessory designed specifically for the cooling system of 4JG1 series diesel engines. This bypass pipe is mainly used to connect components such as the engine cylinder block, water pump, and thermostat housing, forming a small circulation path for the coolant. It is mainly suitable for Hitachi brand small and medium-sized excavators equipped with Isuzu 4JG1 engine, such as ZX70, ZX60 and other models.


The cooling water bypass pipe is usually made of high-quality synthetic rubber (such as EPDM) or metal (such as aluminum alloy) that is resistant to high temperature and coolant corrosion, and may have reinforcing fibers or steel wires inside to enhance pressure resistance. It is designed as a specific shaped bend or straight pipe, with standardized quick couplings or flange interfaces at both ends for easy connection with the corresponding ports of the engine. The main function is to guide the coolant to bypass the radiator for a "small circulation" during cold start or low-temperature operation of the engine, so that the engine can quickly heat up to the optimal operating temperature; When the coolant temperature reaches the opening value of the thermostat, the pathway switches and the coolant enters the "large circulation" and flows through the radiator.


To ensure the normal operation of the cooling system, it is necessary to regularly check the status of the bypass pipe. It is recommended to conduct a visual inspection every 500 hours of operation or every quarter to check for bulges, cracks, hardening of the pipe body, and whether the surface is sticky or leaking coolant. At the same time, check the tightness of the pipe clamps or joints to ensure that there is no looseness. Every time the engine coolant is replaced, it is important to check for corrosion, sediment blockage, or aging of the interface sealing ring inside the bypass pipe. Keep the engine compartment clean to prevent oil stains from corroding the rubber hose body. If any damage, leakage or permanent deformation is found in the pipe body, it should be replaced immediately.
