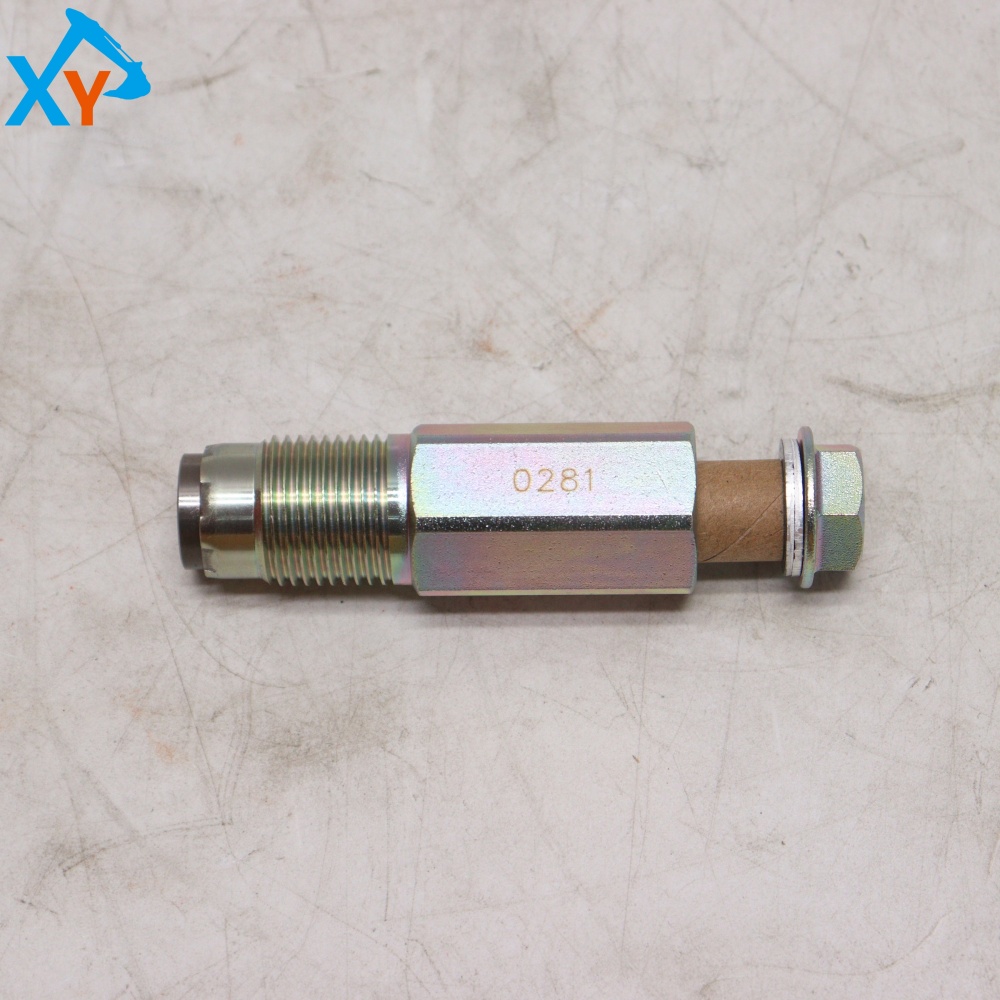

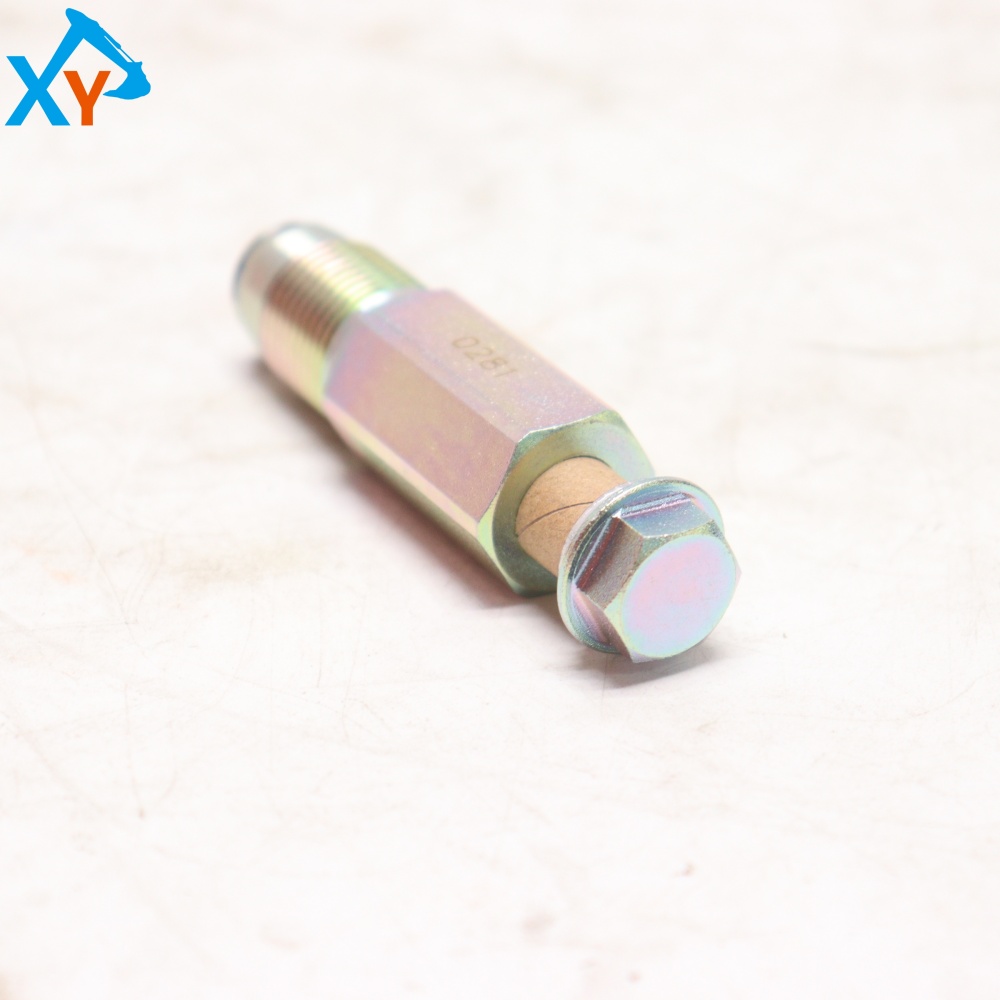

8973186910 Original Excavator 4HK1 Engine Common Rail Pressure Relief Valve

The original Isuzu 4HK1 engine common rail pressure reducing valve (part number: 8973186910, also commonly written as 8-9731869-1-0) is the core safety component of the high-pressure common rail fuel system. This valve is designed specifically for the Isuzu 4HK1 series turbocharged diesel engine, which serves as the main power source and is widely used in medium-sized hydraulic excavators of 20-30 tons. The main excavator brands and models that are compatible include Hitachi's ZX200-3, ZX210F-3, ZX240-3, ZX270-3, ZX330-3 and other ZX series models


The common rail pressure reducing valve (also known as a pressure limiting valve or relief valve) is the "safety guard" of the engine's electronically controlled high-pressure common rail system. Its core function is to accurately limit and stabilize the fuel pressure inside the common rail pipe. As a pure mechanical safety valve, it is usually installed on the common rail pipe and consists of a valve body, precision piston, pressure spring, and return oil passage inside. Under normal working pressure (e.g. about 135MPa), the spring force presses the piston tightly against the valve seat, maintaining the sealing of the common rail system.


The maintenance core of this pressure reducing valve lies in preventive inspection and accurate diagnosis after faults occur. As it belongs to a normally closed safety device, it does not require special maintenance in daily life, but its appearance and connecting pipelines should be checked for fuel leakage traces in conjunction with regular engine maintenance (recommended every 1000 working hours). If the engine experiences a decrease in power, weak acceleration, and related fault codes (such as rail pressure sensor and fuel metering unit fault codes), and the actual rail pressure data read by the diagnostic instrument is abnormal, it is necessary to suspect whether the pressure reducing valve has been opened incorrectly or failed.
