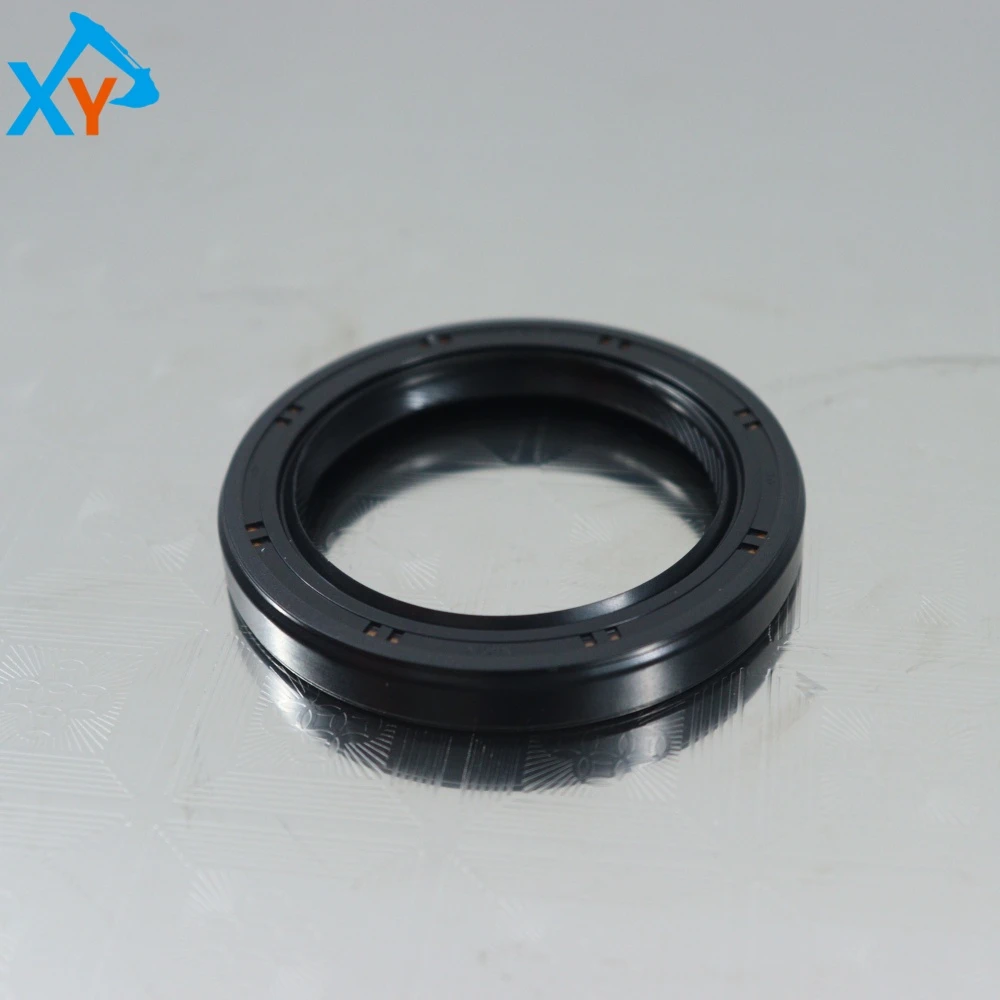

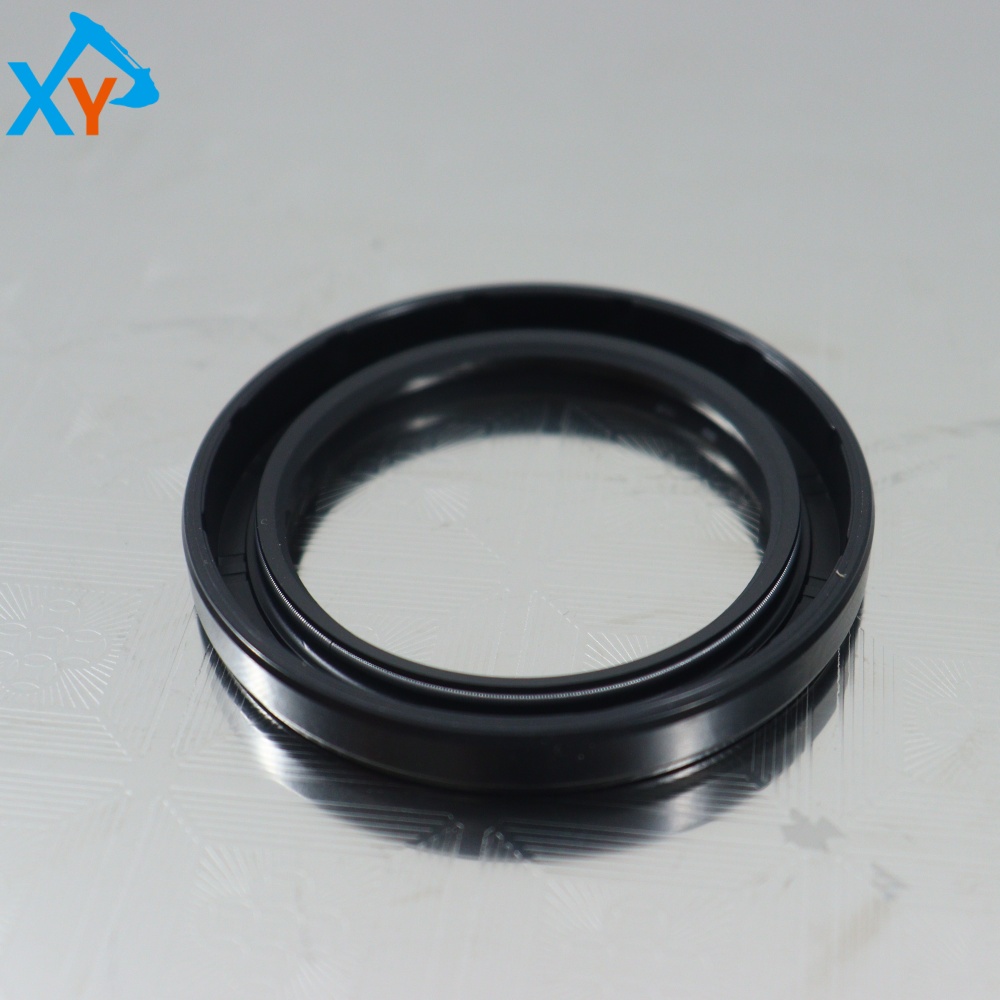

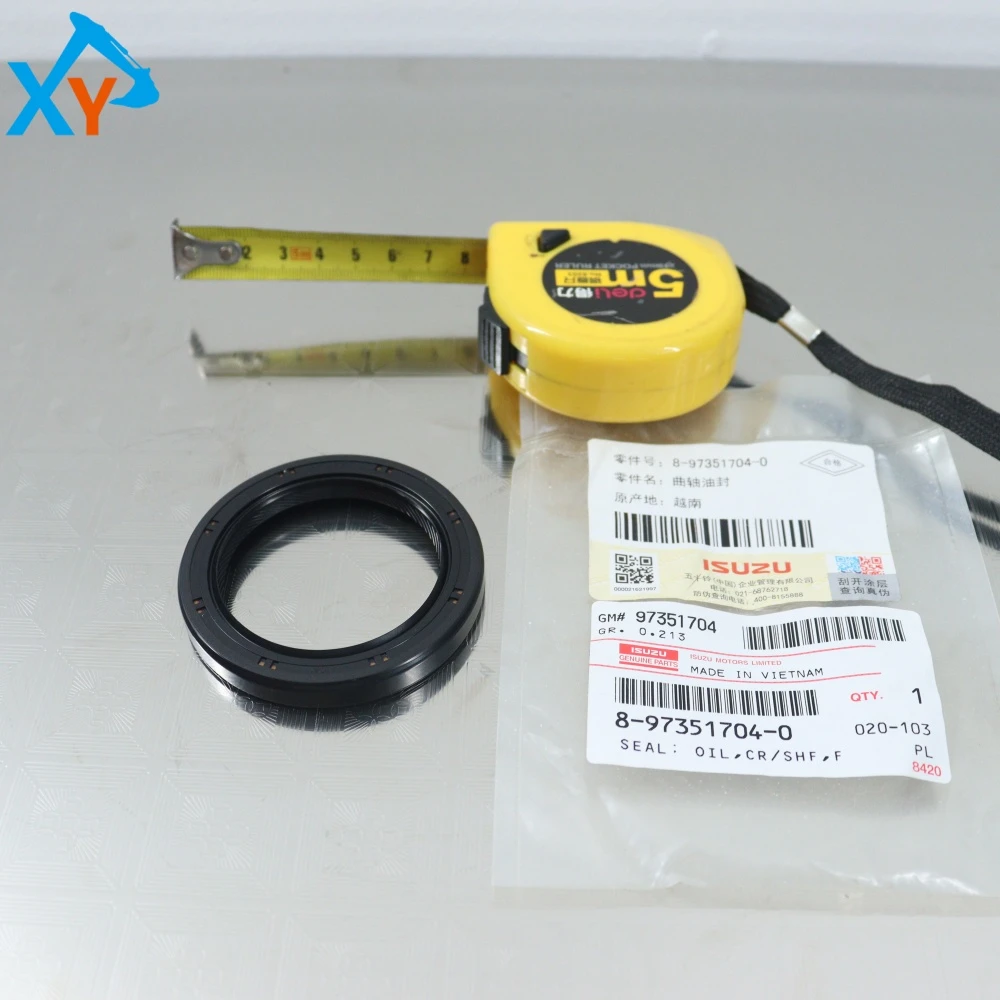

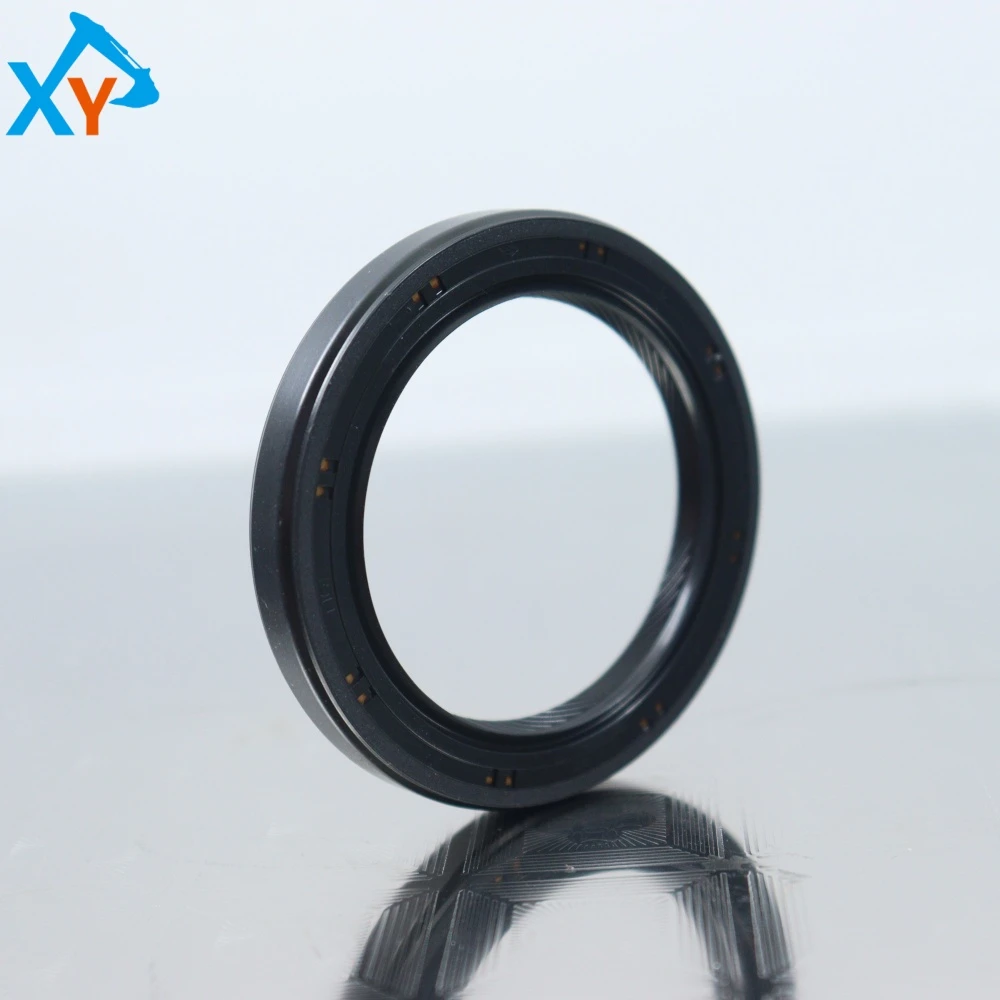

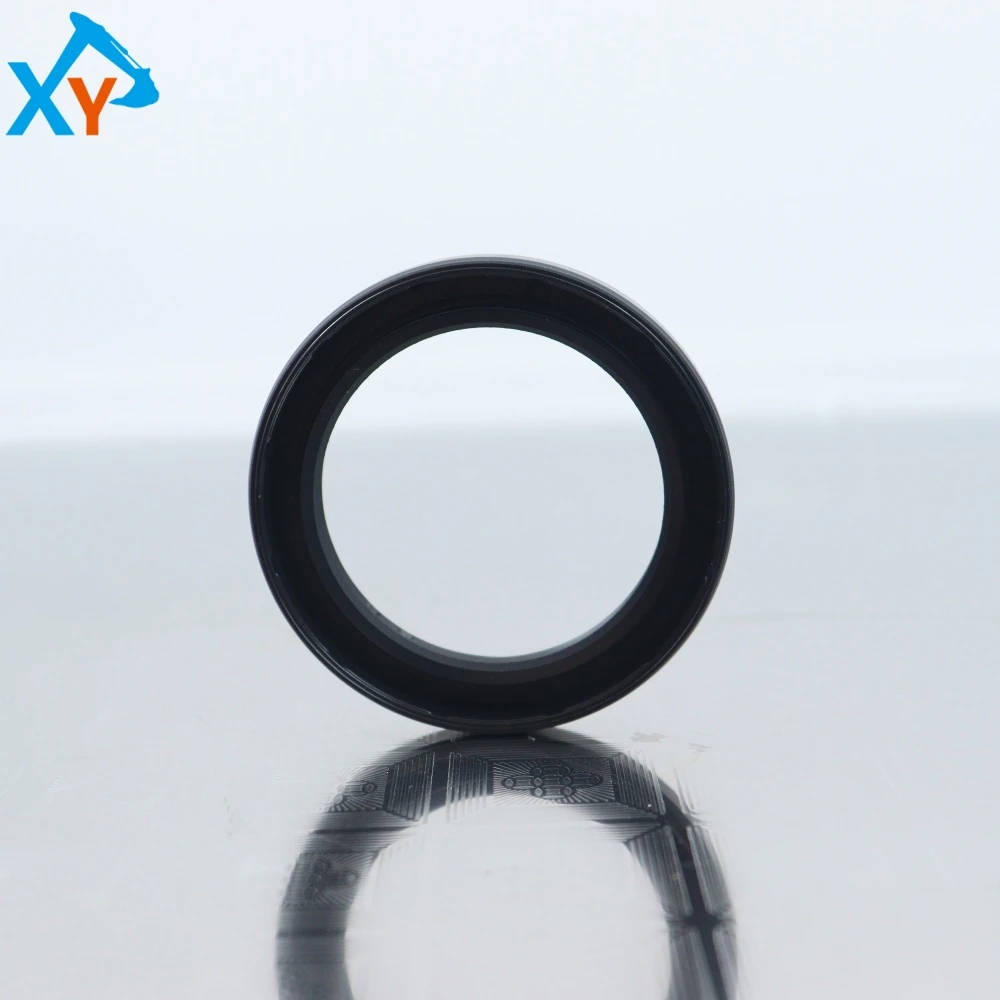

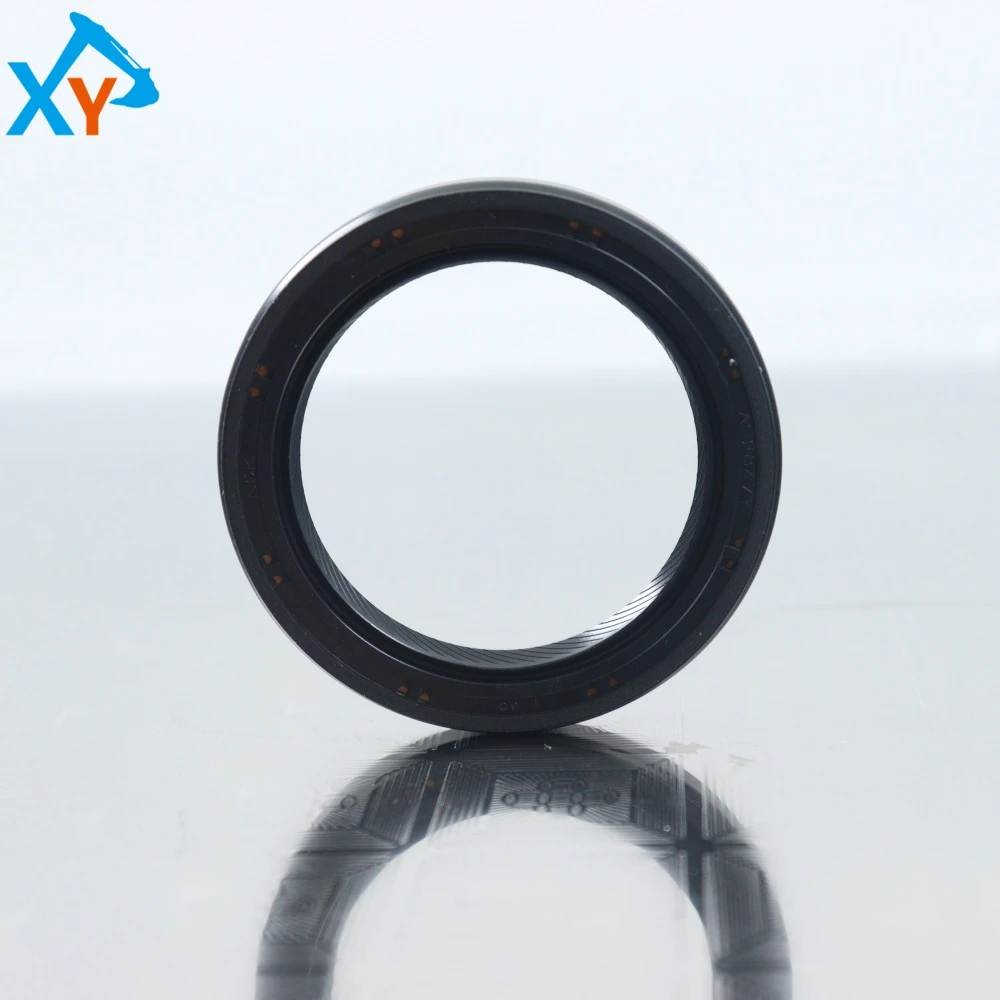

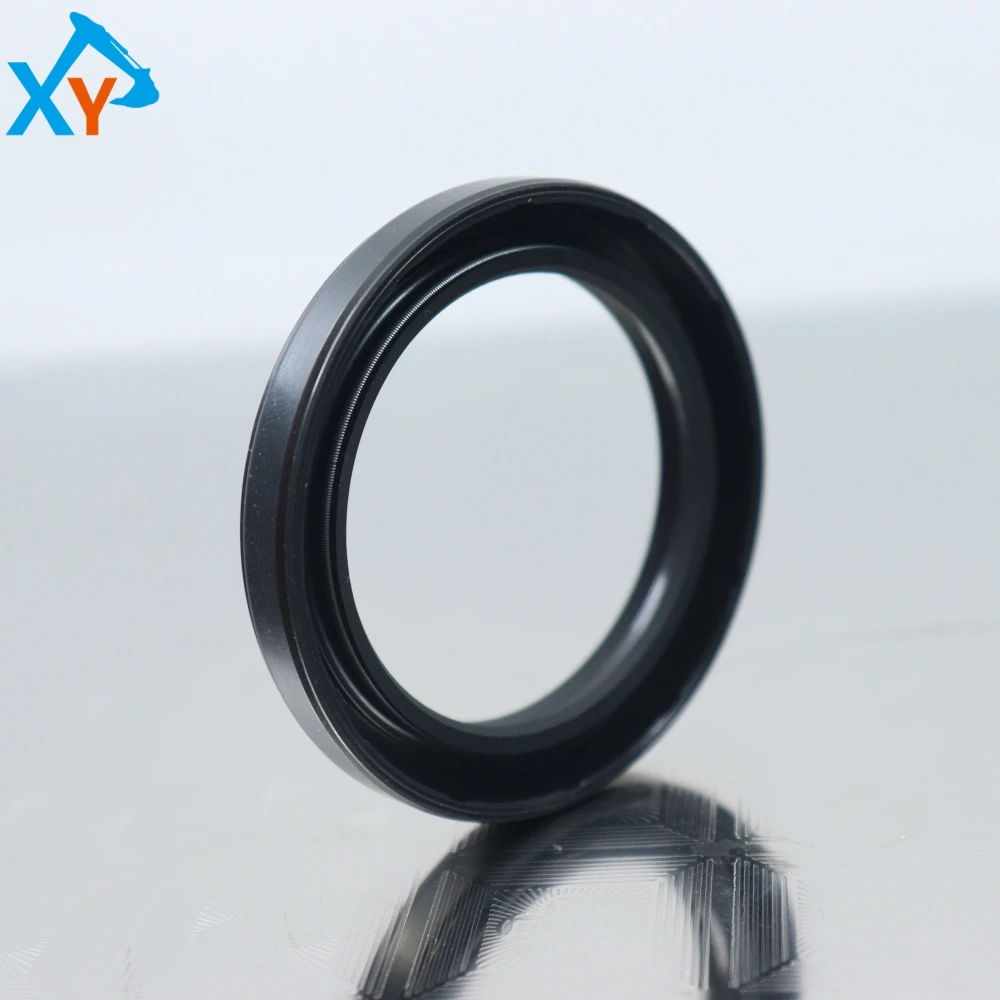

8973517040 Original Excavator Isuzu 4JJ1 Engine Crankshaft Oil Seal (front)

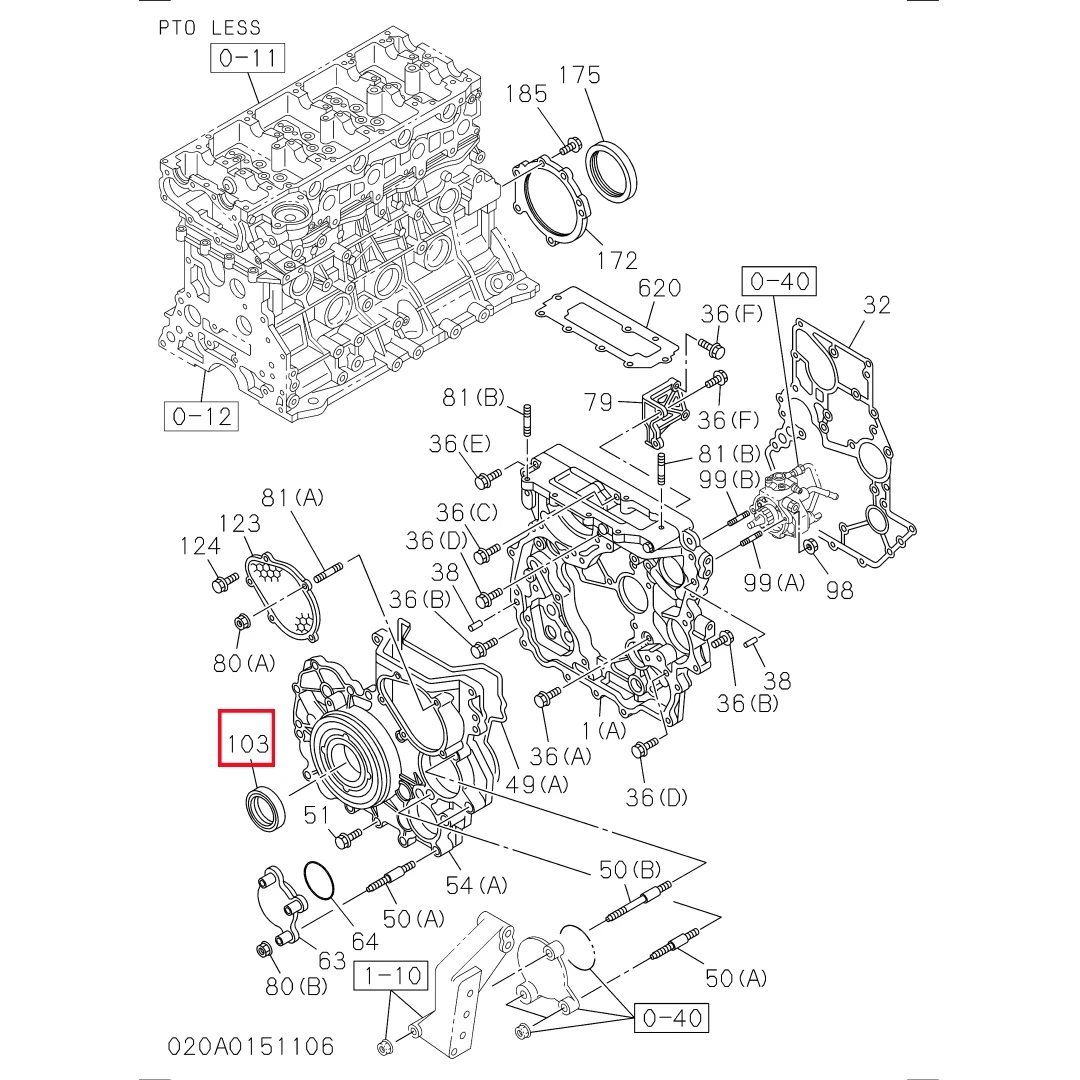

Part number 8973517040 (also known as 8-97351704-0) is an original crankshaft front oil seal specifically designed for Isuzu 4JJ1 diesel engines. This oil seal is a key dynamic sealing component at the junction of the front end of the engine crankcase and the timing cover or pulley, used to prevent engine oil from leaking outward along the front end of the crankshaft, while blocking external pollutants such as dust and moisture from entering the crankcase, ensuring the cleanliness and pressure balance of the lubrication system. As an original standard component, it is mainly suitable for Hitachi's various hydraulic excavators equipped with Isuzu 4JJ1 engines, such as ZX130-5A, ZX195-5A, ZX120-5A and other models.

The original crankshaft front oil seal belongs to the engine core dynamic seal. Its core function is to establish a durable and reliable sealing barrier between the high-speed rotating crankshaft front end and the stationary engine housing. It needs to withstand long-term high temperatures inside the engine (up to 120 ° C or above), chemical erosion of engine oil (including synthetic oil), and high-speed rotation and radial runout of the crankshaft. As an original part, it is usually made of high-quality oil resistant, high temperature resistant and anti-aging fluororubber (FKM) or silicone rubber materials, and is embedded with a metal framework and self tightening spring to ensure that the lip produces continuous and uniform radial pressure on the crankshaft journal to achieve dynamic sealing. Its precise inner diameter size, lip design, and anti slip texture on the outer edge ensure the firmness and sealing effectiveness after installation.

The maintenance core of the crankshaft front oil seal lies in regularly checking the sealing status, identifying early signs of faults, and standardizing replacement operations. Regular inspection: It is recommended to visually inspect the area around the front timing cover of the engine and under the crankshaft pulley for obvious oil stains, sludge, or dripping oil marks every 20000 kilometers or in combination with regular maintenance every 500 working hours. This is the most direct sign of oil seal aging, hardening, or lip wear. Fault symptoms: If continuous oil leakage is found at the front end of the engine, oil stains are attached to the timing belt or accessory belt, the engine produces abnormal "hissing" air leakage sound, or the oil consumption is abnormally accelerated, it should be highly suspected that the crankshaft front oil seal has failed.
