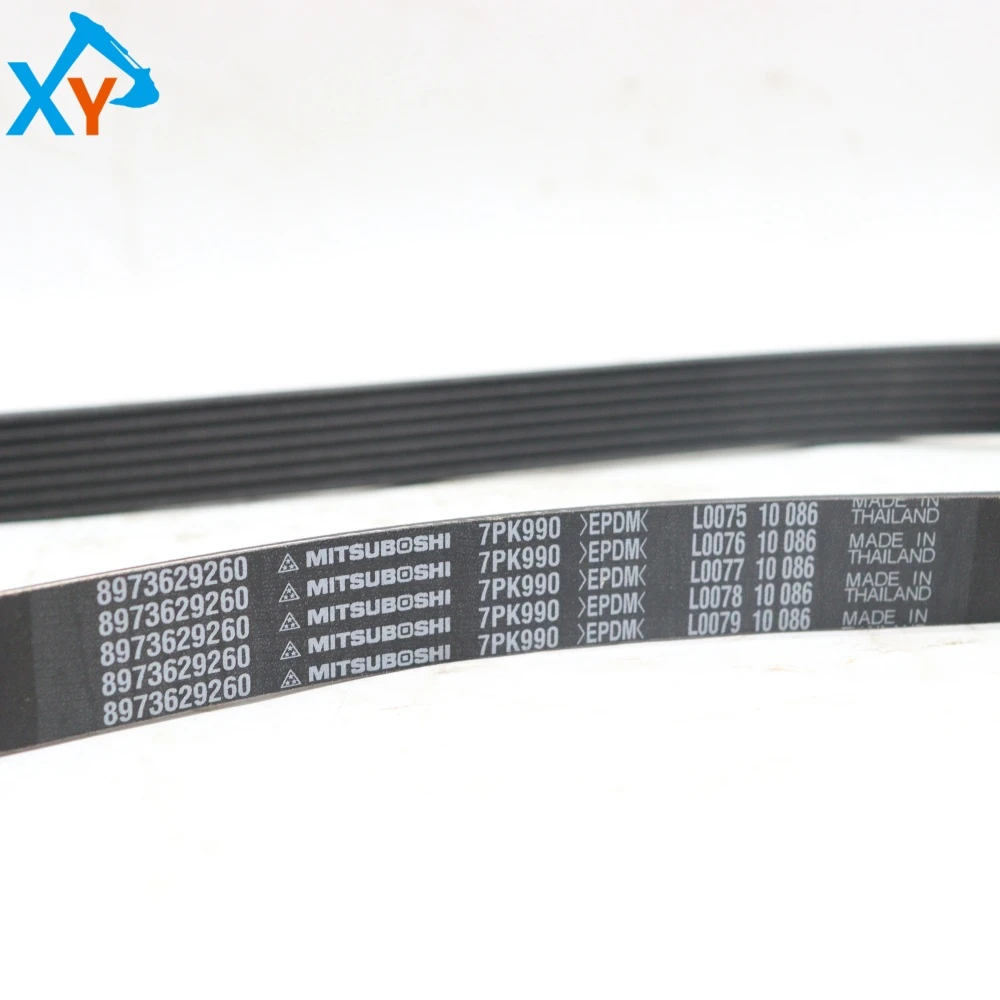

8973629260 Original Excavator Parts Cooling Fan Belt for ISUZU Engine 4JJ1

The Isuzu original engine cooling fan belt (universal part number: 8973629260) is a key transmission component designed specifically for excavators equipped with Isuzu engines. This original spare part is mainly suitable for various brands of excavators equipped with Isuzu 6BG1, 4BG1T, 4HK1X, and 4JJ1 series engines. The specific applicable models include but are not limited to: ZAXIS series such as Hitachi ZX200-3, ZX250-3, ZX330-3, Komatsu PC200-8, PC220-8 (equipped with Isuzu engine models), and other brand models that may use the same series of engines.


The cooling fan belt is the core transmission component of the engine cooling system. Its core function is to efficiently and reliably transmit the rotational power of the crankshaft pulley to the cooling fan water pump assembly, drive the fan to rotate at high speed, provide forced airflow to the radiator, and ensure effective heat dissipation of the engine coolant and hydraulic oil radiator, maintaining the engine within the optimal operating temperature range. As an original component, it is usually made of high-strength neoprene (CR) or hydrogenated nitrile rubber (HNBR), and embedded with high modulus polyester cord or aramid fiber as the skeleton material, with excellent heat resistance, oil resistance, aging resistance and fatigue resistance.


To ensure the long-term reliable operation of the cooling fan belt and ensure normal engine heat dissipation, regular inspections and preventive replacements are necessary. It is recommended to conduct a visual inspection every 250 hours of work or once a week to observe whether there are cracks, fissures, wear, delamination or rubber hardening on the back and tooth surfaces of the belt, and to check for abnormal wear on the side of the belt. At the same time, use a dedicated belt tension gauge to check its tension. If it is too loose, it can cause slipping, insufficient fan speed, and engine overheating; If it is too tight, it will exacerbate the wear of the belt, tensioning wheel, and water pump bearing. It is usually recommended to perform preventive replacement every 2000-3000 working hours or every two years (whichever comes first).
