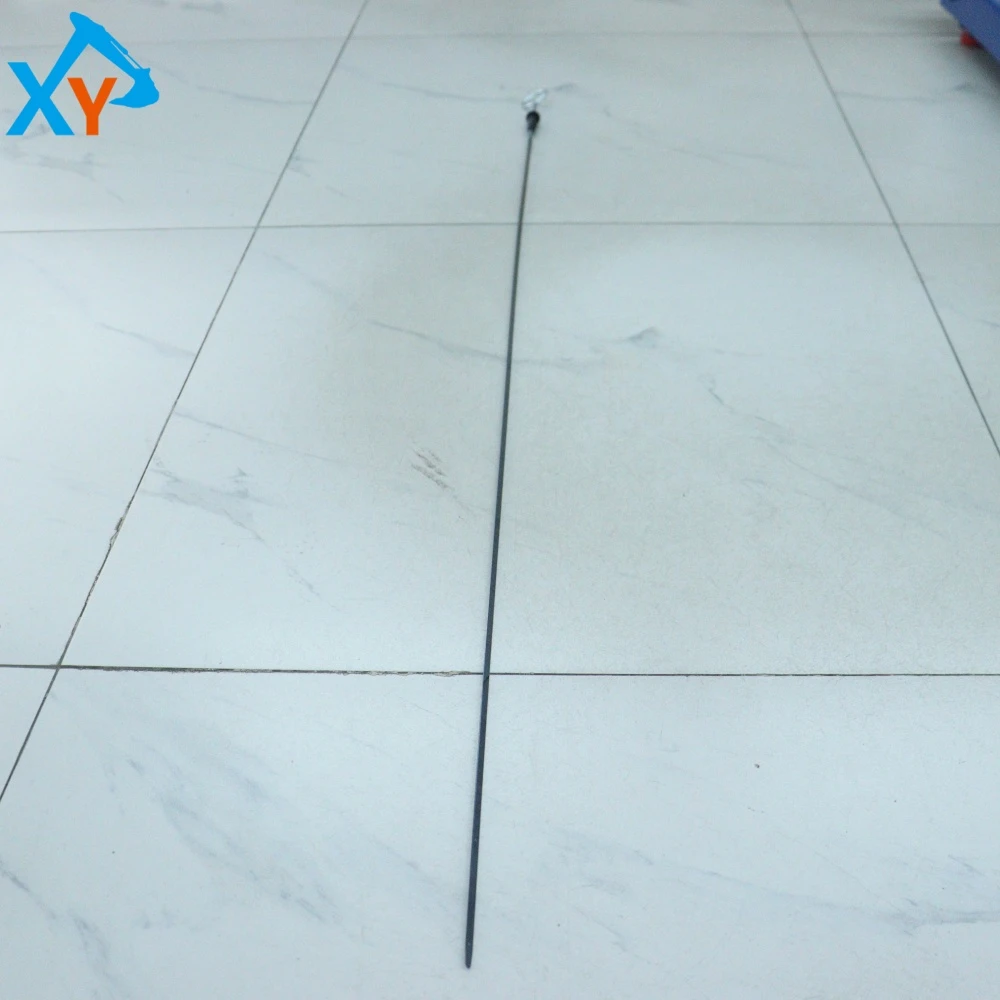

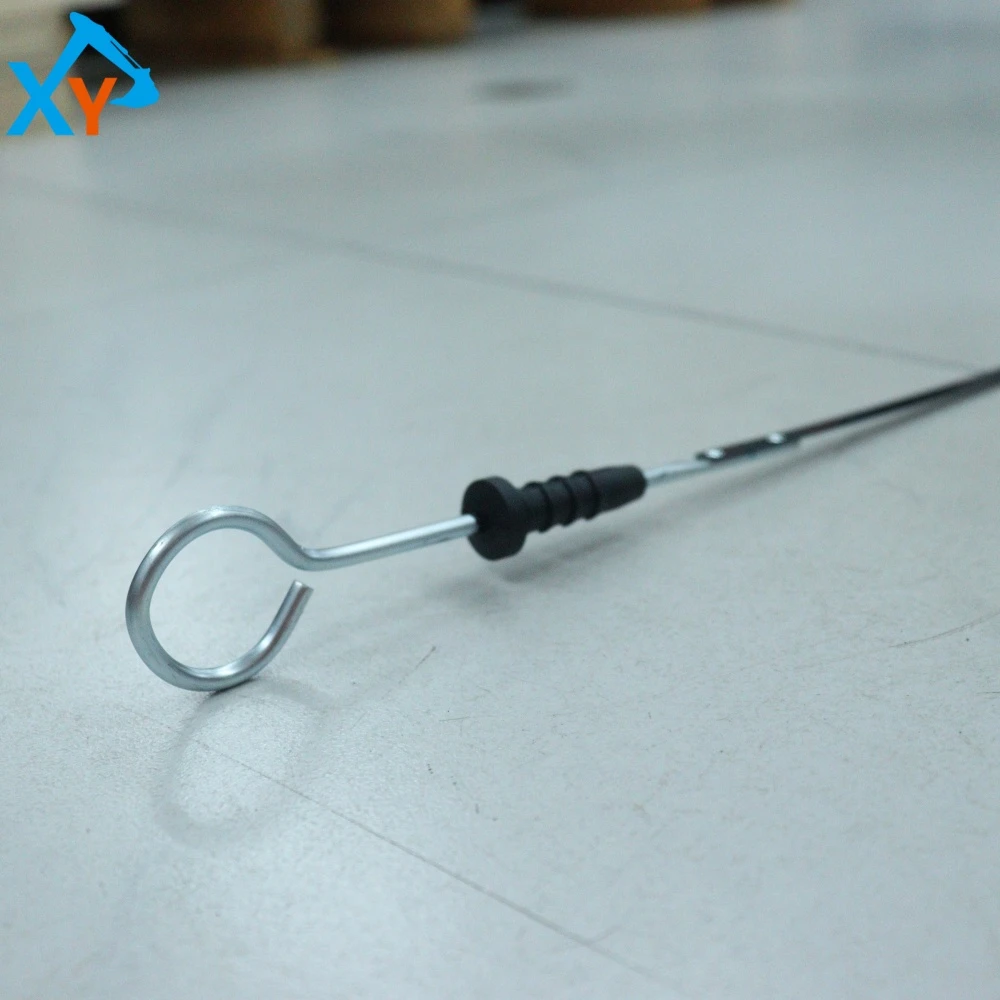

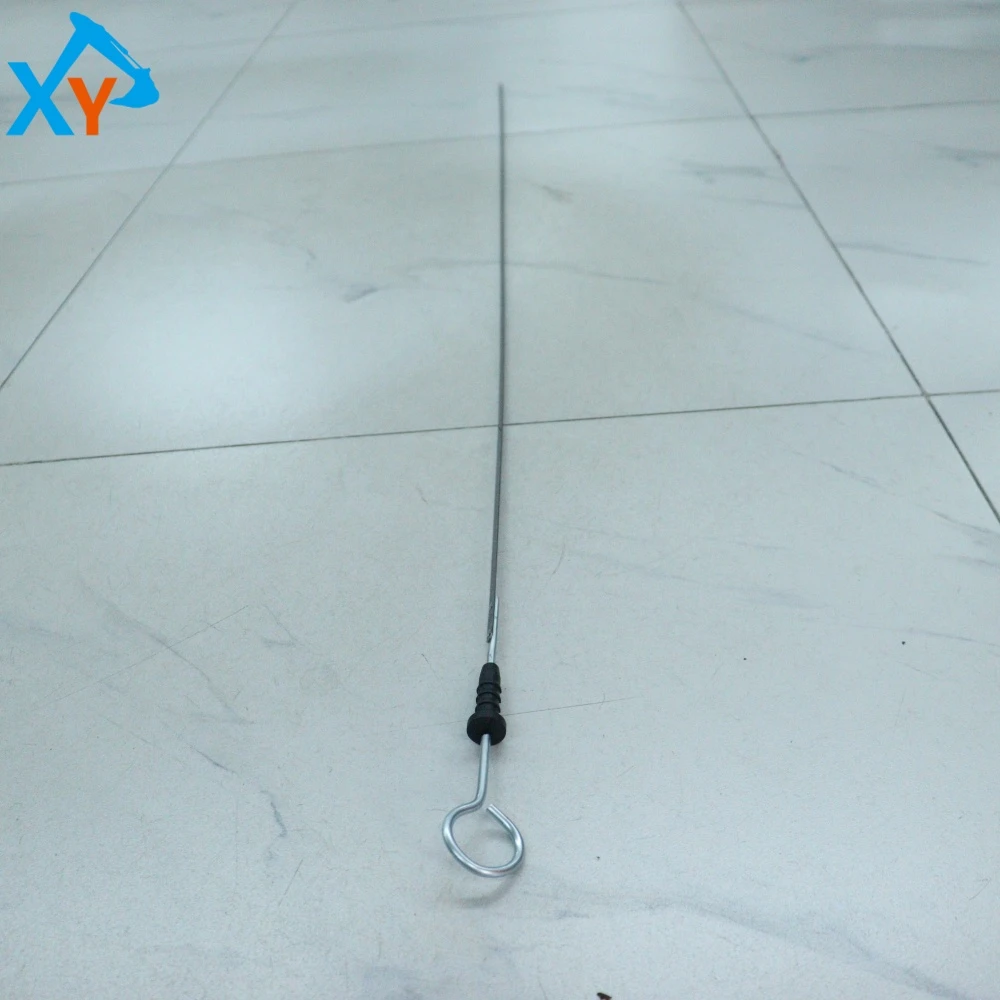

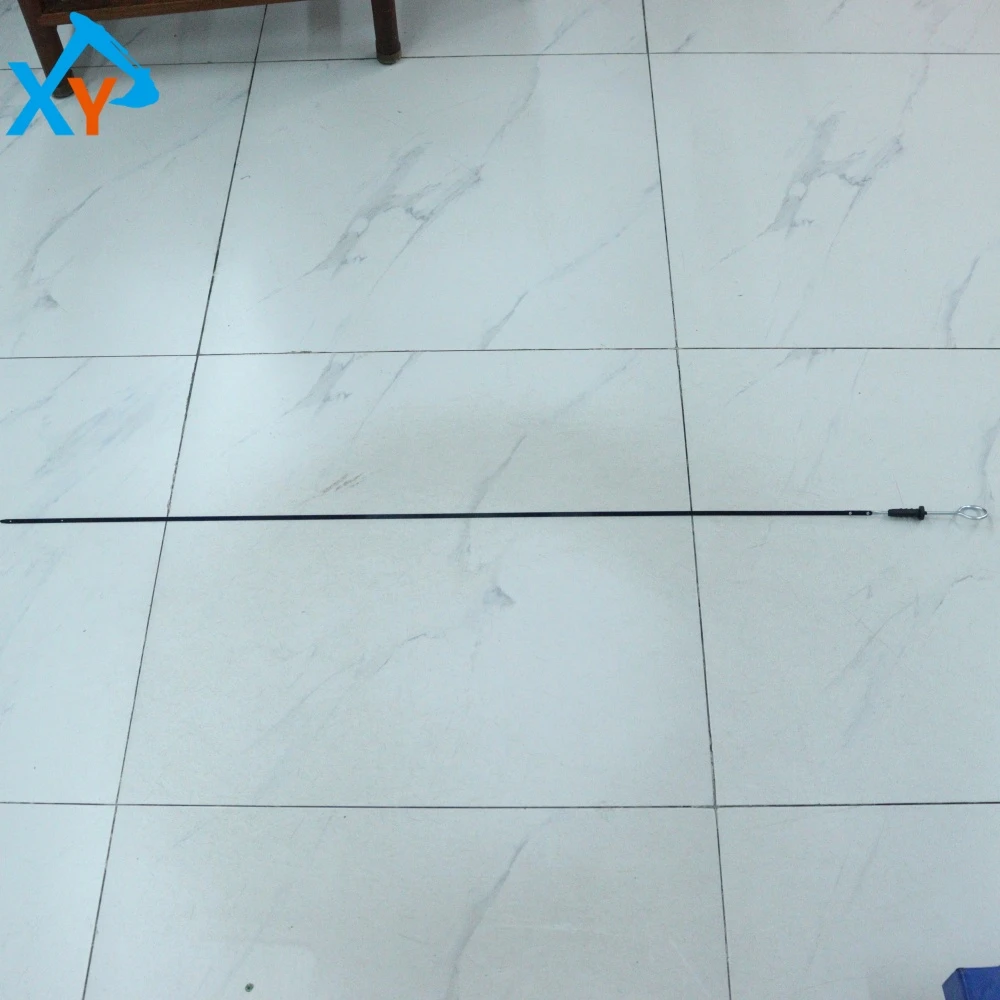

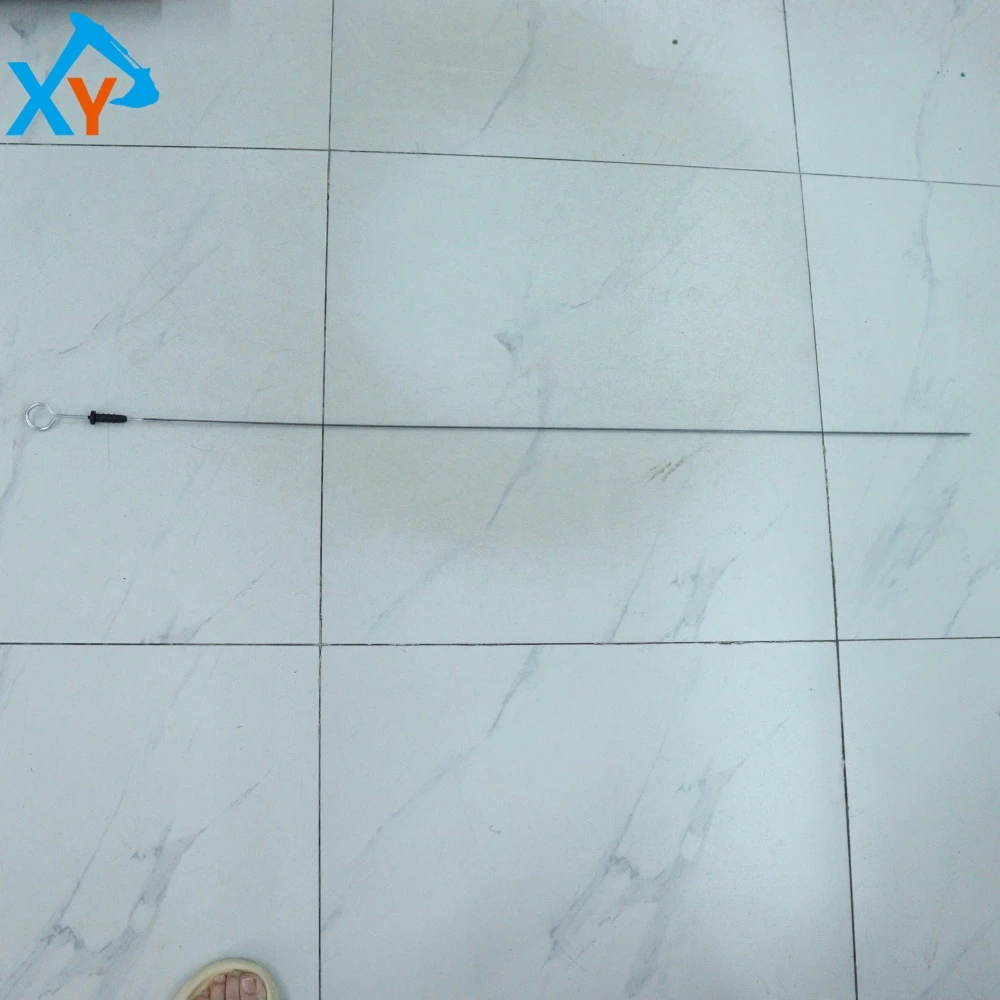

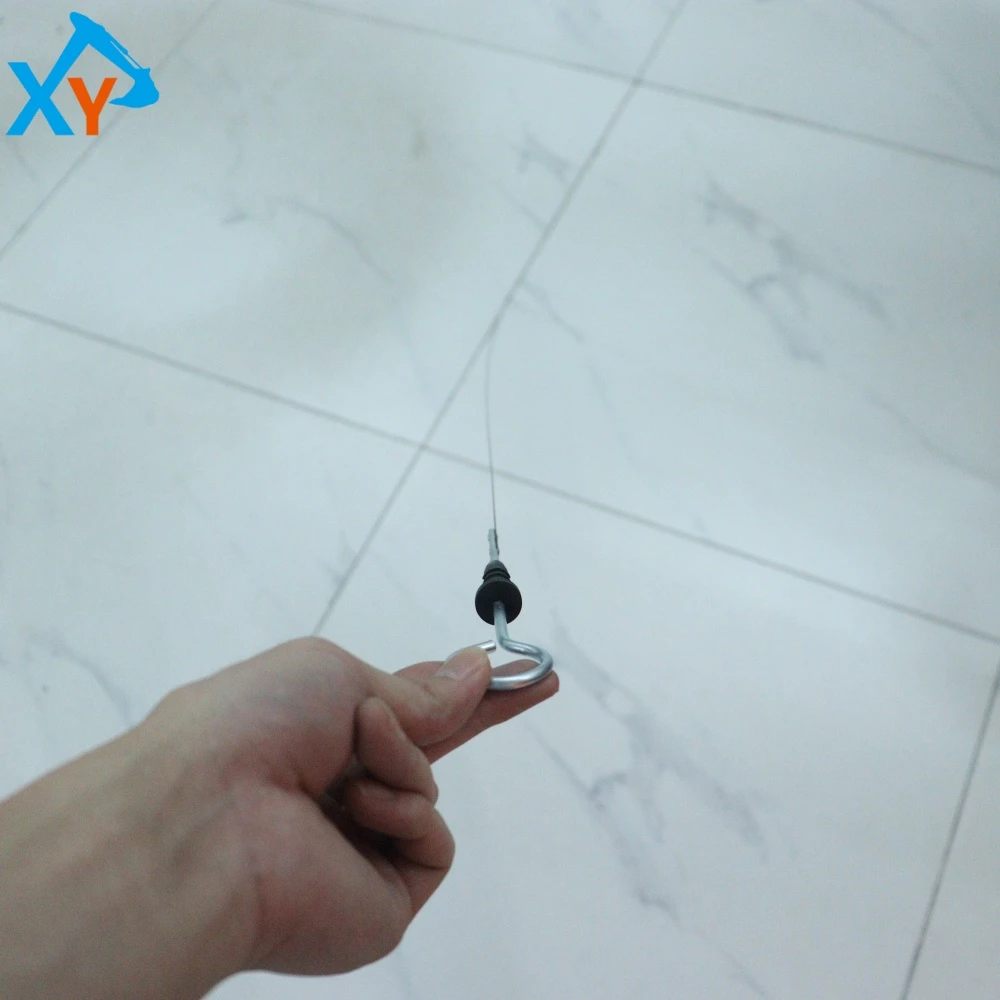

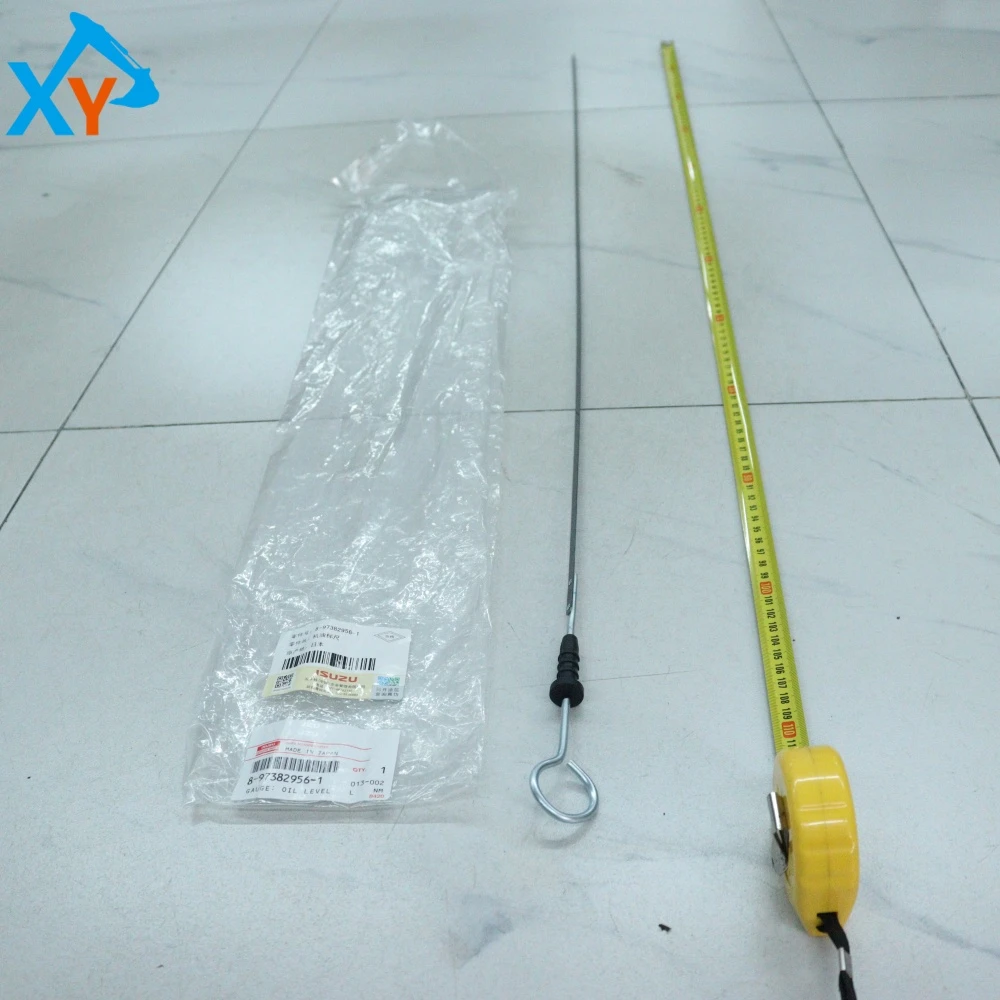

8973829561 Original Excavator Isuzu 4HK1 Engine Oil Dipstick

Part number 8973829561 is an original oil dipstick specifically designed for the Isuzu 4HK1 diesel engine. This component is a key inspection tool for the engine lubrication system, used to quickly and accurately measure the oil level in the engine oil pan, ensuring that the oil level is within a safe range (usually between the "L" low mark and the "H" high mark on the dipstick). It is an essential item for daily maintenance and fault diagnosis. As an original standard component, it is mainly suitable for Hitachi's various hydraulic excavators equipped with Isuzu 4HK1 engine, such as ZX200-3, ZX240-3, ZX270-3, ZX330-3, ZX350-3 and other models.

This original oil dipstick is a daily inspection and monitoring tool for engines. Its core function is to provide a simple and intuitive method for operators and maintenance personnel to monitor engine oil inventory. It is usually composed of high-quality stainless steel or engineering plastic handles that are resistant to oil and high temperatures, as well as steel or alloy rulers with clear and wear-resistant scales. As an original component, its total length, bending angle, and scale position have been accurately calculated, perfectly corresponding to the specific engine's oil pan structure and oil capacity. Its design can maintain a straight ruler and clear and readable markings in the environment of long-term high temperature, vibration, and contact with engine oil, which is the foundation and important component to ensure correct lubrication of the engine and prevent serious faults such as cylinder pulling and tile burning caused by lack of oil or excessive oil.

The maintenance core of this oil dipstick lies in regularly and standardly using it for inspection, and maintaining its own cleanliness and integrity. Inspection standard: According to the Hitachi excavator operation manual, the oil level should be checked after the engine has stopped running and parked horizontally for at least 30 minutes. When operating, first pull out the oil dipstick, wipe it clean with a clean and lint free cloth, then fully insert it back, and after pulling it out again, horizontally observe the position of the oil mark on the dipstick body. The liquid level should be between the "H" and "L" markings. If it is below "L", the same specification of engine oil should be added in a timely manner. If it is above "H", excess engine oil should be released.
