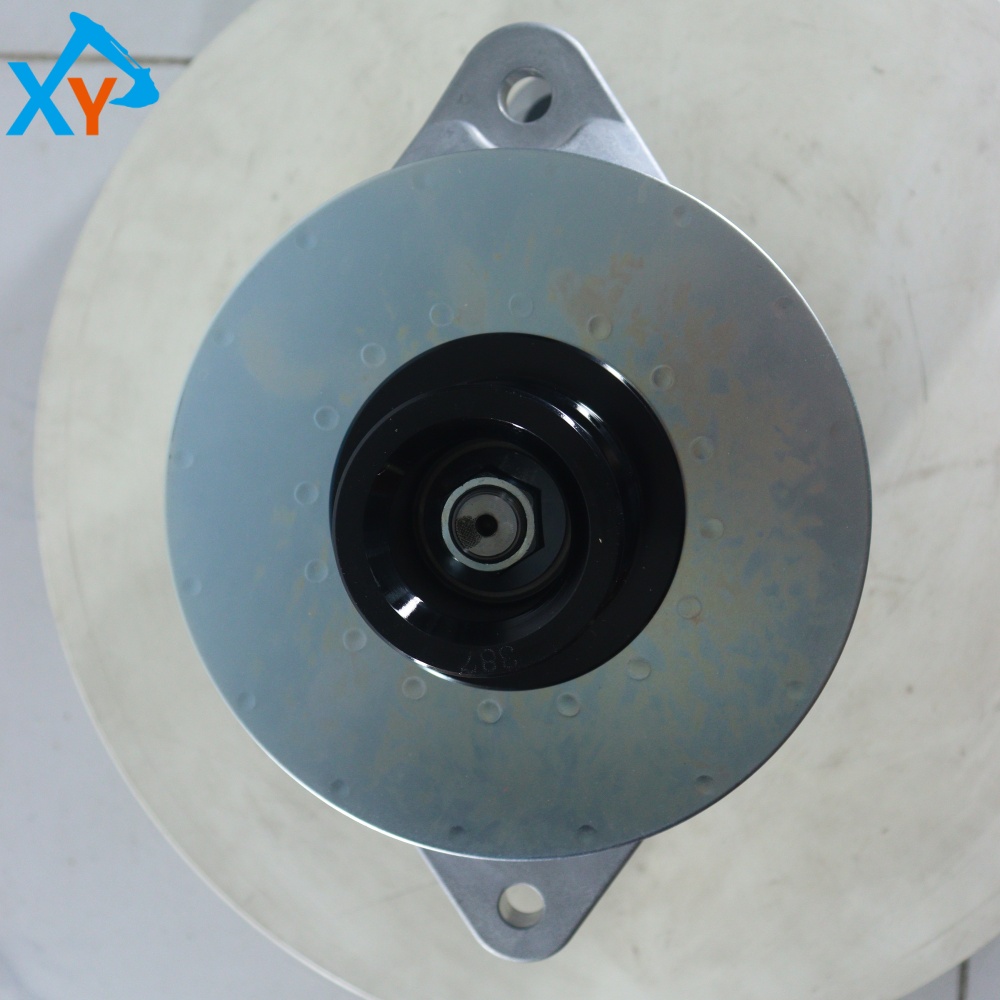

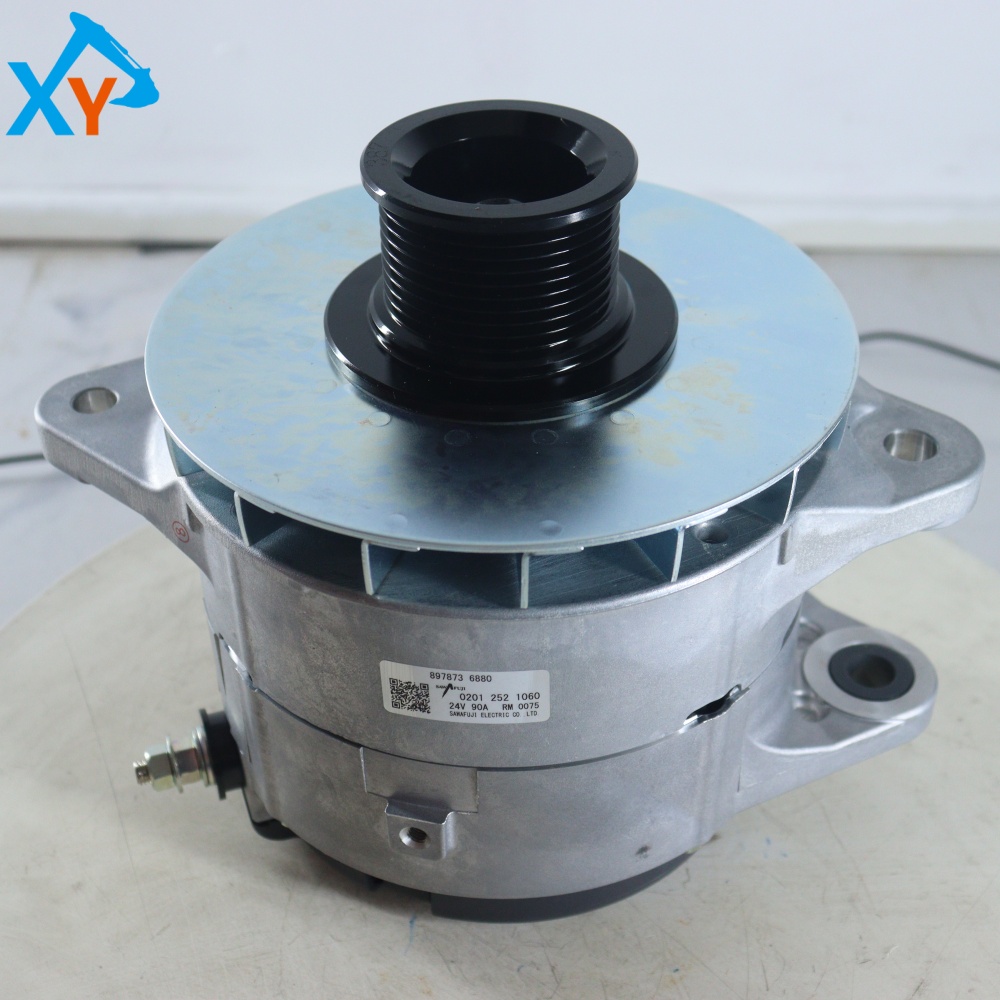

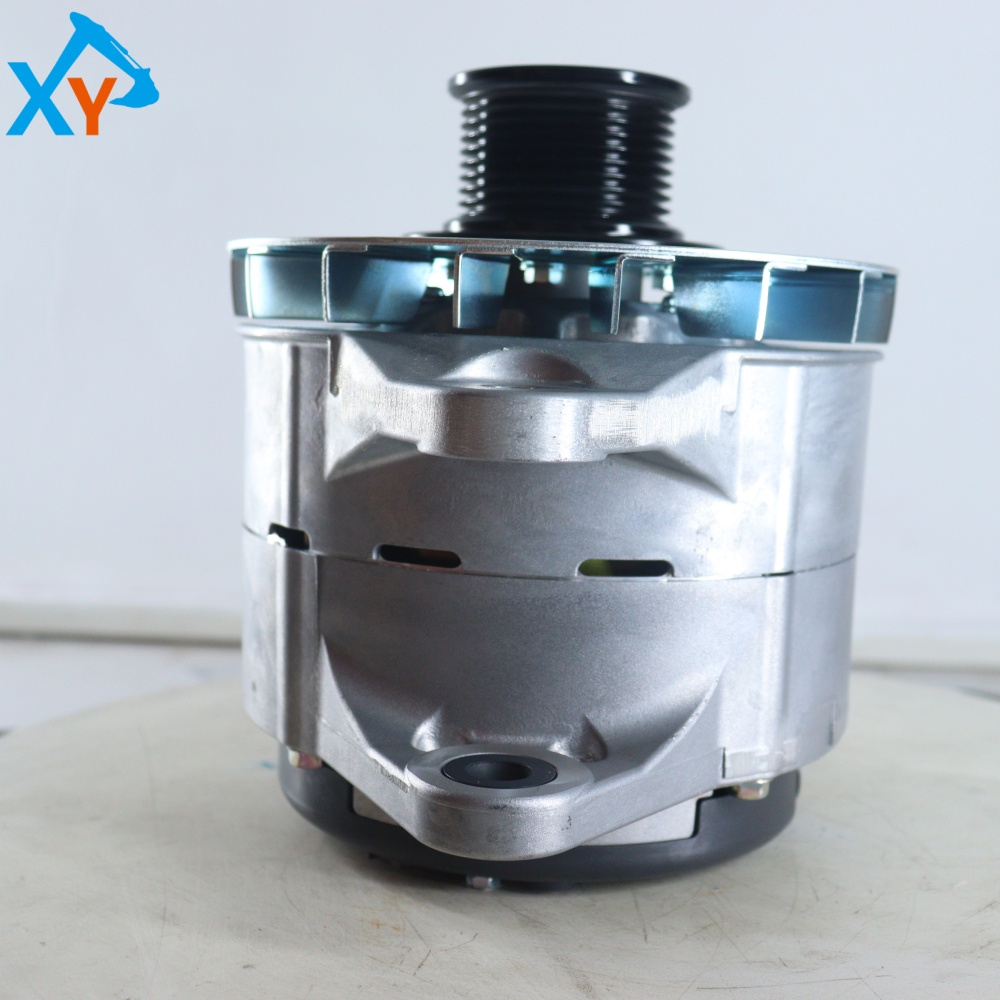

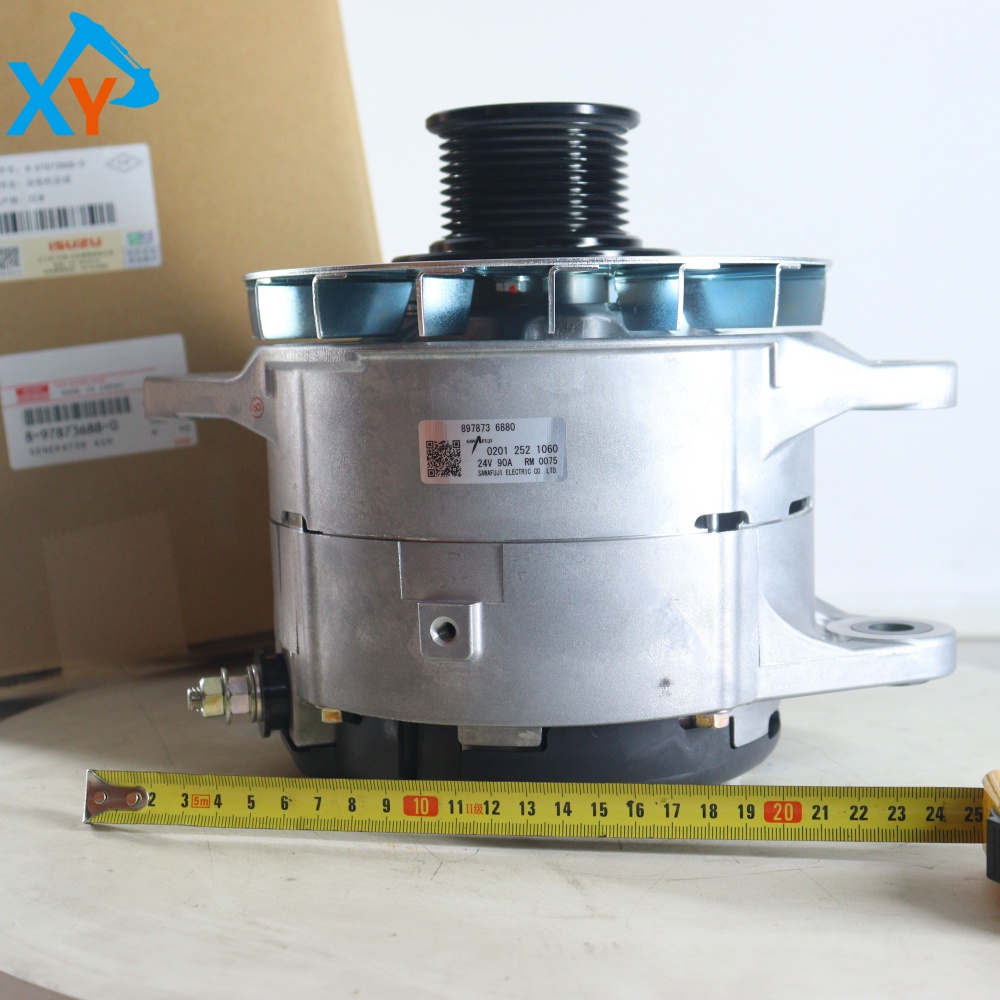

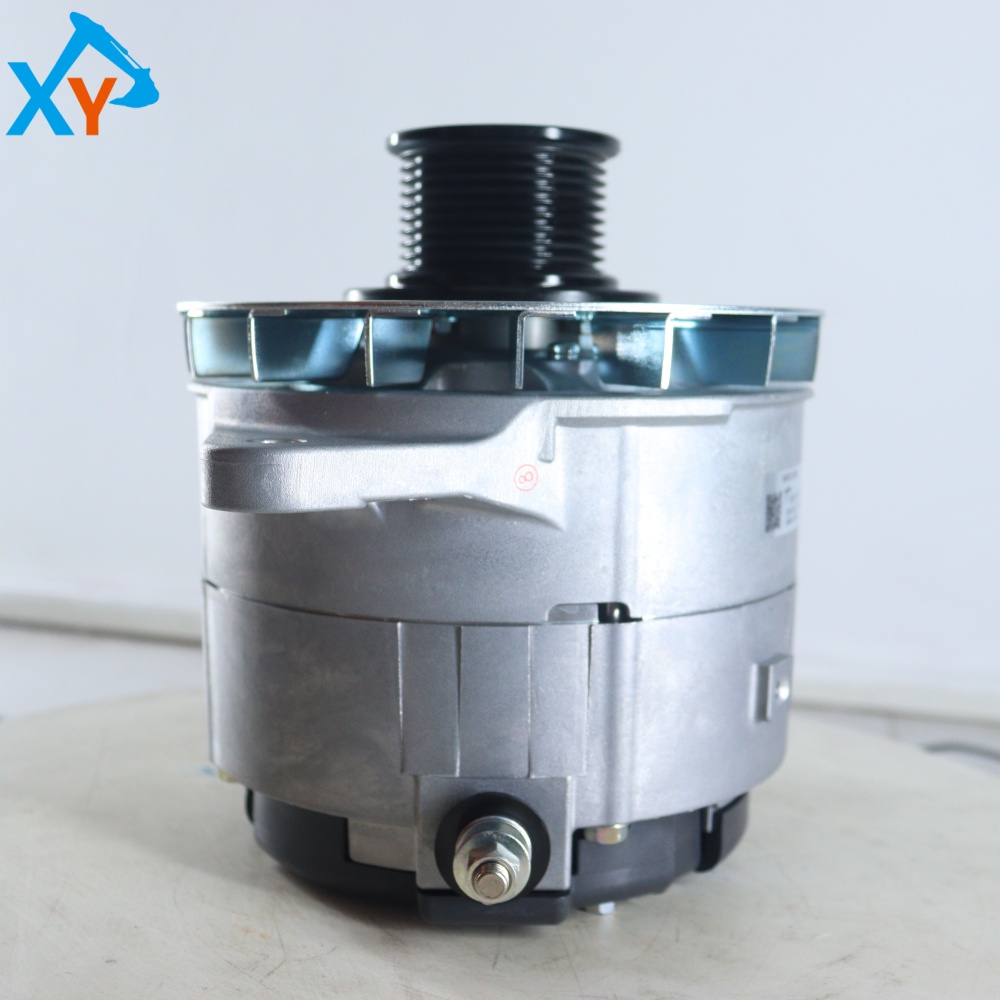

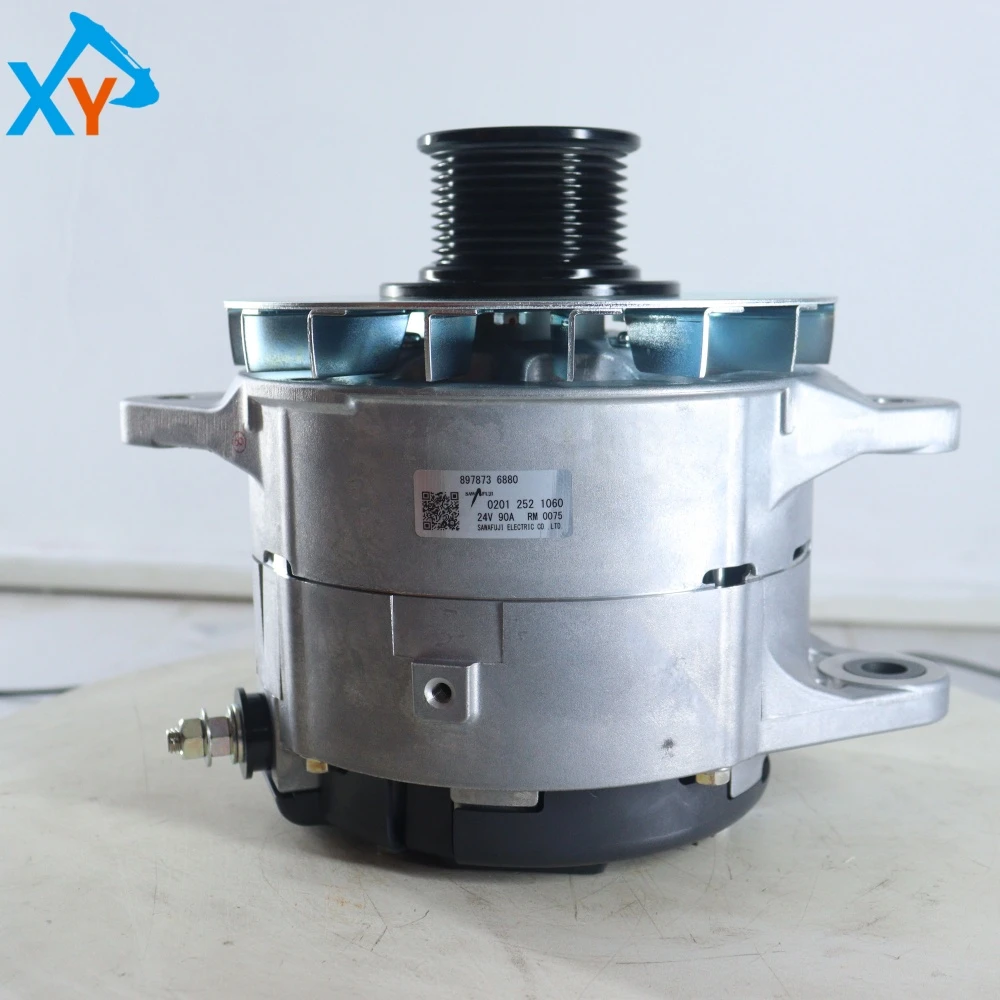

8978736880 Original Isuzu 6WG1 Engine dynamo for Excavator

Part number 8978736880 is an original generator specifically designed for Isuzu 6WG1 series diesel engines. This engine is widely used in multiple Hitachi large hydraulic excavators. According to publicly available accessory information, the main compatible models include Hitachi ZX870, ZX850-3, ZX670-3 and other large excavators. In addition, the generator is also suitable for some XCMG XE370CA excavators and Isuzu engineering machinery. The original part number is 8978736880, which should be used as the reference for procurement.

This generator is the core power supply component of the electrical system of construction machinery. Its core function is to generate stable DC power through belt drive when the engine is running, charge the vehicle's battery, and provide power to all electrical equipment such as lighting, instruments, controllers, air conditioning, etc. As an original component, it is usually designed with a high-performance AC generator, with a rated voltage of 28V and a rated output current of 50A (some data shows 24V 90A, depending on the actual model). It integrates a voltage regulator (IC regulator) internally, which can automatically maintain the stability of the output voltage and prevent overcharging or depletion of the battery.

The maintenance core of this generator lies in regularly checking its working condition, ensuring belt tension, and cleaning the exterior. It is recommended to check every 250 working hours, with a focus on checking the tension and wear of the drive belt. Loose belts can cause slipping and insufficient power generation, while tight belts can exacerbate bearing wear. Cleaning and maintenance: Regularly clean the dust and oil stains on the outside of the generator with compressed air or a brush to ensure smooth ventilation and prevent overheating. Performance testing: Every 1000 working hours or annually, a multimeter should be used to measure the output voltage of the generator at idle and rated speed, which should normally be within the range of 28V ± 0.5V.
