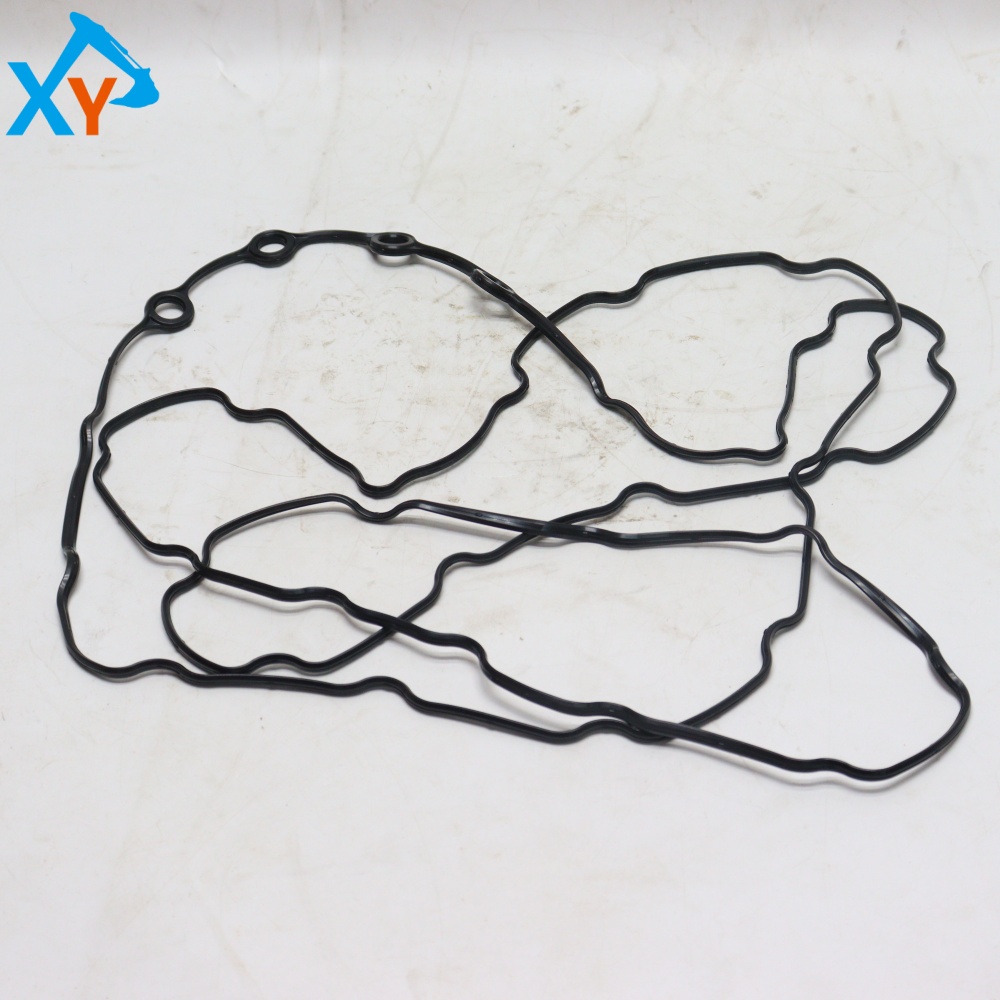

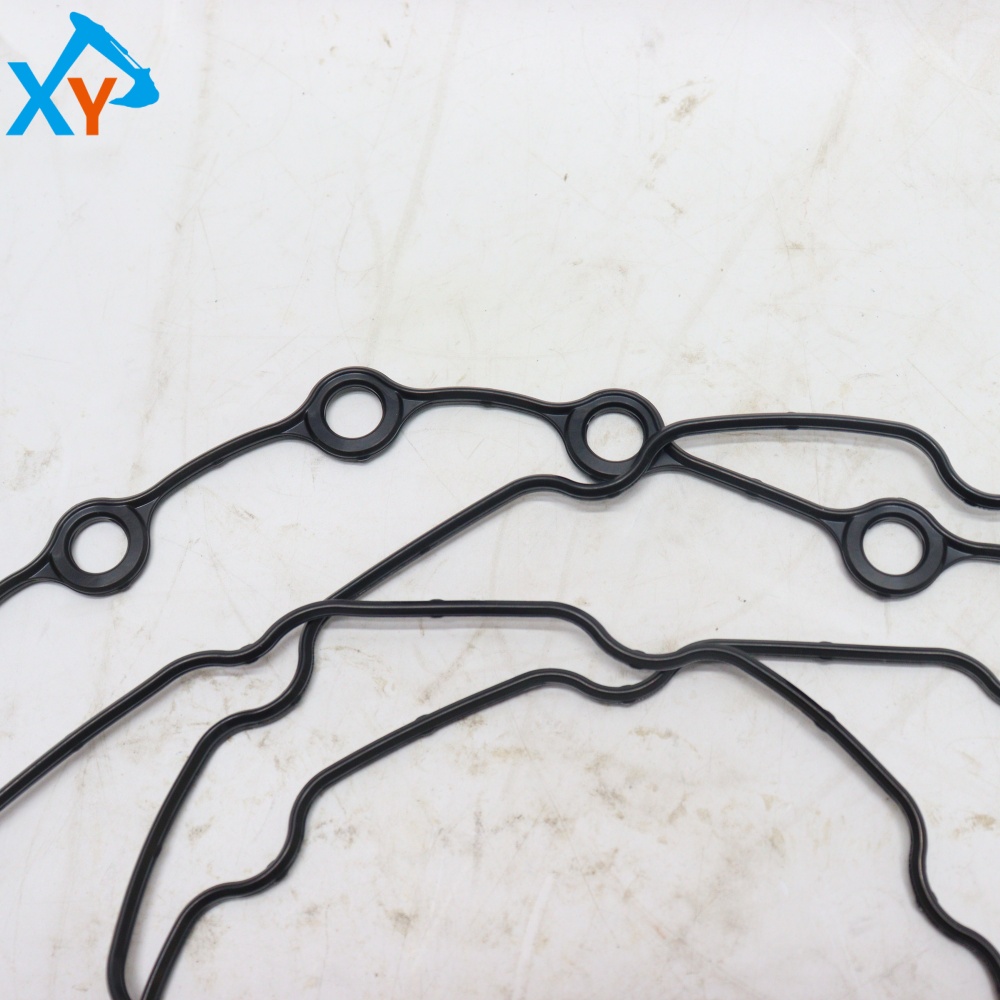

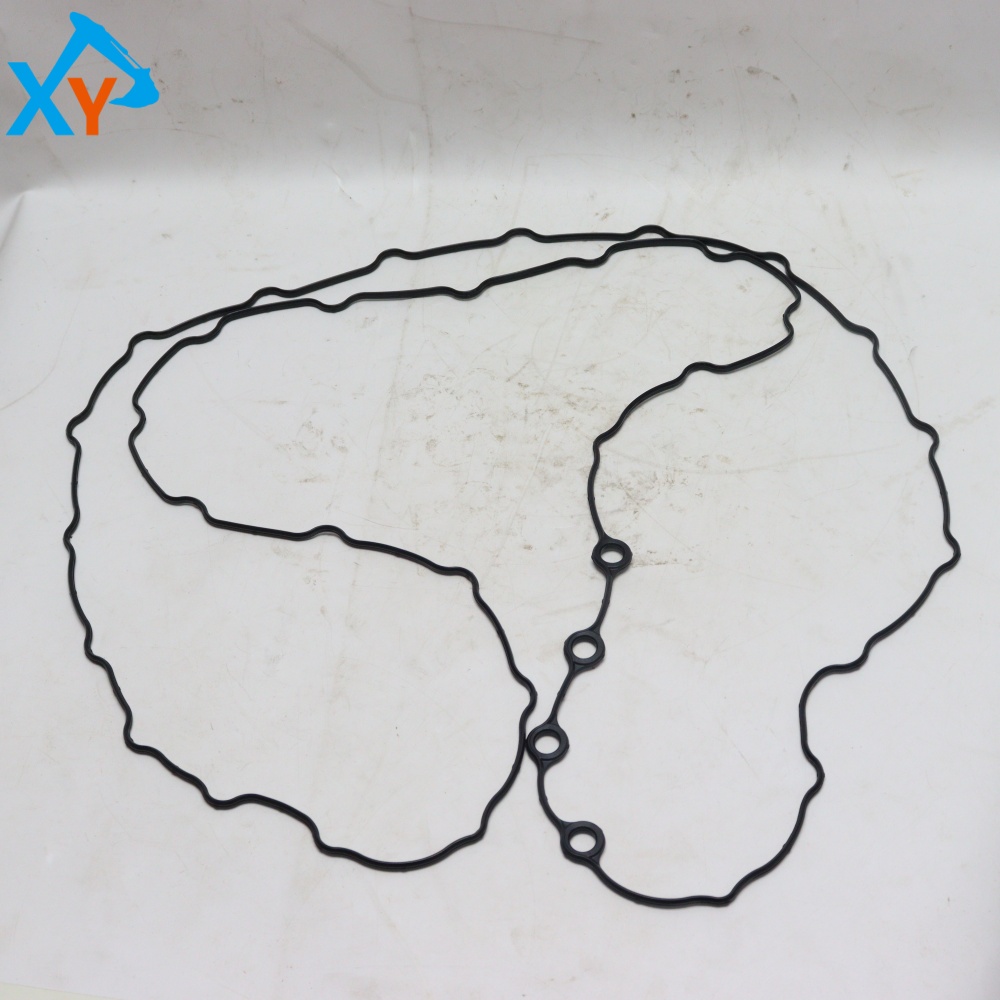

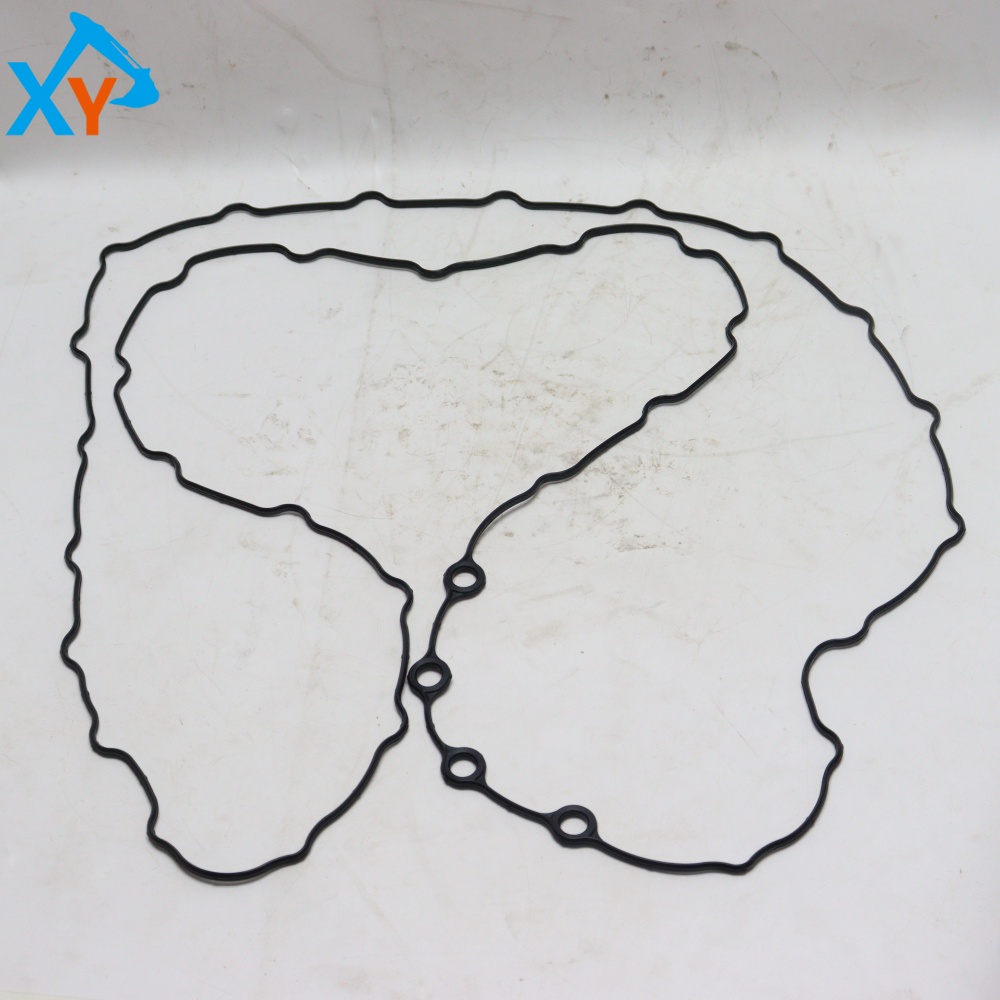

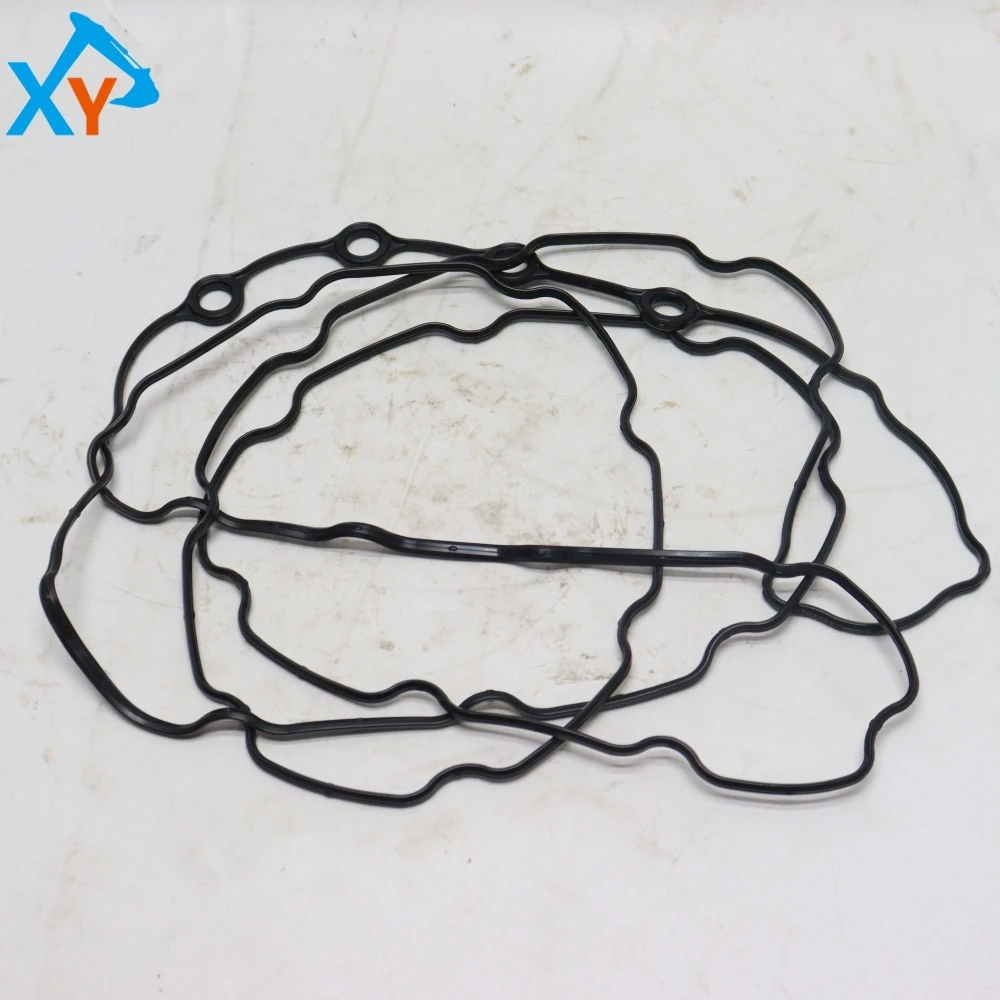

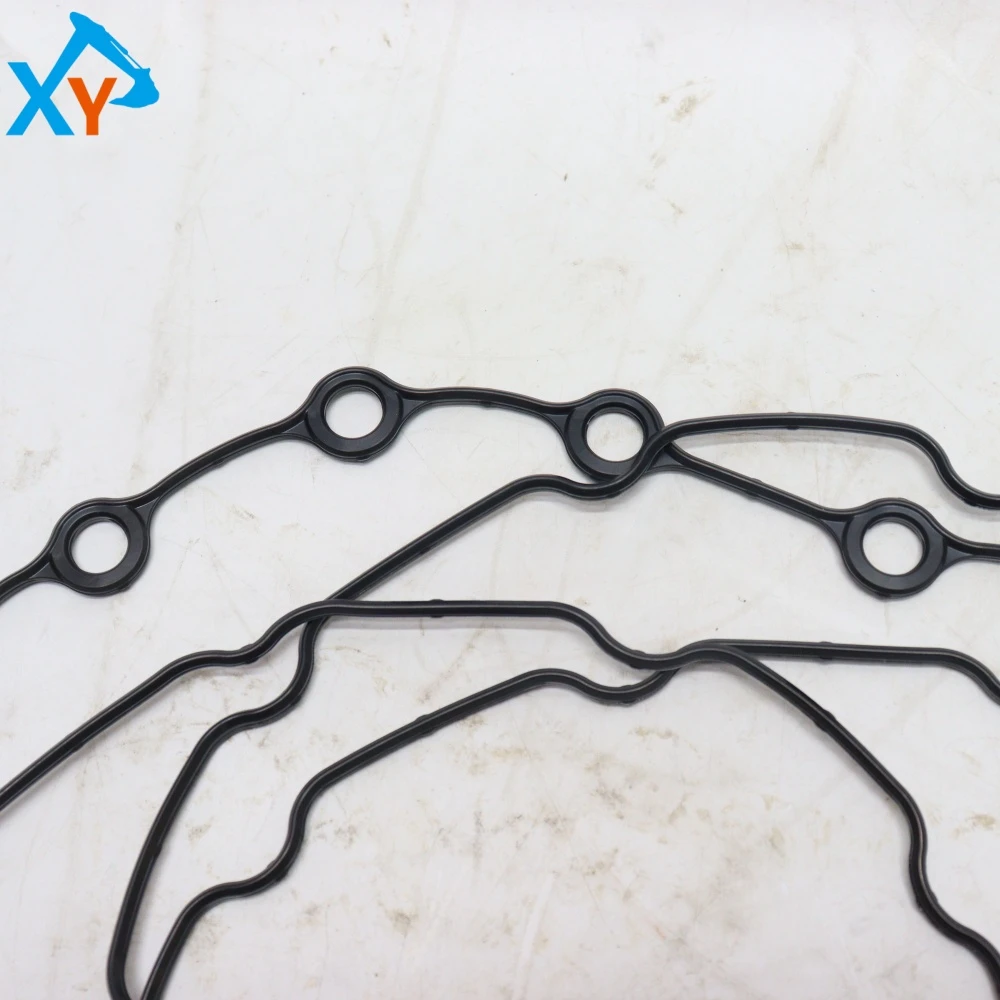

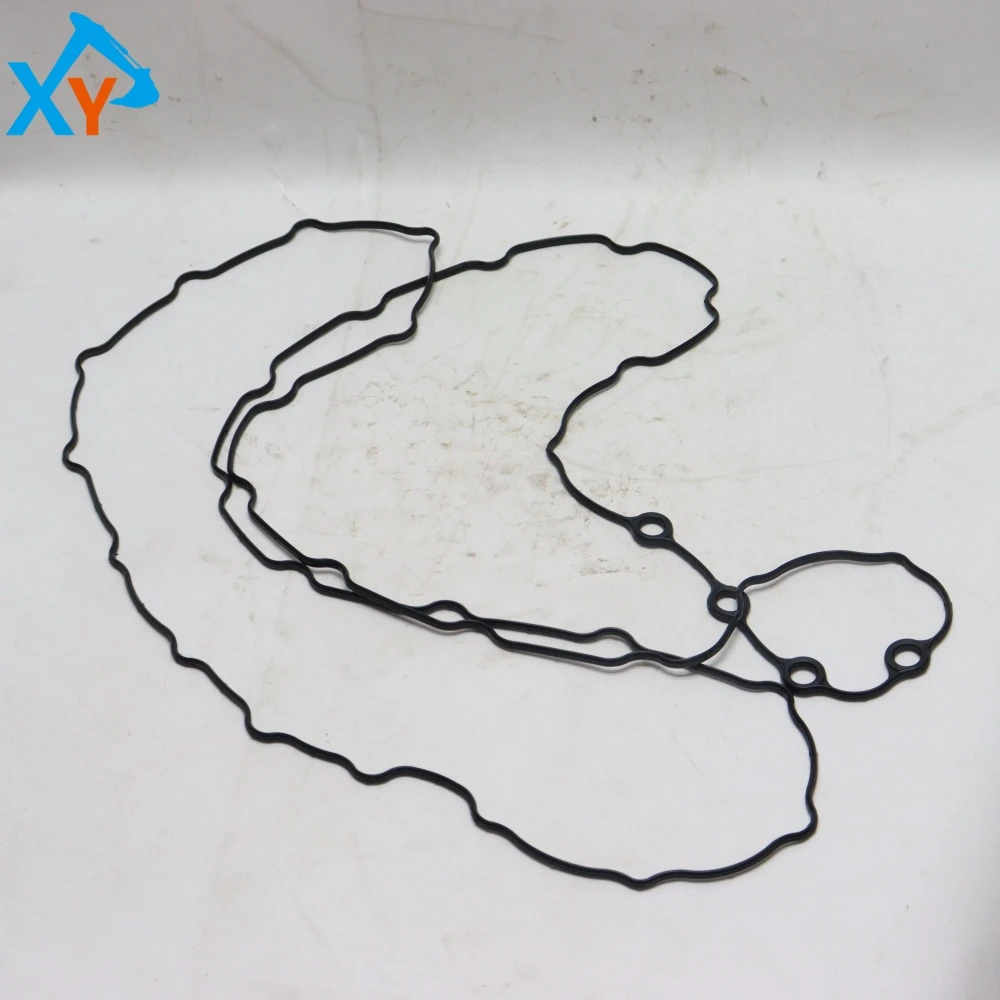

8980630320 Original 6WG1 Engine Parts GASKET for Isuzu

Part number 8980630320 (also commonly written as 8-98063032-0) is an original genuine accessory from Isuzu, specifically designed as an oil pan gasket for 6WG1 series diesel engines. This engine is widely used in Isuzu heavy-duty excavators and some construction machinery that use Isuzu powertrains. This gasket is a key component of the engine bottom seal, and its universal part number is this number.

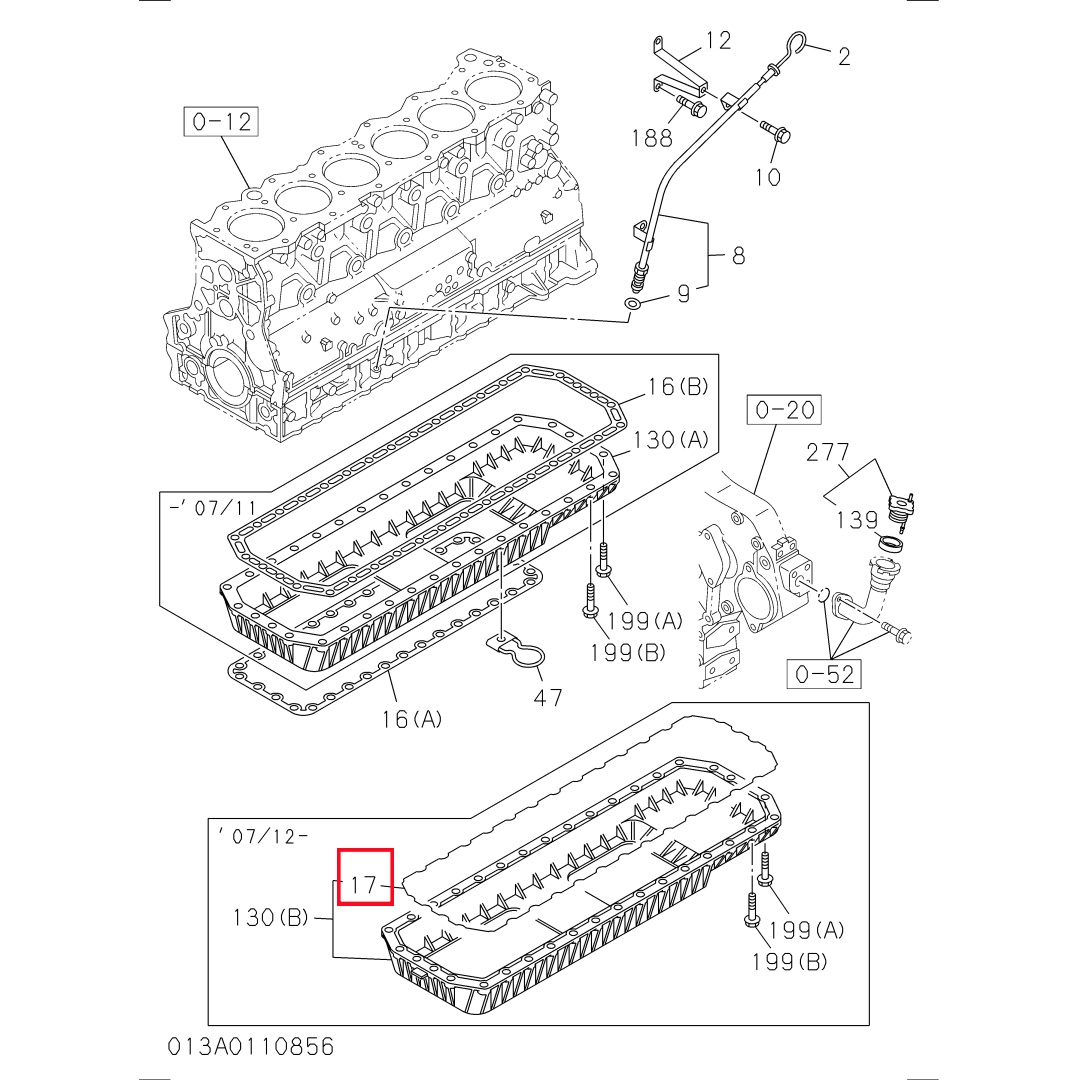

This product is a flat sealing gasket between the engine oil pan and the cylinder block joint surface, with the core function of preventing oil leakage from the joint. Usually made of multi-layer composite materials, the common structure is a middle metal skeleton (such as steel sheet) with oil resistant rubber or flexible graphite layers on both sides. This design endows it with excellent elastic compensation capability, which can adapt to the slight deformation caused by thermal expansion, contraction, and mechanical vibration at the joint surface between the cylinder body and the oil pan. The gasket itself has excellent oil resistance, high temperature resistance (long-term operation in an oil temperature environment above 100 ° C) and anti-aging performance. The original parts ensure uniform thickness and precise size, and are pre coated with positioning glue or anti sticking coating, making it easy to install and achieve instant sealing. It is a key component to ensure the reliability of engine bottom sealing.

Before installation, it is necessary to thoroughly remove all old gasket residues, oil stains, and sealant on the lower surface of the cylinder block and the installation surface of the oil pan using a scraper and cleaning agent, ensuring that the installation surface is absolutely flat, clean, and dry. During installation, place the new gasket (8980630320) flat on the cylinder block locating pin or corresponding position, paying attention to both sides. Tighten the oil pan bolts according to the order and torque specified in the maintenance manual (usually cross tightening or staged tightening) to avoid local deformation of the gasket due to uneven force and leakage. After installation, add engine oil and start the engine. After running to normal operating temperature, carefully check for leaks around the gasket. In daily maintenance, the area should be visually inspected every time the oil is changed. The timing for replacement is every major overhaul of the engine, disassembly of the oil pan, or discovery of persistent oil leakage in that area.
