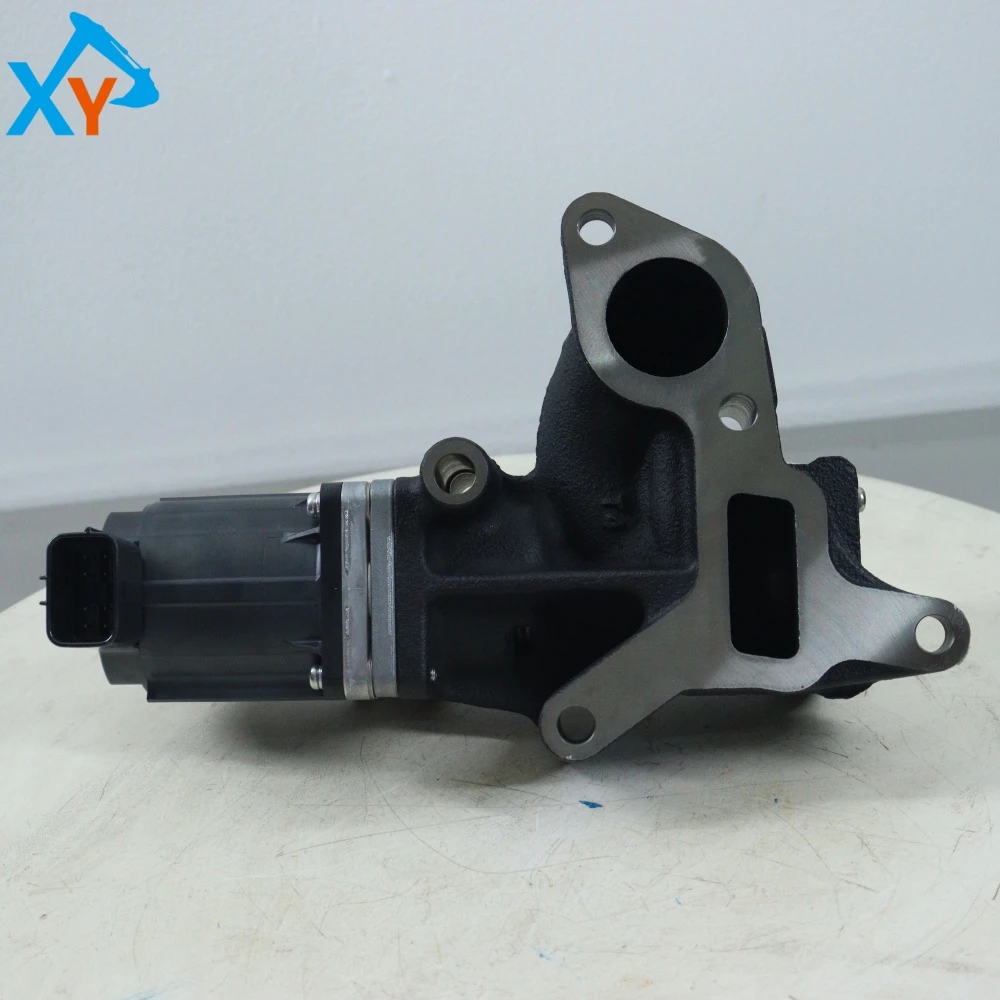

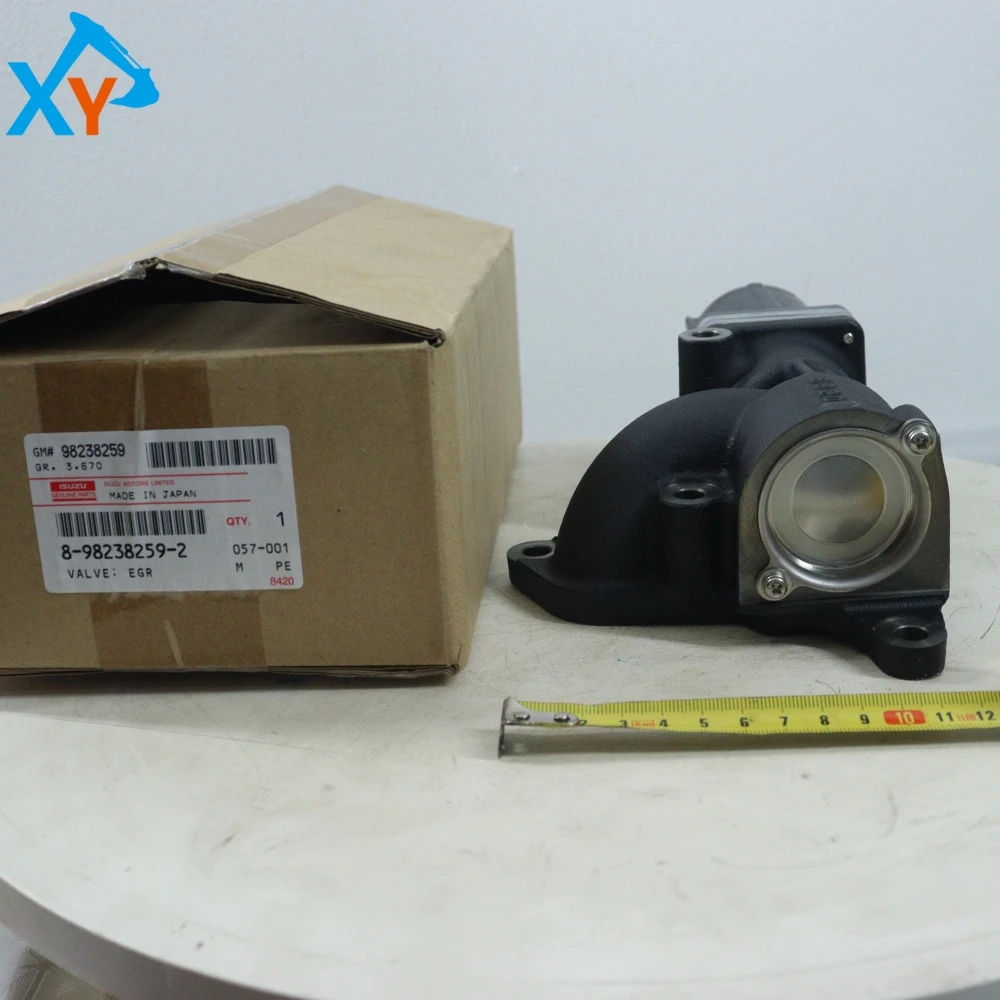

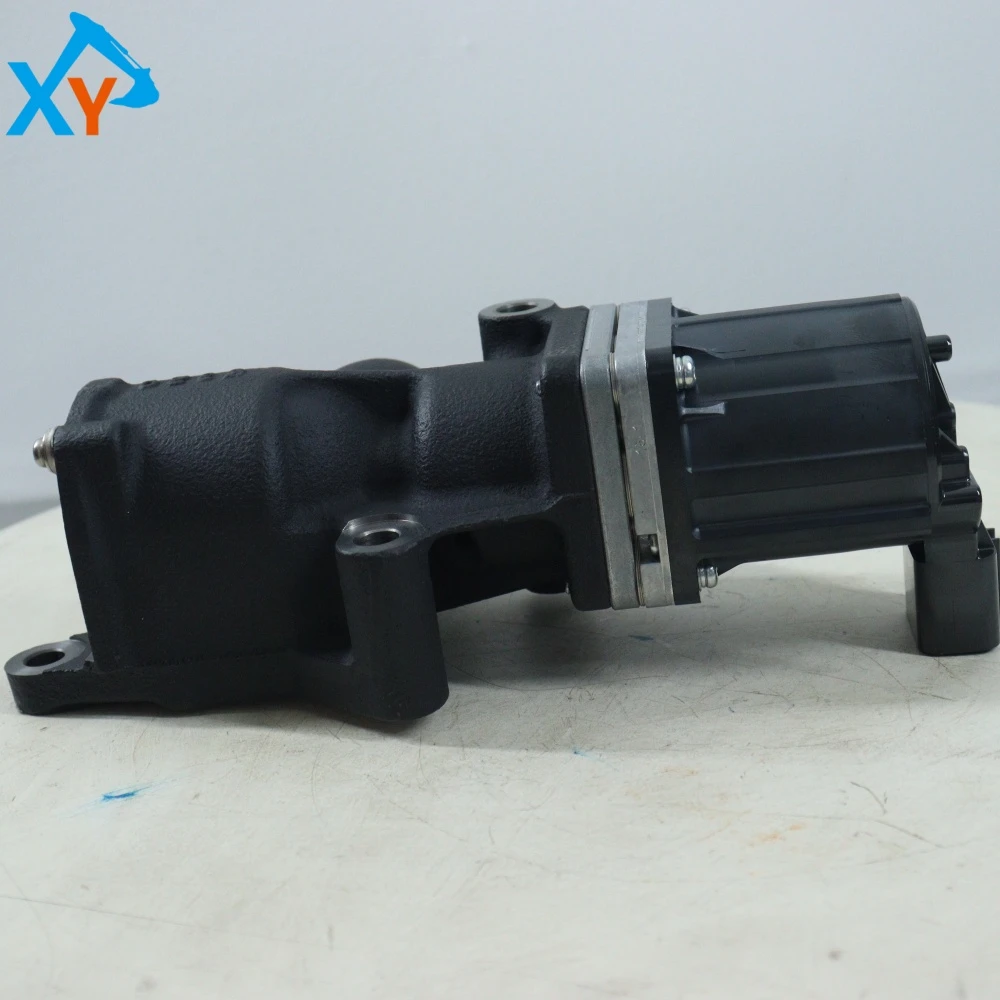

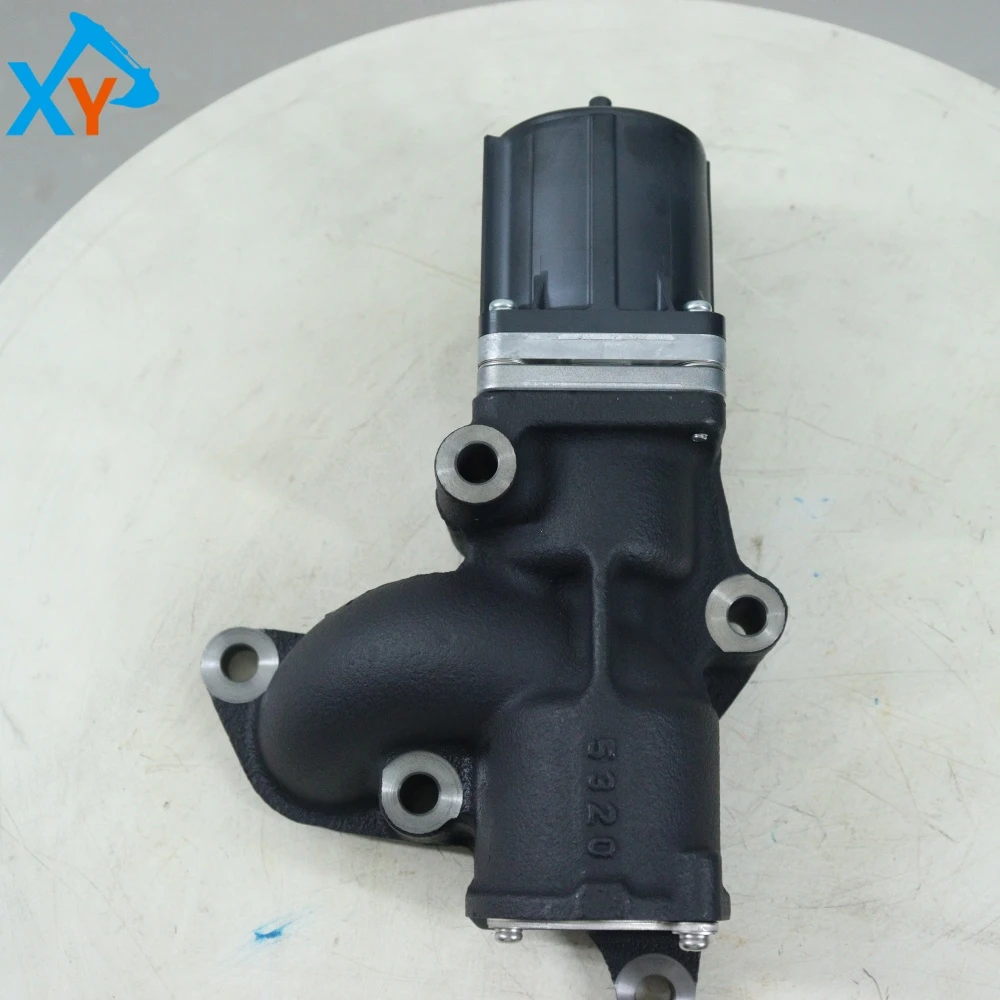

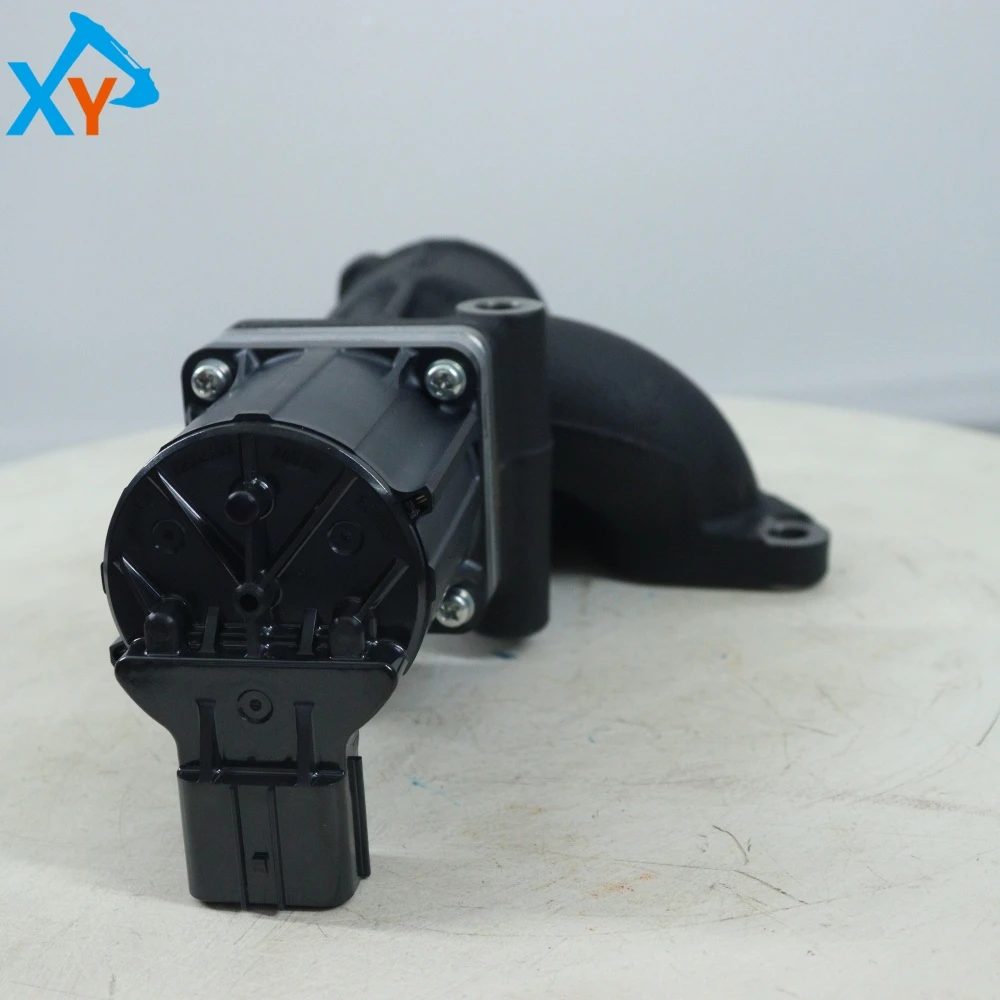

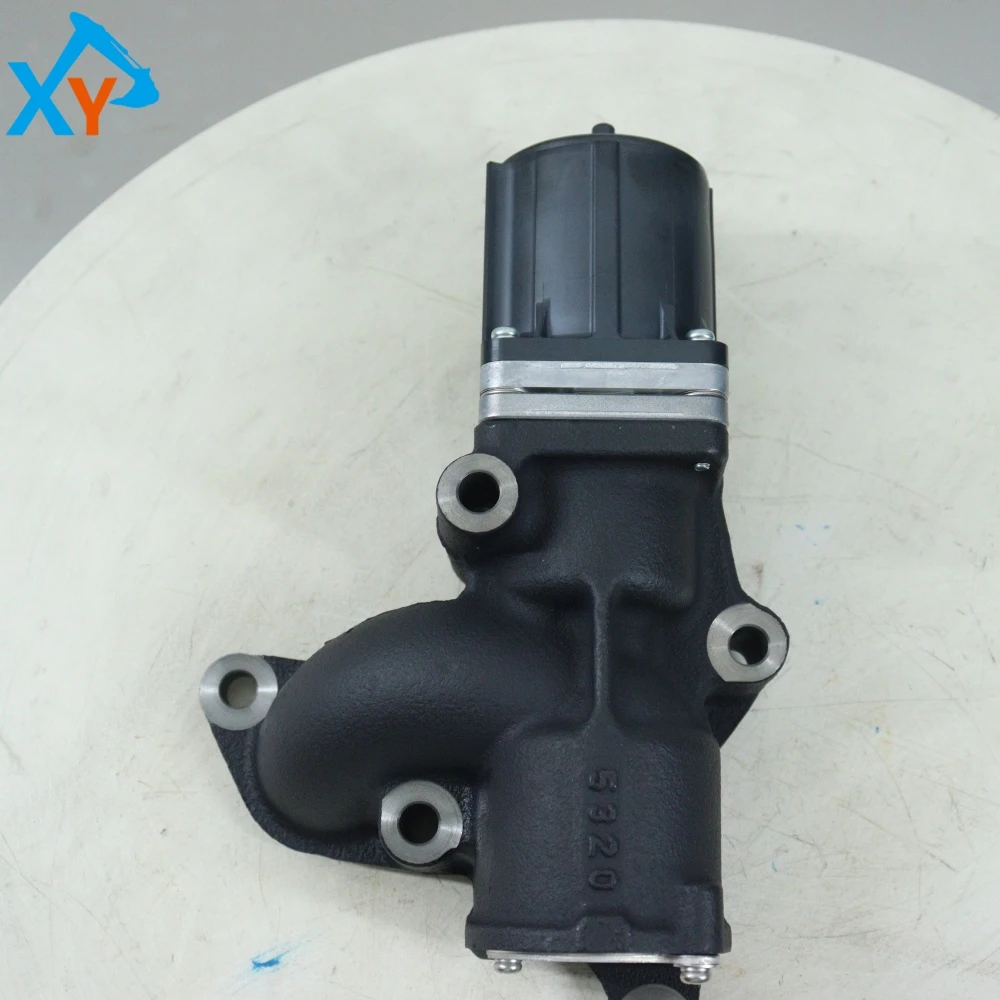

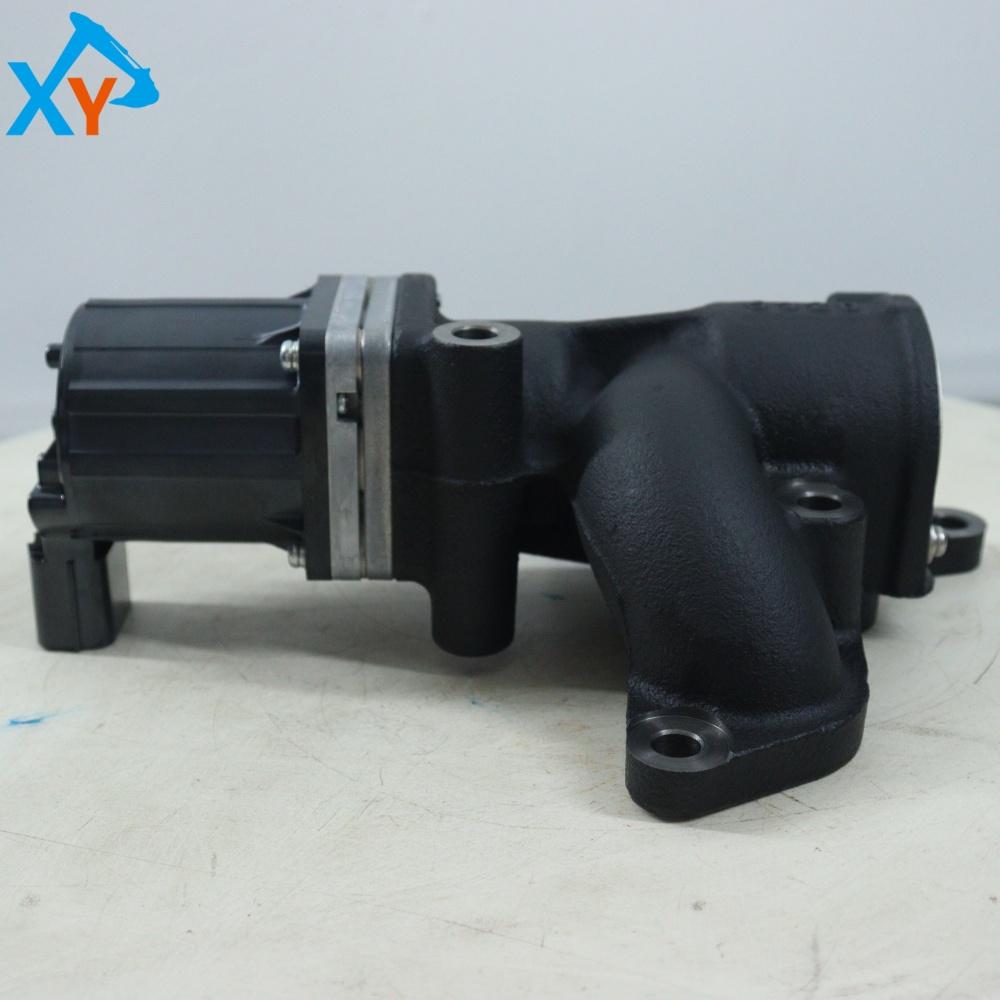

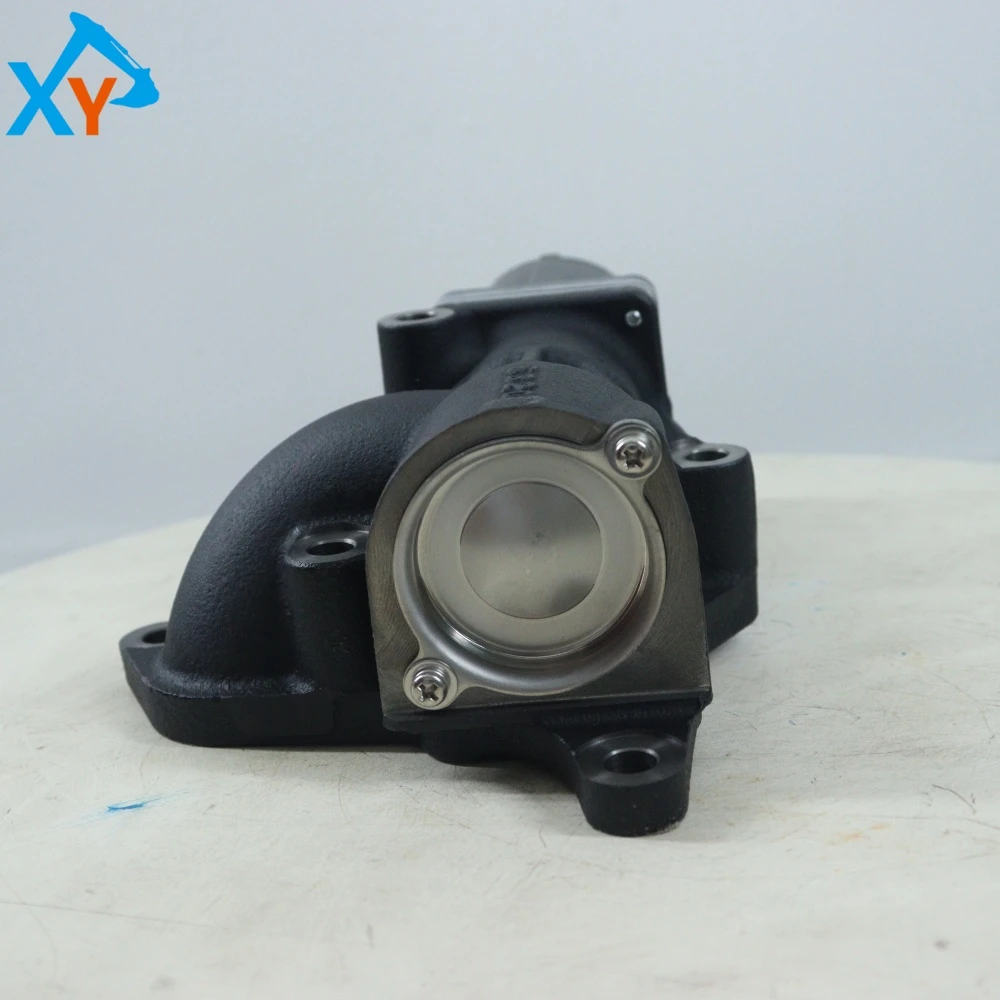

8982382592 Original Excavator Isuzu 4JJ1 Engine Spare Parts Exhaust Gas Recirculation Valve

Part number 8982382592 (also commonly labeled as 8-98238259-0 or 8982382590) is the official part number for the exhaust gas recirculation valve (EGR valve) of the Isuzu 4JJ1 engine on Hitachi's original excavator. This component is the core actuator of the engine emission control system, responsible for accurately controlling a portion of the exhaust gas to re-enter the intake manifold and participate in combustion according to the instructions of the engine control unit (ECU). By reducing the oxygen concentration and peak temperature in the combustion chamber, it effectively suppresses the generation of nitrogen oxides (NOx), and is a key component that meets China III and above non road emission regulations. As an original standard component, it is designed specifically for Hitachi medium-sized excavators equipped with Isuzu 4JJ1 series turbocharged diesel engines. The main compatible models include ZX100-3, ZX120-3, ZX140W-3, ZX160-3, ZX180-3, ZX130-5A, ZX170LC-5A, etc.

This original EGR valve is a precision pneumatic valve controlled by electronic or vacuum control. Its core function is to serve as the "switch" and "flow regulator" of the exhaust gas recirculation system. Based on the real-time operating conditions of the engine (speed, load, coolant temperature, etc.), the valve opening is controlled by the ECU or vacuum diaphragm to accurately adjust the amount of exhaust gas flowing back to the intake system. As an original factory component, it is usually made of high-temperature resistant and corrosion-resistant alloy materials, with integrated valves, valve seats, valve stems, and electronic control actuators (or vacuum diaphragm actuators) inside. A typical 4JJ1 engine EGR valve is driven by a precision stepper motor or solenoid valve to achieve linear and stepless control of valve opening. Its design needs to ensure long-term reliable operation in harsh environments with high temperature, high vibration, and filled with carbon smoke particles, and have good sealing to prevent exhaust gas leakage from affecting idle stability when the valve is closed.

The maintenance core of this EGR valve lies in regularly checking its operational flexibility, cleanliness, and the integrity of the electrical/vacuum circuit to prevent malfunctions caused by carbon buildup. Regular inspection and diagnosis: It is recommended to use a diagnostic tool to read EGR valve related data streams (such as target opening, actual opening, duty cycle) and fault codes every 500 working hours or every 6 months, in conjunction with equipment maintenance. Testing and replacement: It can be connected to a manual vacuum pump to test the action of the vacuum diaphragm EGR valve, or measure the resistance of the electronic EGR valve coil, and compare it with the standard value in the maintenance manual. If the cleaning is ineffective, the valve is stuck, the seal is not tight, or the coil is damaged, the assembly needs to be replaced. When installing, it is necessary to replace the new gasket and tighten the fixing bolts in the prescribed cross sequence and torque (usually 20-30 N · m). After installation, a diagnostic tool is needed to perform basic settings or learning of the EGR system.
