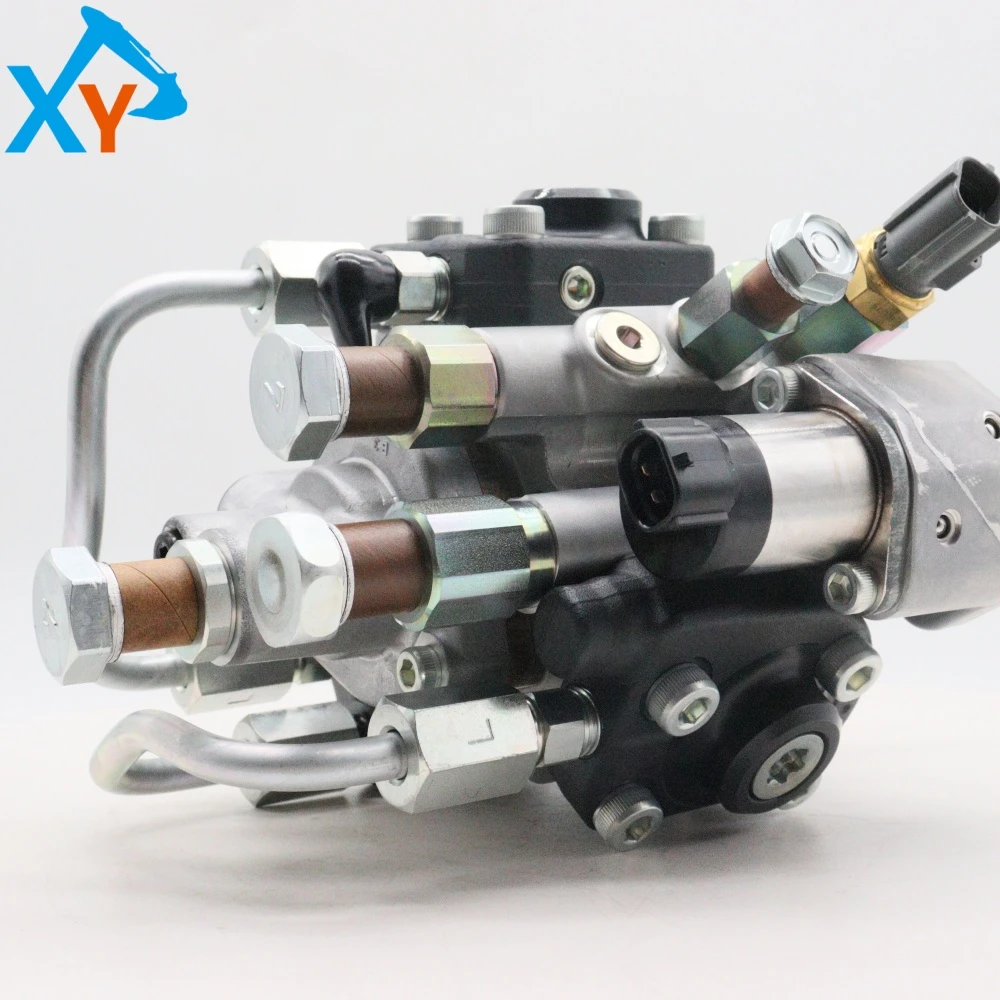

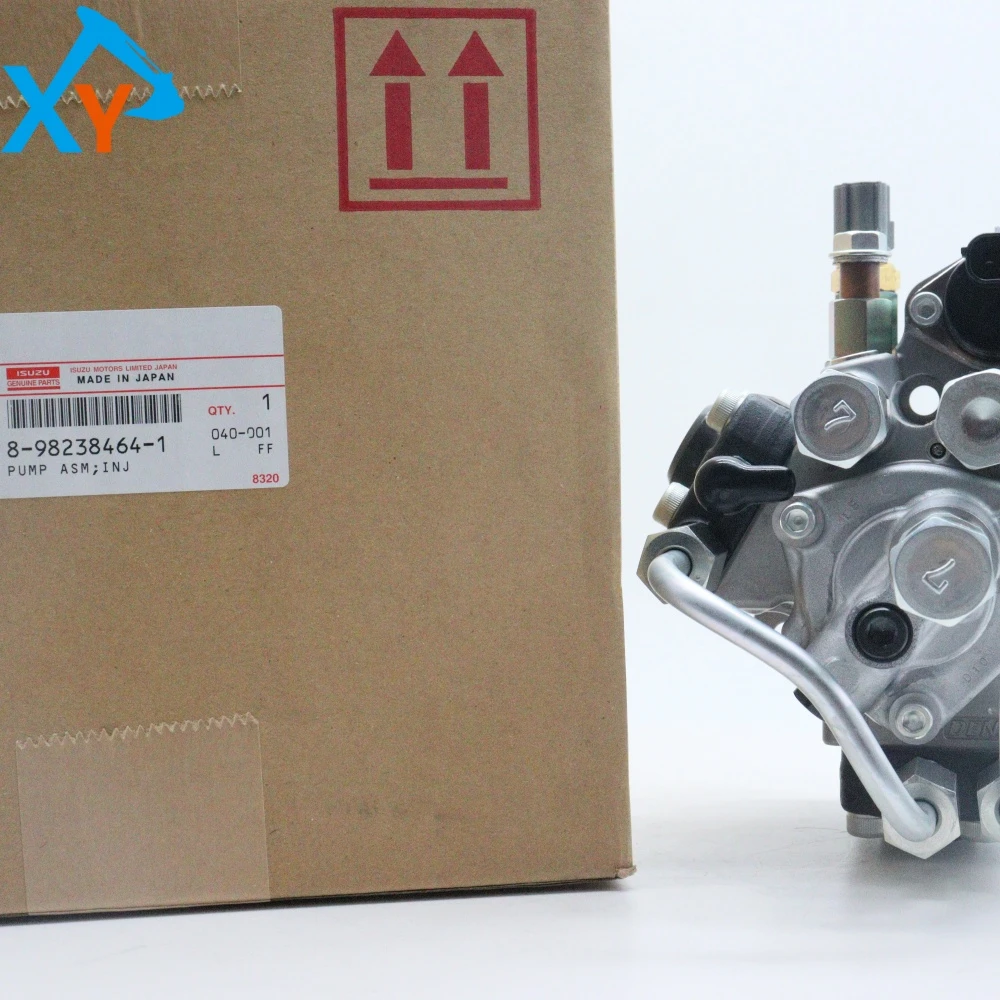

8982384641 Original Engine Accessories 6HK1 Injection Pump

The Isuzu original 6HK1 engine fuel injection pump (universal part number: 8982384641) is the core high-pressure pump assembly of the fuel supply system for the Isuzu 6HK1 series diesel engines. This fuel injection pump is mainly suitable for various large construction machinery equipped with Isuzu 6HK1 engine, especially medium to large excavators, commonly seen in Hitachi ZX330, ZX360, ZX450 series, Sany SY335H, SY365 series, XCMG XE360, Sumitomo SH350 and other models. As the "heart" of the engine, it is responsible for pressurizing low-pressure fuel and accurately distributing it to each cylinder injector.

The fuel injection pump is one of the most precise components in the fuel supply system of diesel engines. Its core function is to timely, quantitatively, and uniformly increase the pressure of low-pressure fuel to ultra-high pressure (usually up to 200MPa or more) according to the instructions of the engine ECU, and accurately supply the fuel injectors of each cylinder in the ignition sequence. As an original accessory, it usually adopts an inline plunger or electrically controlled distribution structure, consisting of a pump oil mechanism (plunger coupling, outlet valve coupling), an oil supply adjustment mechanism, a drive mechanism (camshaft), and a pump body.

The maintenance core of the fuel injection pump lies in ensuring absolute cleanliness of the fuel, regularly checking key parameters, and promptly troubleshooting. Firstly, high-quality diesel that meets national standards must be used and filtered through sedimentation for at least 48 hours. The diesel filter should be regularly cleaned or replaced to prevent impurities and moisture from damaging the precision plunger and outlet valve components. Secondly, it is necessary to regularly check and adjust the fuel supply advance angle and the fuel supply uniformity of each cylinder. Premature or delayed fuel supply can lead to a decrease in engine power, black smoke, rough operation, or difficulty starting.
