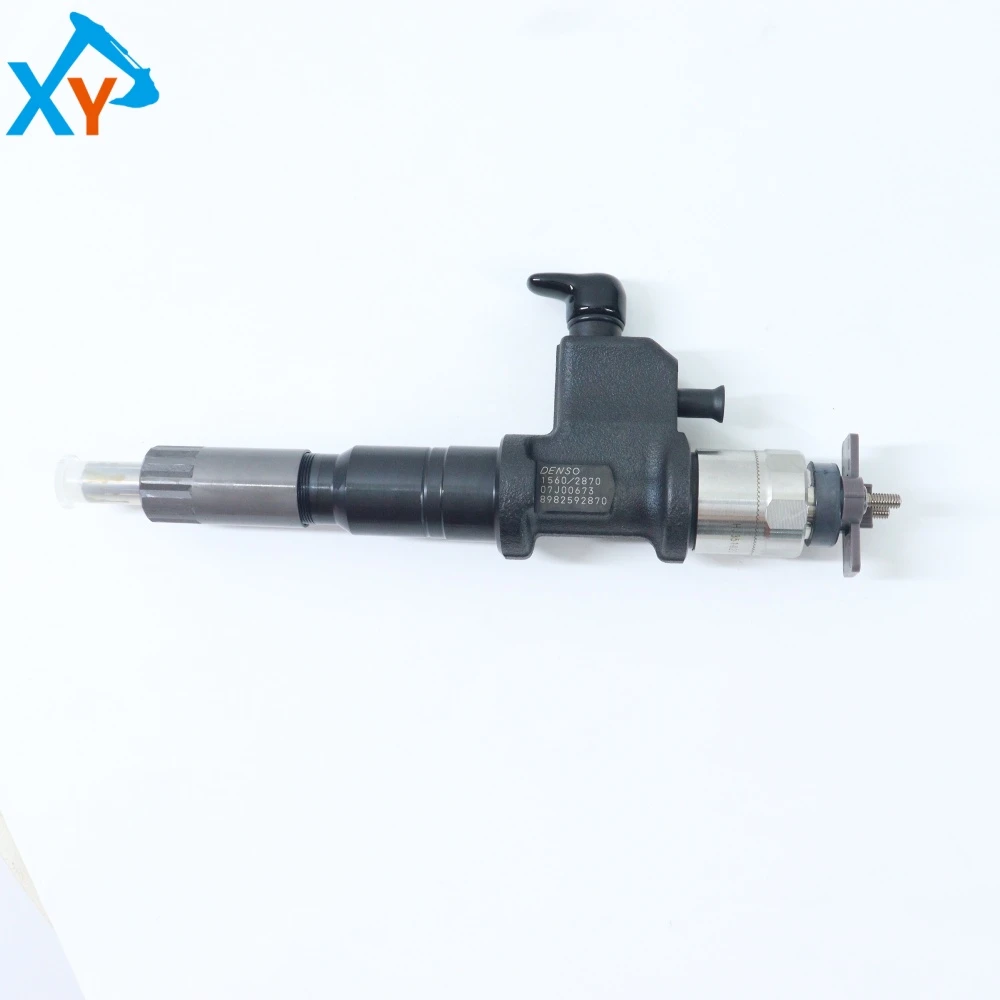

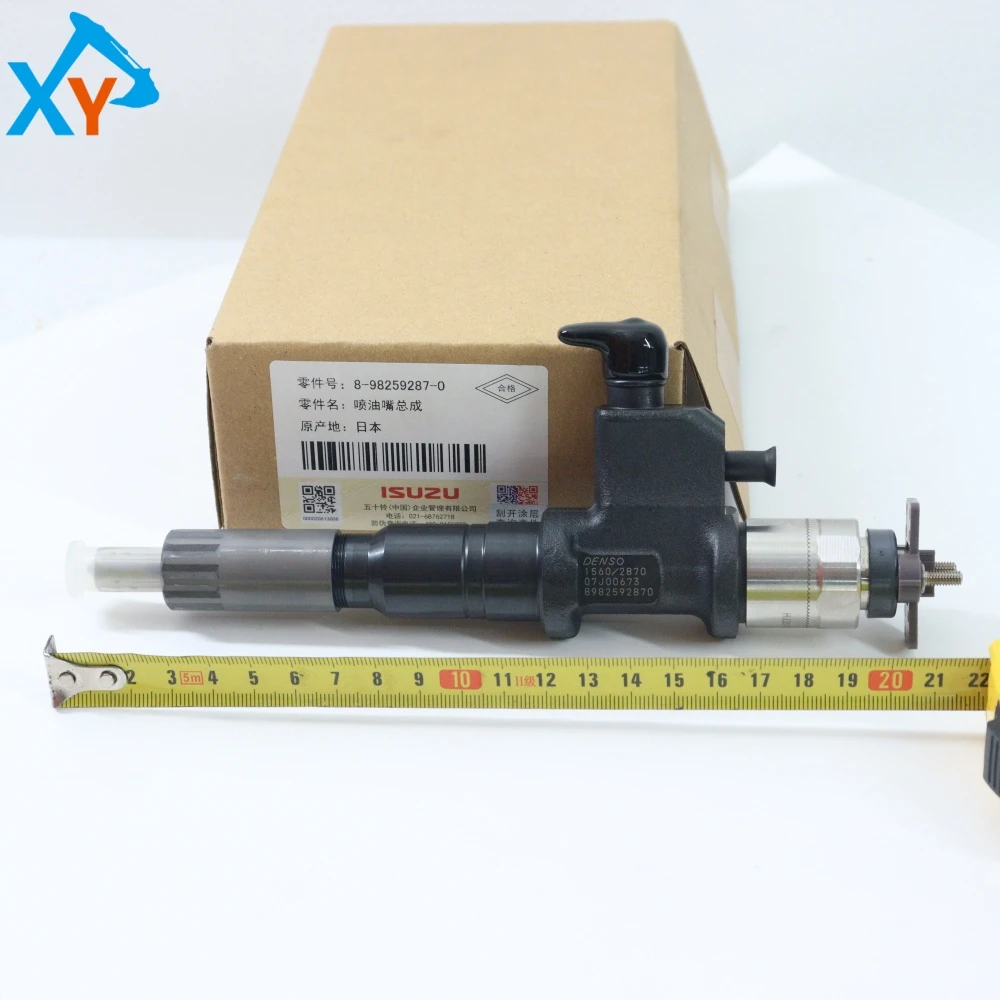

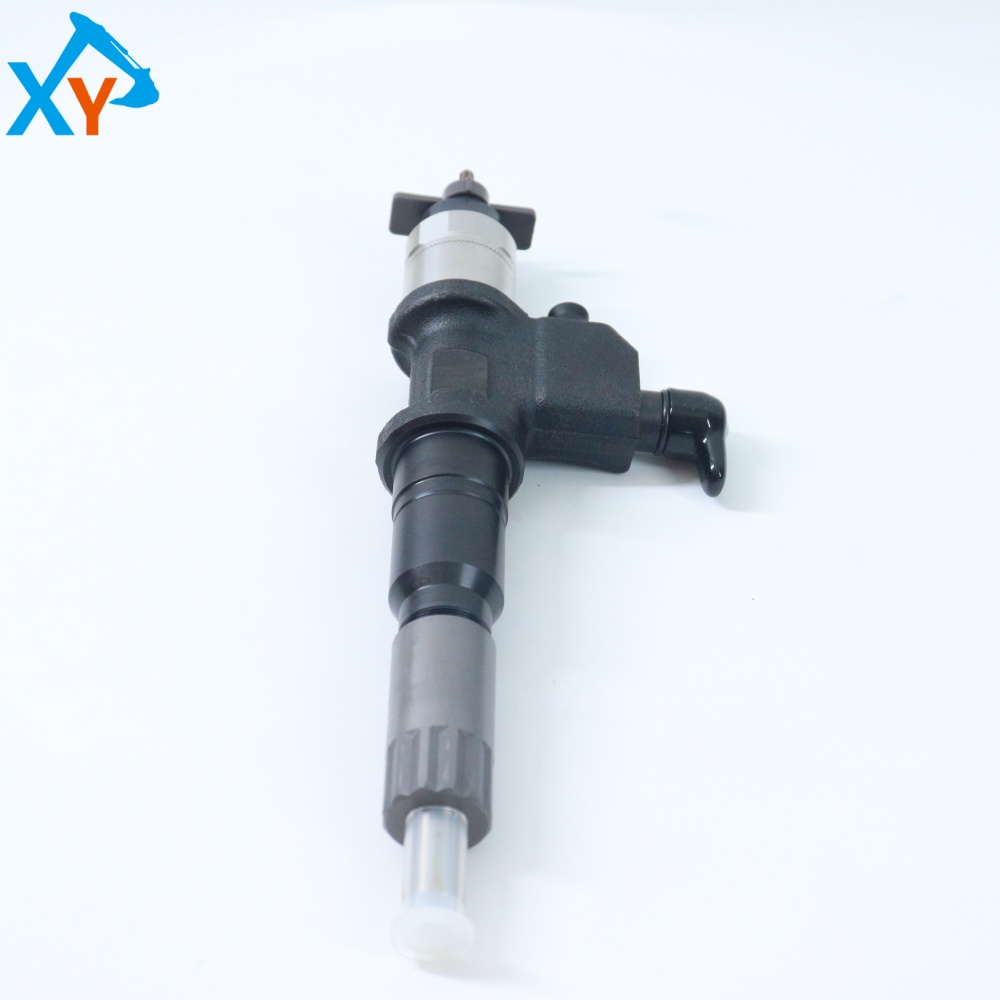

8982592870 Excavator 6UZ1 Engine Fuel Injector for Hitachi ZX490-5A

Part number 8982592870 (also written as 8-98259287-0) corresponds to the DENSO common rail injector assembly in the Isuzu/Hitachi electronic fuel injection system, often appearing in the same group as channel writing 295050-1560/095000-1560. It is used for Isuzu 6UZ1 series high-pressure common rail diesel engines, typically installed on Hitachi excavator platforms such as ZX470-5A, ZX490, etc. (6UZ1 model/same series configuration). This part is a precision electronic control actuator, not a universal vulnerable sealing ring, so the procurement must "not guess the part": lock the part number 8982592870 with Hitachi/Isuzu parts catalog, and check the overall model+engine nameplate (6UZ1+serial number)+old injector housing engraving/plug pin number to avoid mixing DENSO common rail injectors of different flow levels or plug versions.

As a high-pressure common rail injector, its main function is to convert the current/pulse width signals emitted by the ECU/EDU into precise injection of extremely high-pressure fuel: the valve components, needle valve fittings, and internal measuring holes are matched within the oil film thickness tolerance to determine the injection quantity, atomization particle size, penetration distance, and consistency of multiple injections (pre injection/main injection/post injection), thereby controlling combustion, smoke intensity, torque, and fuel consumption. The original (or factory calibrated) version requires that the electromagnetic/piezoelectric actuator response, coil impedance, flow curve (Q curve), and leakage limit be matched with the ECU software; The shell and sealing surface are designed for high pressure (common rail system often up to 1500bar level), resistant to vibration, temperature, and fuel additives, and each component usually comes with a traceable number/calibration value. They cannot be interchanged just because they look similar like ordinary nozzle caps.

Fuel cleanliness is the first element of lifespan: strictly replace the dual stage fuel filter on schedule to ensure that the fuel tank/pre filter does not have water or dust entering; Dirty oil is the main cause of fuel injector sticking/scratching.

Diagnosis priority: In the event of difficulty starting, black smoke emission, power limitation, or cylinder misfire/abnormal noise, first use a diagnostic tool to read the fault code and cylinder balance/correction value, and then decide whether to replace it to avoid "blind replacement of fuel injectors".

Key points for replacement: Clean the interface before installation, replace the copper/aluminum sealing gasket with a new one (torque according to regulations, avoid brute force), and exhaust the system as required; If using the original factory channel, it is usually necessary to do injector code writing/flow adaptive learning, otherwise it is easy to light up or run unevenly. Based on experience, it is recommended to replace the entire set (4 units/6 units) in the same batch to avoid long-term compensation difficulties for the ECU caused by differences in flow rates between new and old units.
