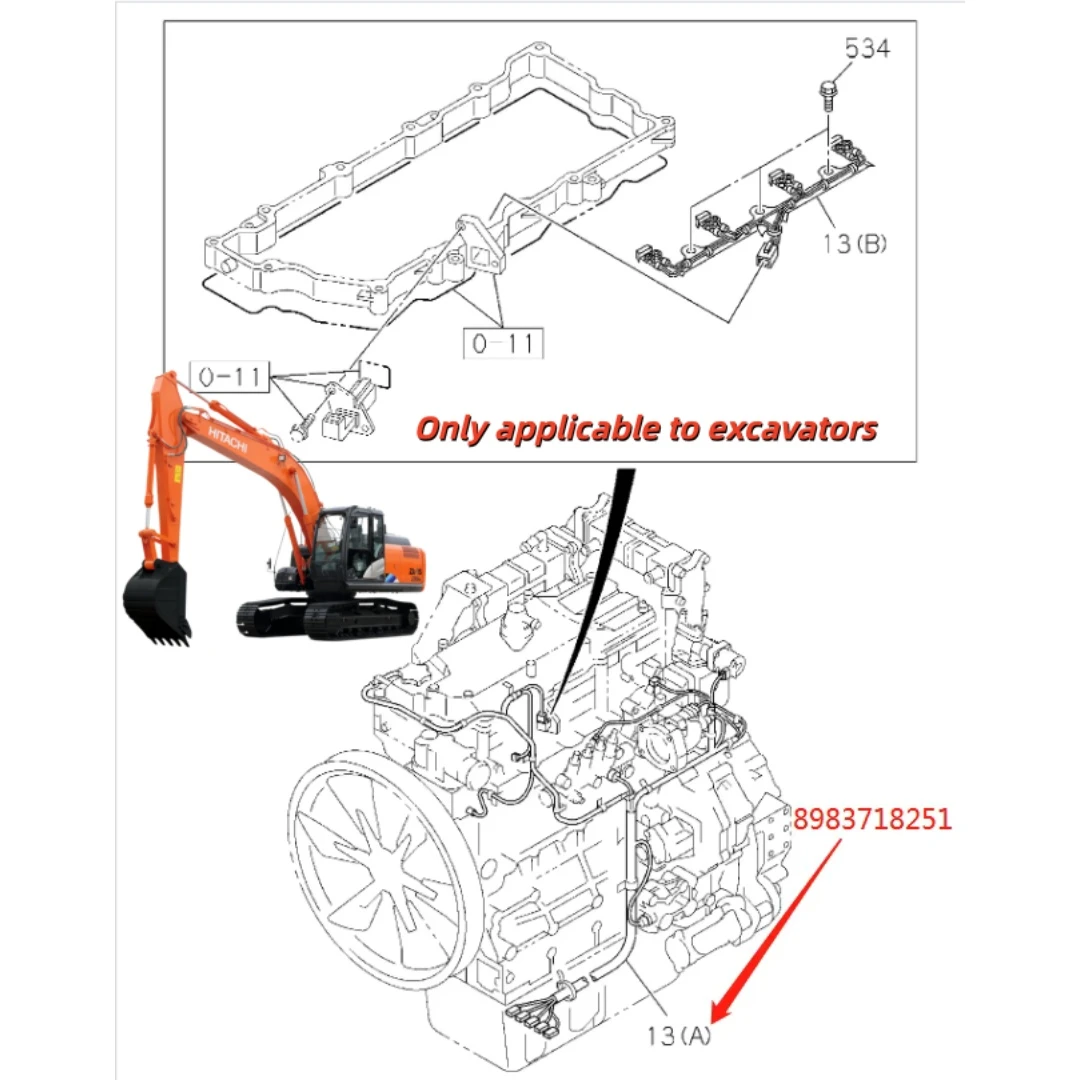

8983718251 Original Excavator 4HK1 Engine Harness for ZX250-5B ZX240-5B ZX200-5B ZX225-5B

The Hitachi original 4HK1 engine wiring harness (part number: 8983718251) is a full vehicle electrical nervous system designed specifically for Hitachi's new generation 5B series medium-sized excavators equipped with Isuzu 4HK1 series diesel engines. It is mainly suitable for Hitachi ZX250-5B, ZX240-5B, ZX200-5B, ZX225-5B and other models of excavators, ensuring complete compatibility with the engine electronic control unit (ECU), various sensors (such as crankshaft position sensor, camshaft sensor, water temperature sensor, oil pressure sensor, etc.), actuators (injectors, glow plugs, EGR valves, etc.), and the interface of the vehicle power system. Its common part numbers include 8981526603, 8983718250, 8-98371825-1, etc

The engine wiring harness is the "blood vessel and neural network" of the engine's electronic control system. Its core function is to provide stable power supply and high-speed, precise signal transmission channels for all electronic control units (ECUs), sensors, and actuators of the engine, ensuring that various functions such as fuel injection timing, ignition control (if applicable), exhaust gas recirculation (EGR), variable geometry turbine (VGT) work together to achieve efficient, clean, and smooth operation of the engine. As an original part, it strictly complies with Hitachi's electrical and durability standards. The harness assembly is wrapped with high temperature resistant (usually above 125 ° C), oil resistant, anti-aging, and flame retardant high-quality insulating materials. The internal conductors are copper cores with different cross-sectional areas according to the current load. The key parts are protected by bellows or woven mesh to prevent abrasion

Daily inspection: It is recommended to visually inspect the outer skin of the wiring harness for cracks, wear, compression, or burn marks every 250 working hours. Check that all connectors are properly plugged in, the locking mechanism is intact, and there is no water ingress or corrosion. Cleaning and protection: Keep the wiring harness clean and avoid contact with fuel, oil, or highly corrosive liquids. When disassembling the plug, be sure to disconnect the negative terminal of the battery first and hold the lock buckle instead of directly pulling the wire harness. Replacement operation: When replacing the wiring harness, it is necessary to refer to the circuit diagram, mark or take photos to record each connection of the old wiring harness one by one, ensure that the new wiring harness is laid along the original path and firmly fixed, all plugs are connected in place, and a "click" locking sound is heard.
