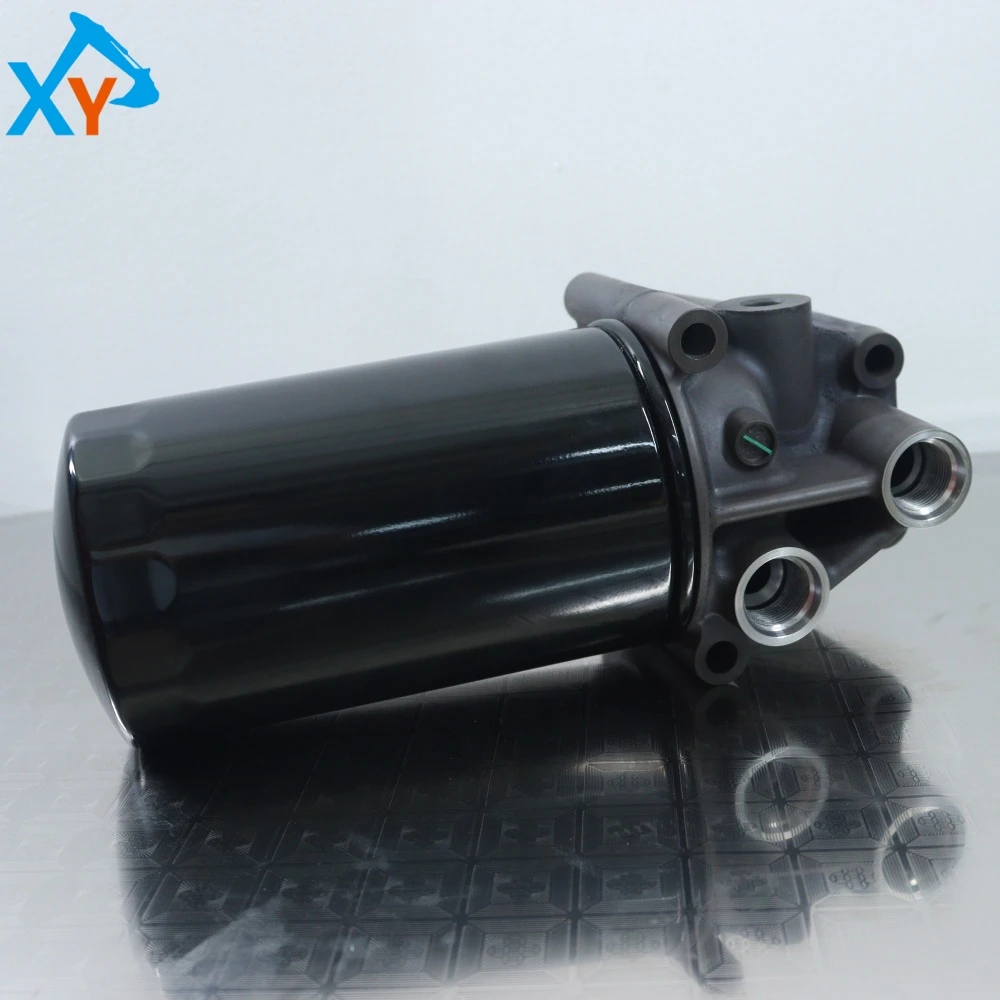

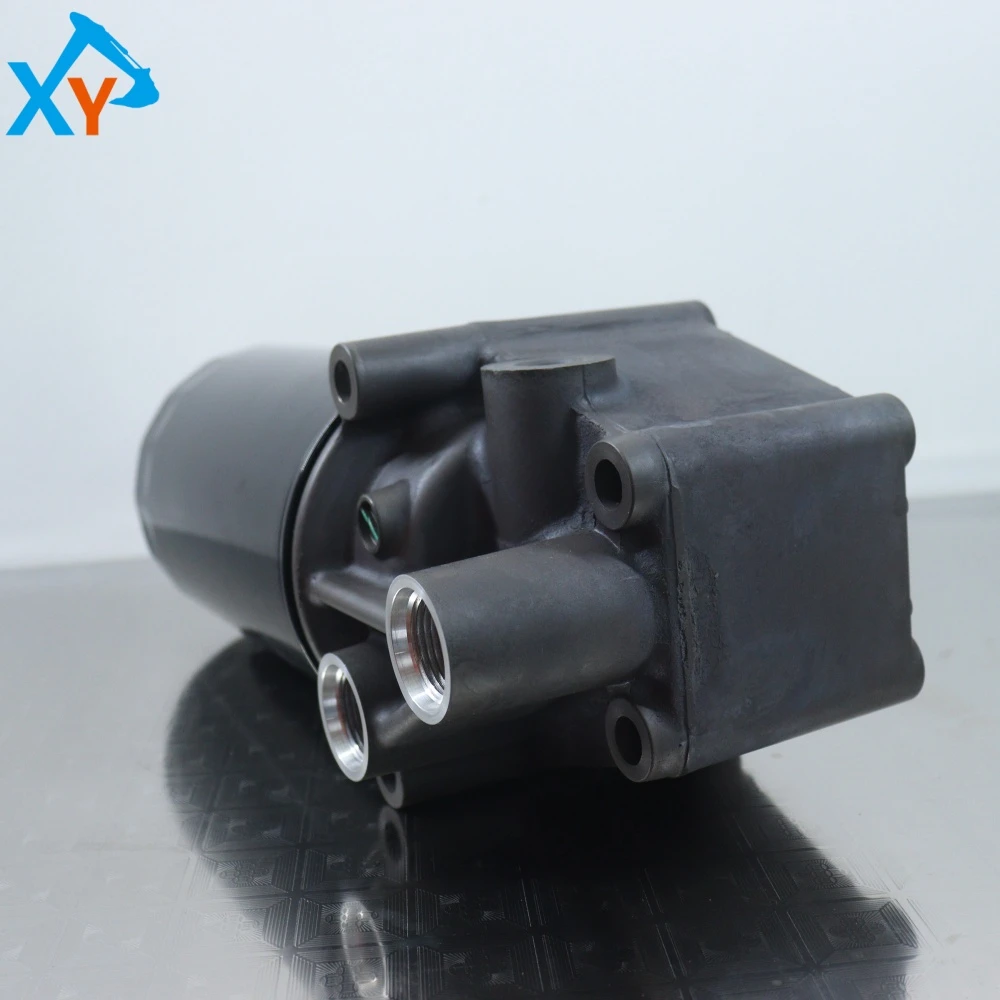

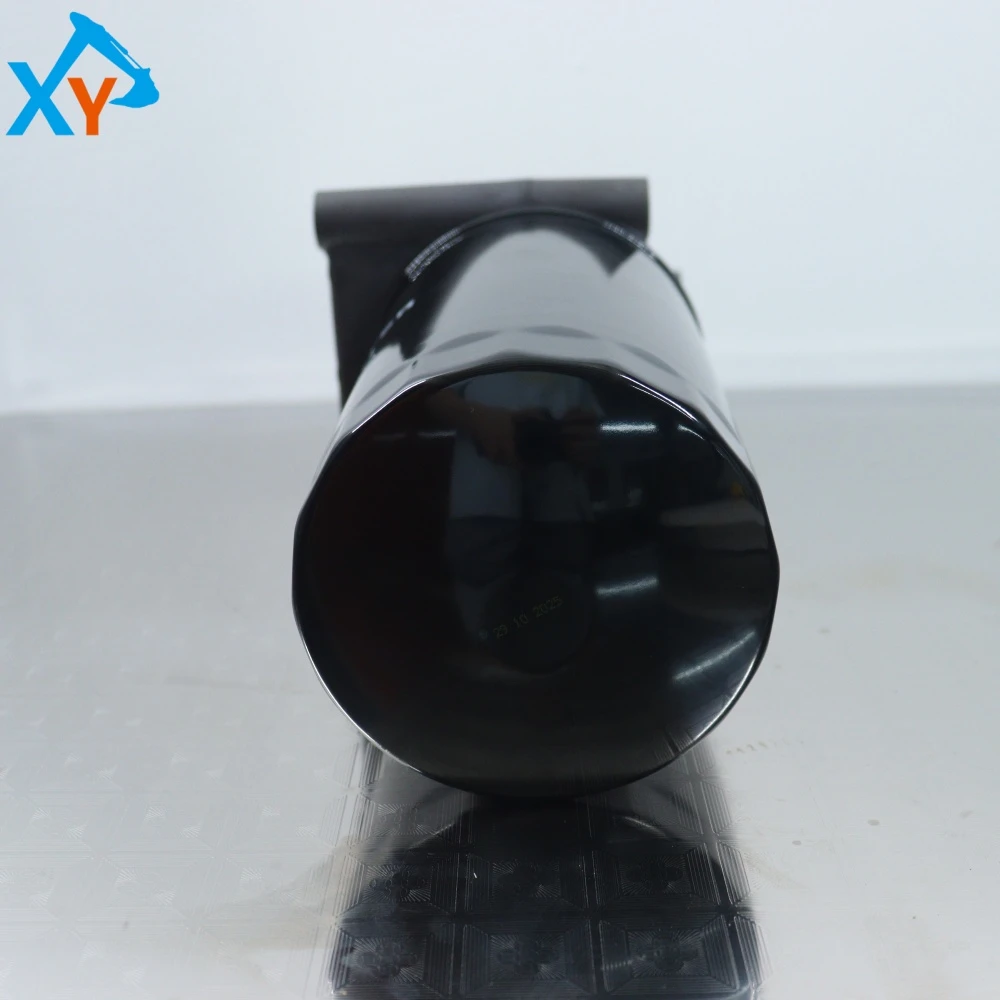

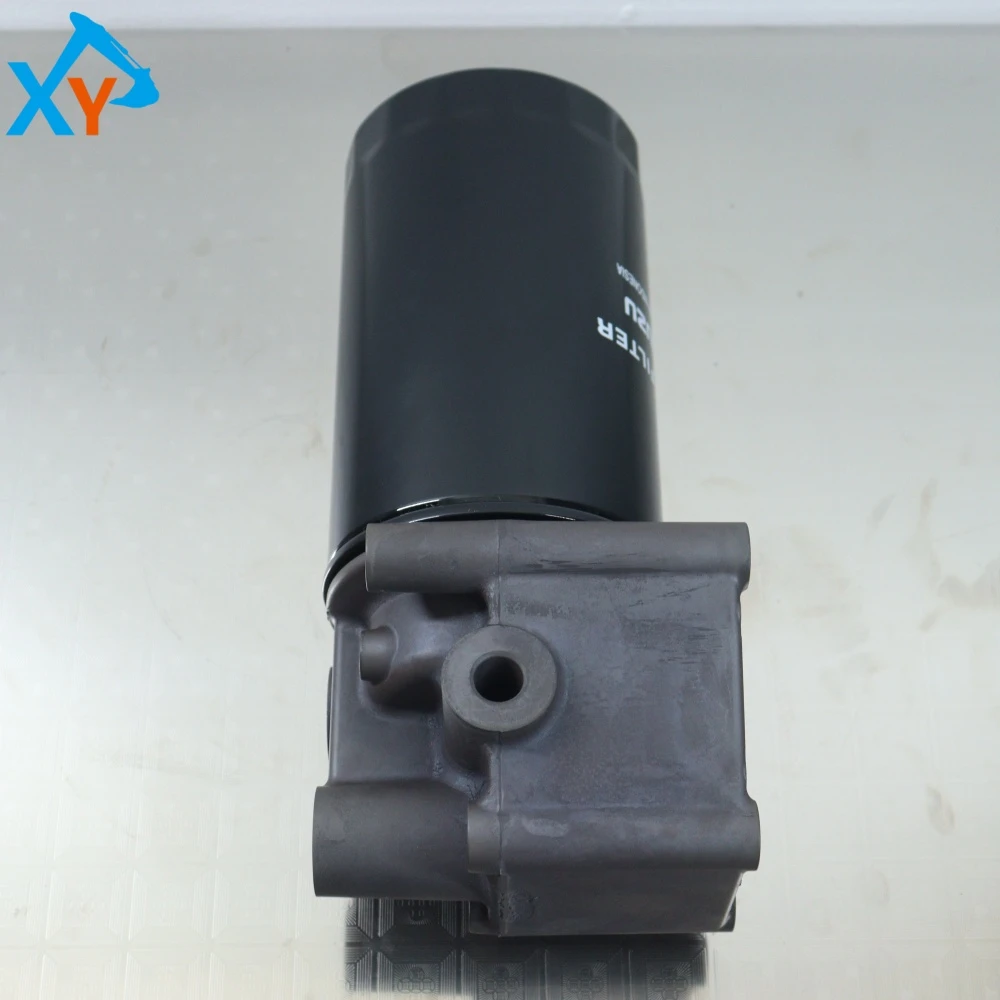

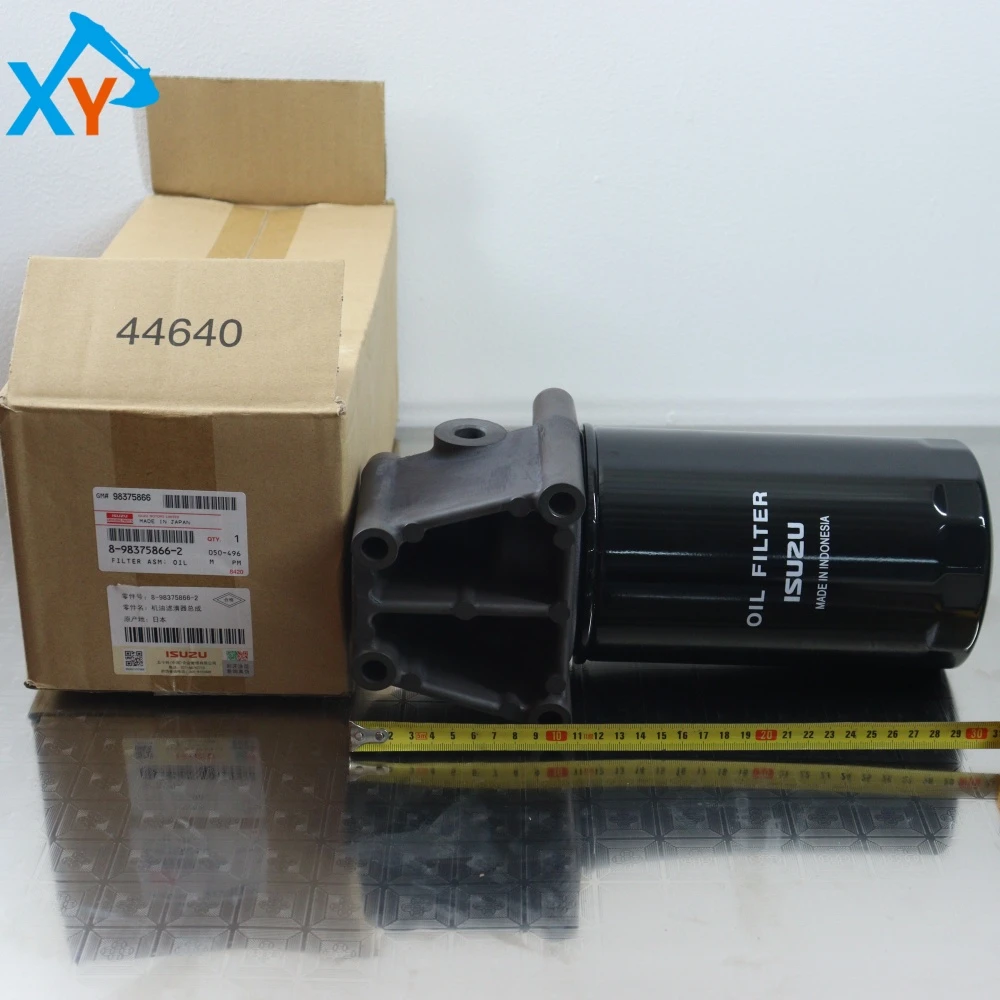

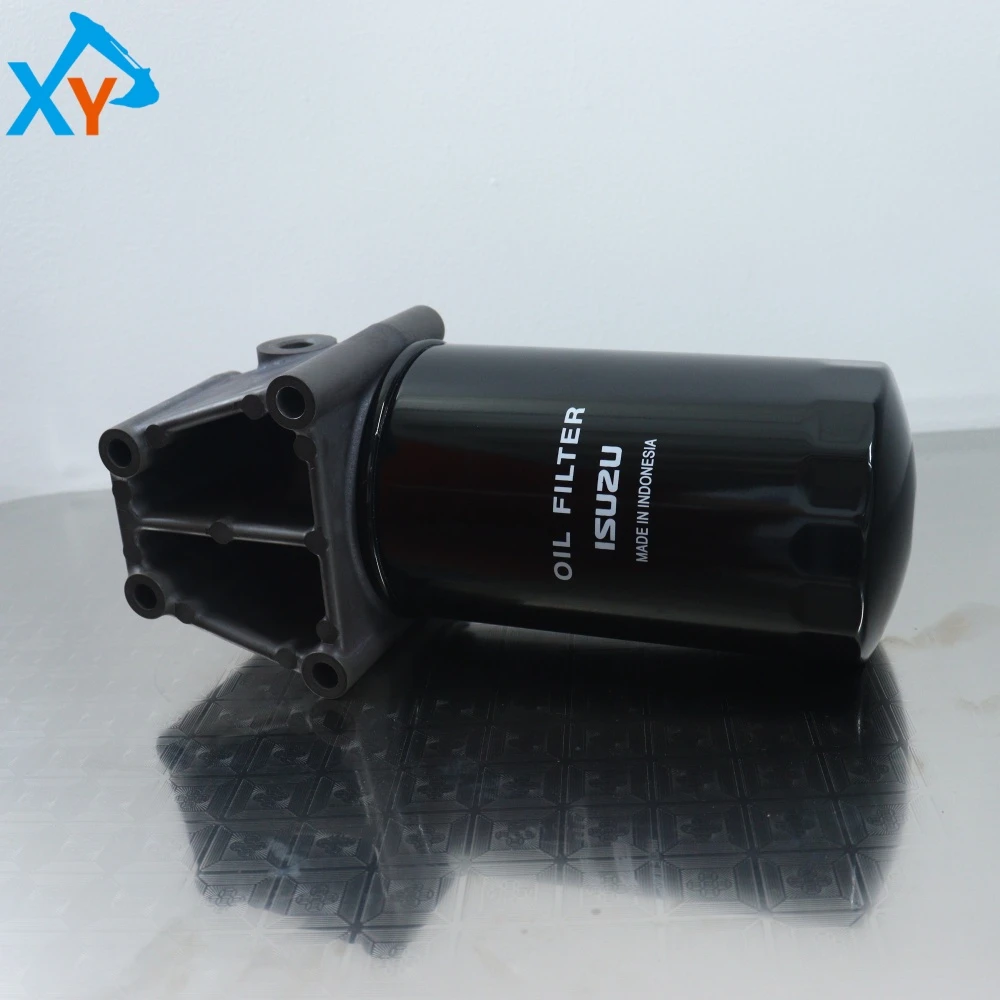

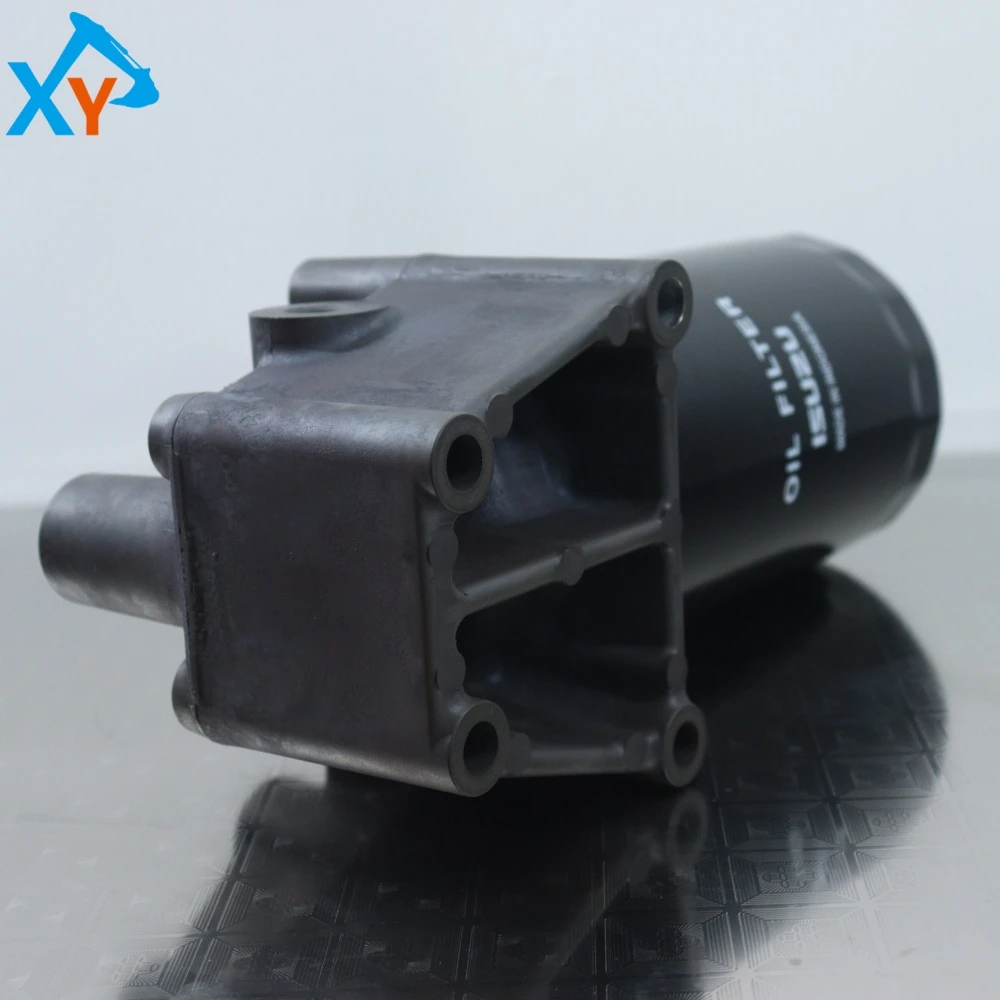

8983758662 Original Excavator Engine Isuzu 6HK1 Oil Filter Assembly

The part number 8983758662 is the official part number for the oil grid assembly of the Isuzu 6HK1 engine on Hitachi's original excavator. This component is the core filtering device of the engine lubrication system, responsible for efficiently filtering out metal debris, carbon deposits, gum, dust and other impurities generated by internal friction of the engine during the oil circulation process (usually able to intercept particles of 5-40 microns), ensuring that clean oil continues to lubricate key moving parts such as the crankshaft, connecting rod, camshaft, turbocharger, etc. It is a "kidney" level key maintenance component that prevents abnormal engine wear, maintains stable oil pressure, and extends engine life. As an original standard component, it is designed specifically for Hitachi medium to large excavators equipped with Isuzu 6HK1 series electronically controlled high-pressure common rail diesel engines. The main compatible models include ZX330-3, ZX350-3, ZX360H-3G, ZX360H-3, EX350-5, etc.

The original oil grid assembly belongs to the rotary type full flow paper oil filter. Its core function is to be connected in series in the main oil passage of the engine, filter all the pumped oil, and ensure the cleanliness of the oil entering the lubrication area. As an original component, it usually adopts a high-strength cold-rolled steel plate shell, and the internal core is cellulose filter paper or synthetic fiber filter material treated with special resin, maximizing the filtration area through star shaped fold design. The assembly integrates check valves, bypass valves, center pipes, and sealing rings internally. It has high filtration efficiency, low flow resistance, and can withstand high pressure from the engine lubrication system. As a disposable non washable component, its designed service life is synchronized with the oil change cycle.

The maintenance core of this oil grid assembly lies in strictly following the prescribed cycle to replace the oil synchronously and ensuring standardized operation. Replacement cycle: It must be changed synchronously with the engine oil, usually every 500 working hours or every 6 months (whichever comes first). Installation of new parts: Rotate the new oil grid clockwise into the installation seat by hand until the sealing ring contacts the base, and then use a wrench to tighten it by 3/4 to 1 turn (or according to the torque specified in the manual, usually 20-25 N · m). Do not overtighten to avoid damaging the sealing ring or thread. Filling and inspection: Fill with new engine oil of the specified model and capacity. Start the engine, idle for 3-5 minutes, and check for leaks at the oil grid interface and drain screw. After turning off the engine, wait for a moment and check the oil level again. If necessary, replenish it to the specified range.
