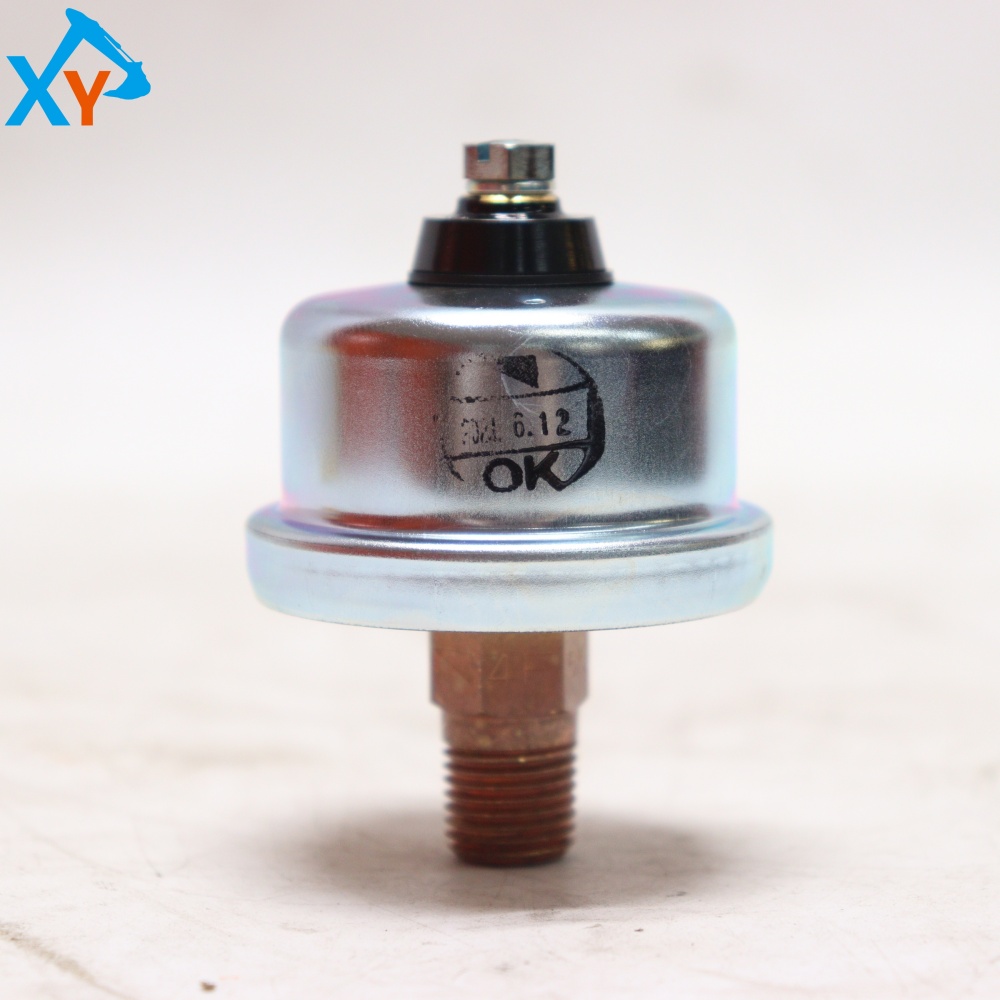

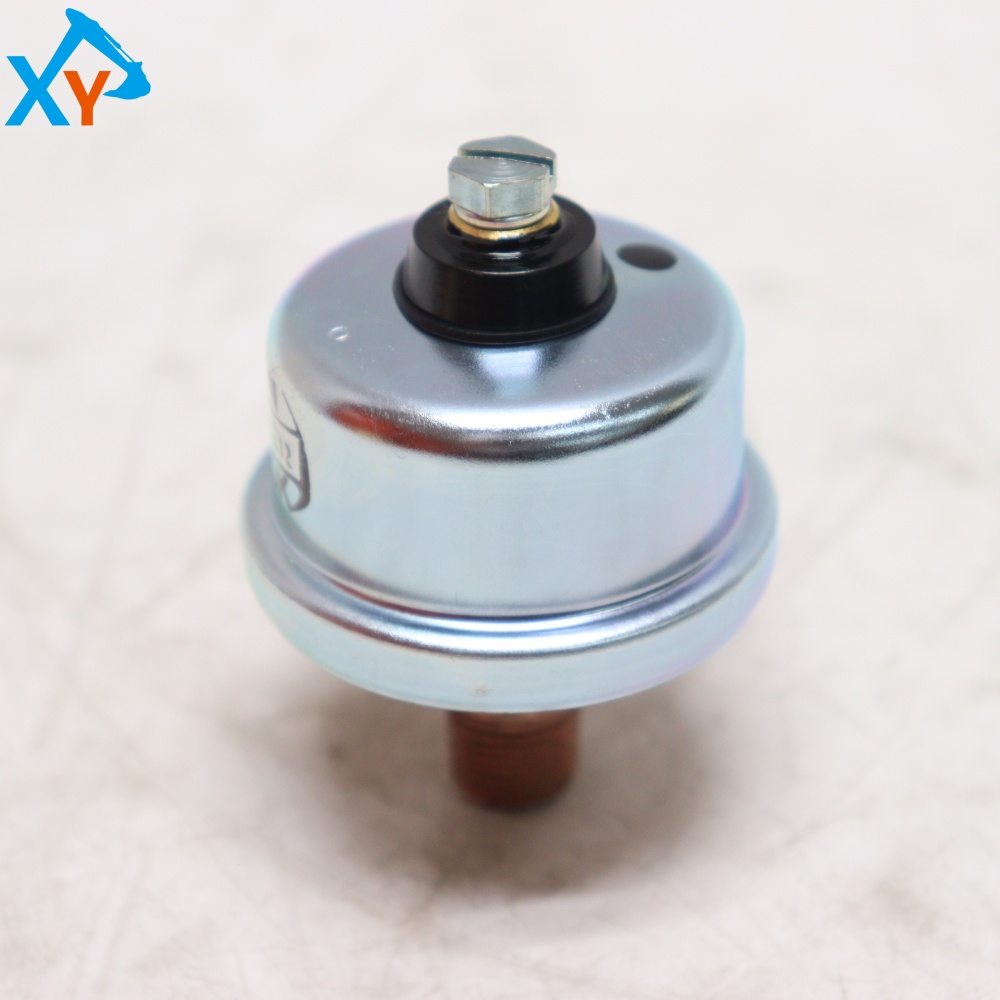

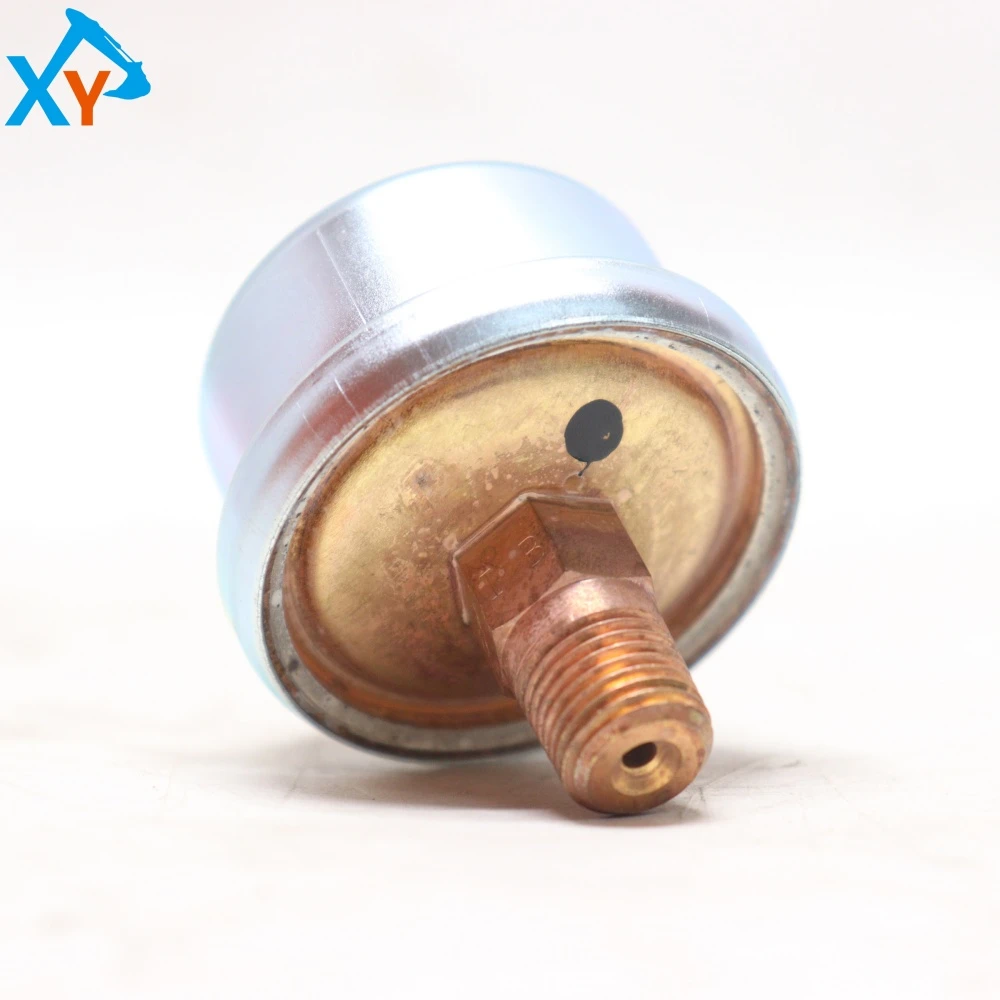

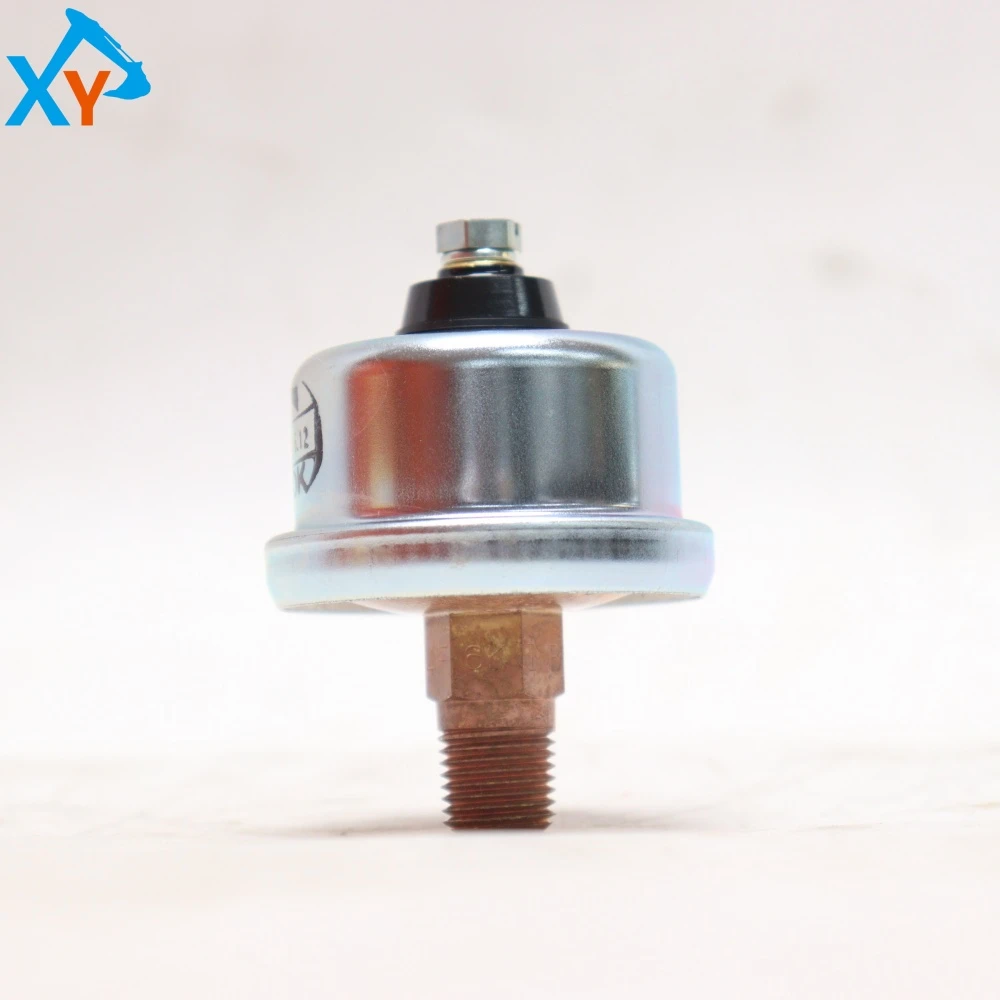

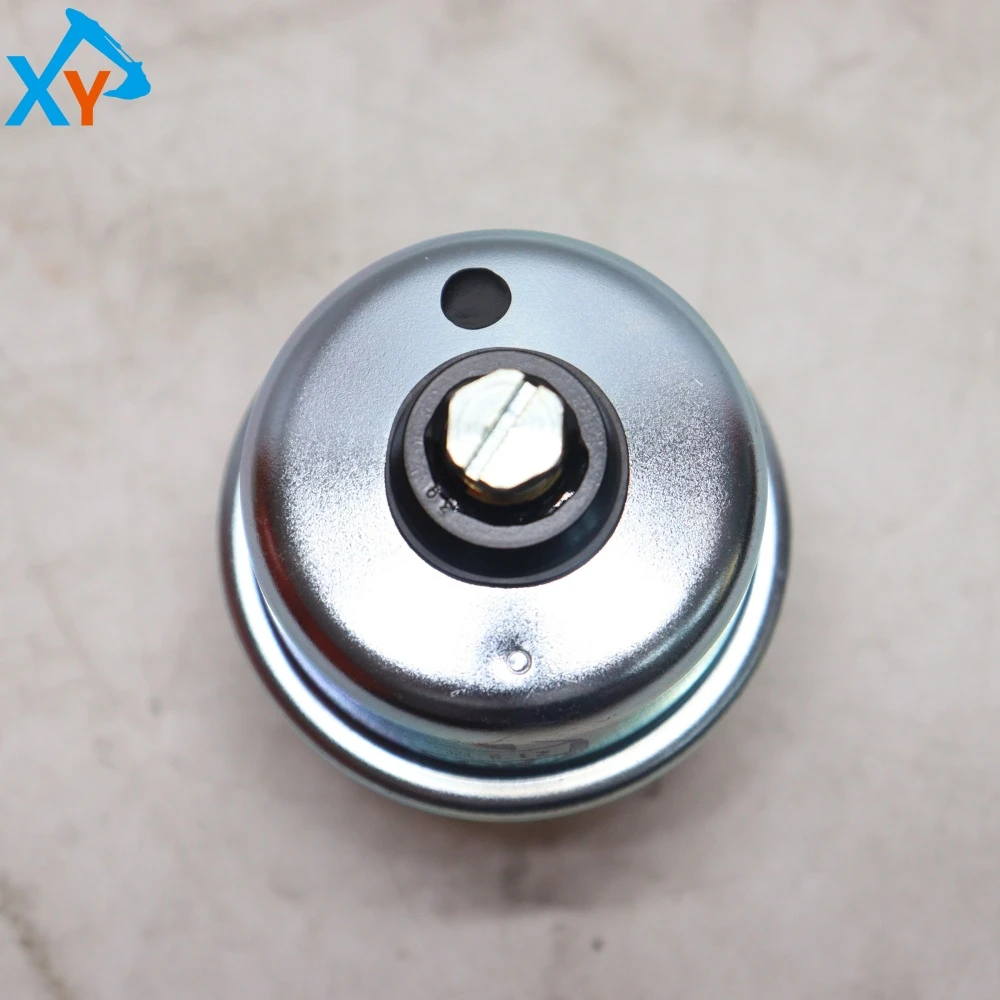

9831401571 Original Engine Oil Pressure element for Excavator Parts

The Isuzu original engine oil pressure element (part number: 9831401571, also commonly labeled as 9-83140157-0) is a key sensor (or oil pressure switch) used to monitor the oil pressure in the engine's main oil passage. According to the accessory information, this component is mainly suitable for Isuzu 6BD1 series diesel engines. At the same time, this part number is widely applicable to construction machinery equipment equipped with various Isuzu engines, especially Hitachi ZX series and EX series excavators, including but not limited to: ZX75US-A equipped with 4JG1 engine, ZX110/ZX120/ZX130H/ZX135US equipped with 4BG1T engine, ZX170W-3/ZX190W-3/ZX200-3/ZX210 series/ZX225US-3/ZX240-3/ZX250LC-3/ZX270-3 equipped with 4HK1/X engine, ZX200-3G/ZX210LC-3G equipped with 6BG1T engine, ZX330-3/3G/ZX350-3/ZX360-3 equipped with 6HK1/X engine, and Models such as ZX470LCH-3/ZX870LCR-3 equipped with a 6WG1 engine.

As an original oil pressure sensor, the core function of this component is to monitor the oil pressure in the main oil passage of the engine in real time, and convert the pressure signal into an electrical signal to transmit to the ECU (engine control unit) or dashboard. When the oil pressure is below the safety threshold (such as below 0.3 bar at idle), it will trigger the oil pressure warning light on the dashboard, providing critical warnings to the driver to prevent serious mechanical failures such as engine cylinder pulling and bearing burnout caused by insufficient lubrication. Its typical structure adopts ceramic capacitor or thick film resistor technology, which has high precision and long-term stability. The working temperature range is wide, usually up to -40 ° C to+150 ° C, and can withstand extreme environments in the engine compartment.

The maintenance core of this sensor lies in regular inspection, timely diagnosis, and standardized replacement. Regular inspection: It is recommended to check the sensor body and wiring harness connectors for oil stains, leaks, damage, or looseness every 500 working hours or during monthly maintenance. Fault diagnosis: If the instrument panel oil pressure warning light is abnormally on or flashing, first check the oil level and quality. If the liquid level is normal, it may be a sensor malfunction. A mechanical oil pressure gauge can be used to connect to the main oil passage to measure the true pressure, and compared with the instrument reading or diagnostic instrument data flow. If the difference is significant (such as greater than 0.5 bar), it indicates that the sensor signal is inaccurate and needs to be replaced.
