4633905 Original Excavator Filter Element for ZX530LCH-7

The original filter element 4633905 is designed specifically for the Hitachi ZX530LCH-7 (approximately 53 ton class) large crawler excavator, and is a key filtering component for the hydraulic system return oil or pilot oil circuit of this model. Its universal number 4633905 is the unique identifier for Hitachi genuine accessories, ensuring that it matches the interface size, sealing form, and system flow rate of the host filter seat perfectly. This filter element may also be compatible with models of the same series such as ZX520LCH-7 and ZX530LCH-6, which use similar hydraulic systems. However, to ensure optimal filtration efficiency and system protection, it is strongly recommended to use the host model and this universal number for final verification when ordering and replacing.

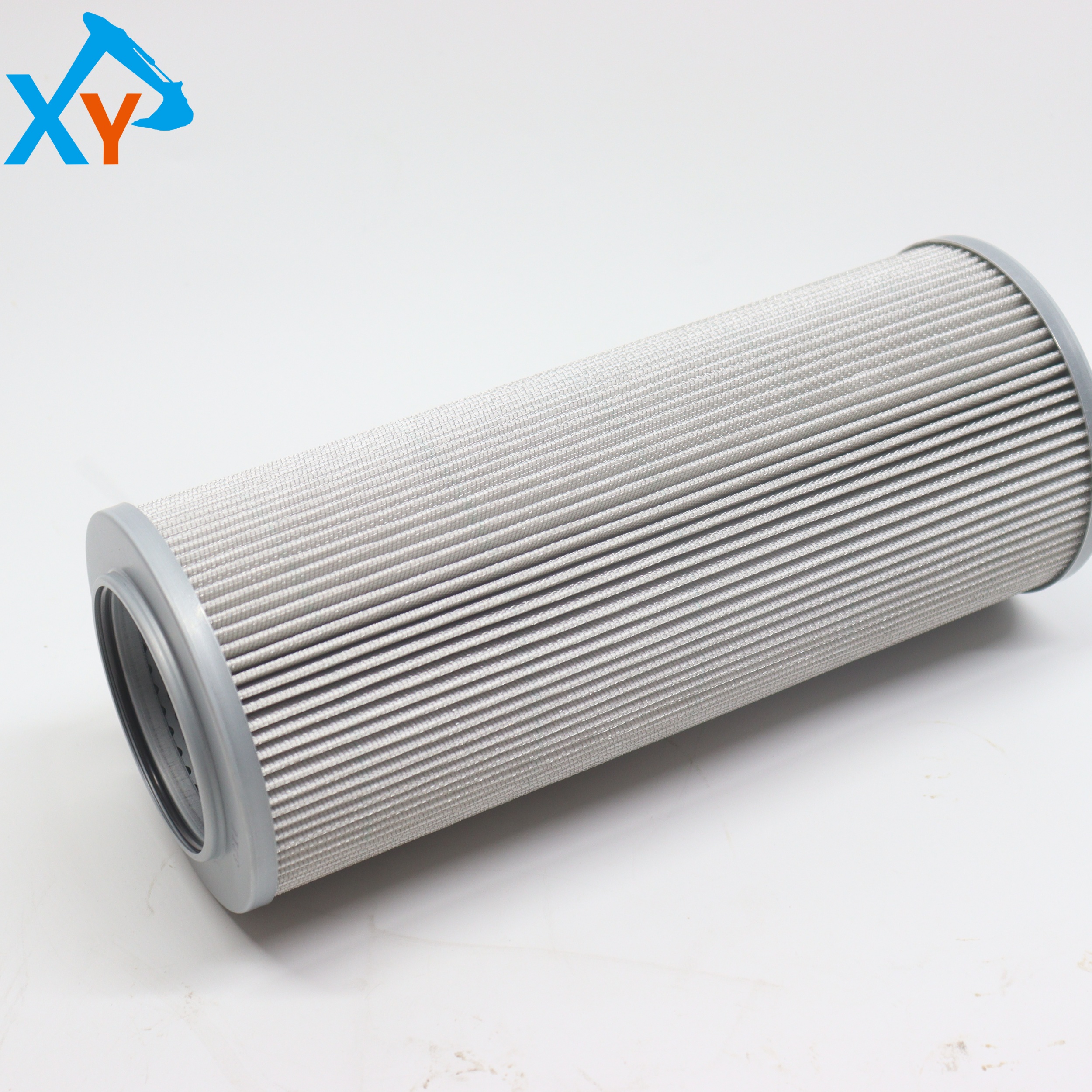

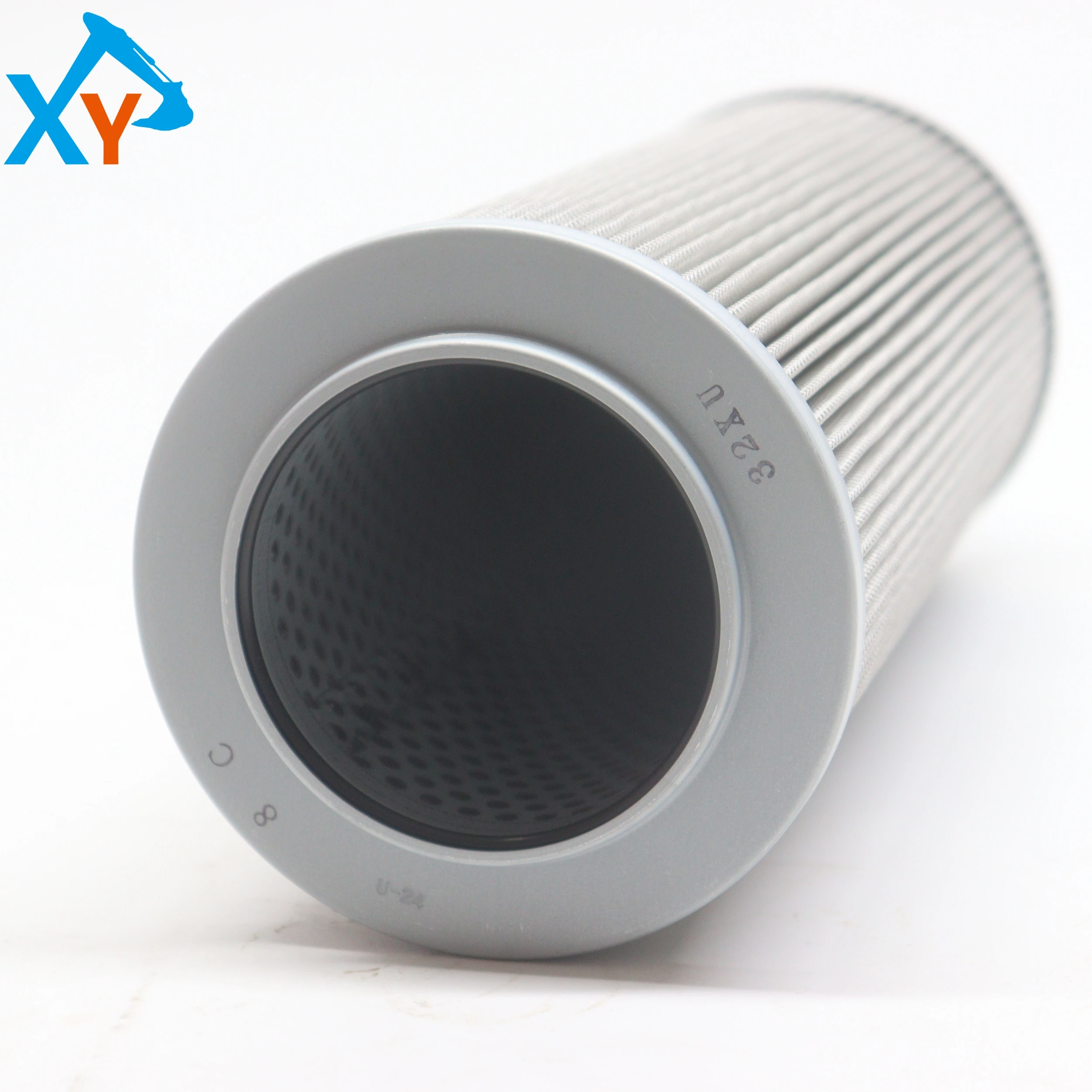

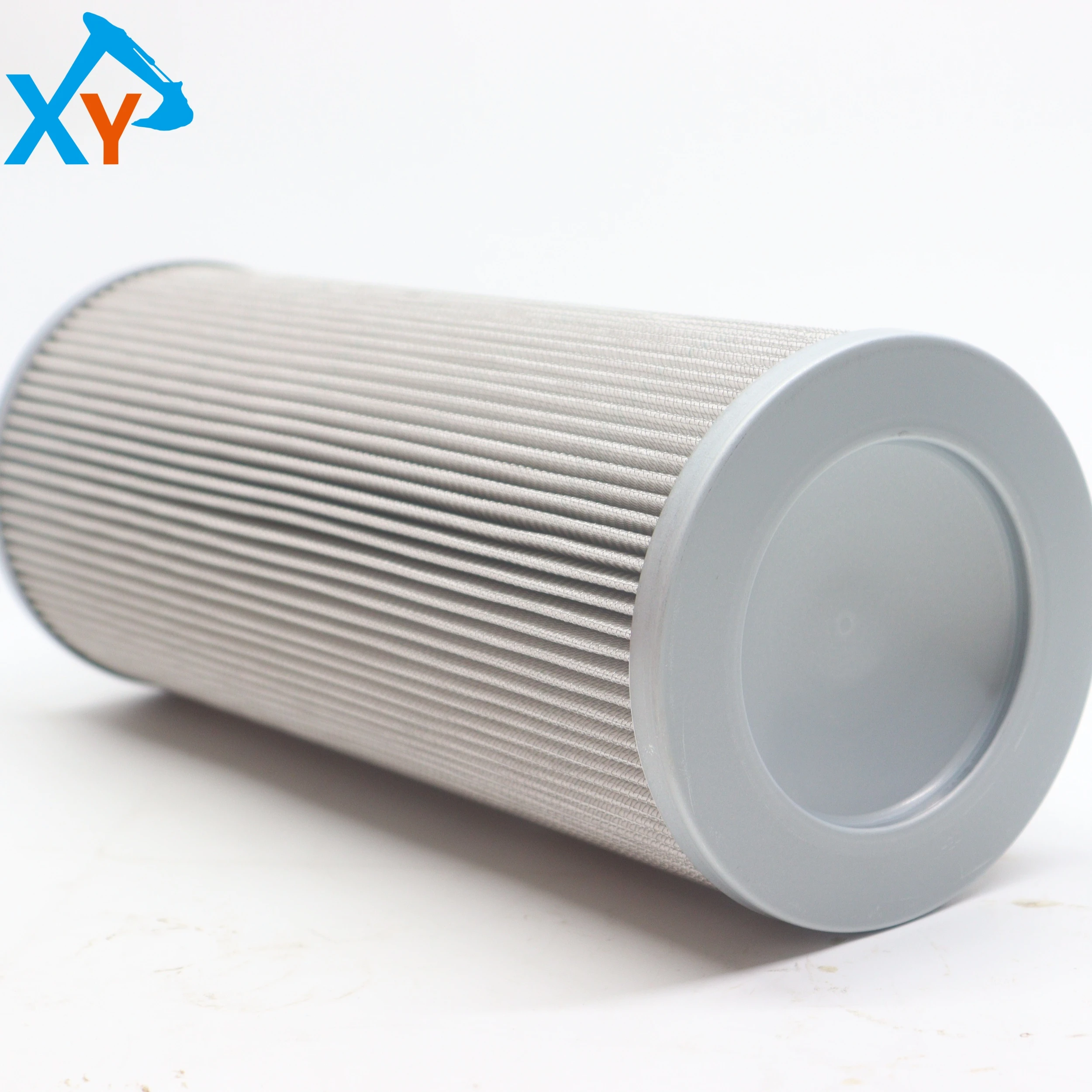

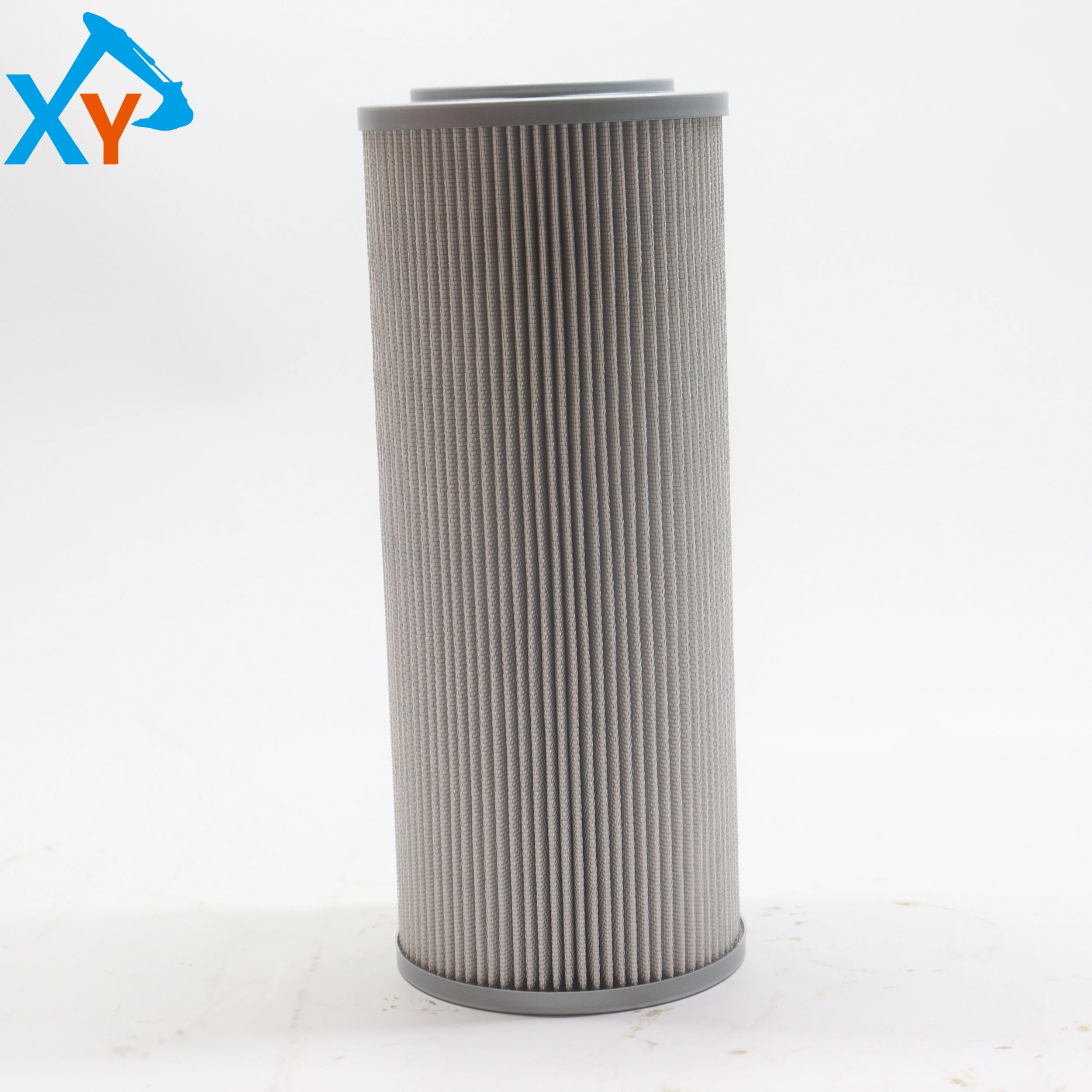

This product has a gray cylindrical structure with visible uniform and dense vertical folds. This design can significantly increase the effective filtration area and reduce pressure loss while ensuring high flow capacity. Internally, multi-layer composite glass fiber or synthetic fiber filter materials are used, which have excellent dirt absorption capacity and a filtration accuracy of up to 10 microns. They can efficiently intercept metal debris, gum, and oxidized impurities in hydraulic oil. The upper and lower end covers are made of high-strength engineering plastics or metal materials, firmly combined with the central pipe to ensure structural integrity; The sealing ring is usually made of oil resistant fluororubber, which can maintain elasticity for a long time in the oil temperature range of -30 ℃ to 120 ℃, prevent bypass leakage, and is the core barrier to ensure the cleanliness and reliability of the ZX530LCH-7 large hydraulic system.

It is recommended to check the differential pressure indicator of the filter element every 500 working hours (if any) or visually determine the pollution situation. It is necessary to replace it every 1000 hours or every year. If working in harsh conditions such as high dust or high humidity, the replacement cycle should be shortened to 500-750 hours. Before replacement, the surrounding area of the filter seat should be thoroughly cleaned. During installation, a thin layer of clean hydraulic oil should be applied to the sealing ring and tightened by hand until it fits snugly. Then, use tools to lock it with the torque specified in the maintenance manual (usually 3/4 to 1 turn). Over tightening can cause deformation of the sealing ring or damage to the housing. Be sure to use 4633905 original filter cartridges, whose performance has been rigorously matched and tested. The designated brand of clean hydraulic oil should be used in daily life, and the oil tank should be cleaned regularly to control pollution from the source and maximize the service life of core components such as hydraulic pumps and valves.
