YA00022308 Excavator Air Conditioner Filter ZX130-6

The original air filter YA00022308 is designed specifically for Hitachi ZX130-6 (approximately 13 tons) and ZX210-5B (approximately 21 tons) crawler excavators, and is the core filtering component of the engine intake system. Its universal number YA00022308 is the unique identifier for Hitachi genuine parts, ensuring complete matching with the engine intake pipe interface and flow requirements. This filter element is mainly suitable for the above-mentioned models equipped with Isuzu or Yamato engines, and may also be compatible with other Hitachi equipment that uses the same intake system. However, the universal number and host model must be verified when ordering to ensure perfect sealing, filtration efficiency, and engine matching.

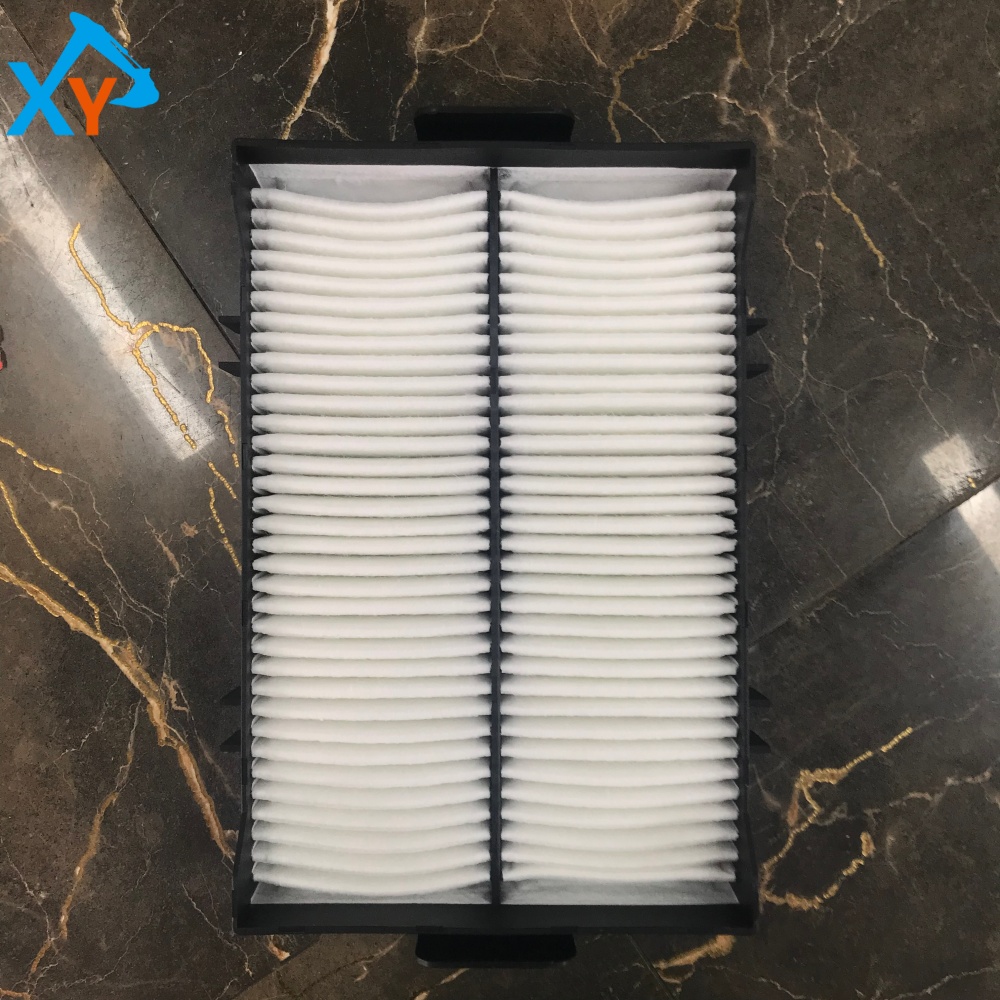

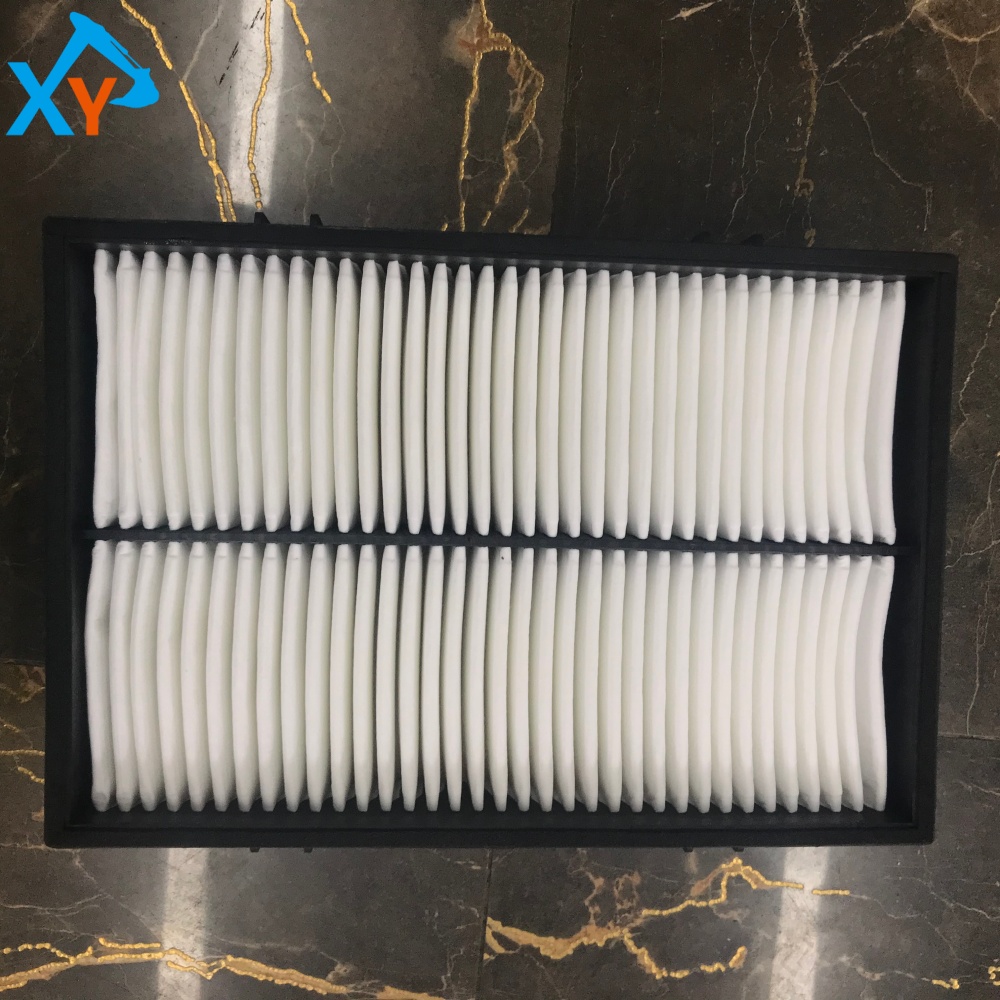

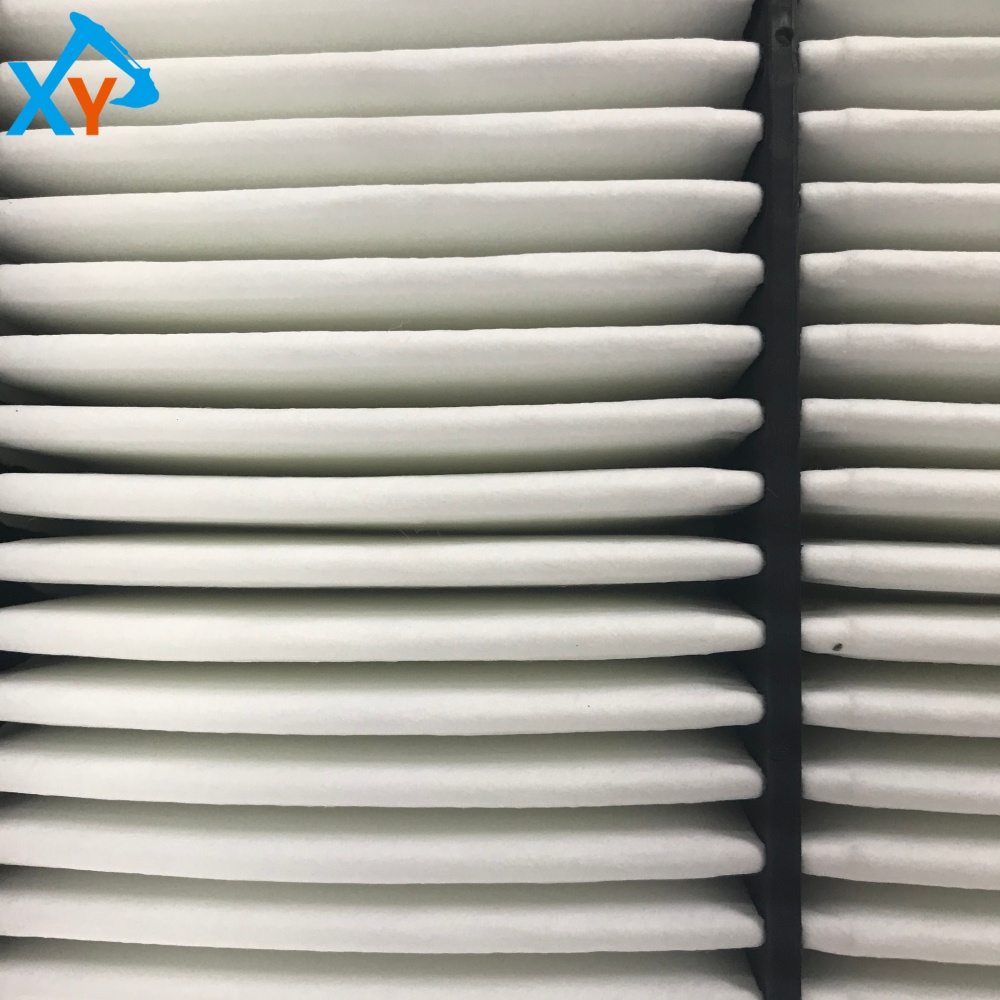

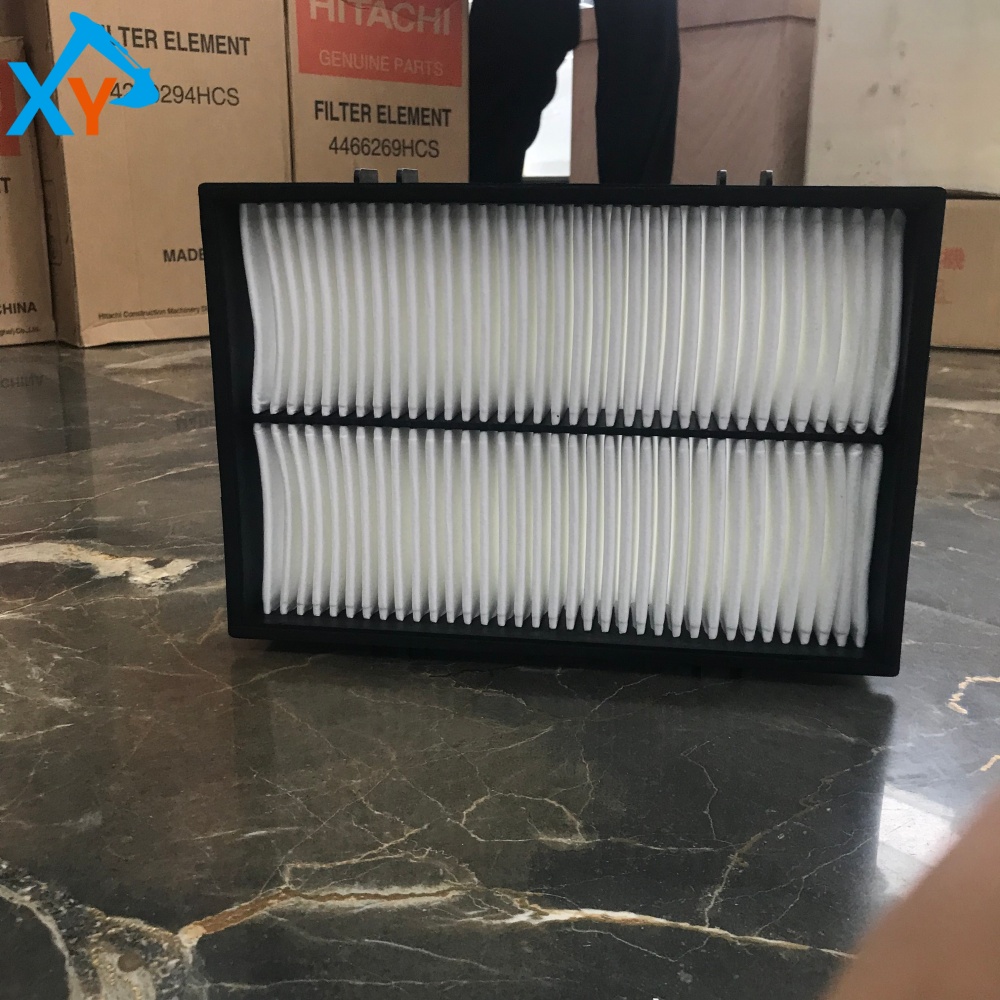

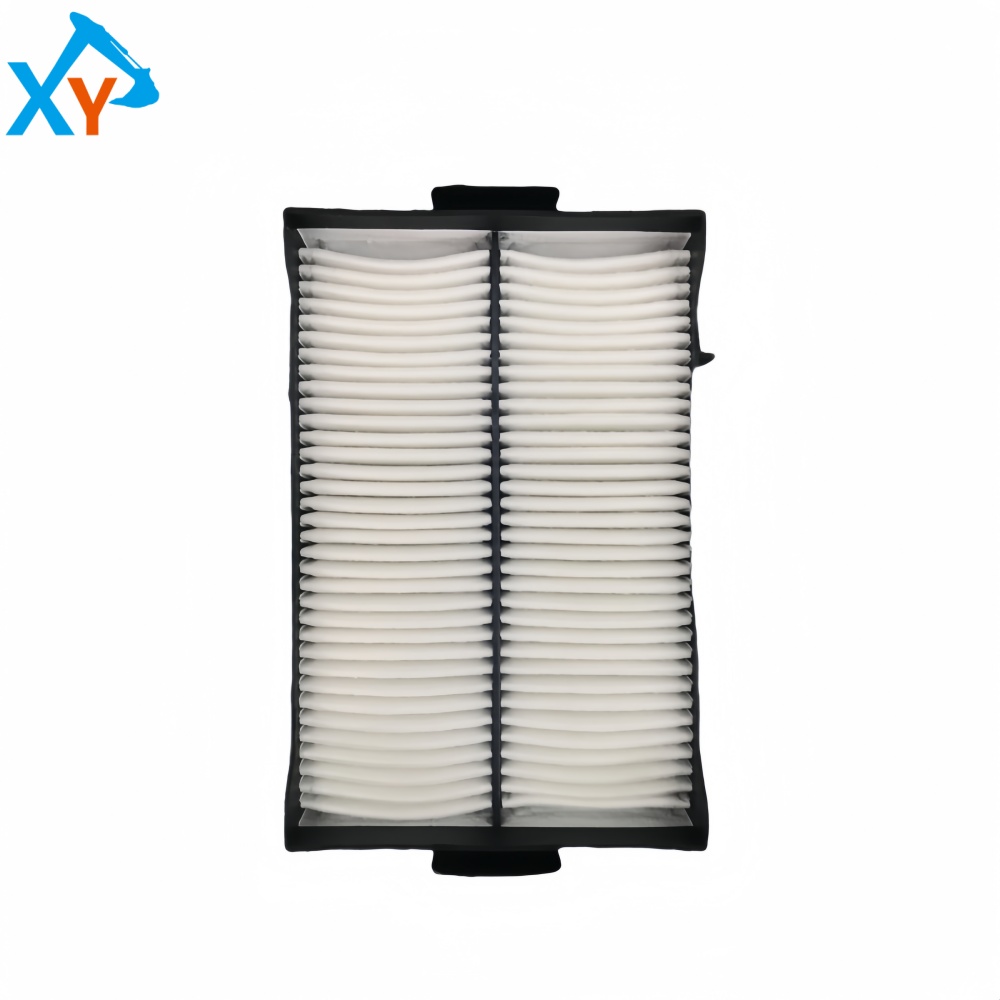

The shell is made of high-strength weather resistant engineering plastic, and the interior is composed of multiple layers of tightly arranged white pleated high-efficiency filter paper. This pleated design greatly increases the effective filtering area, has excellent dust holding capacity, and lower intake resistance. The filter paper is treated with special resin, which can effectively intercept more than 99.5% of small particles such as dust and sand in the air (with a filtration accuracy of usually 5 microns), prevent them from entering the engine cylinder, thereby avoiding abnormal wear, ensuring combustion efficiency, and extending the engine overhaul cycle. Its overall structure is compact, with rigorous sealing edge design, ensuring no unfiltered air leakage under various engine operating conditions.

It is recommended to conduct a visual inspection every 250 hours of work. When working in dusty, sandy or harsh environments, the inspection cycle should be shortened. When the surface of the filter element is dirty or the pressure difference alarm indicator (if equipped) shows blockage, it should be cleaned or replaced in a timely manner. When cleaning, dry compressed air should be used to blow evenly from the inside to the outside of the filter element, and the pressure should not exceed 0.5MPa. It is strictly prohibited to clean with water or oil. If the filter paper is damaged, oily, or deeply clogged and difficult to clean, it must be replaced immediately. Before installing a new filter element, it is necessary to thoroughly clean the inside of the filter housing, check whether the sealing gasket is intact, and ensure that the filter element is installed in place and sealed tightly. Be sure to use YA00022308 original air filter, whose performance has been rigorously tested and is the first key barrier to protect the engine. The surrounding environment of the equipment should be kept relatively clean in daily life, and the air inlet of the air filter assembly should be cleaned regularly to extend the service life of the filter element.
