YD00001540 Original Excavator Filter Element for ZX33U-5A

The part number is YD00001540, which is an original filter cartridge specially designed by Hitachi for the ZX33U-5A ultra small excavator. The "GENUINE" and "Support Chain" markings on the packaging are its core information, clearly indicating that this is a dedicated external filter element used for lubrication or tensioning systems of track support chains (chain links). Its universal models usually cover small models on platforms such as ZX33U-5A and ZX35U-5A. As an independent lubrication circuit filter unit designated by the original factory, its interface size perfectly matches the system filter seat

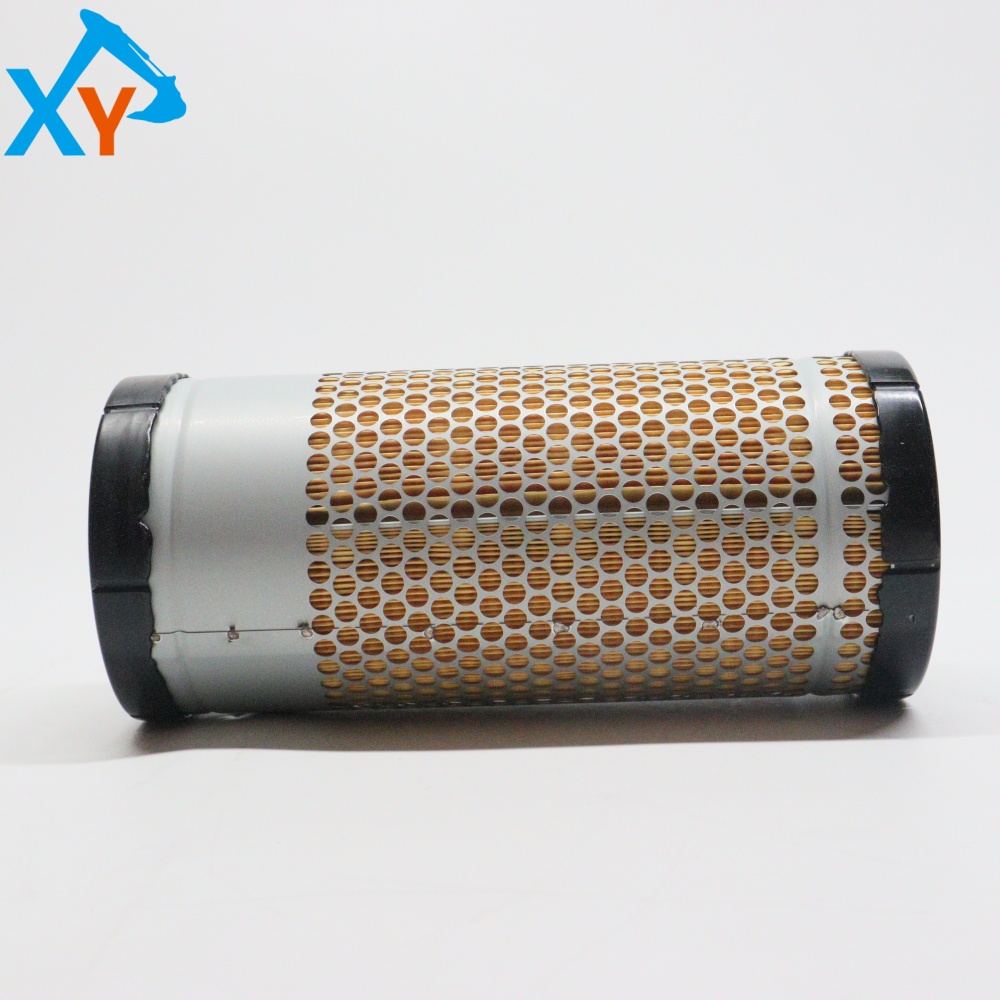

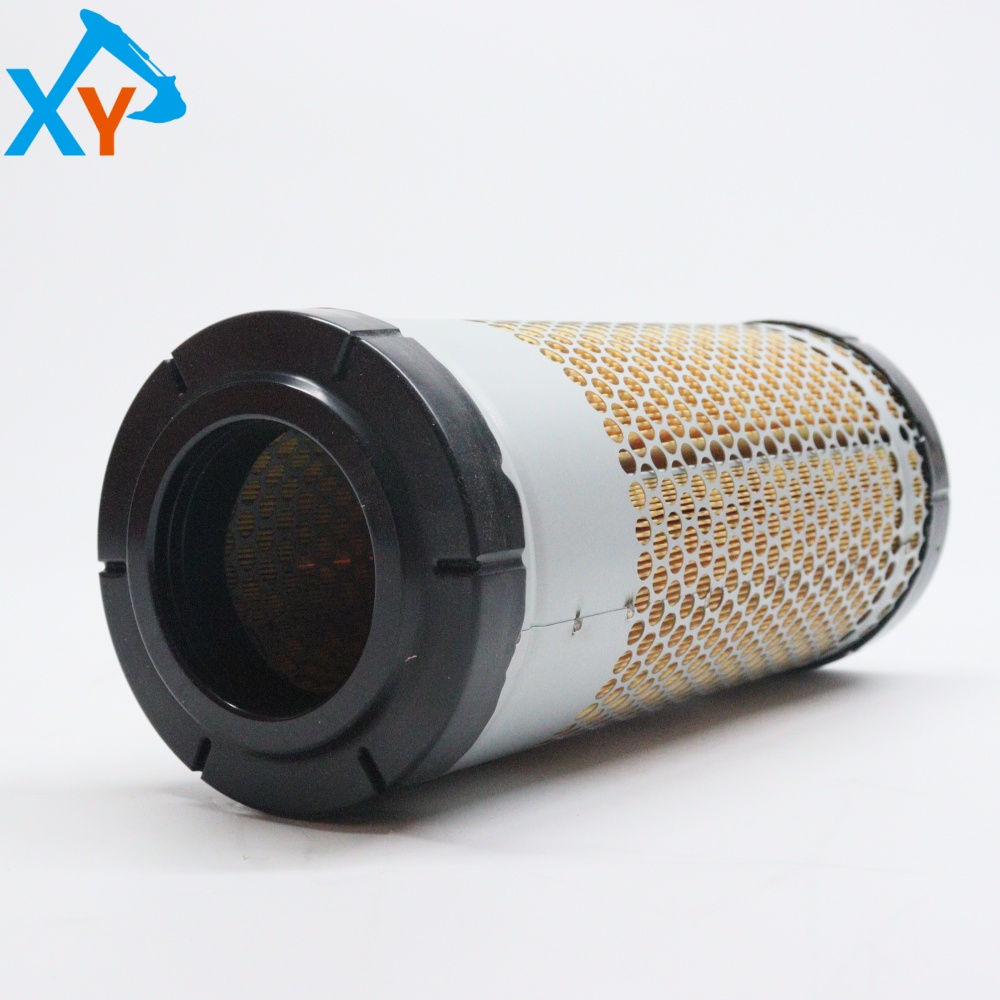

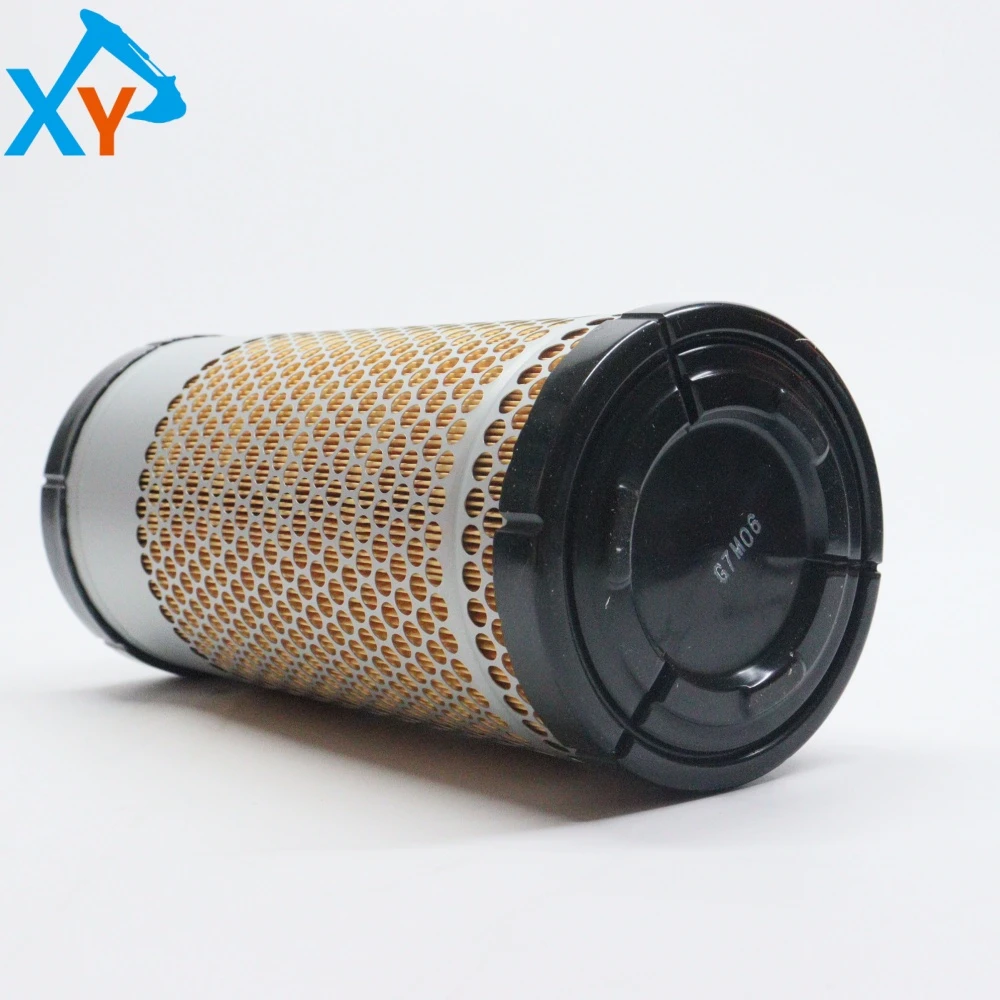

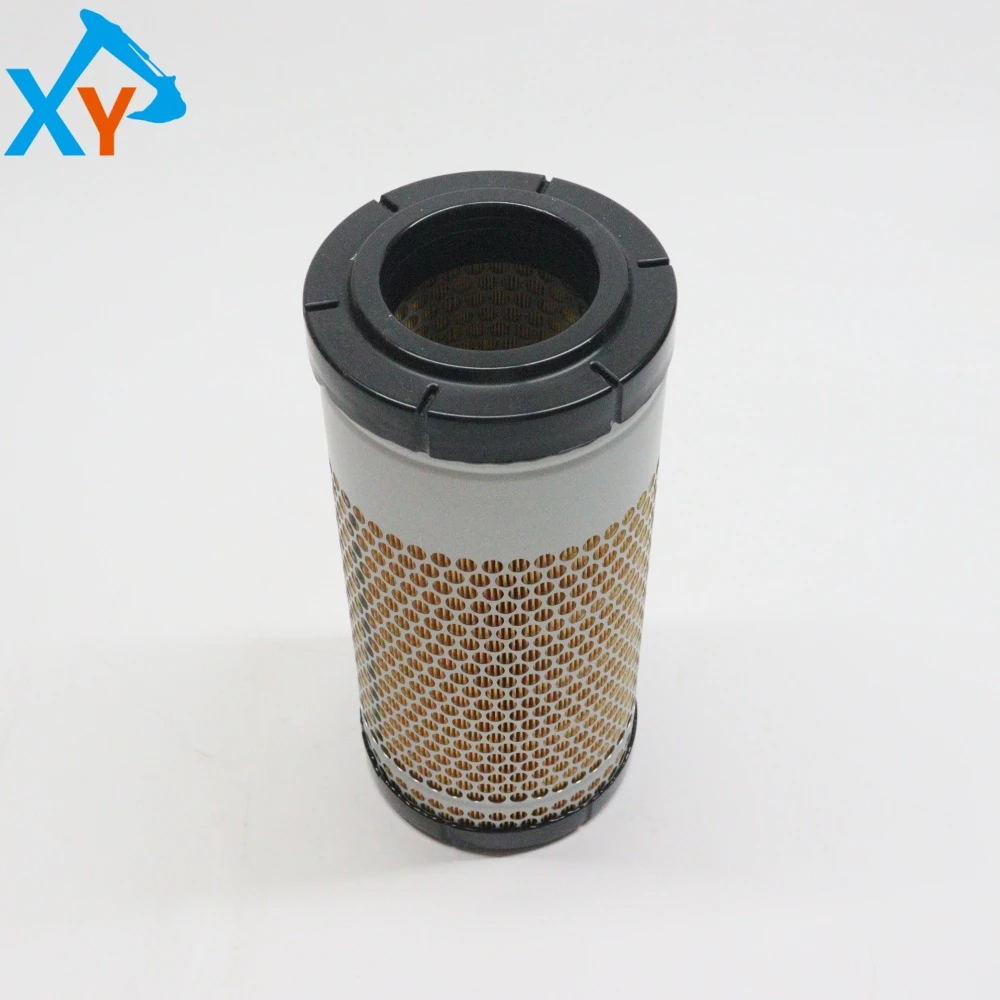

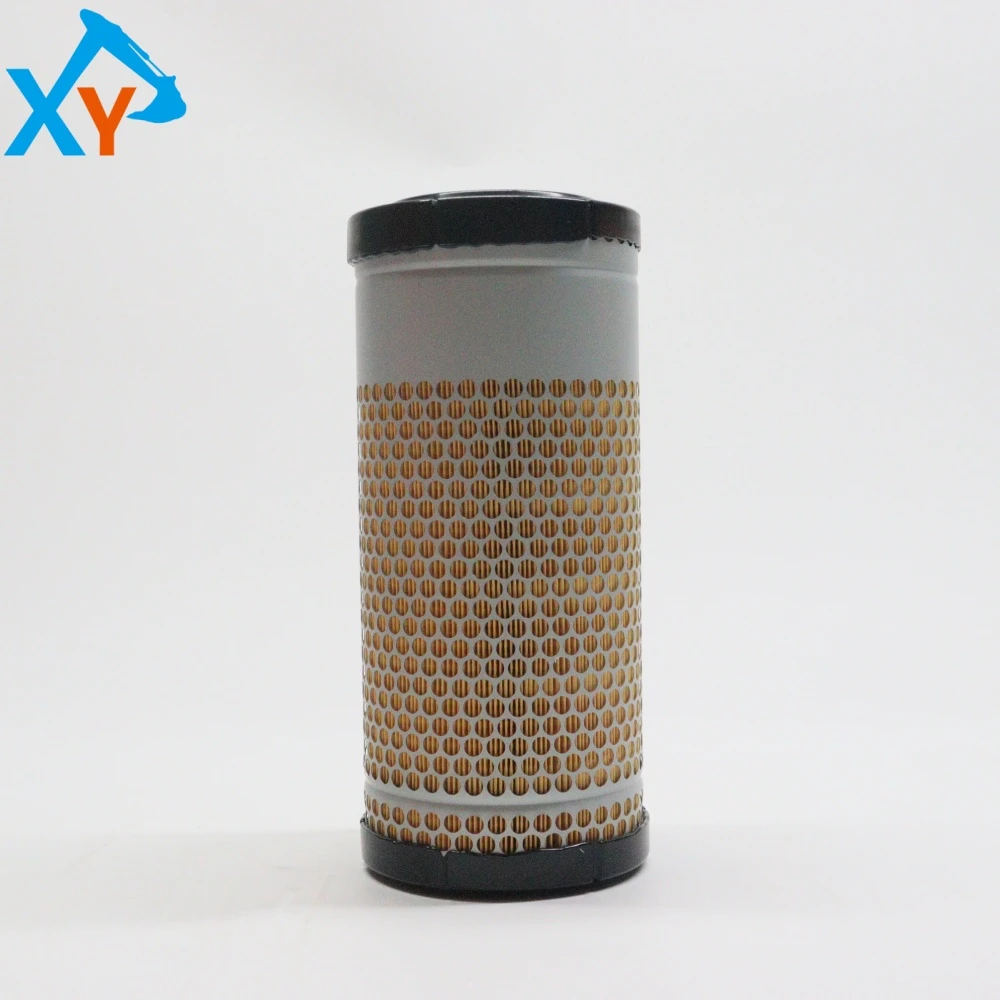

This product is an external filter cartridge specifically designed for supporting chain systems. It is cylindrical in shape and features a tightly arranged pleated structure for the filter material. It is typically made of metal wire mesh or high-performance composite materials and is used to filter metal debris and larger particle impurities in lubrication circuits. The filtration accuracy is usually between 100-150 microns. The upper and lower parts are equipped with sturdy end caps, and the top is integrated with a black rubber sealing ring to ensure reliable sealing after installation. Its working pressure is relatively low (usually ≤ 0.5MPa), and it can withstand long-term immersion in gear oil or lubricating grease. The working temperature range is about -20 ℃ to+100 ℃. The core function is to keep the lubricating oil of the support chain clean and protect precision hinge points such as chain links and pin sleeves.

Replacement cycle: It is recommended to replace it every 500 working hours or once a year, and it should be shortened to 250 working hours in conditions with high sand and mud. Operation steps: 1 Cleaning: Clean the filter housing before replacement. 2. Pressure relief: Slowly release the relevant release valve. 3. Replacement: Use a tool to remove the old filter element, thoroughly clean the filter seat, apply a small amount of system lubricating oil to the sealing ring of the new filter element (YD00001540), and then screw it in by hand. Use a tool to tighten it by 3/4 turn (about 15-20 N · m). 4. Exhaust test: After installation, add oil, operate the tensioning device several times, and check if there is any leakage at the interface.
