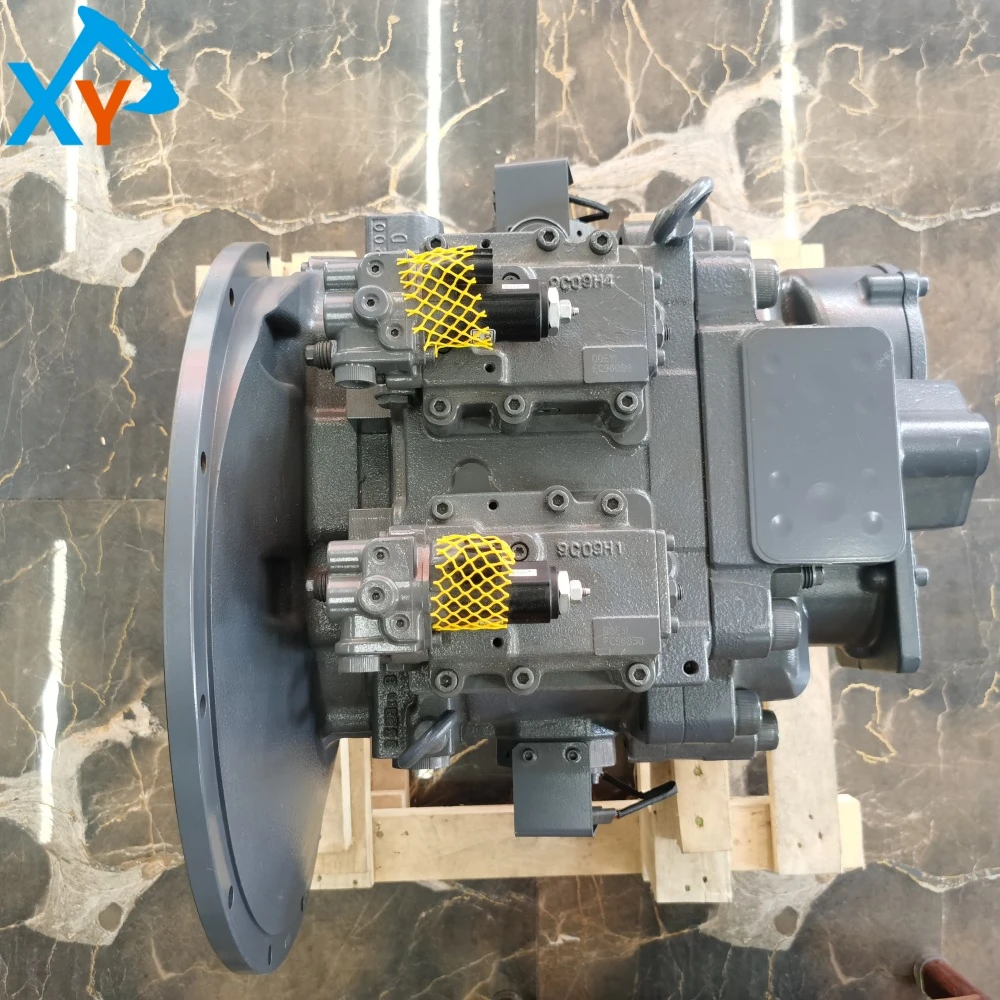

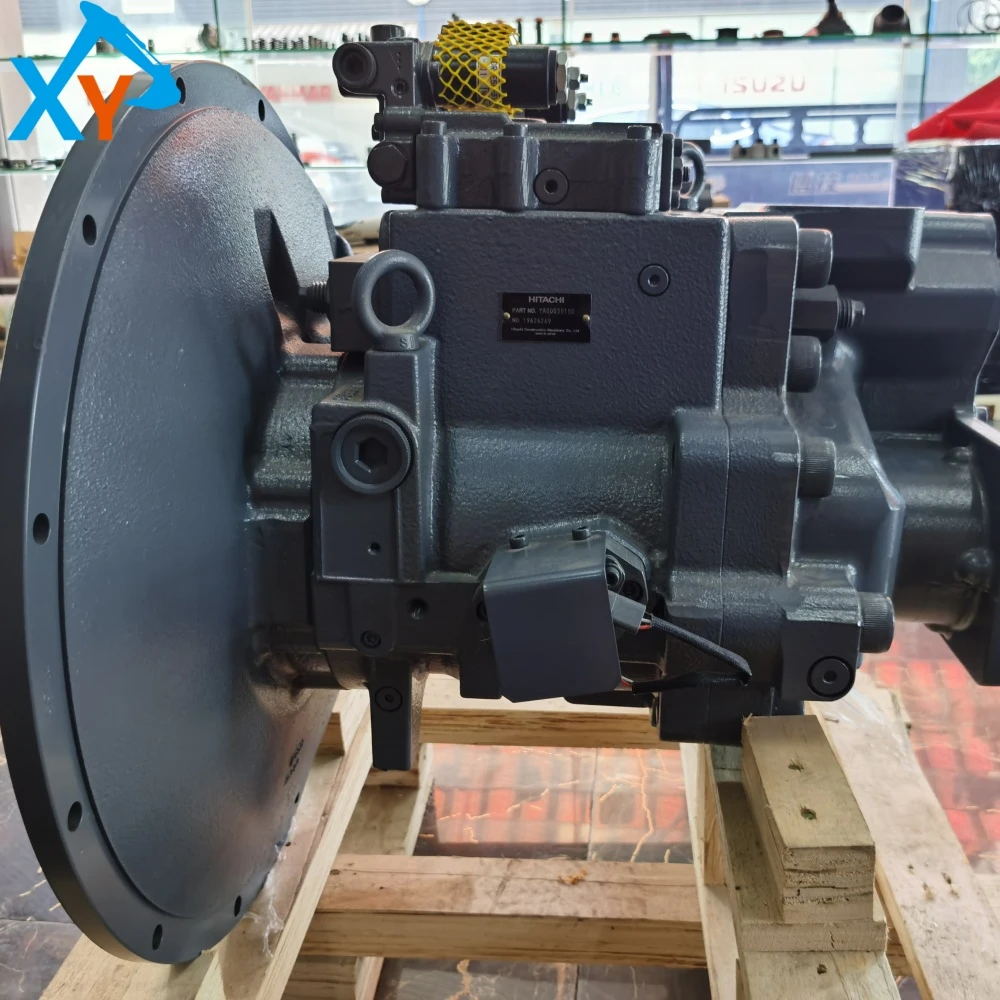

9184686 Original Excavator Hydraulic Pump Assembly for ZX450

The original hydraulic pump assembly part number 9184686 is the core hydraulic power unit of Hitachi ZX450 series large excavators (such as ZX450-3, ZX450H-HHE). It is mainly compatible with models such as ZX450, ZX470-5G, ZX470-5, ZX450-3, EX450, and may also be compatible with Hitachi excavators of similar tonnage such as ZX470LC-5G. This pump serves as the main hydraulic pump assembly and is responsible for providing high-pressure hydraulic oil to the working devices of the entire machine. Its universal model is often labeled as K5V200DP or K5V200DPH, belonging to the Kawasaki K5V series inclined axis axial piston pump. When placing an order, the complete model and serial number of the equipment must be provided to ensure that its installation interface, displacement, and control method are fully compatible with the original hydraulic system.

This product is an original axial piston pump assembly (Piston Pump), which adopts a cast iron housing and integrates precision motion pairs such as plunger, cylinder body, and distribution plate. Its design pressure can reach 26.2 MPa (about 3800 psi), and the maximum flow rate is about 844 L/min (222.8 GPM), which can meet the high load operation requirements of large excavators such as ZX450. As an original component, its material, heat treatment process, and sealing components are strictly matched with Hitachi's original hydraulic system, ensuring high volumetric efficiency, low leakage, and long service life under high pressure and high impact conditions. This pump is usually integrated with a pilot pump, pressure compensation valve, and electronic proportional valve to achieve precise control of flow and pressure, optimizing the fuel economy and operational efficiency of the entire machine.

It is recommended to check the cleanliness of the hydraulic oil (NAS level 9 or below) every 500 working hours and replace the return oil and pilot filter element; Monitor the pump body for any abnormal whistling or knocking sounds, which may be a sign of wear on the plunger or distribution plate. Fault diagnosis: If there is slow or weak movement of the whole machine or abnormal pump noise, it is necessary to check the output pressure and flow rate of the pump; If the internal wear of the pump is confirmed, it may be considered to replace the old with a new regeneration pump service to reduce costs. Replacement and installation: When disassembling, mark the oil pipe interface; After installation, it is necessary to exhaust the air and slowly test the machine.
