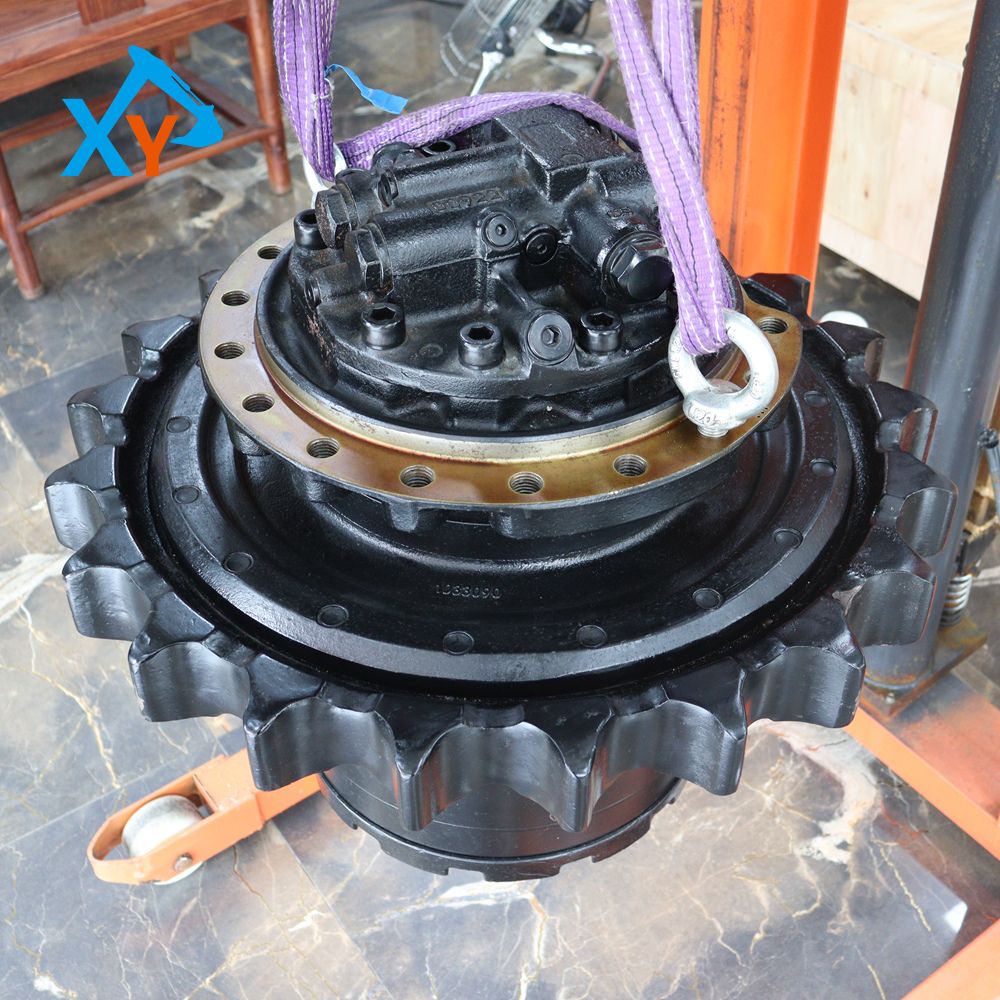

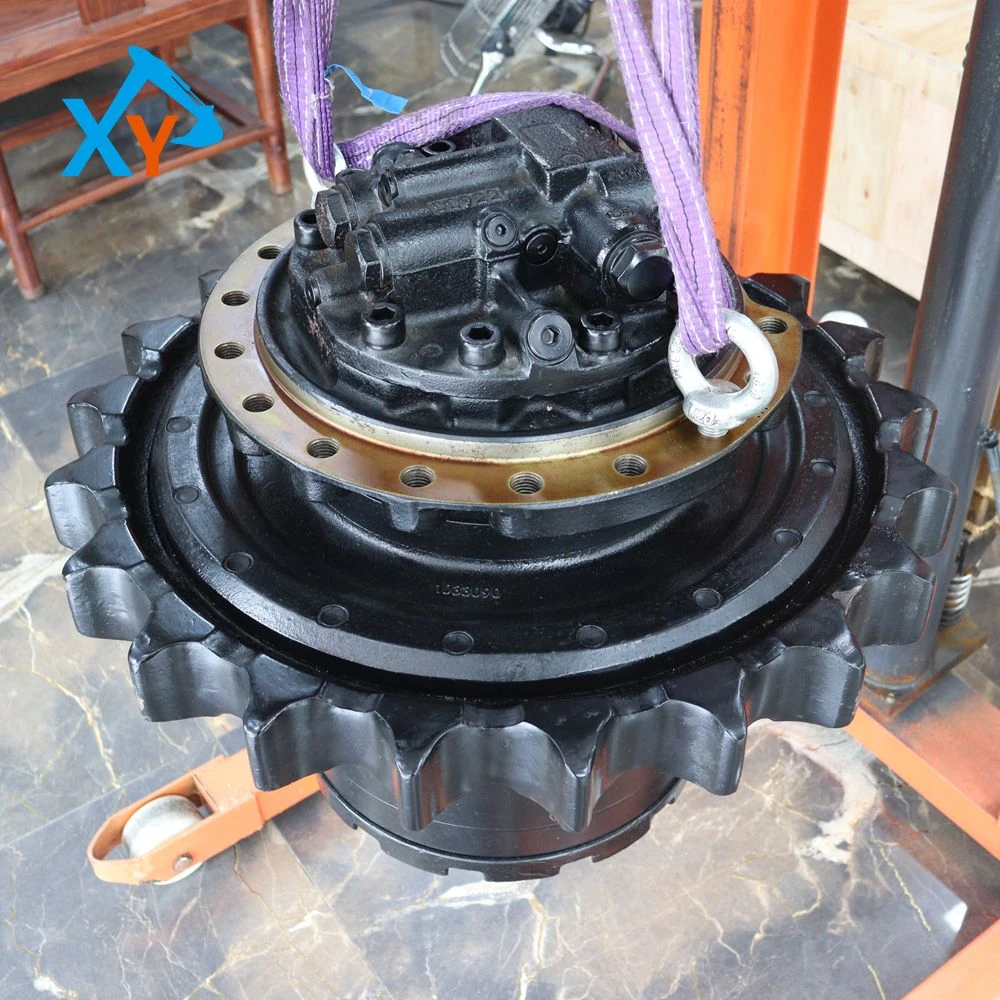

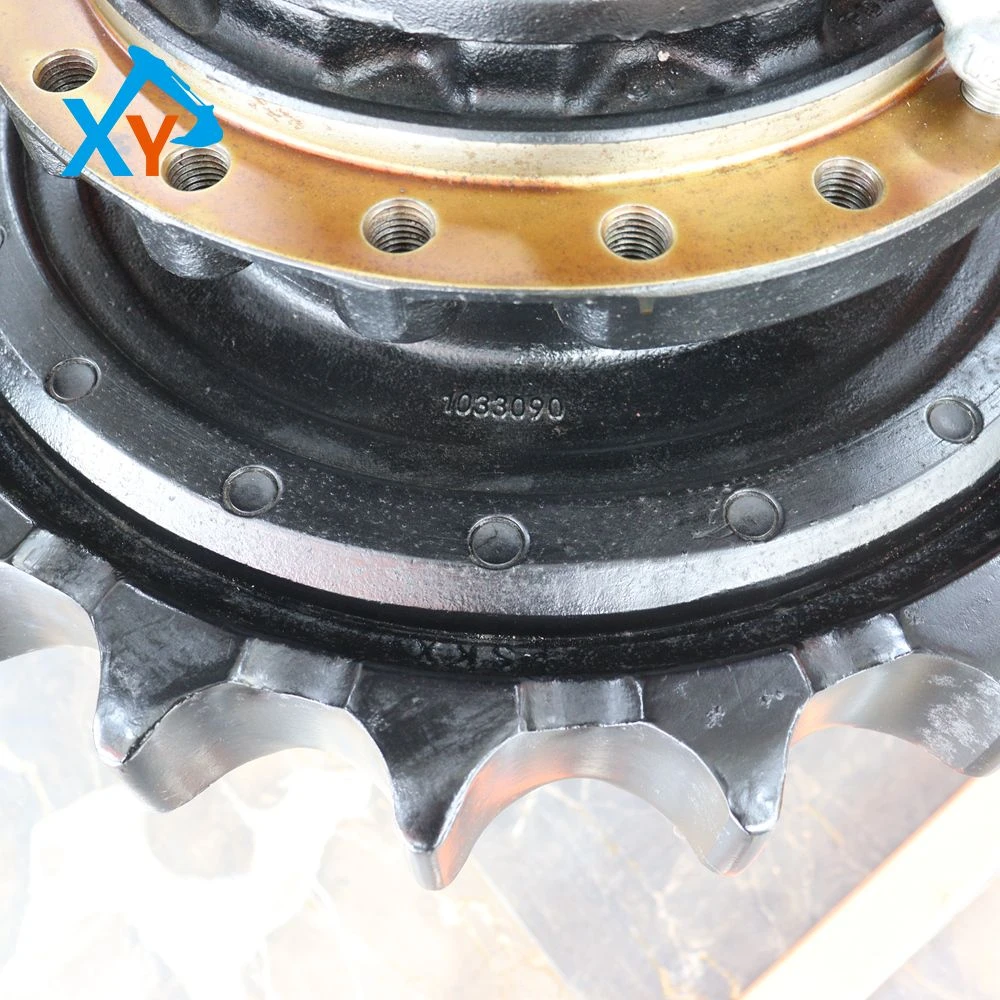

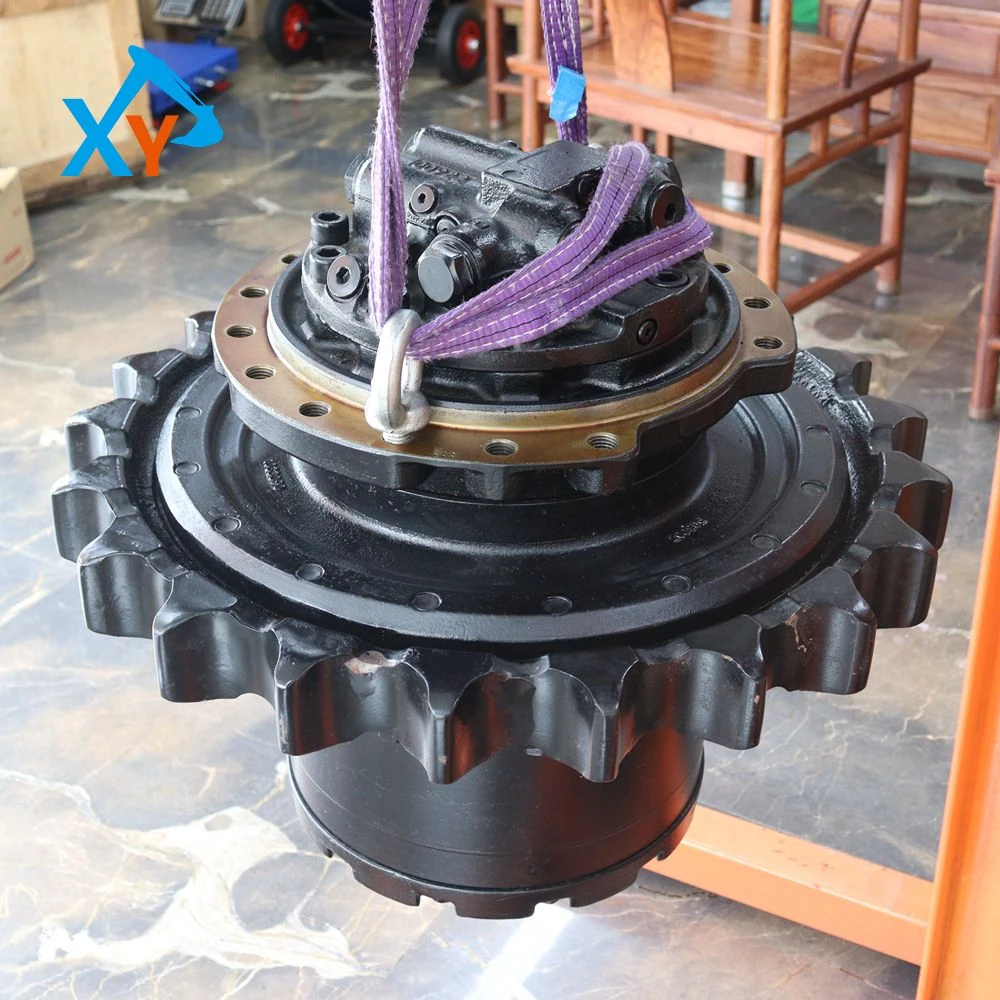

9233692 Genuine Hitachi travel motor assembly for Hitachi excavator ZX240-3.

Part number 9233692 is a dedicated travel assembly (including hydraulic motor + three - stage planetary gearbox + drive ring gear) for Hitachi ZX240-3 excavators, compatible with ZX240-3 and models on the same platform such as ZX200-3/ZX210-3/ZX230-3. It is suitable for Isuzu 4HK1 engines and original hydraulic systems. The motor has a rated pressure of 35MPa, a maximum torque of 8500N·m, a reduction ratio of 20.4:1, a drive sprocket with a pitch of 190mm and 20 teeth, an input speed of 0-3000rpm, and an output speed of 0-147rpm. The total weight of the assembly is about 220kg. It adopts a floating oil seal (temperature - resistant from - 40℃ to 100℃), with a protection class of IP67, and is suitable for the original track assembly, ensuring stable transmission of travel power and efficient operation.

Its core function is to convert the high - pressure oil output by the hydraulic pump into travel driving force. The three - stage planetary gearbox realizes large torque output. The hydraulic motor has a built - in balance valve (to prevent slope slipping) and an overload relief valve (to protect the system pressure ≤38MPa). The floating oil seal isolates hydraulic oil from gear oil, preventing dust, water and leakage. The gears are made of 20CrMnTi material (carburizing and quenching hardness HRC58-62), and the bearings are original SKF (rated service life ≥10000 hours). It is suitable for dusty, muddy and heavy - duty working conditions (operating temperature - 40℃ to 85℃), with an average service life of ≥8000 hours. It has a fast forward - reverse switching function (response time ≤0.5s), ensuring stable and accurate travel actions and preventing component damage.

Before replacement, disconnect the negative pole of the battery and release the pressure of the hydraulic system. When disassembling, remove the fixing bolts with a torque of 100-120N·m, mark the oil pipe interfaces (to avoid wrong connection), and clean the mounting surface (free of oil stains and impurities). When installing, replace with a new floating oil seal (apply grease), tighten the bolts symmetrically (100-120N·m), add gear oil (API GL-5 85W-90) to the oil level line after connecting the oil pipes, and perform a test run (10 minutes each for forward and reverse rotation, no abnormal noise/leakage). This travel assembly can increase travel traction by 20%, reduce travel failure shutdown rate by 40%, decrease hydraulic oil loss by 15%, extend the service life of tracks and drive wheels, improve the overall operation efficiency of the machine, and reduce maintenance costs.
