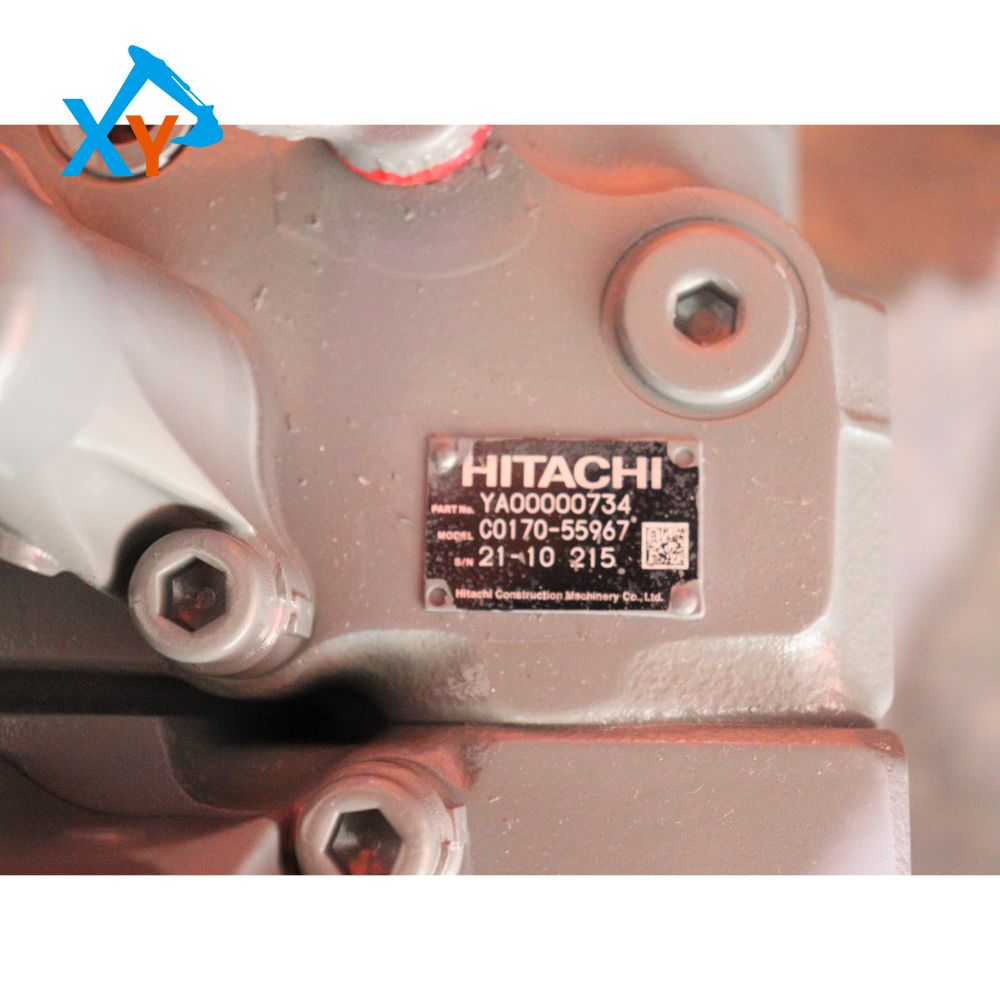

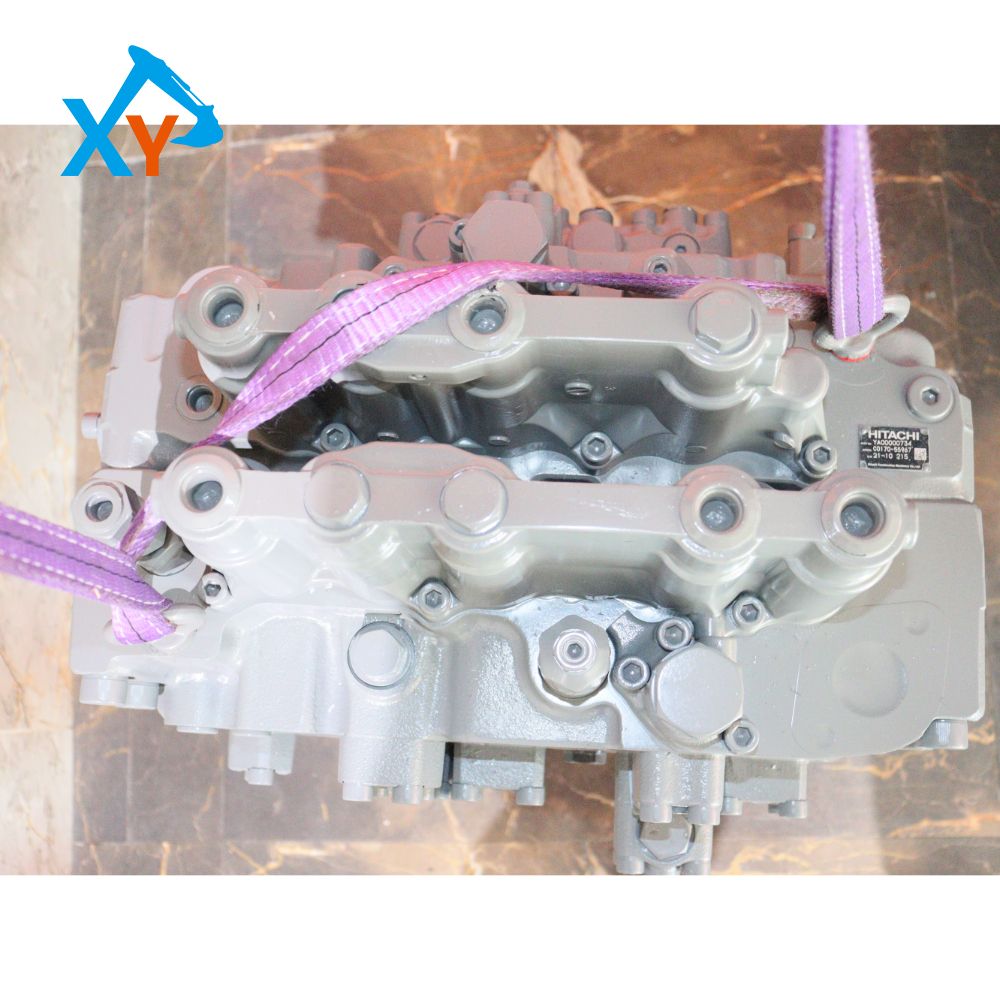

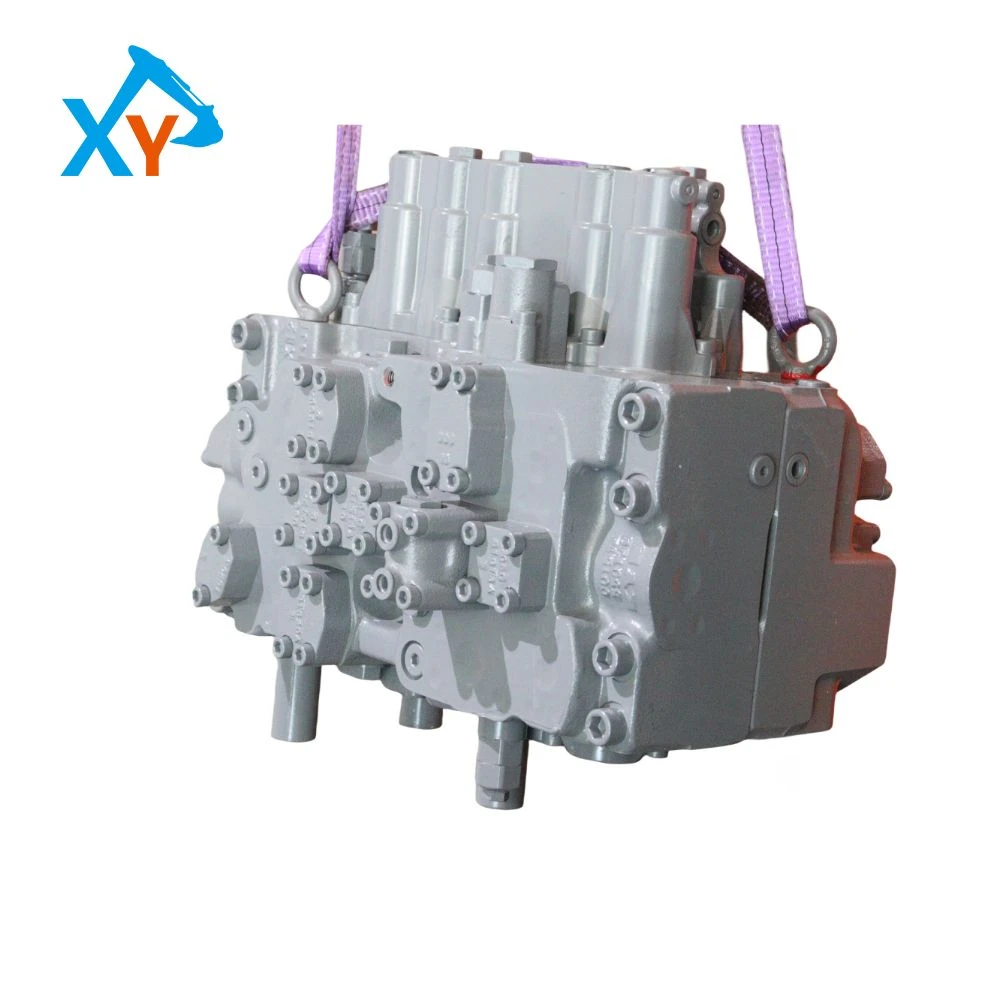

YA00000734 Hitachi ZX330-5G Excavator Control Valve Assembly

Part number YA00000734 is an electro-hydraulic main control valve (hydraulic distributor) specially designed for Hitachi ZX330-5G series excavators, compatible with ZX330-5G/ZX330LC-5G/ZX330LCH-5G, as well as ZX350-5G/ZX350LC-5G/ZX300-5G/ZX300LC-5G/ZX330-3/ZX350-3 and other models. It is suitable for the hydraulic system of Isuzu 6HK1 engine, adopting an 8-section valve bank design, integrating main relief valve, pressure reducing valve and overload replenishing valve. The rated working pressure is 34.3MPa, maximum pressure resistance is 38MPa, maximum flow rate per section is 210L/min, total flow rate is 1680L/min, and weight is 310kg. Equipped with load-sensing and pressure compensation functions, it ensures precise coordination of compound actions, reduces energy consumption and hydraulic impact.

The valve body is made of QT700-2 ductile iron, after double aging treatment, the deformation is ≤0.05mm, with excellent impact and vibration resistance. The valve spool is made of 42CrMo alloy steel, surface nitrided, hardness HRC60-63, good wear resistance and anti-seizure performance. The valve sleeve is made of tin bronze with surface hardening treatment, suitable for oil temperature from -30°C to 110°C. Seals are made of fluororubber (FKM), preventing high-pressure leakage and aging. The main relief valve has a response time ≤0.03s, and overload protection accuracy ±0.5MPa. The pressure compensation valve maintains a stable pressure difference of 0.8-1.2MPa, and the flow distribution error of compound actions is ≤3%. Maintenance is recommended every 2000 hours under normal working conditions, replacing filters and seals; shortened to 1500 hours under harsh conditions. No jamming, leakage, slow action and other faults within the cycle, extending the service life of the hydraulic system.

Adopting an integral valve bank design, special hoisting equipment (load-bearing ≥320kg) is required for replacement. Before disassembly, the pressure of the hydraulic system should be released (≤0.1MPa). During installation, flange bolts should be tightened symmetrically to 150-170N·m, and connector torque is 8-10N·m. After installation, No. 46 anti-wear hydraulic oil should be added to the oil level line, power on to test the pressure and flow of each action, and re-calibrate if the error exceeds 5%. This main control valve can reduce the maintenance cost of the hydraulic system by more than 35%, reduce action deviation and downtime, improve the operating efficiency by about 12% under working conditions such as earthwork, loading and other working conditions, and ensure safe and stable operation.
