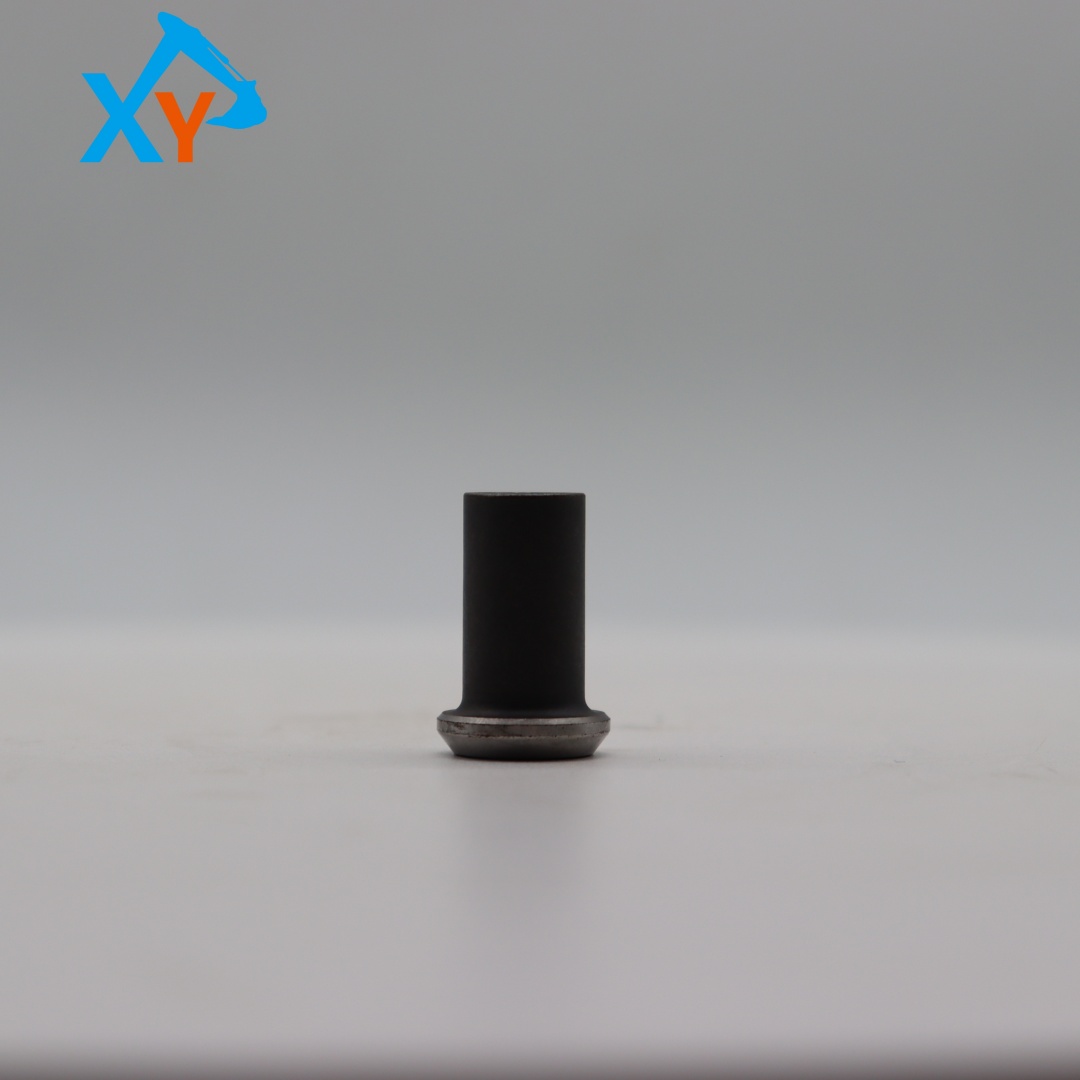

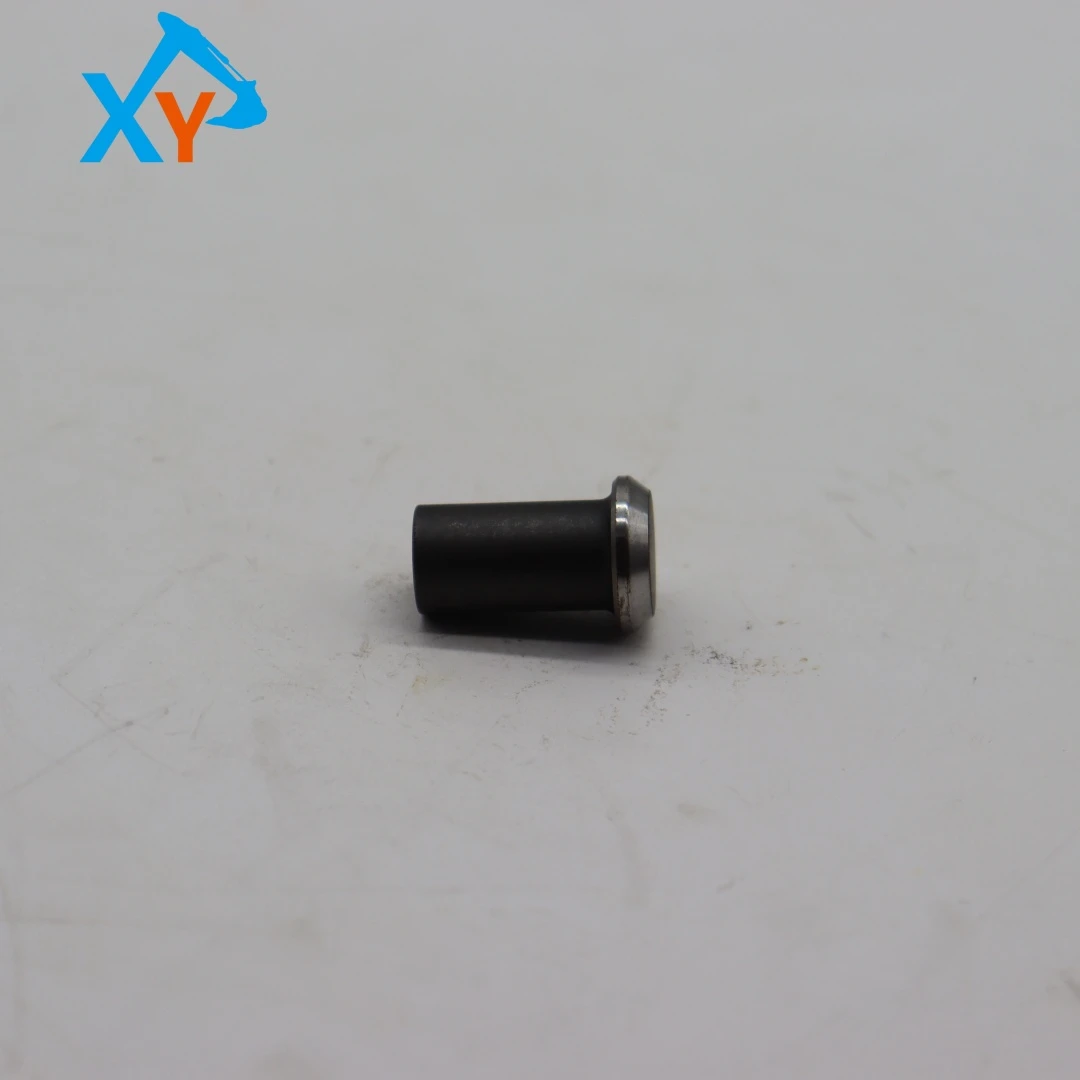

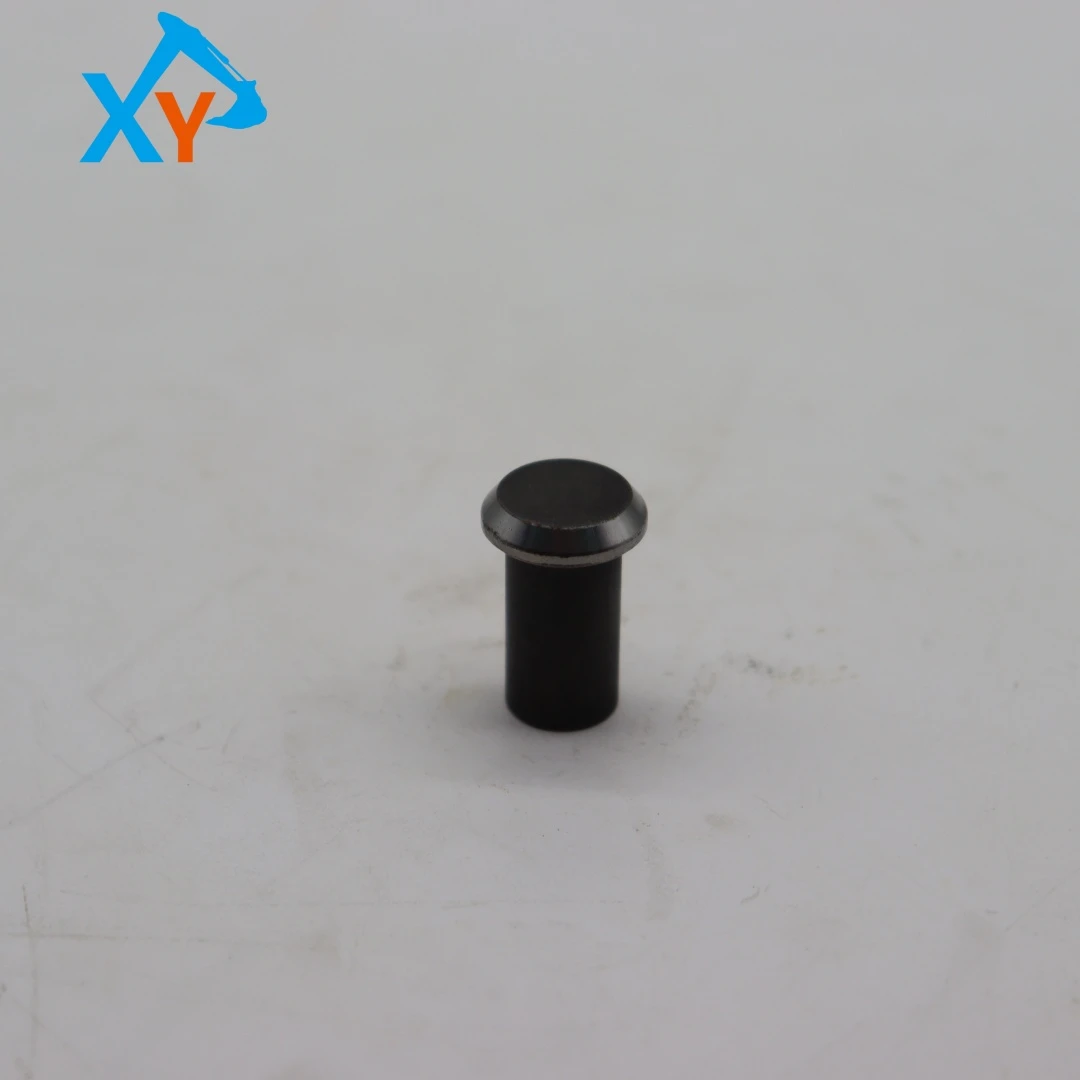

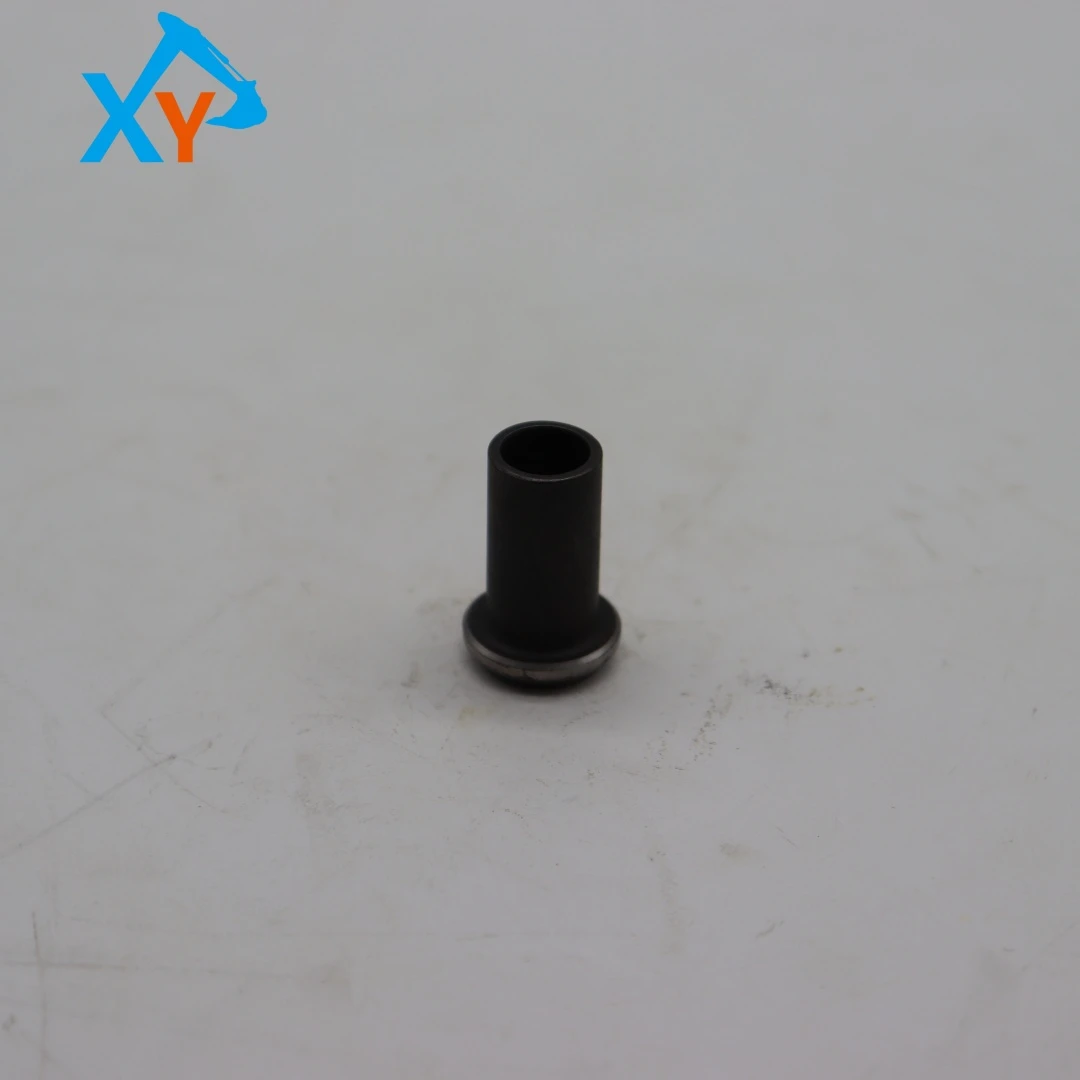

0714503 Original Excavator Poppet Distribution Valve for Hitachi ZX200

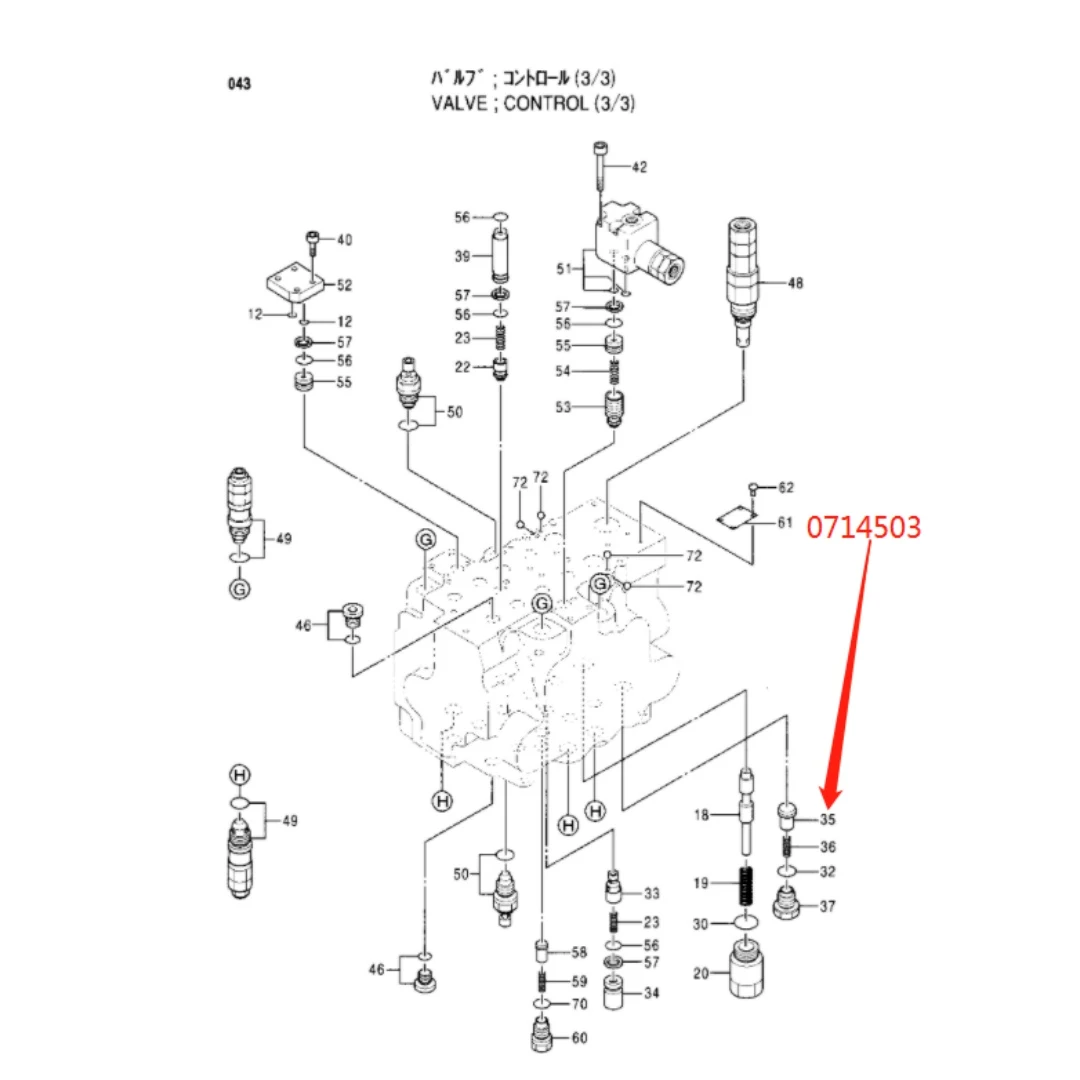

Part number 0714503 is a dedicated part number for the original Hitachi stick (forearm) main control valve (distribution valve). This valve is the core control component of the hydraulic system of the hydraulic excavator working device, responsible for accurately distributing the pressure oil of the main pump to the boom cylinder according to the operating instructions, in order to control the extension, retraction, and composite actions of the boom. It is widely compatible with multiple medium-sized hydraulic excavators in the Hitachi ZX series (ZAXIS). According to publicly available accessory compatibility information, its typical applicable models include ZX200-3, ZX210-3, ZX240-3, and ZX270-3.


The stick distribution valve is a hydraulic pilot controlled multi way directional valve, whose core function is to receive micro pressure signals from the pilot control handle, accurately switch the main oil circuit through the displacement of the internal valve core, control the flow and direction of hydraulic oil to the two chambers of the stick cylinder, and thus achieve the start, stop, speed adjustment, and force control of the stick action. The valve is integrated with a main safety valve, overload relief valve, regeneration valve, anti cavitation valve, etc. It has advanced functions such as load sensitivity, pressure compensation, and merging control to ensure smooth operation, rapid response, sufficient force, and energy-saving efficiency of the boom.

The maintenance core of this valve lies in keeping the hydraulic oil clean, conducting regular inspections, and professional fault diagnosis. The hydraulic oil, return oil, and pilot oil filter element must be replaced strictly according to the maintenance cycle (usually every 1000 working hours), which is the most effective measure to prevent valve core wear and jamming. Fault diagnosis and replacement: When cleaning is ineffective or severe wear is detected inside the valve body, the main safety valve setting pressure is inaccurate, or there is a malfunction in the pilot control oil circuit, it is necessary to consider replacing the valve assembly or repair kit. When replacing, original seals must be used and installed in the order and torque specified in the maintenance manual. After maintenance, exhaust, pressure testing, and motion calibration are required to ensure that the system returns to normal.
