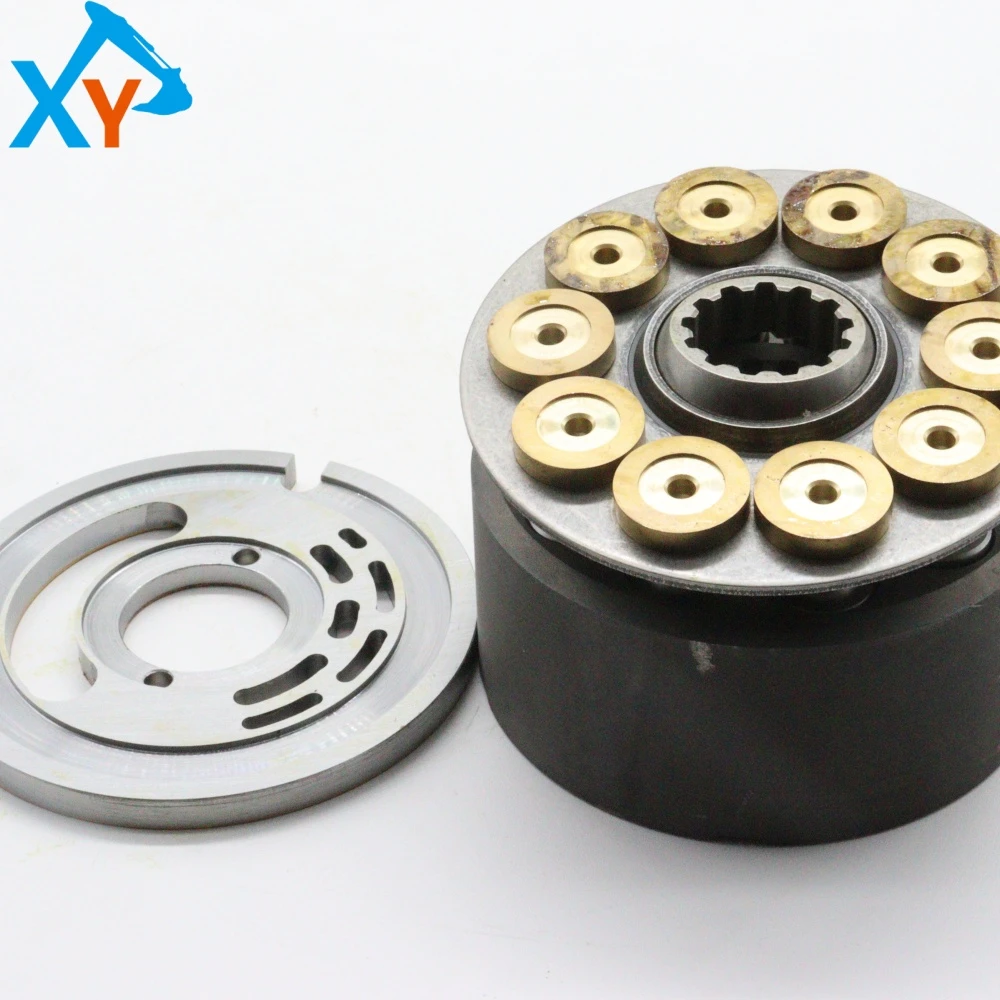

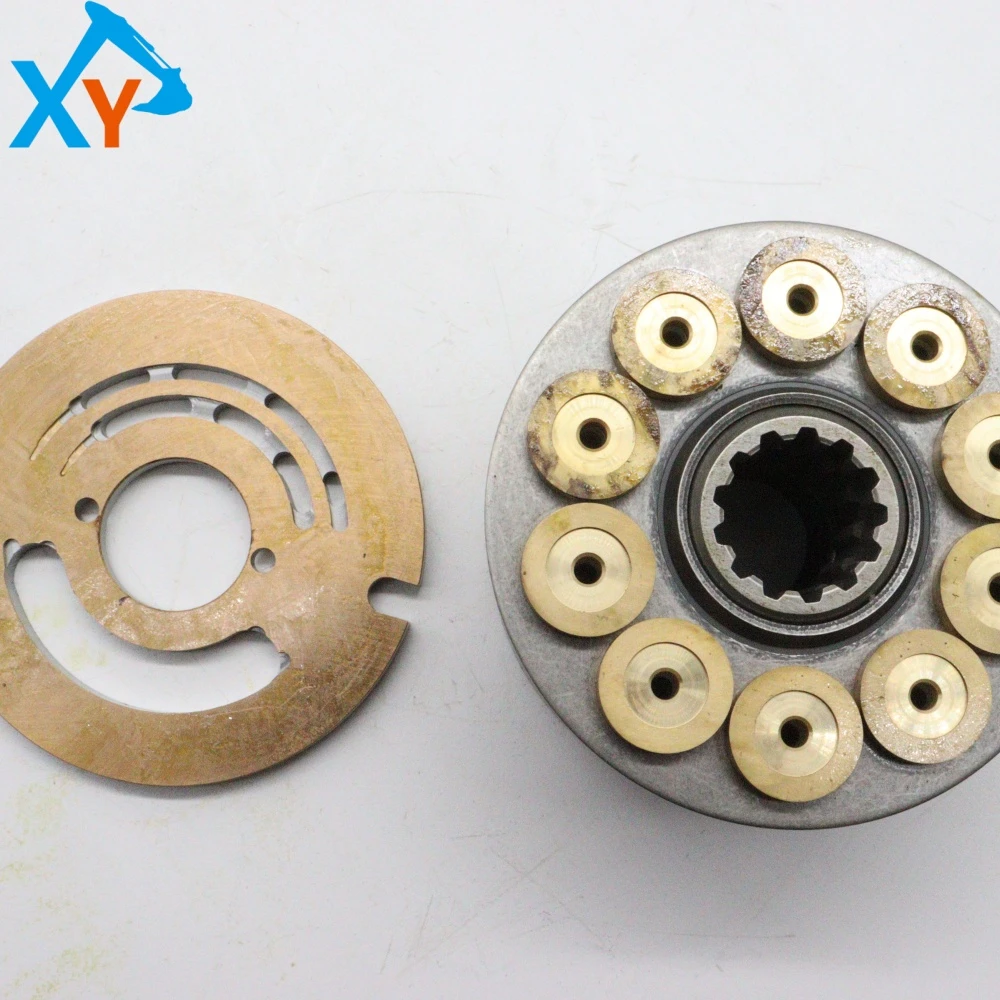

0749308 Original Excavator Hydraulic Pump Distribution Plate Assembly for ZX30

Part number 0749308 is the original hydraulic pump distribution plate assembly provided by Hitachi for the ZX30 series small hydraulic excavator. This component is mainly used inside hydraulic pumps to control the direction of oil entering and leaving the cylinder body, ensuring effective isolation between the oil suction area and the oil pressure area. It is the core sealing component that ensures the volumetric efficiency of the pump unit and prevents internal leakage. Its universal models cover 3-5 ton small excavators such as Hitachi ZX30, ZX35, ZX55, as well as other Hitachi small equipment using the same series of HPV series hydraulic pumps. As a key component of the original hydraulic pump, its size, oil passage layout, and pump body are completely matched. The use of non-standard spare parts is strictly prohibited to avoid insufficient pressure, flow fluctuations, or pump damage.

This product is a valve plate assembly made of high-strength alloy steel or bronze, with a typical structure of flat or spherical valve plate design, surface hardness ≥ HS90, and excellent wear resistance. The component includes accessories such as the distribution plate body, sealing gasket, and locating pin. The oil passage window is accurately distributed according to the pump's suction and discharge phases. Key dimensions such as the width of the sealing band and the diameter of the pitch circle are processed according to the original factory drawings to ensure minimal leakage when matched with the cylinder body. The working pressure range is 20-35MPa, with a temperature resistance of -20 ℃ to+120 ℃, suitable for high-pressure and high-temperature working conditions of hydraulic systems.

Inspection cycle: Check every 1000 working hours or once a year. Key inspection: 1 Check for scratches, erosion, and wear on the surface of the distribution plate (contact area ≥ 95%); 2. Whether the flatness exceeds the standard (generally ≤ 0.005mm); 3. Is the sealing tape intact. Repair method: For minor wear, W3.5 artificial diamond grinding paste can be used for grinding and repair; Serious grooves need to be welded and then ground. Replacement timing: Replace immediately when the ablation area exceeds 30%, the flatness exceeds the tolerance, or the sealing tape is damaged. Installation points: 1 Clean all mating surfaces; 2. Align the oil passage window according to the markings; 3. Use a torque wrench to tighten the fixing bolts in diagonal order (refer to the maintenance manual for torque values); 4. After replacement, pressure testing and leakage inspection are required.
