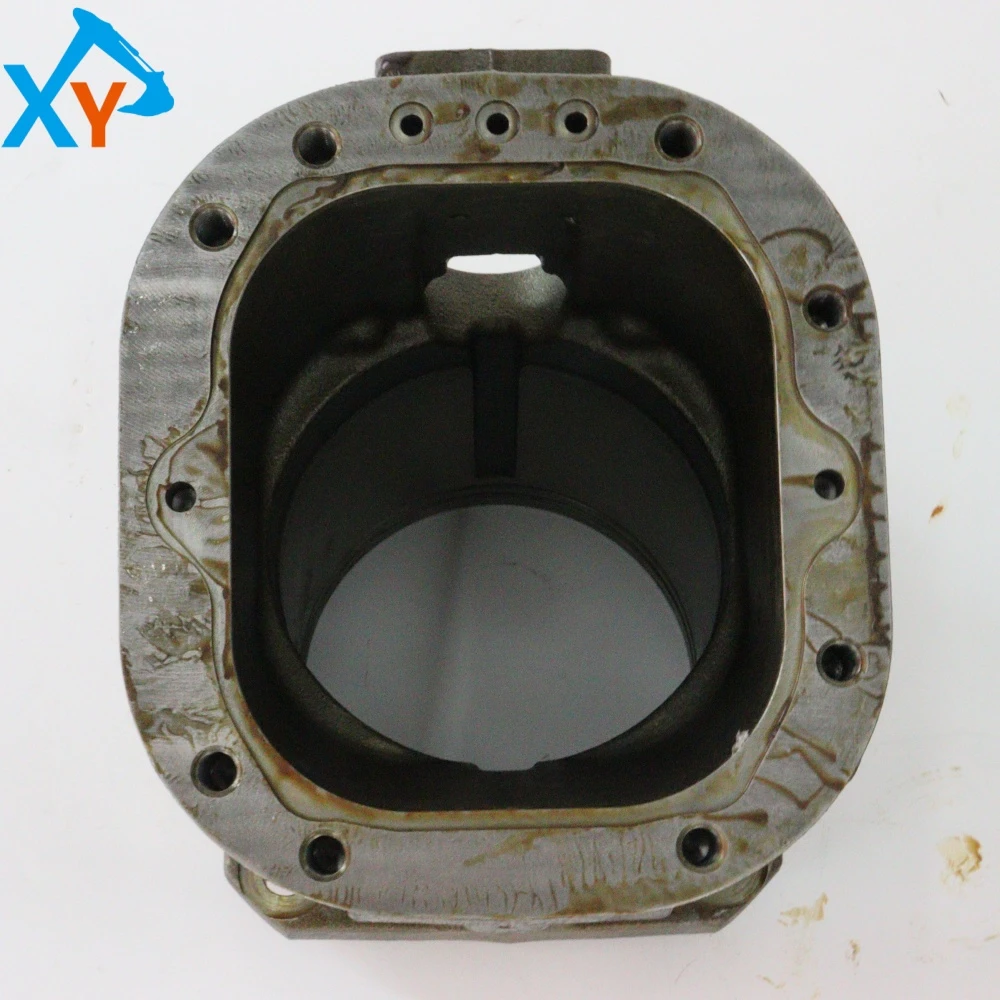

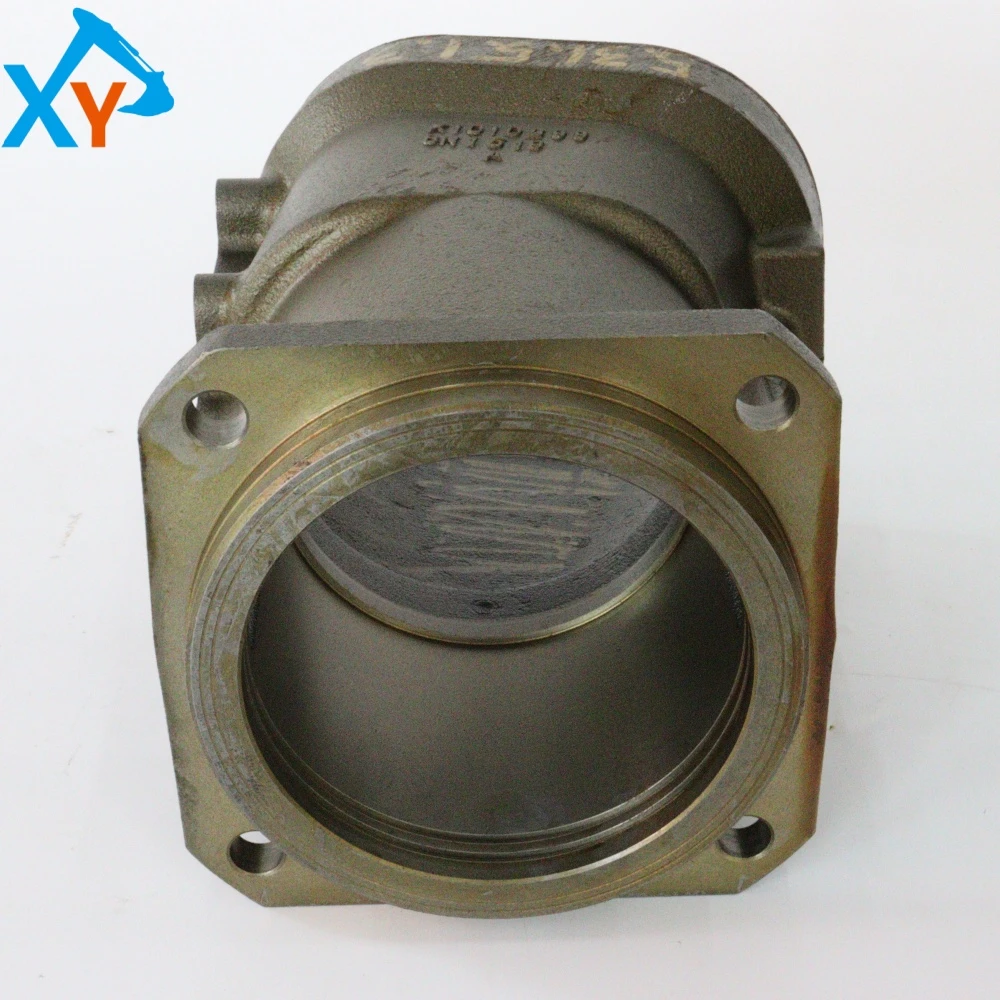

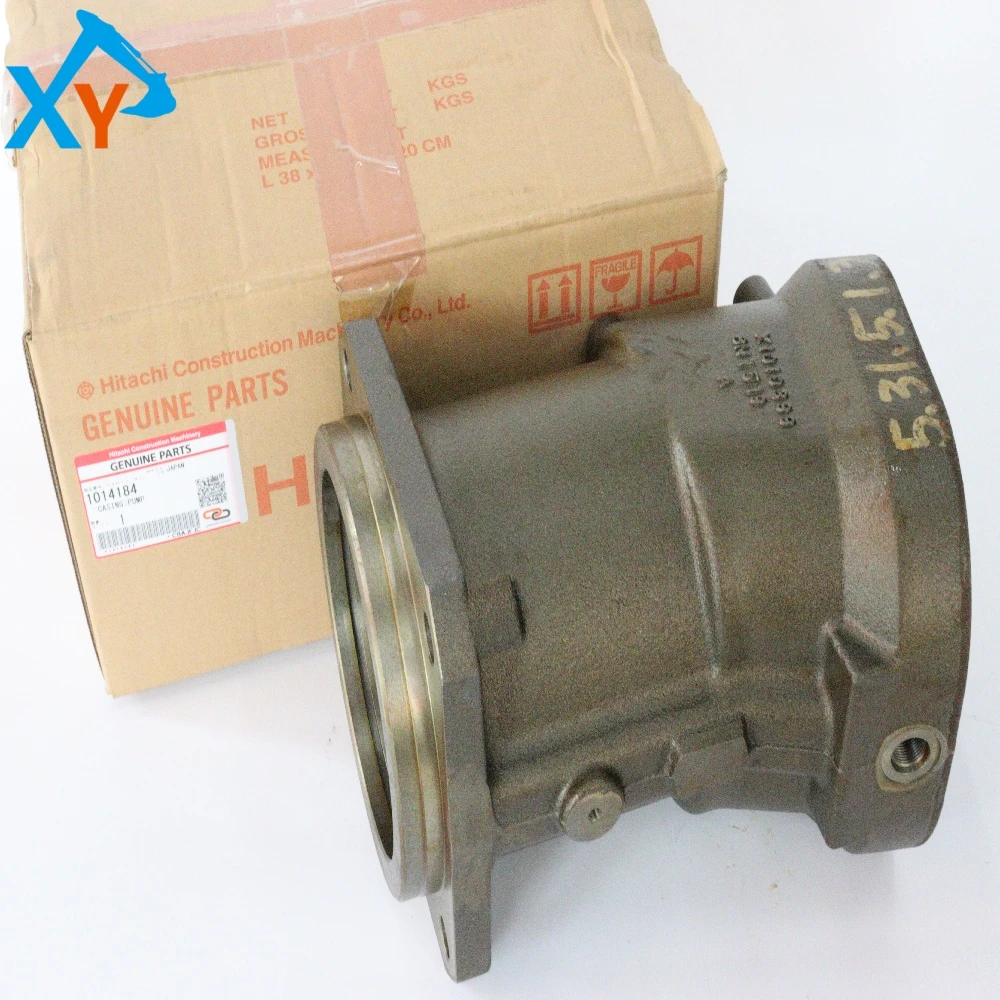

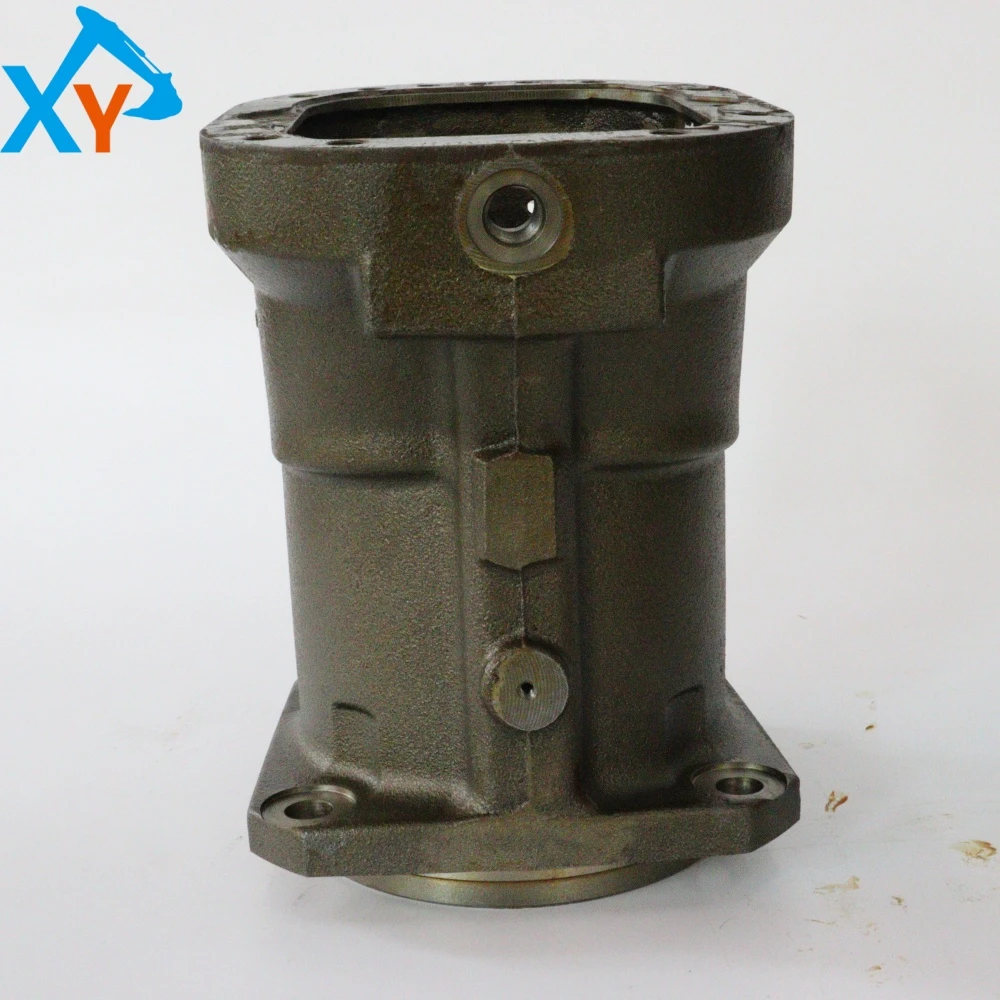

1014184 Original Excavator Hydraulic Pump Casing for Hitachi ZX330-3

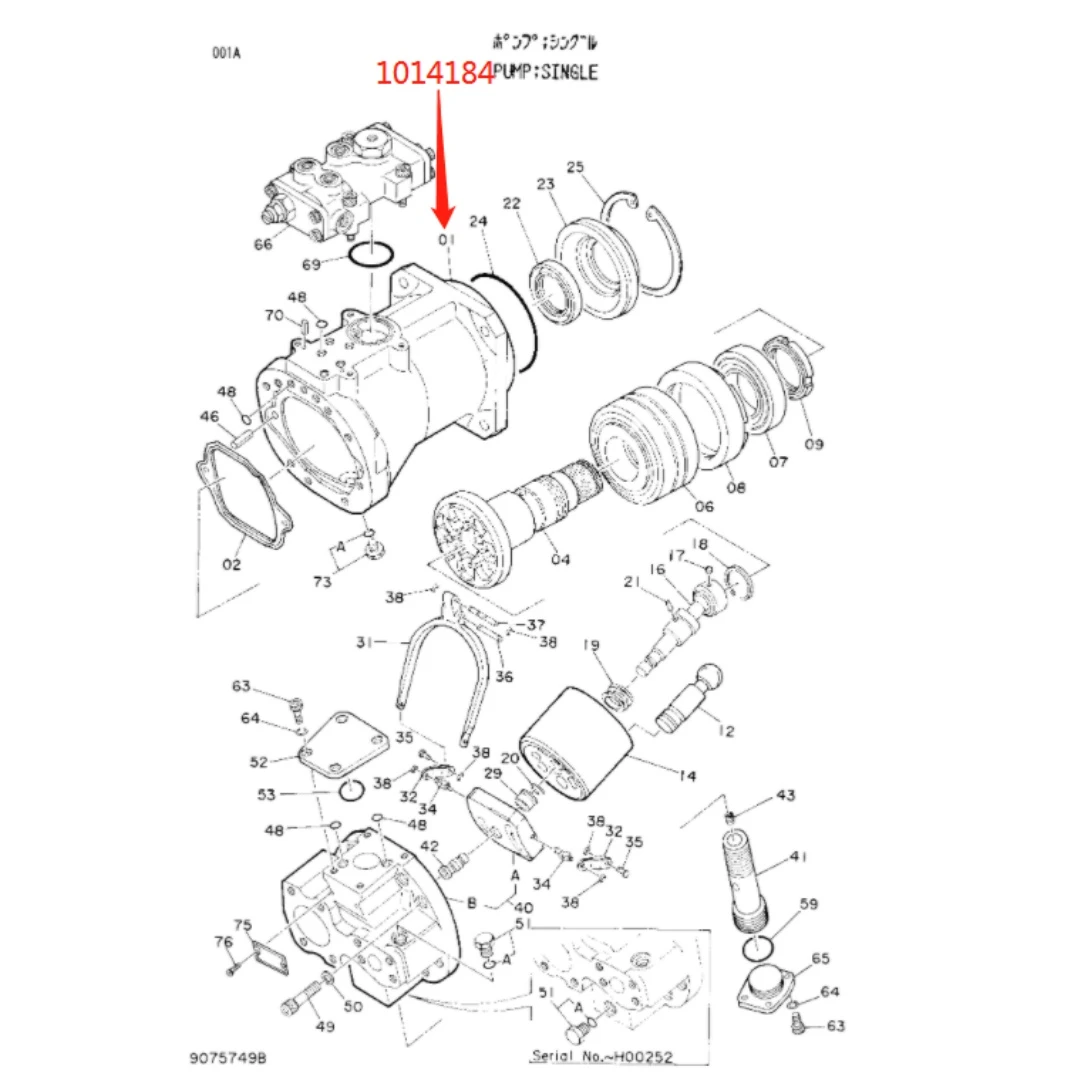

Part number 1014184 is the original pump housing (also known as gearbox housing or pump body) that Hitachi provides for hydraulic main pumps of excavators such as ZX330-3. This component is the main structural part of the hydraulic pump, carrying core components such as plunger cylinder body, distribution plate, bearings, and forming a high-pressure oil chamber. According to the search results, its specific compatible model is Hitachi ZX330-3. As an original precision component, its material, casting accuracy, oil passage design, and installation interface dimensions are strictly matched with the pump assembly design

This product is a high-strength cast iron or ductile iron precision casting part, which has undergone aging treatment to eliminate internal stress. Its core function is to provide rigid support for plunger pumps, seal high-pressure oil chambers, and integrate inlet/outlet ports, drain ports, and installation flanges. As an original factory component, its internal oil passage has high smoothness, and the machining accuracy of each bearing seat hole and sealing surface is excellent, ensuring accurate alignment of precision components such as plunger group and distribution plate, and smooth oil flow. It is the basic structure for achieving efficient and stable operation of the pump.

Inspection and replacement: When there is external oil leakage, abnormal vibration, or severe internal wear of the pump body (such as bearing seat hole wear, port plate strain), it is necessary to consider replacing the pump casing. Replacing the pump casing is a major overhaul level and is recommended to be carried out by professional maintenance personnel in a clean environment. Attention: Before disassembly, be sure to release all pressure from the hydraulic system and disconnect the battery; All processed surfaces must be protected against rust during storage; When replacing the pump casing, it is recommended to simultaneously inspect or replace all moving components (such as plungers, sliding shoes, and distribution plates) as well as bearings and seals inside the pump.
