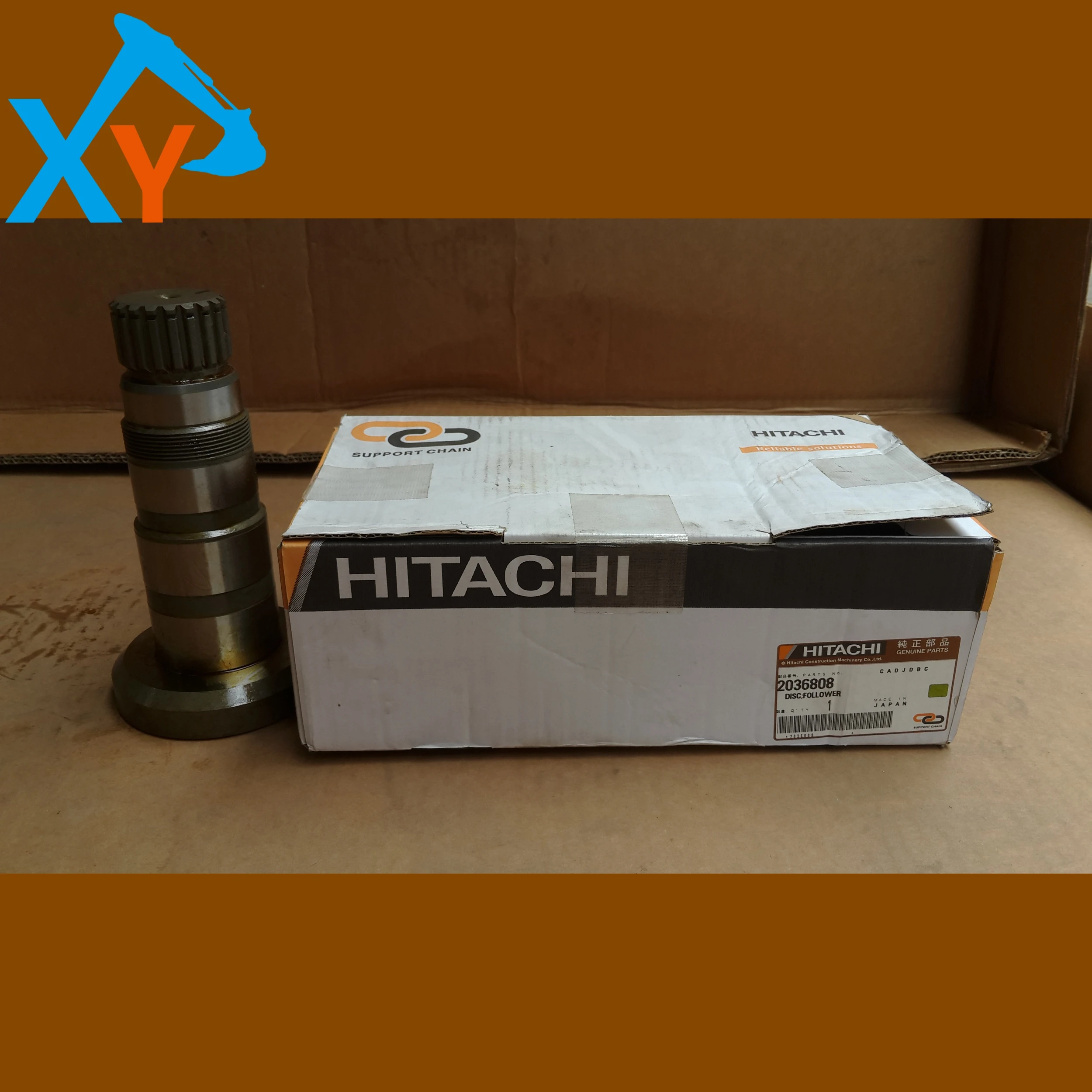

2036808 Excavator Hydraulic Pump Driven Shaft for ZX200

The Hitachi original hydraulic pump drive shaft (part number: 2036808) is the core transmission component of Hitachi excavator hydraulic main pumps (usually inclined disc axial piston variable displacement pumps). According to publicly available accessory information, this part is mainly compatible with Hitachi ZX200 and EX200-5 excavator models. As an original drive shaft, it is usually precisely matched with the cylinder body, bearings, seals, and other components inside the pump. Its common part number may vary depending on different suppliers or regions, but the original part number 2036808 is the key identification to ensure complete matching with Hitachi original hydraulic pumps, transmission accuracy, and reliability. Before procurement, it is necessary to conduct a final verification based on the specific model of the equipment (such as ZX200 or EX200-5) and the hydraulic pump assembly model, or directly provide the part number on the old shaft for comparison.

The drive shaft is the power input hub of the hydraulic pump, and its core function is to efficiently and smoothly transmit the rotational mechanical energy output by the engine (or electric motor) to the plunger cylinder body inside the pump through a coupling or spline connection, driving the plunger components to complete oil suction and pressure circulation. As a key component that can withstand complex loads, it is usually made of high-strength alloy steel through precision forging, turning, grinding, and heat treatment processes such as quenching and tempering and nitriding. Its structural design is precise, usually including supporting outer circles for installing bearings, splines that fit with the cylinder body, and splines or keyways that connect to external power sources.

The maintenance core of this drive shaft lies in ensuring installation accuracy, avoiding abnormal stress, and regular monitoring. Installation specifications: During installation, it is necessary to ensure that the pump shaft is strictly aligned with the engine (or gearbox) output shaft, with a coaxiality error of no more than 0.05mm, and to avoid hitting the shaft end to prevent early damage to the bearings due to radial or axial forces. If the output pressure of the hydraulic pump is insufficient, the flow rate decreases, or accompanied by abnormal mechanical noise, after excluding oil and filter problems, the spline of the drive shaft should be checked for wear, and the shaft neck should be checked for scratches or roundness. Maintenance points: When disassembling the pump body for major repairs, special tools should be used and all mating surfaces of the drive shaft (such as flower keys, bearing positions, and sealing positions) should be carefully cleaned and inspected. If there is wear, strain, or deformation, it is recommended to replace the shaft with a new one.
