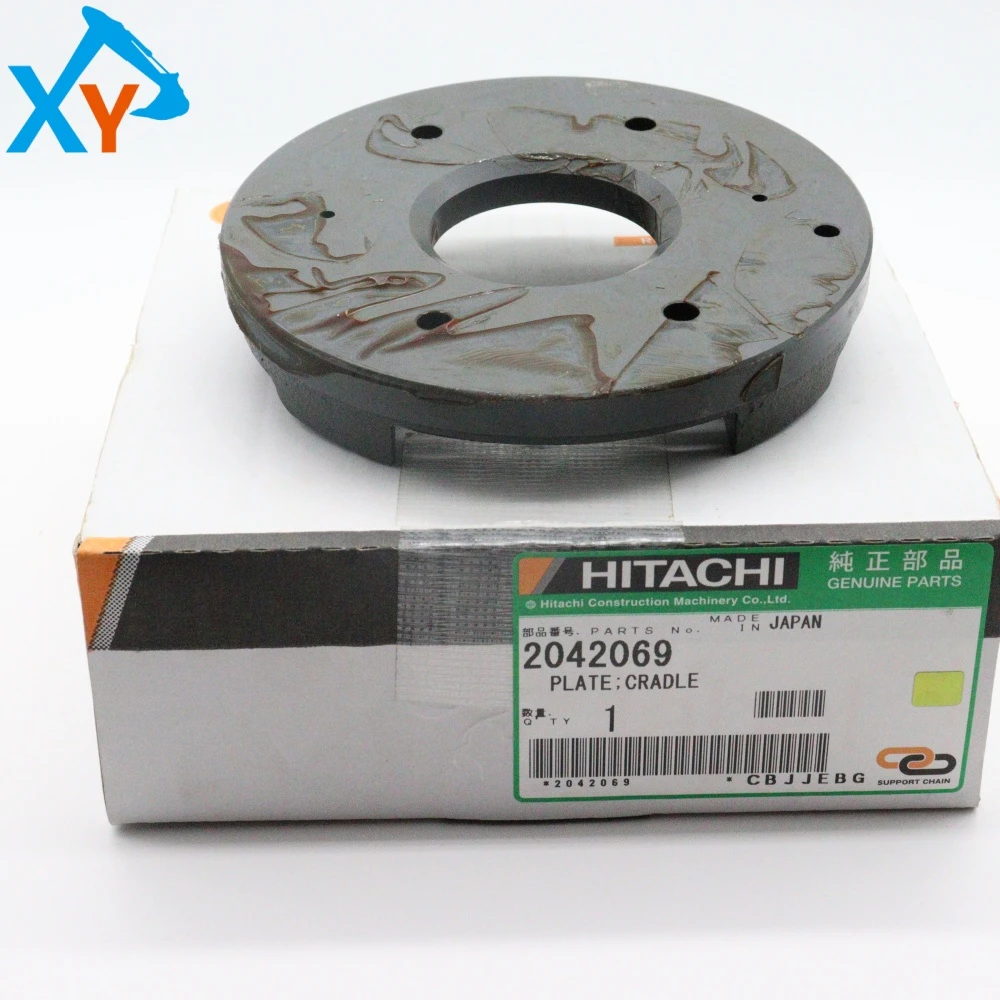

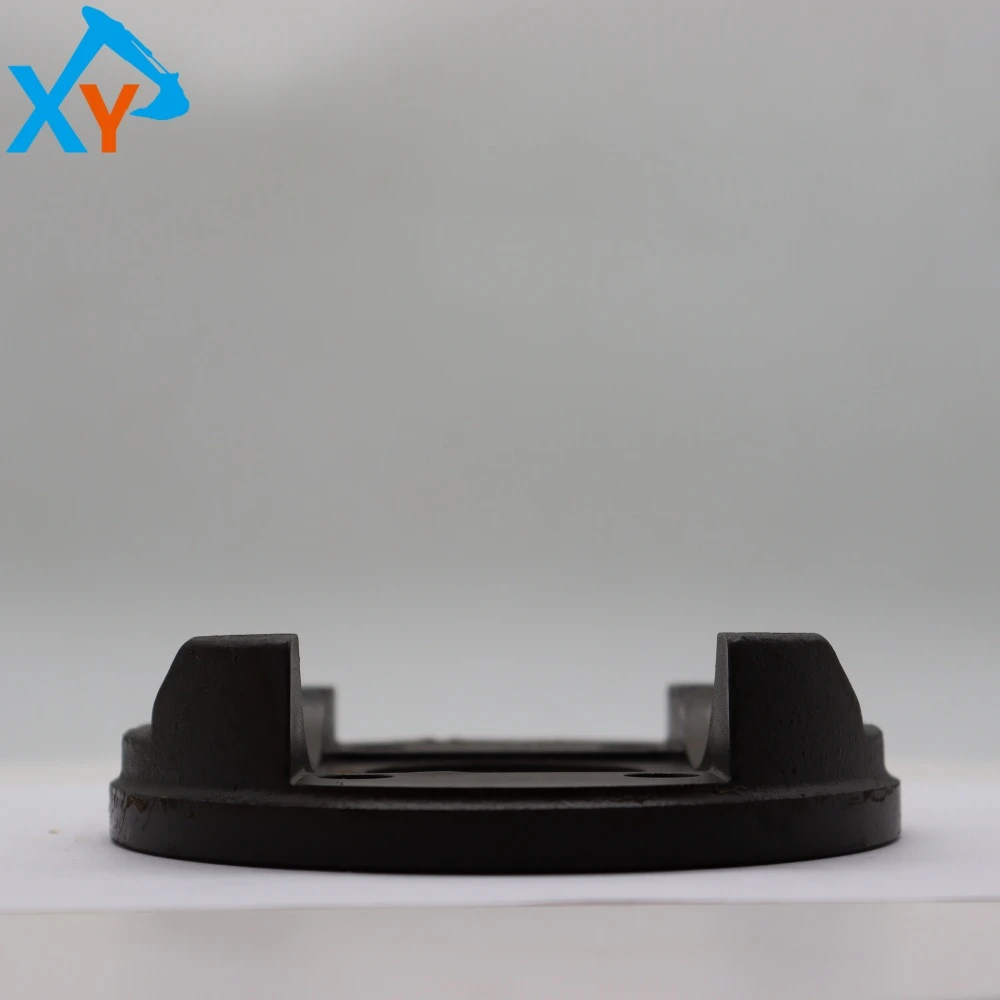

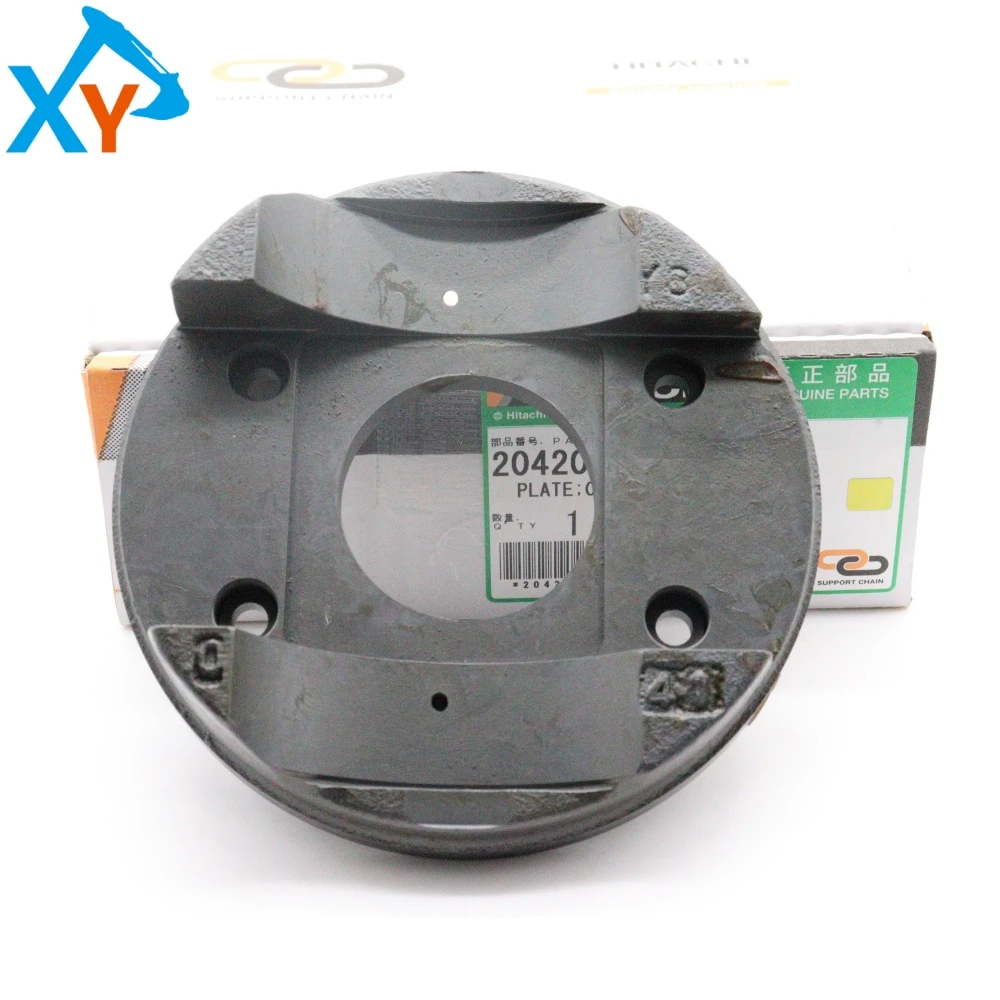

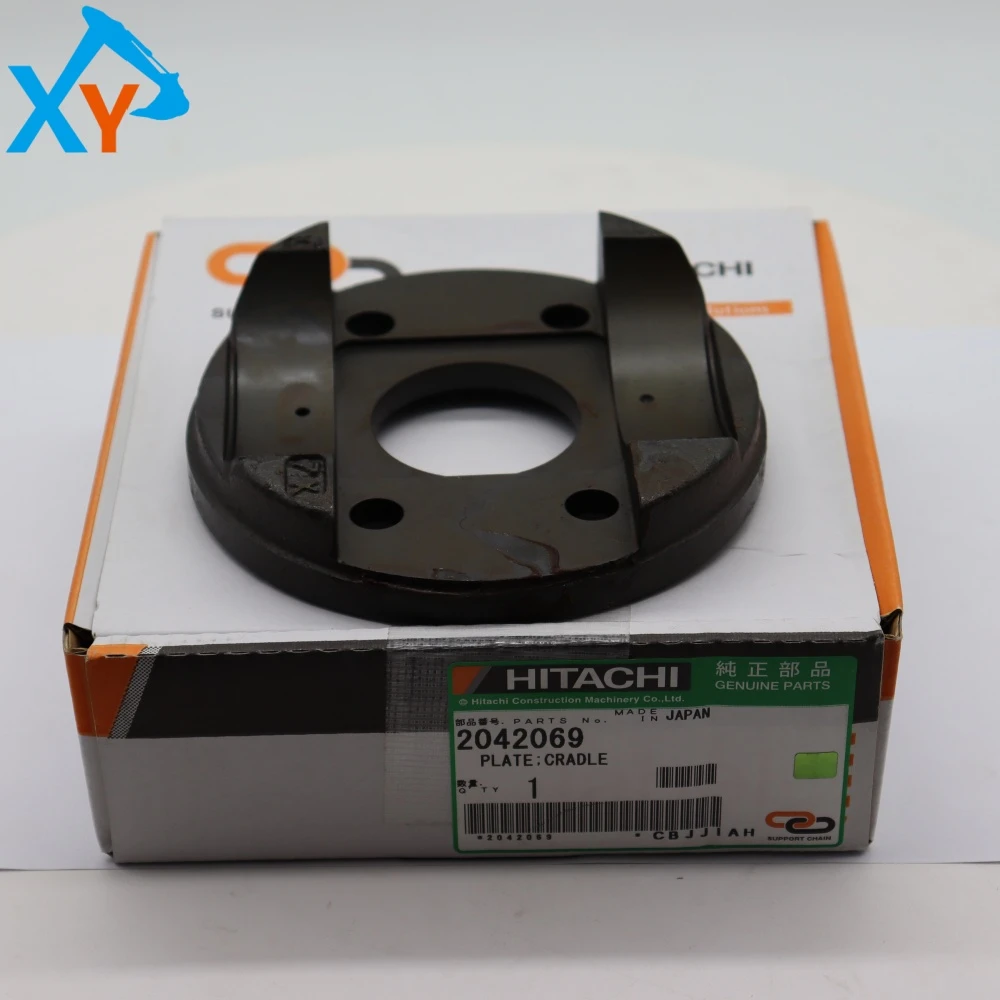

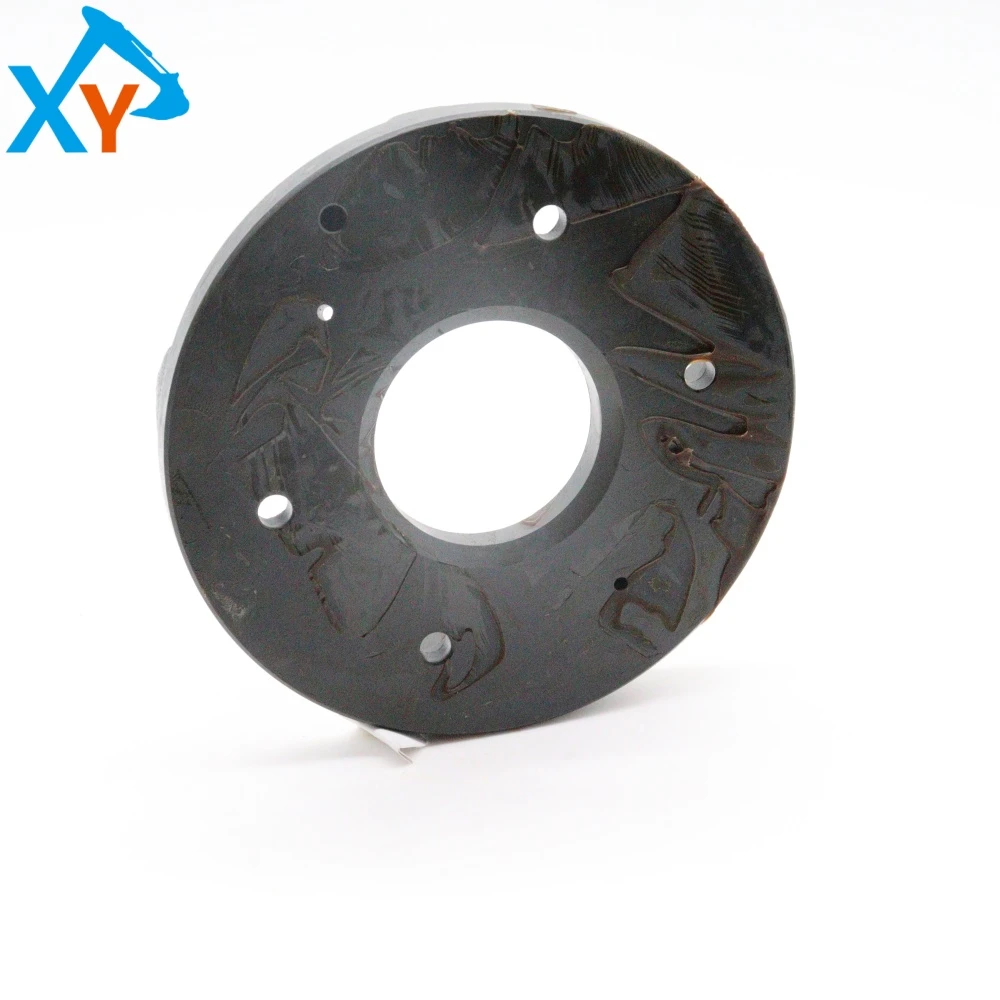

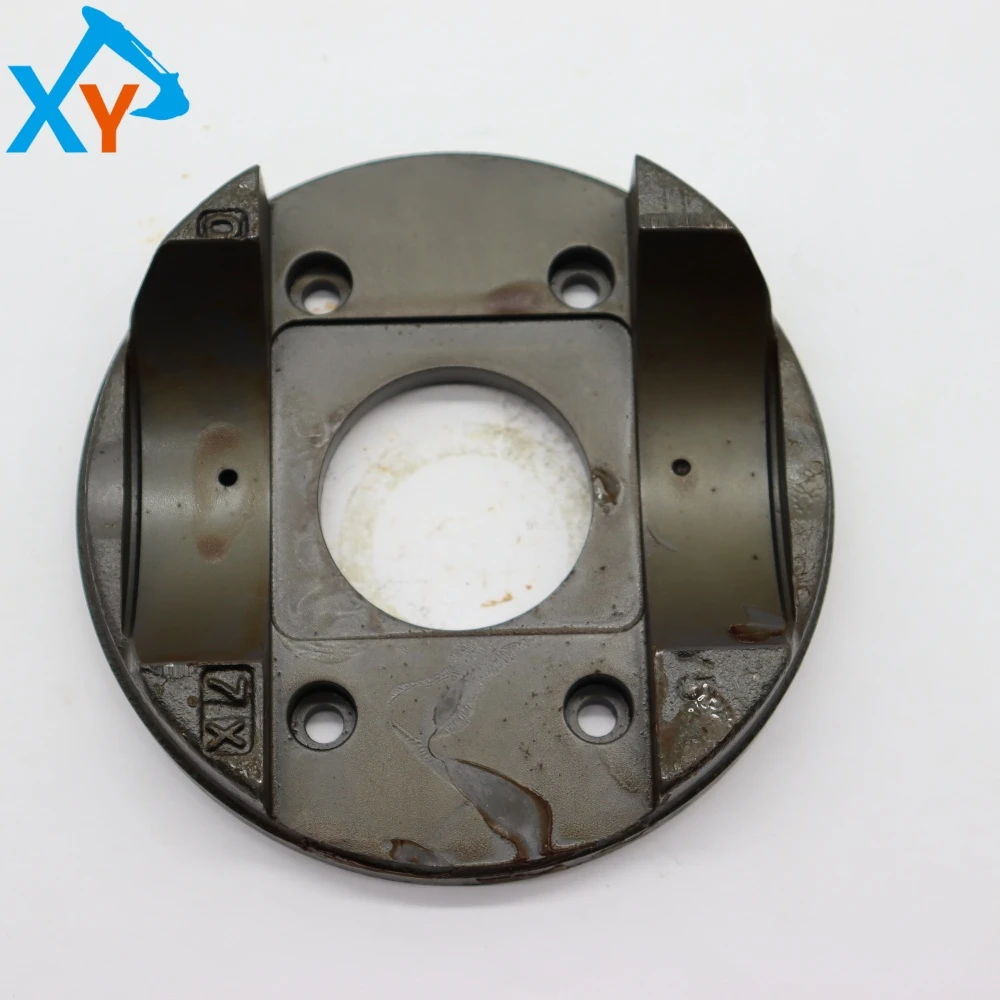

2042069 Original Excavator Hydraulic Main Pump Swash Plate Support for ZX110

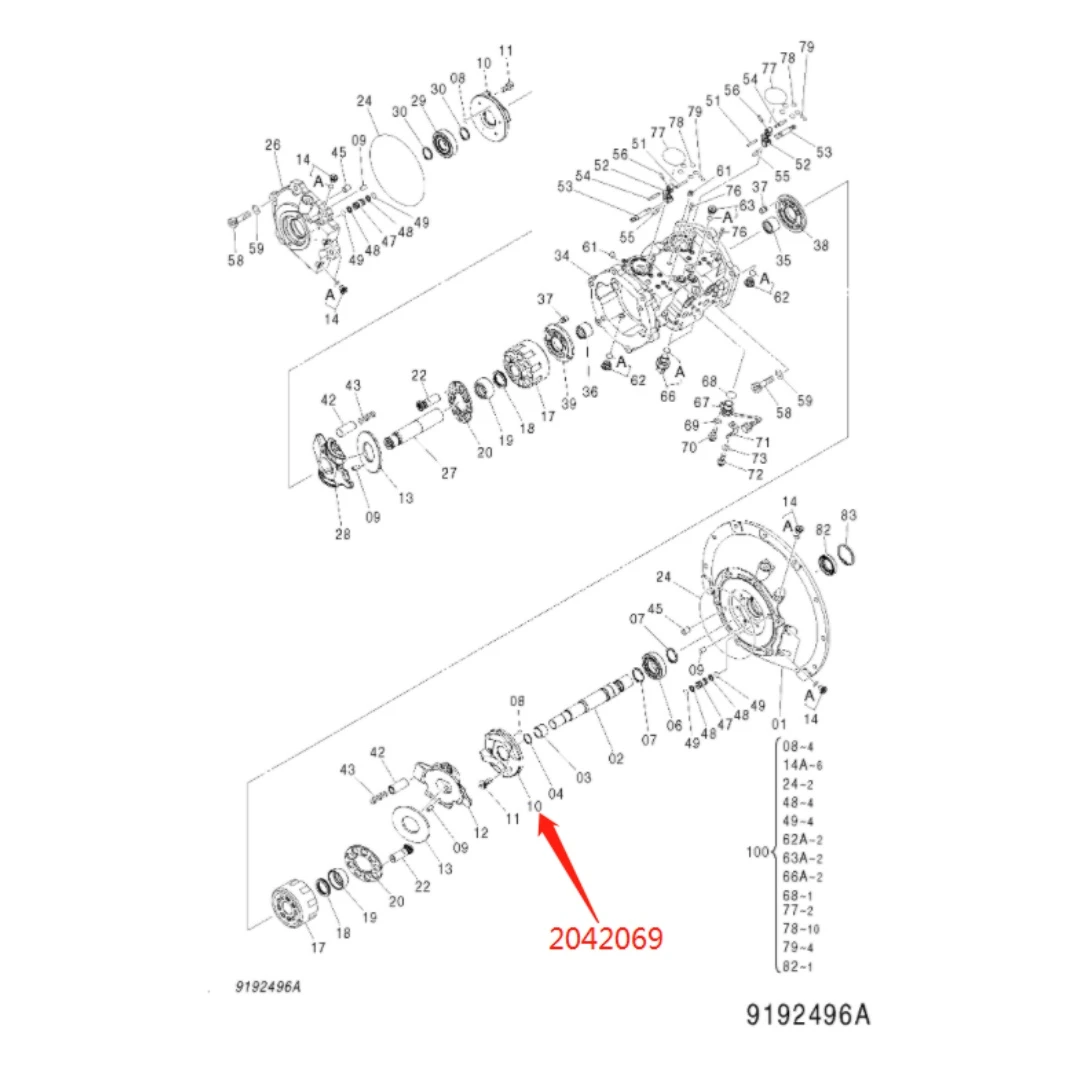

The original hydraulic main pump inclined plate bracket of Hitachi excavator (part number: 2042069, also commonly known as the "swing seat" or "swing assembly") is a key supporting component of the hydraulic system of Hitachi ZX series small and medium-sized excavators. According to the accessory information, this part is mainly suitable for Hitachi ZX120 and ZX130-5A excavator models. In addition, this part number is also widely recognized as a universal part number in the field of accessory circulation.


The inclined plate bracket is the core basic component of the inclined plate axial piston hydraulic pump. Its core function is to accurately support and guide the inclined plate, and to withstand the huge axial force and alternating torque transmitted by the plunger assembly. As an original component, it is usually made of high-strength alloy cast iron or forged steel precision machined, with excellent fatigue and deformation resistance. Its internal design features precise lubrication channels (such as high-pressure and low-pressure tracks) that can guide high-pressure oil to the contact surface between the inclined plate and DU bearings (or similar sliding bearings), forming a stable static pressure oil film, thereby significantly reducing friction coefficient, wear, and power loss.


The maintenance core of the inclined plate bracket lies in ensuring lubrication and cleanliness, monitoring wear, and regularly checking fastening. In daily maintenance, it is necessary to strictly follow the replacement cycle of hydraulic oil (usually every 500-2000 working hours, depending on the working conditions), and use the specified model of high cleanliness hydraulic oil, because oil contamination is the main cause of bracket oil passage blockage, lubrication failure, and abnormal wear (such as eccentric wear and locking). Every 1000 working hours or during major hydraulic system repairs, the mating surfaces between the bracket, pump body, and bearings should be checked for scratches, cracks, or abnormal wear, and critical dimensions (such as runway flatness and bearing seat hole coaxiality) should be measured to ensure they are within allowable tolerances.
