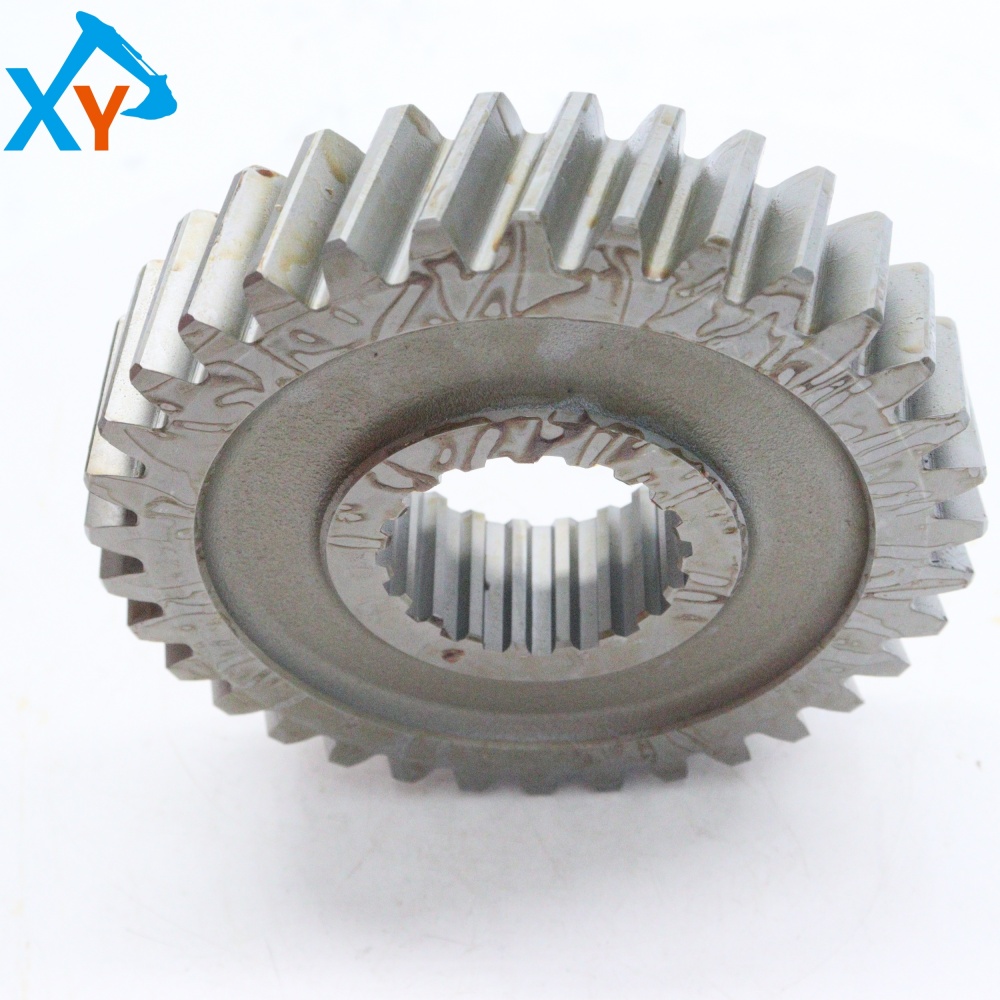

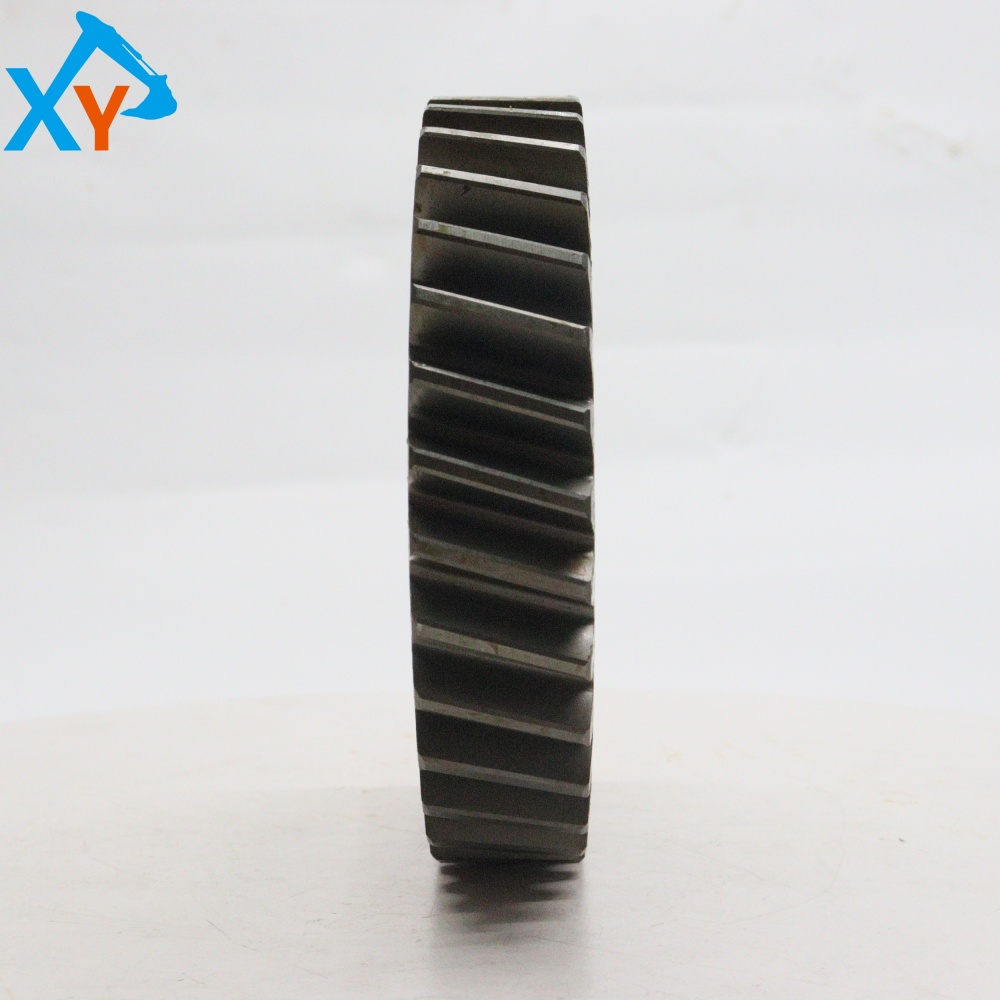

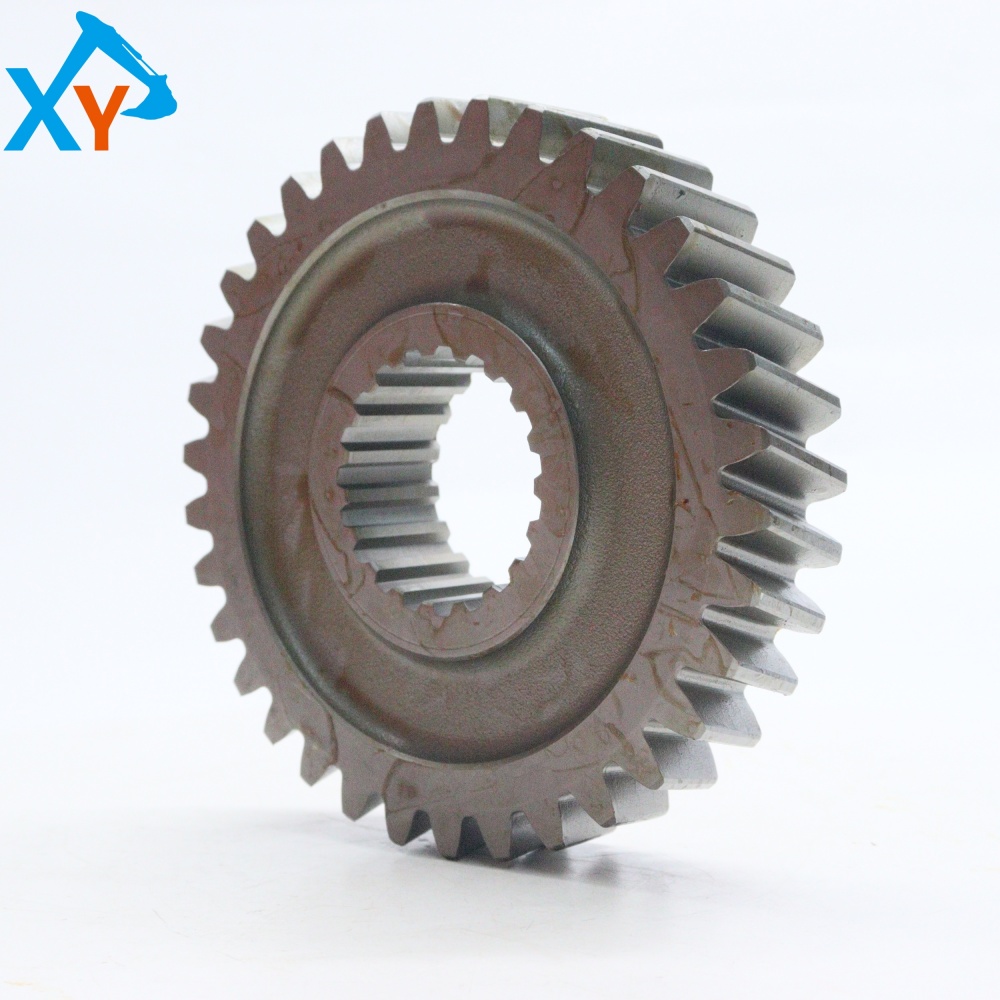

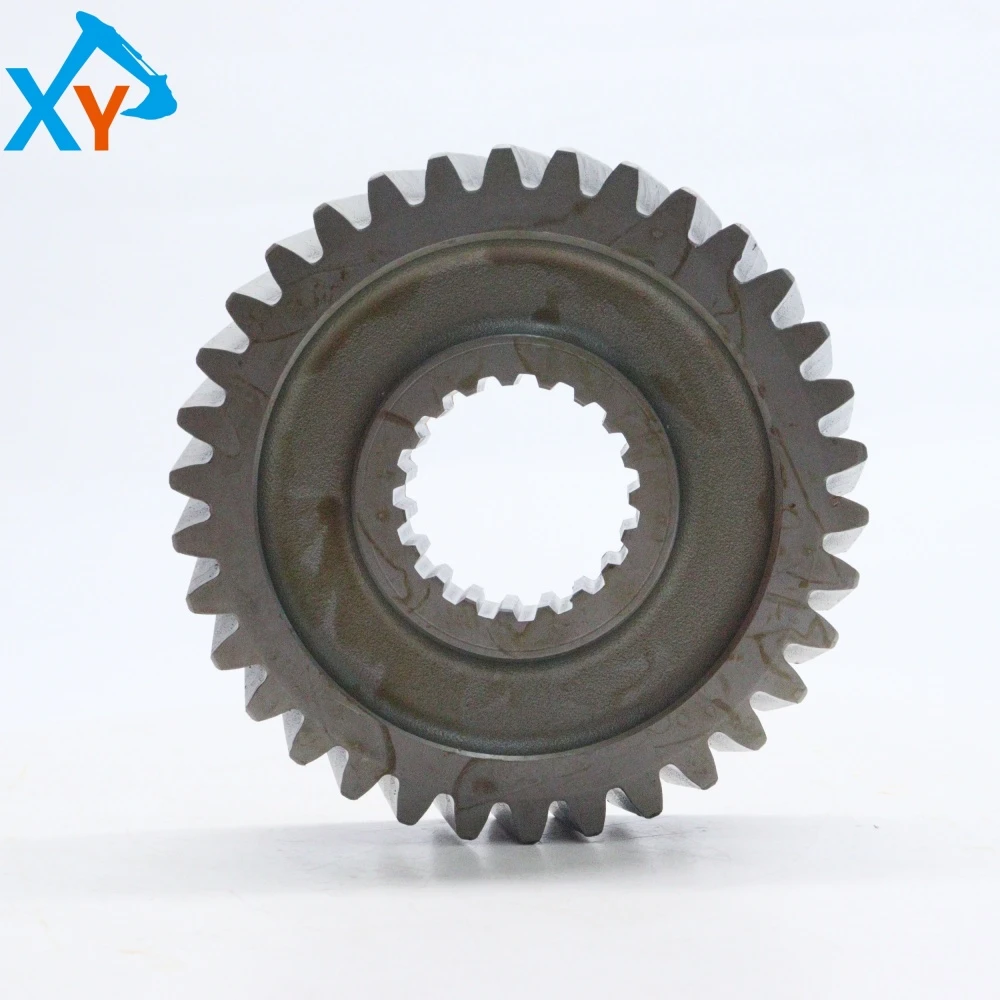

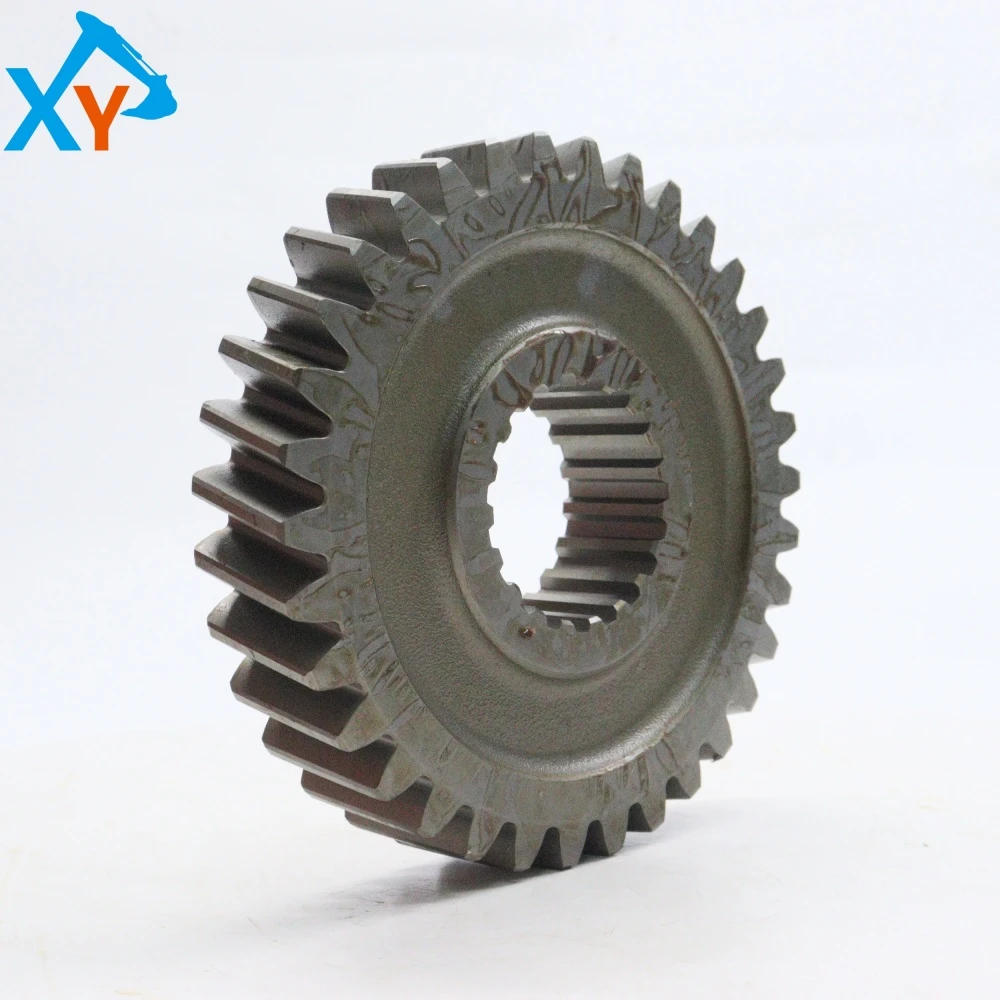

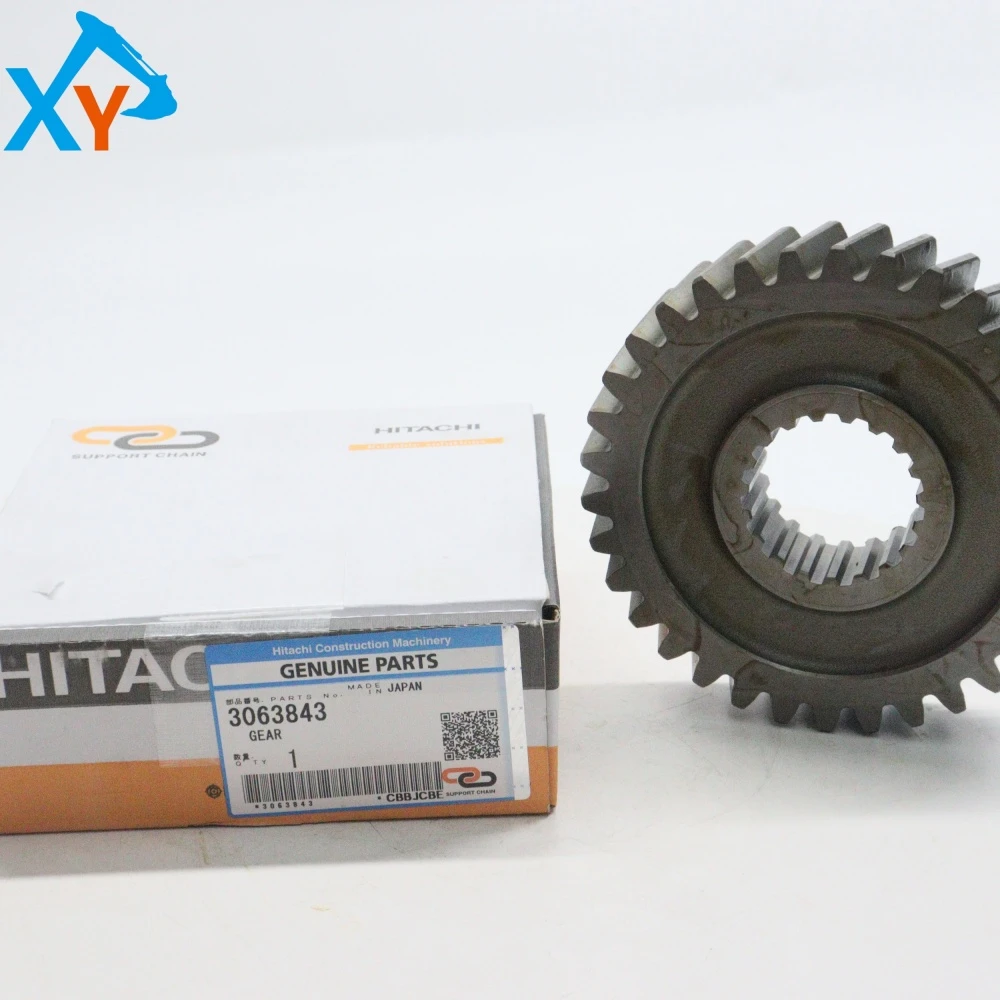

3063843 Excavator Hydraulic Pump Pilot Gear for ZX200

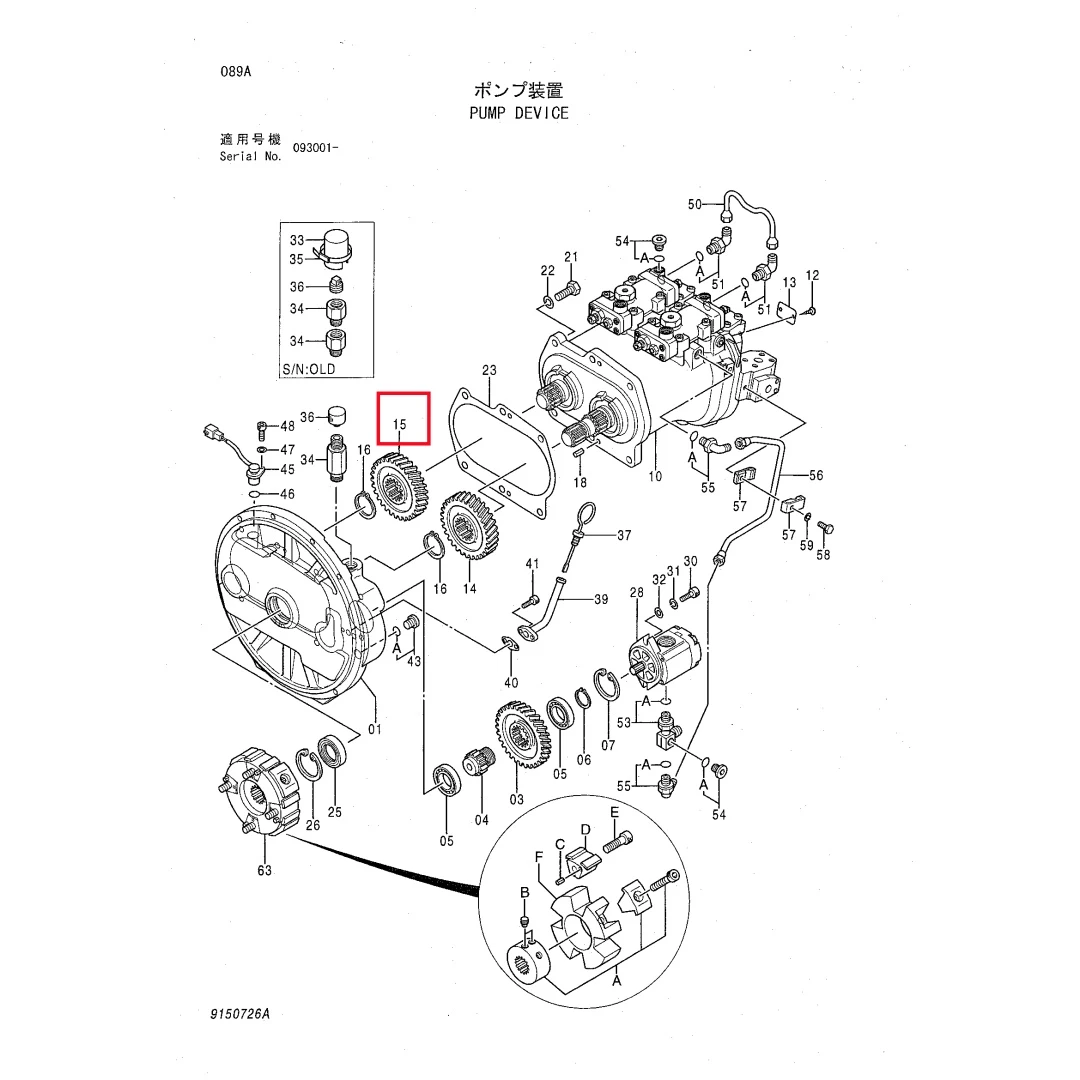

The Hitachi original hydraulic pump pilot gear (part number: 3063843) is a key transmission component in the hydraulic main pump of the Hitachi ZX200 series excavator. This part is mainly suitable for excavators of Hitachi ZX200-3, ZX200-5A and other models. In the pilot pump assembly, it may form the pilot pump module together with other components such as pump housing, shaft, and seals, and its corresponding pilot pump assembly part numbers include 9218033, 4278696, etc. Before purchasing, please make sure to confirm the final match based on the specific model of the equipment (such as ZX200-3 or ZX200-5A) and the physical comparison of the old gear (such as tooth count, module, installation size) to ensure complete matching. that

The pilot gear is the core power source component of the hydraulic system's pilot oil circuit. Its core function is driven by the engine through a coupling or spline shaft, which drives the gear pair inside the pilot pump to rotate, thereby generating stable pilot pressure oil (usually 35-40 bar). This pilot pressure oil is mainly used to control the inclined plate variable mechanism of the main hydraulic pump and drive the spool movement of the multi way directional valve, thereby achieving precise and lightweight control of various working devices of the excavator. Gears are usually made of high-strength alloy steel (such as 20CrMnTi) through precision forging, cutting, and heat treatment such as carburizing and quenching. The surface has extremely high hardness and wear resistance, and the core maintains toughness to withstand alternating loads.

The maintenance core of this gear lies in regular monitoring, preventive inspection, and standardized replacement. Regular monitoring: It is recommended to check the cleanliness of the hydraulic oil every 500 working hours, and disassemble the pilot pump filter screen every 2000 working hours or annually in conjunction with maintenance to observe for any abnormal metal debris, which may be a sign of gear wear. Be sure to clean the outside and collect hydraulic oil before operation. Thoroughly clean all parts and oil passages inside the pump body after disassembly. When installing a new gear, it is necessary to ensure that the meshing clearance with the paired gear or drive shaft meets the standard, and use a torque wrench to tighten all fixing bolts according to the torque specified in the maintenance manual.
