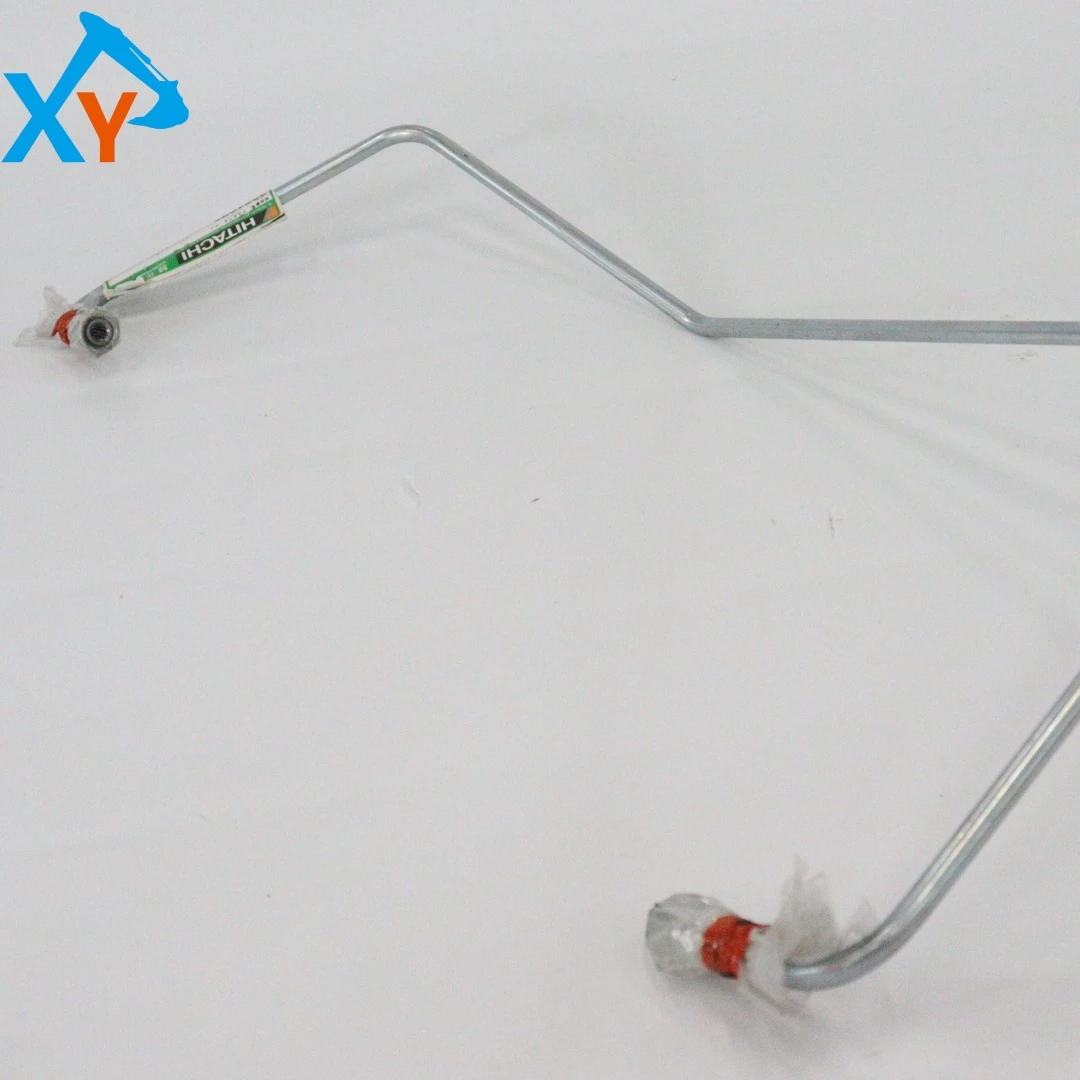

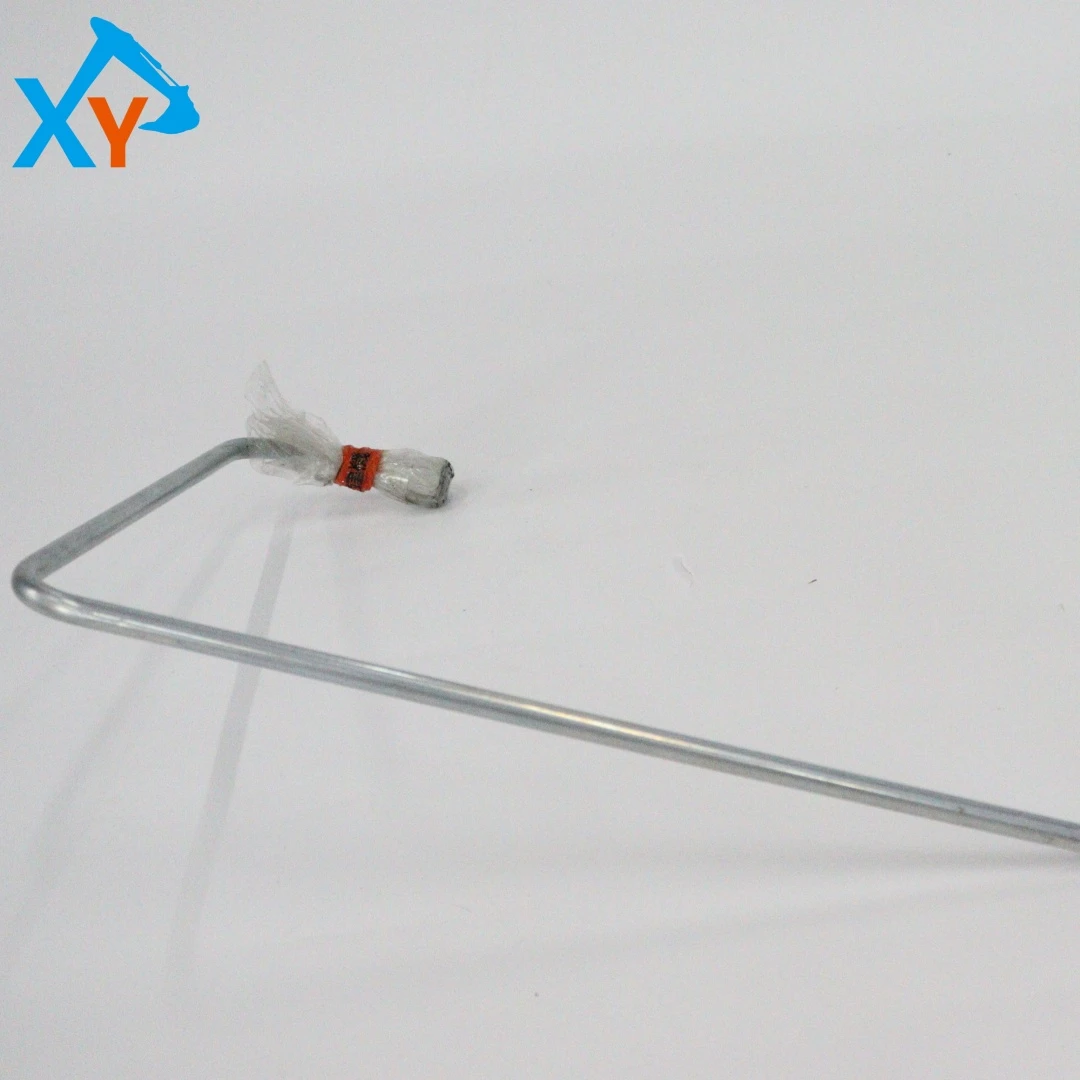

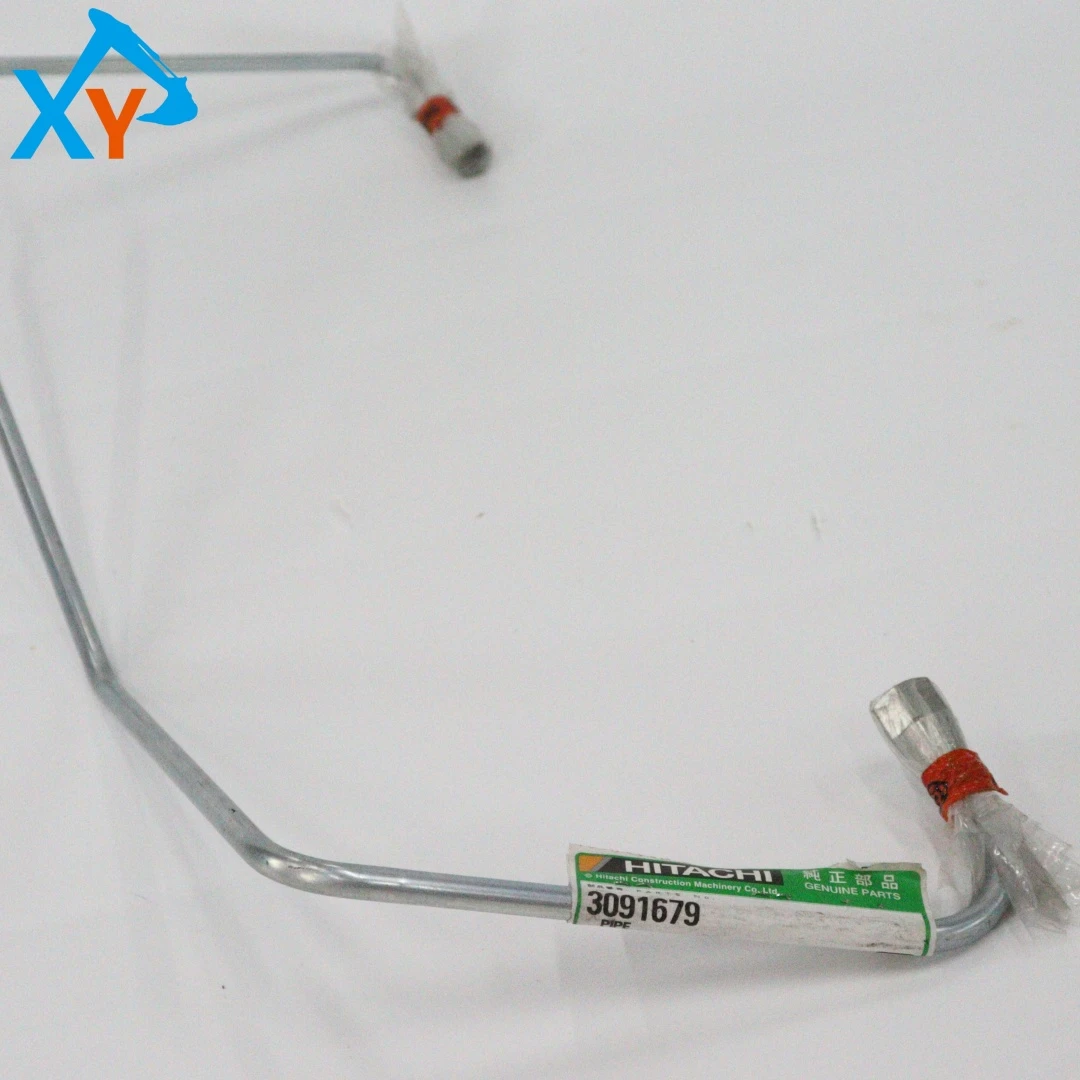

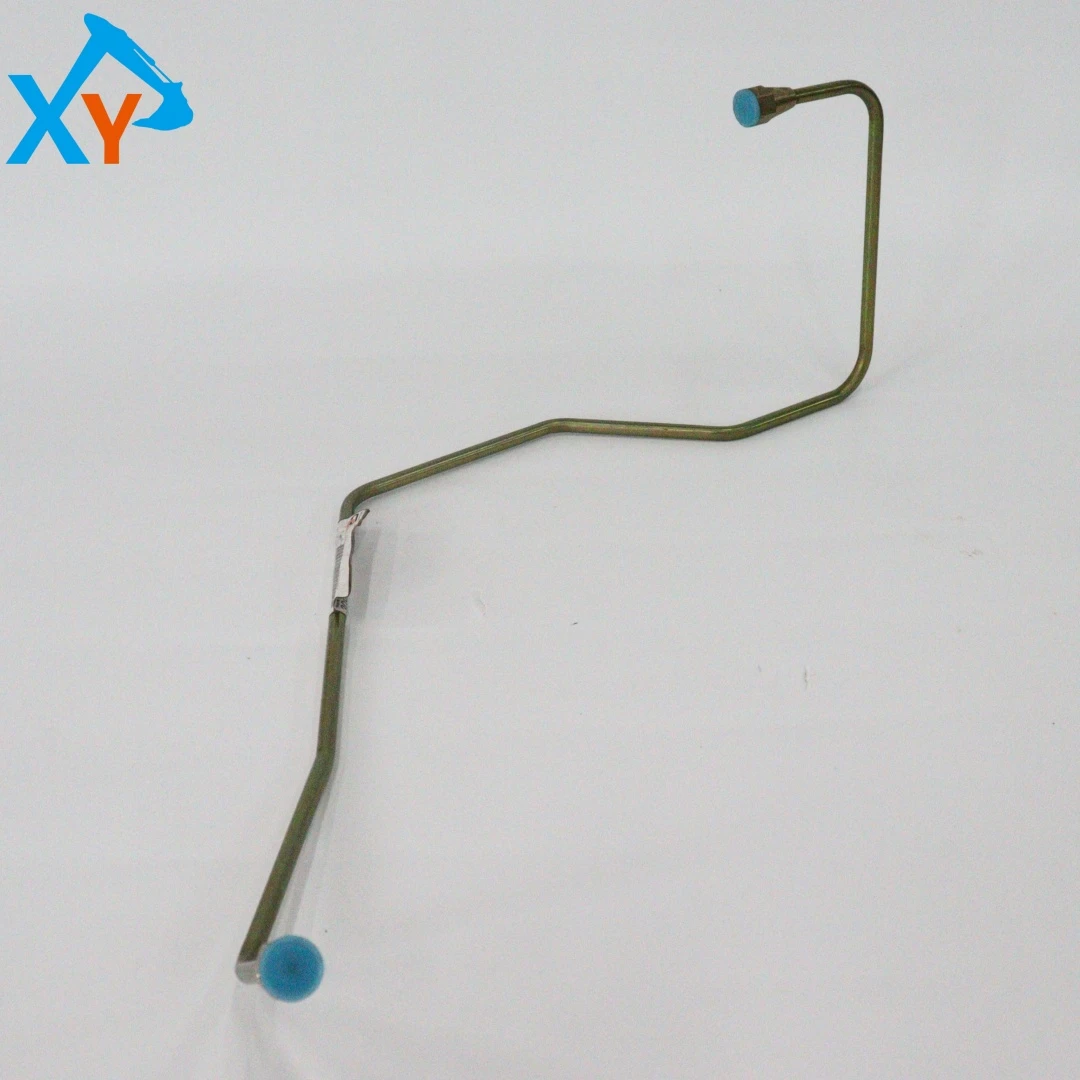

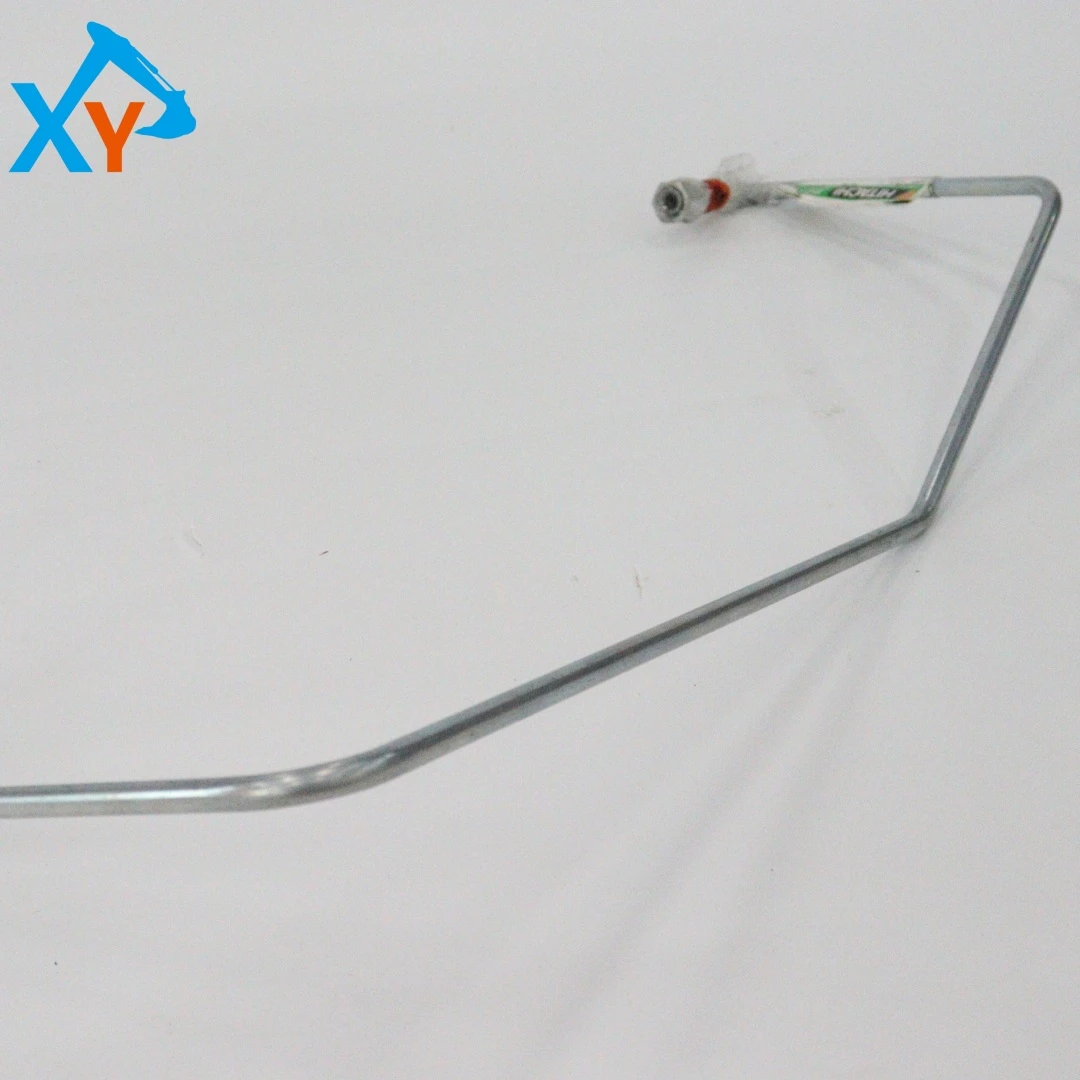

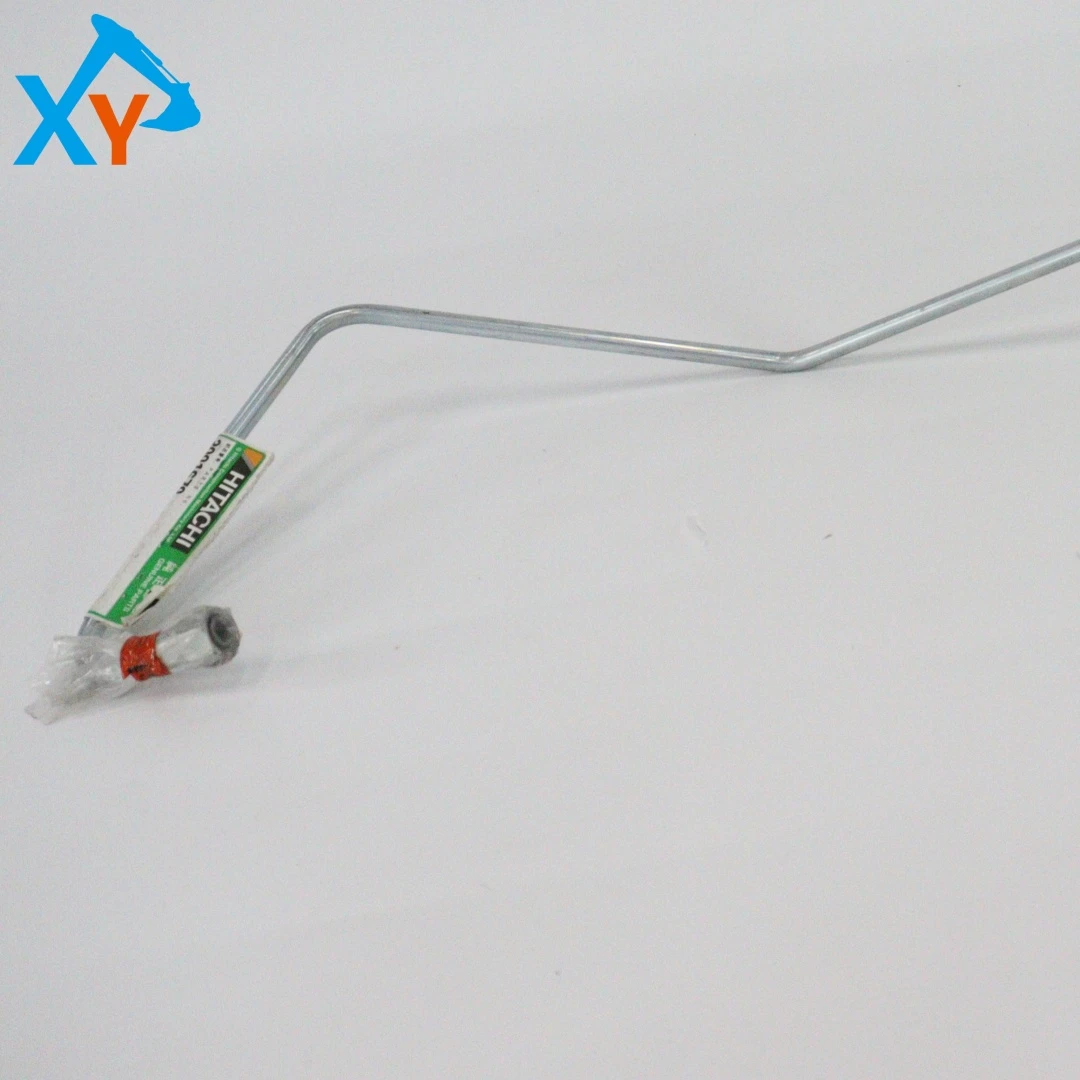

3091679 Original Excavator Iron Pipe Pilot Piping for ZX200

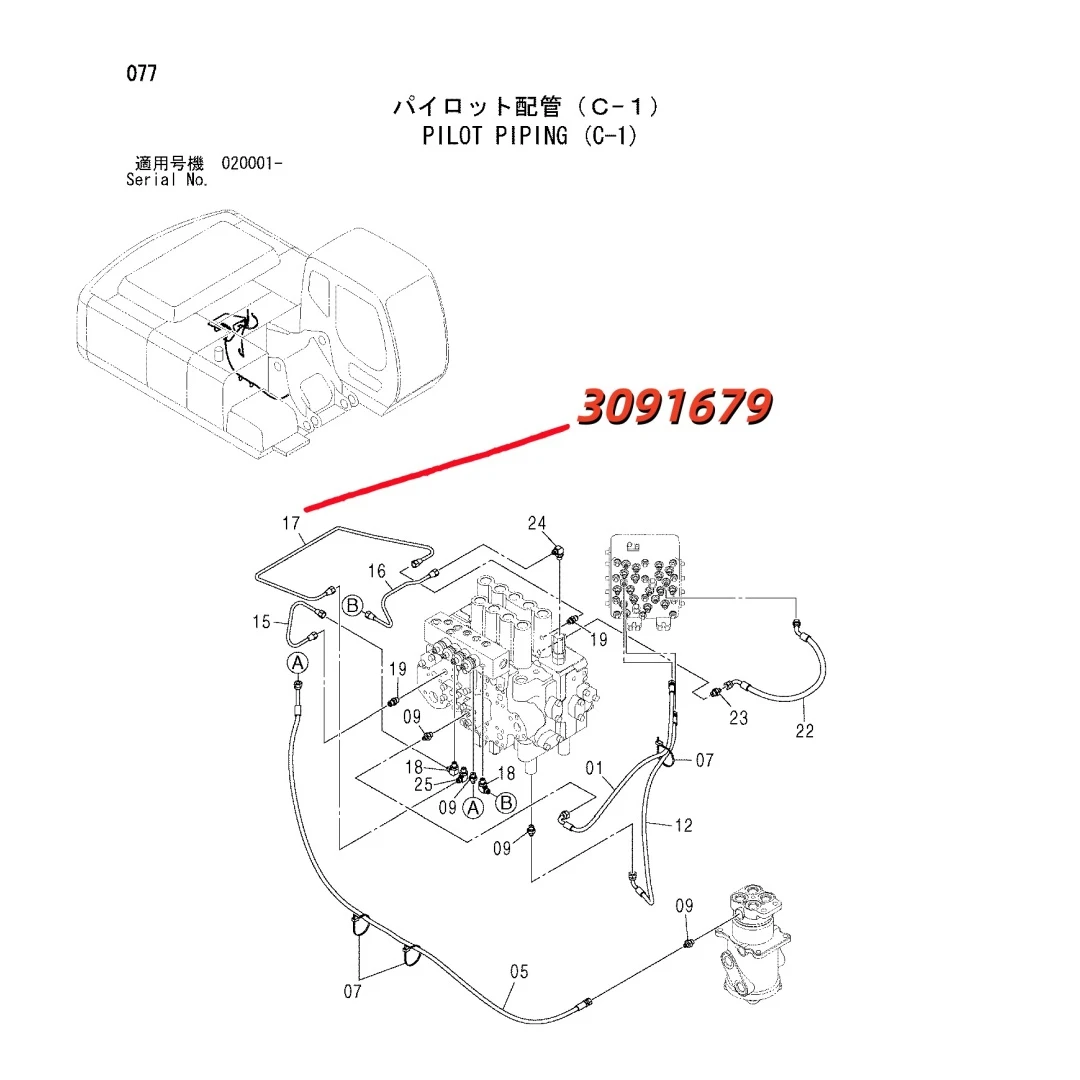

Part number 3091679 is the official accessory number for Hitachi's original iron conduit. This component is a key hard pipeline of the hydraulic pilot control system, responsible for delivering stable low-pressure oil generated by the pilot pump to various pilot control ports of the main control valve. It is used for precise control of the excavator's boom, arm, bucket, and rotation movements, and is the core oil circuit that ensures the agility and accuracy of the entire machine operation. As an original standard component, it is mainly suitable for Hitachi's various medium and large hydraulic excavators, such as ZX200-3, ZX240-3, ZX270-3, ZX330-3, ZX350-3, ZX360-5 and other models

The original iron pilot pipe belongs to the core low-pressure hard pipe of the hydraulic pilot system. Its core function is to serve as a rigid carrier for the pilot oil circuit, stably transmitting pilot pressure oil with minimal pressure loss and leakage risk within the complex internal space of the frame and structural components. As an original component, it is usually made of high-strength cold drawn seamless steel pipes, which undergo precision bending, deburring, and rust prevention treatment, and have excellent pressure resistance, vibration fatigue resistance, and corrosion resistance. It is equipped with precision expansion or sleeve type metal joints at both ends, and built-in copper gaskets or O-rings to ensure reliable sealing with pump and valve interfaces.

The maintenance core of this iron conduit is to regularly check its sealing, fixing condition, and prevent mechanical damage. Regular inspection: It is recommended to combine regular maintenance every 500 working hours. When replacing new pipes, it is necessary to clean the sealing surface of the joint, ensure that the new sealing ring is intact, and tighten it evenly and cross according to the specified torque. Symptom of malfunction: If the hydraulic system experiences slow and weak movements, a feeling of "floating" on the joystick, or slow establishment of pilot pressure, it may be due to leakage or blockage in the pilot pipeline. Once penetrating damage or severe leakage of joints is found in the pipe body, the machine should be stopped immediately for replacement.
