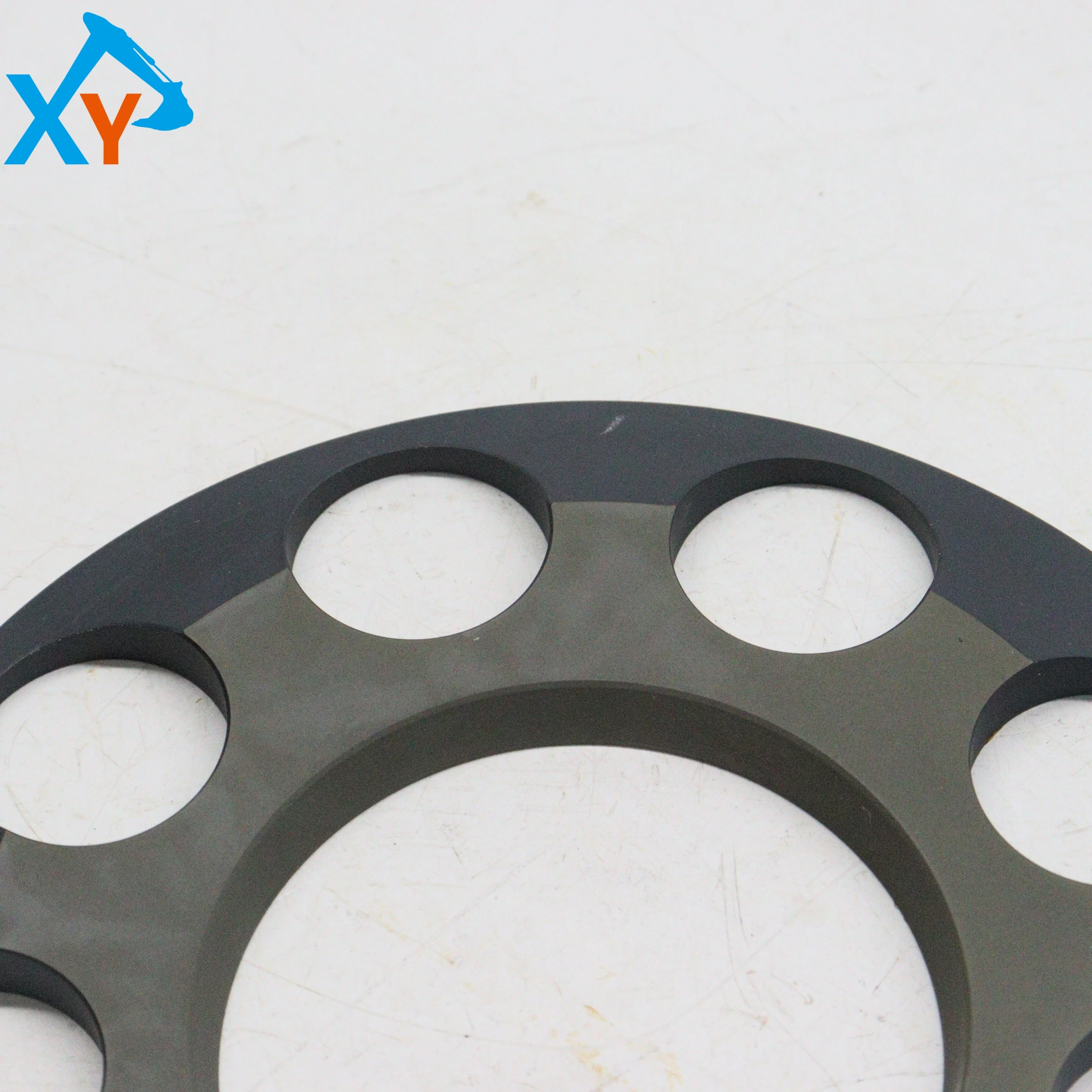

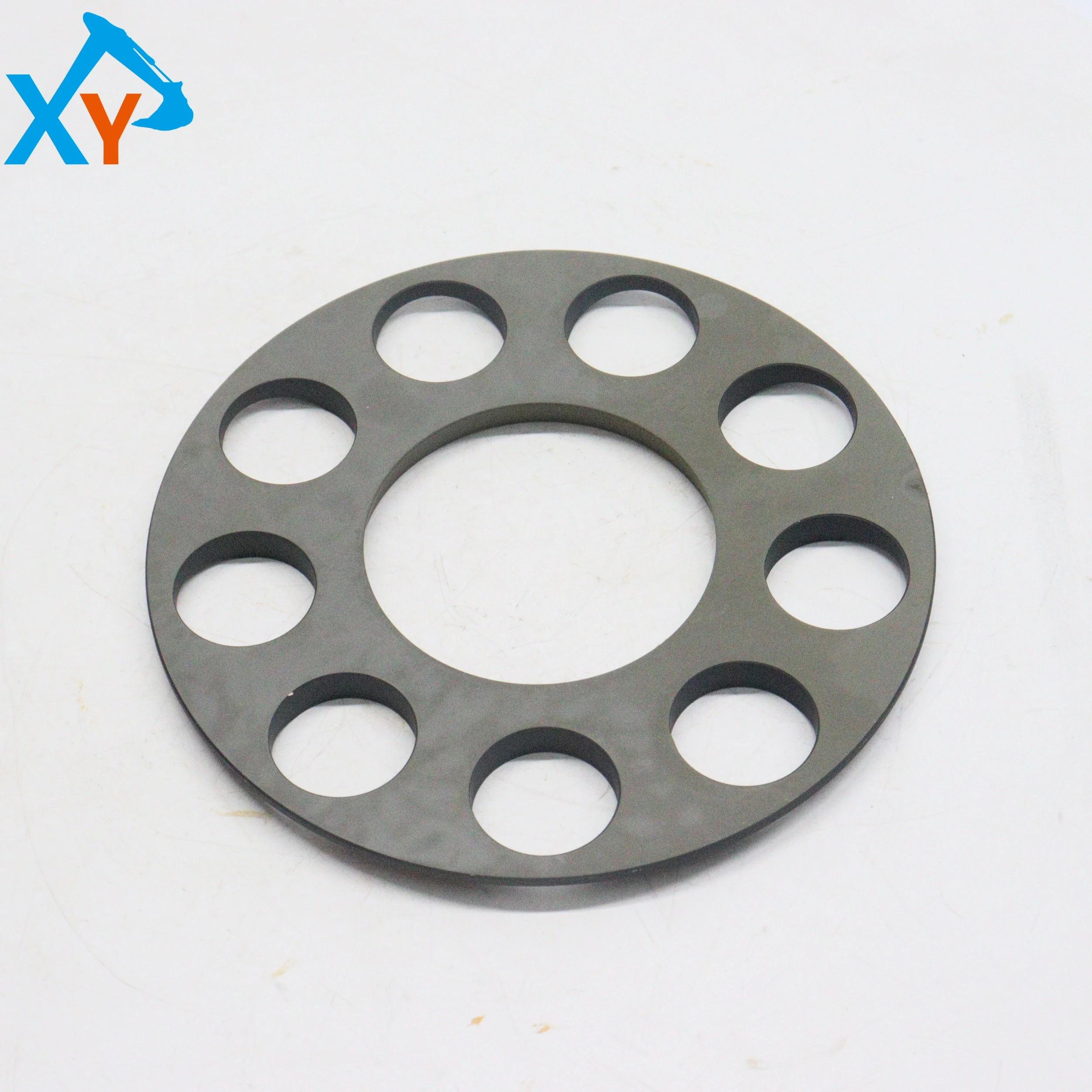

3118194 Original Excavator Parts Traveling Motor Retainer Plate for ZX330-5B

The Hitachi original excavator walking motor fixing plate (universal part number: 3118194) is a key structural connector of the walking mechanism. This original spare part is mainly used to fix the walking motor or walking reducer assembly to the excavator chassis frame, ensuring the stable installation of the drive system. It is widely compatible with multiple series of Hitachi excavator models, especially medium and large models such as ZX200, ZX210, ZX240, ZX250, ZX270, ZX330, ZX350, ZX360, ZX450, ZX470, and corresponding EX series (such as EX200, EX210, EX240, etc.).

The fixed plate is the core load-bearing and installation base of the walking drive system. Its core function is to provide a sturdy and reliable installation platform for the walking motor or reducer, and to withstand the huge torque, vibration, and impact loads generated during walking operations. As an original structural component, it is usually made of high-strength alloy steel plate (such as Q345 or higher grade) through precision cutting, stamping, drilling and welding, which has excellent bending resistance, shear resistance and fatigue resistance.

The core of maintenance for fixed plates lies in regularly checking their fastening status, structural integrity, and compatibility with related components to prevent malfunctions caused by looseness or deformation. It is recommended to check whether all high-strength bolts connecting the fixing plate to the chassis frame and the walking motor/reducer are loose every 250 hours of work or during regular maintenance, and to re tighten them to the original factory specified torque (usually requiring the use of a torque wrench). At the same time, visually inspect the fixed plate body for cracks, deformations, rust, and perforations, especially around stress concentrated welds and bolt holes.
