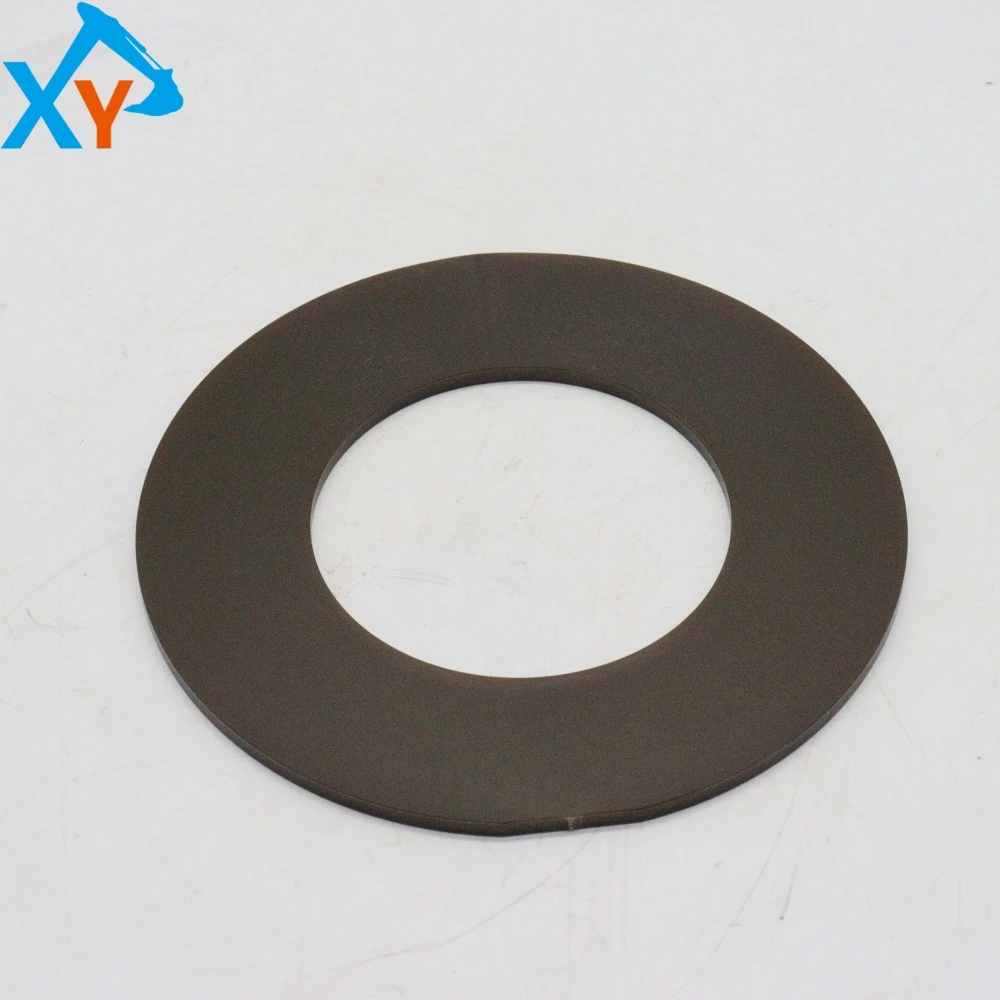

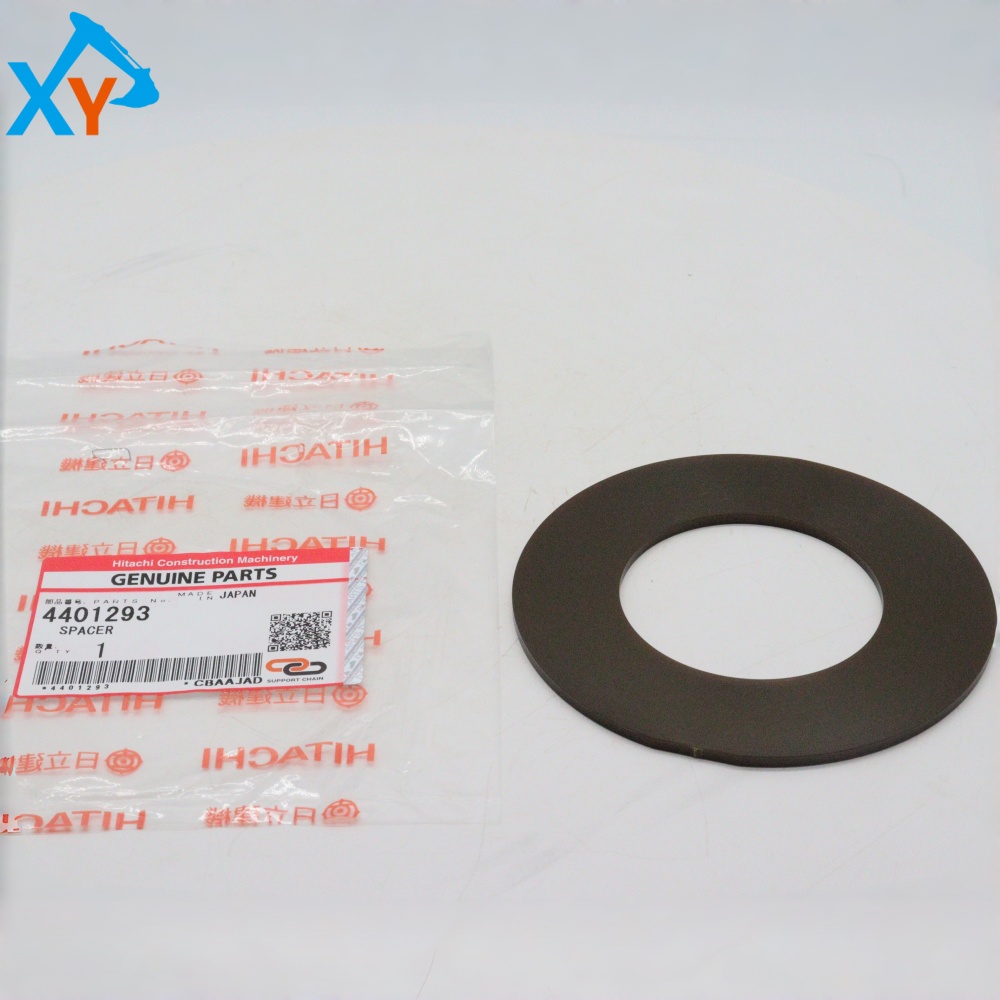

4401293 Original Excavator Gearbox Gasket 4191979 for Hitachi ZX200 ZX230 ZX330 ZX450

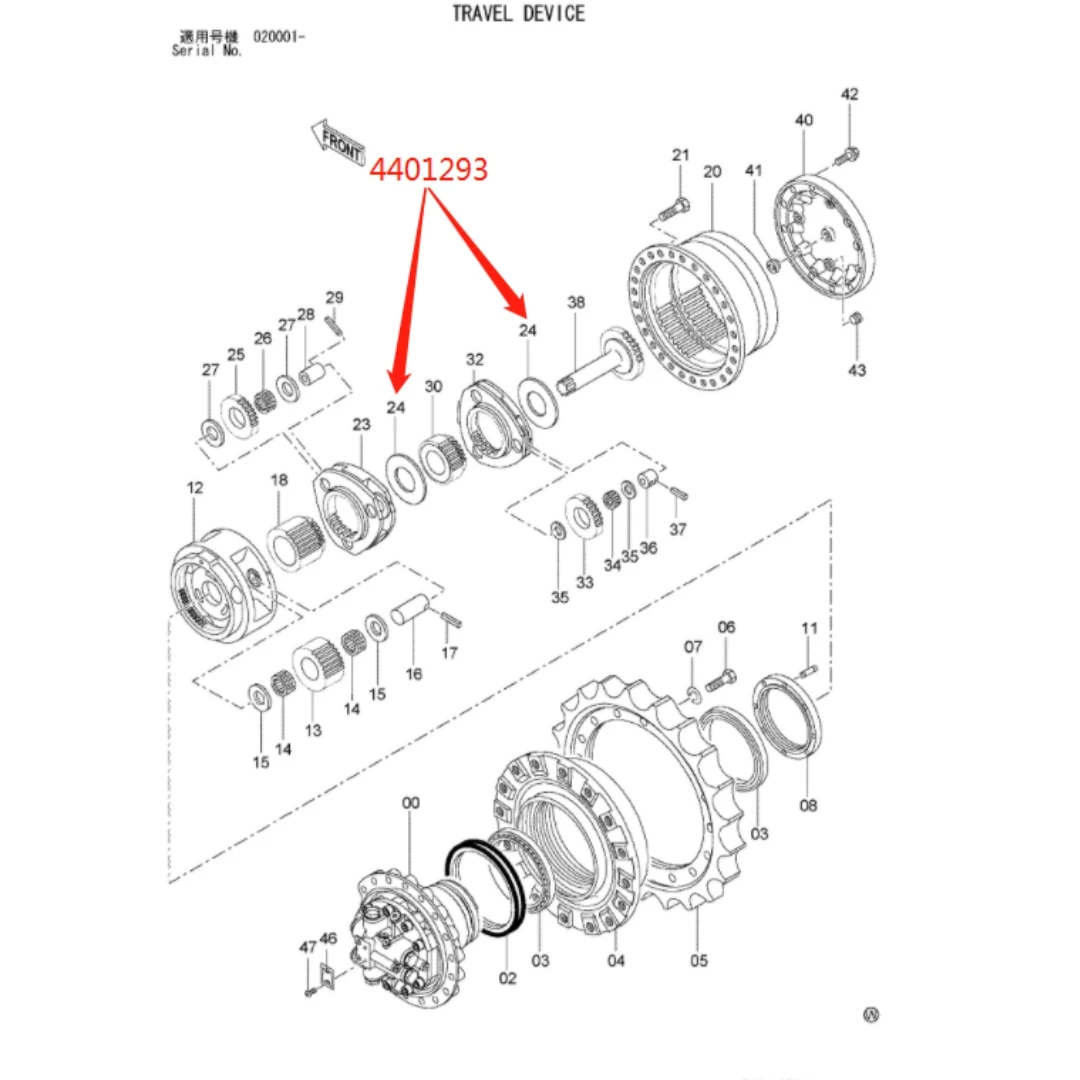

This genuine excavator gearbox gasket (Part Number: 4401293) is precision-engineered in strict compliance with original equipment manufacturer (OEM) technical standards, delivering critical dynamic and static sealing integrity for heavy-duty drive systems. Designed for broad platform compatibility across multiple machine weight classes, it serves as a direct-fit replacement for Hitachi ZAXIS series crawler excavators, including mainstream medium-duty models such as the ZX200, ZX210, ZX230, and ZX330, as well as heavy-duty and mining-class machines like the ZX450. This component is fully interchangeable with alternate and superseded OEM part number 4191979, consolidating critical service references into a single reliable solution. Manufactured with exact bolt-hole pitch dimensions, inner/outer perimeter contours, and standard gauge thickness, it aligns perfectly with factory swing reduction gearboxes and travel travel motor final drive housings. Installing this genuine-spec gasket restores factory-grade fluid isolation, prevents gear oil weepage, and ensures seamless integration during planned drivetrain overhauls without requiring trimming, hole punch modifications, or supplemental adhesive shimming.

Engineered to withstand intense mechanical vibration, continuous gear oil immersion, and fluctuating hydraulic casing pressures, this gearbox gasket is fabricated from premium high-density composite cellulose-elastomer or reinforced multi-layer fiber material. The material formulation exhibits exceptional tensile strength, minimal creep relaxation, and a remarkably low compression set, allowing it to maintain resilient clamping force between mating casting flanges over extended operating cycles. It features superior resistance to extreme-pressure gear lubricants, synthetic transmission fluids, high temperatures, and environmental moisture ingress. Precision die-cut edges ensure burr-free sealing boundaries that conform smoothly to micro-irregularities and machining tool marks on cast iron and steel casing faces. By establishing an airtight and fluid-tight barrier, this gasket prevents internal gear oil leakage while completely barring external contaminants—such as abrasive dust, muddy water, and rock aggregate—from invading planetary gear sets and precision bearing assemblies, thereby preserving gear tooth life and maintaining peak drivetrain mechanical efficiency.

To ensure dependable drivetrain sealing and avoid catastrophic gear failure, gearbox gaskets should be treated as non-reusable service components and replaced whenever gearboxes, travel reduction units, or swing devices are disassembled for inspection or repair. Before installing a new gasket, thoroughly clean, degrease, and dry the mating housing flanges, removing old gasket residue, paint flecks, or corrosion without gouging the metal faces. Avoid applying unauthorized liquid RTV silicone sealants unless explicitly specified by the service manual, as excess extruded silicone can migrate into the gearbox and obstruct internal lubrication ports or magnetic drain plugs. Always align the gasket carefully over locating dowel pins and tighten housing bolts diagonally in progressive stages using a calibrated torque wrench to ensure uniform surface compression. Regularly check gearbox oil levels and monitor casing seams for oil seepage during routine preventive maintenance, and replace contaminated gear oil on schedule to minimize chemical breakdown of the sealing material.
