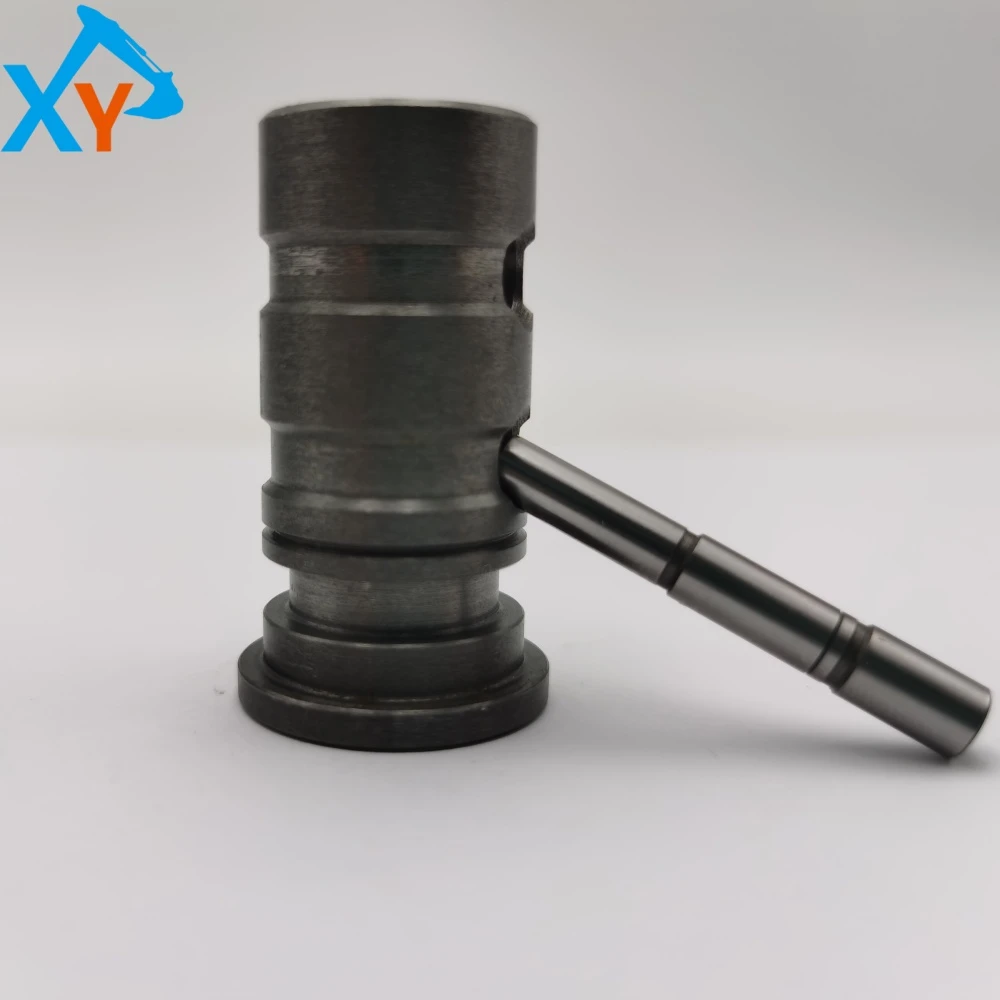

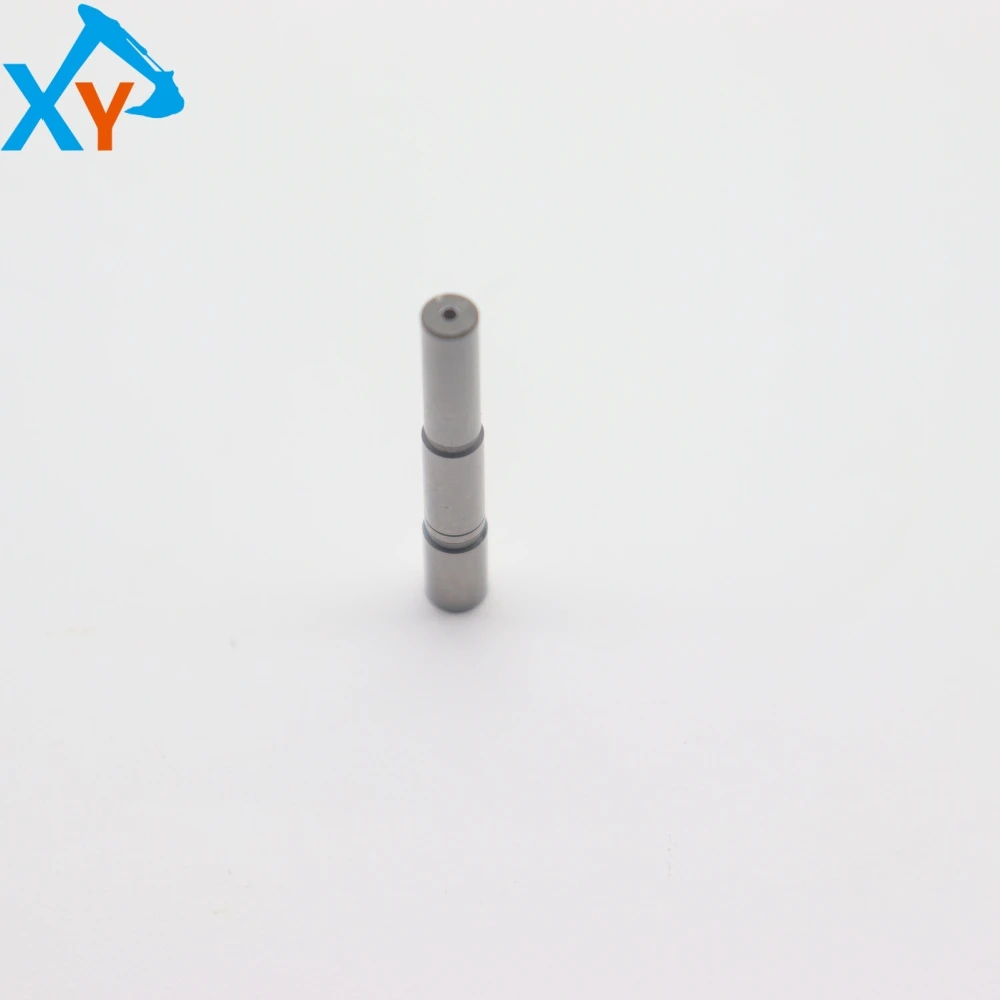

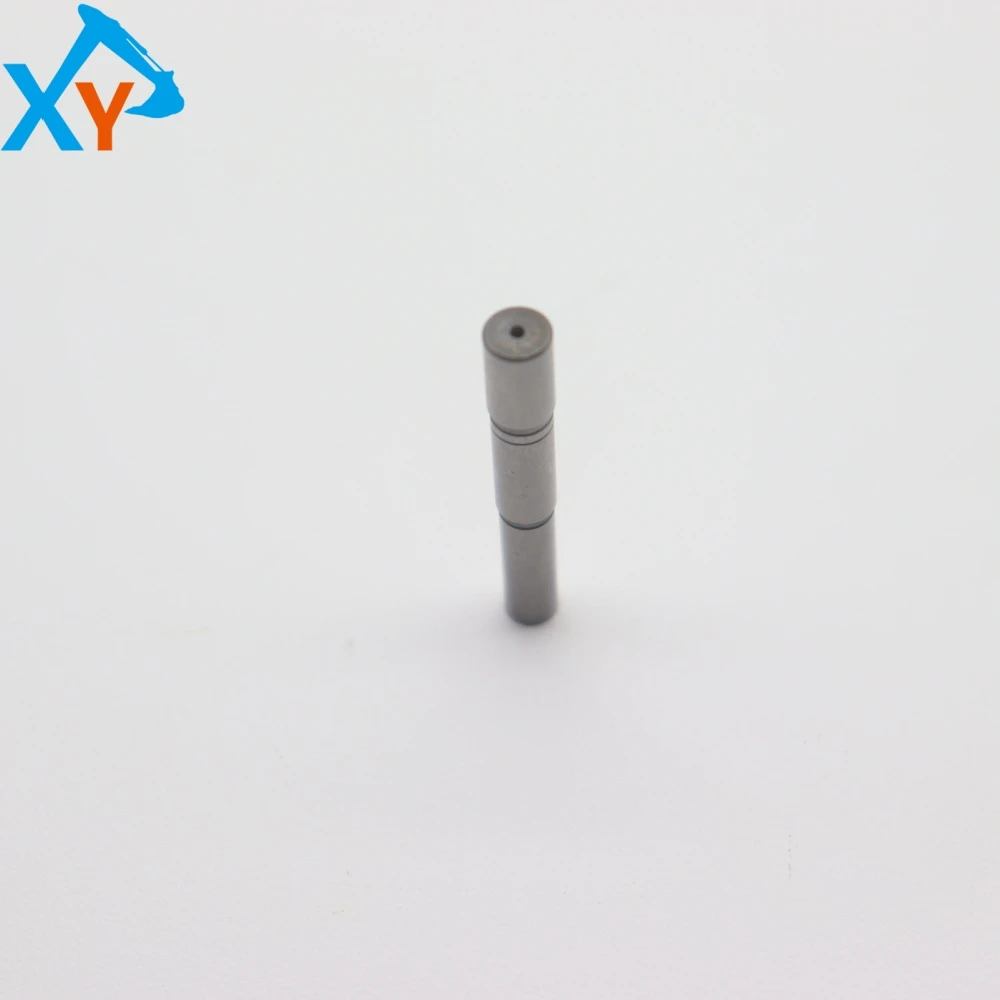

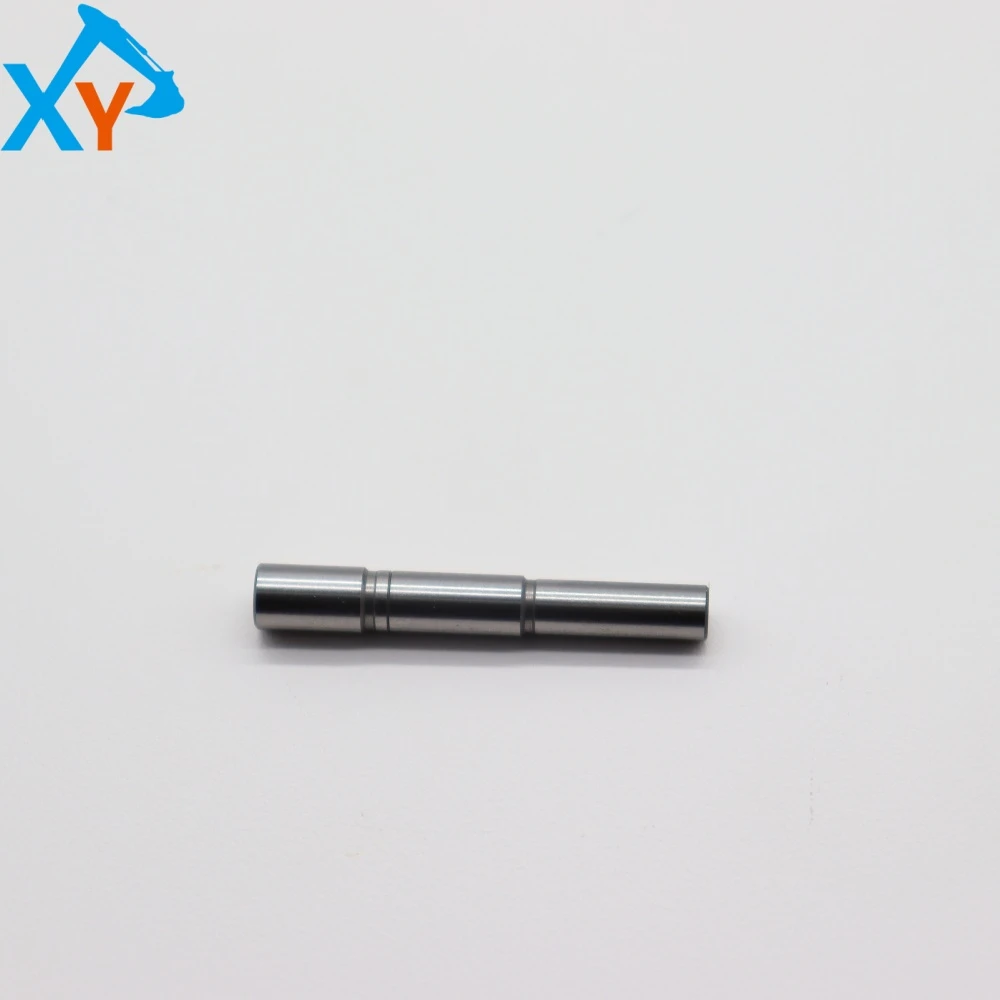

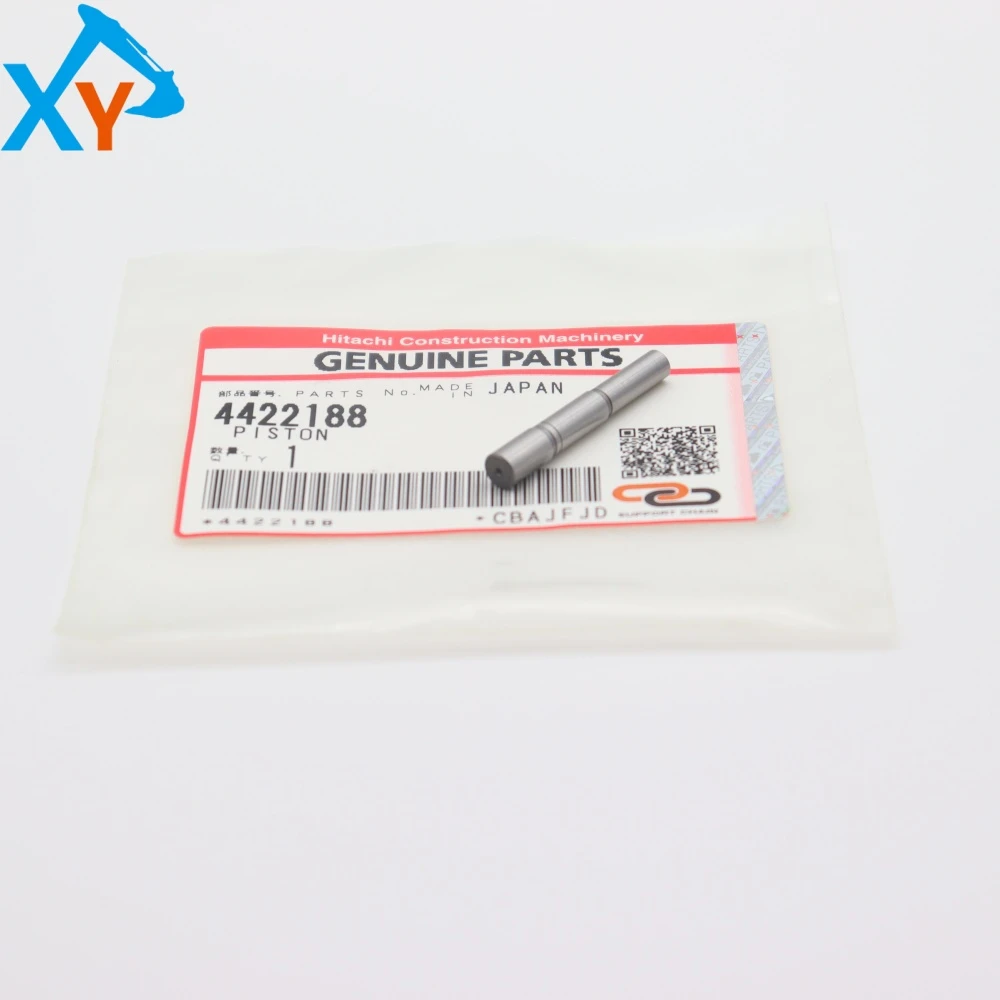

4422188 Original Excavator Hydraulic Pump Parts Regulator Piston for ZX200 ZX210 ZX200-3G

Part number 4422188 in Hitachi's original system usually refers to the servo piston/spool assembly inside the regulator (lifter) of the main hydraulic pump (commonly seen in the HPV series, such as HPV118/HPV102) (also commonly referred to as the "lifter spool/pump control piston" in the industry). It is not the engine piston, but the key moving component that converts the "pilot pressure/control signal" into the "inclined disc servo displacement". In the public accessory clues, it appears in the pump regulators of ZAXIS-3 generation models such as ZX200-3G/ZX200-3/ZX240-3.

As a precision coupling level component inside the regulator, its core value is to slide smoothly in high-pressure small clearances for a long time. By cooperating with the throttle and on/off of the regulating valve sleeve/valve hole, it determines the oil receiving and discharging at both ends of the servo piston, thereby accurately controlling the angle of the pump swash plate (i.e. pump discharge/flow rate). The original parts have high requirements for outer diameter/cylindricity, surface roughness, heat treatment hardness, and wear-resistant coating, and are equipped with precise sealing grooves/steps for installing O-rings or support rings to ensure that they do not climb the cylinder or get stuck under pulsating pressure. It is installed in the closed oil chamber of the regulator, and the working medium is the system hydraulic oil/pilot oil. Therefore, the clearance between the valve core and the valve hole, the rounding and deburring of the edges determine whether the entire pump will experience typical regulator faults such as "traveling/action stagnation/holding/flow failure".

It belongs to the "precision parts that can only be touched by disassembling the pump", and the maintenance points are two sentences: do not let it get dirty and do not damage it during installation. At the daily level, only indirect protection is provided: strictly replace the hydraulic return oil filter element on schedule, keep the oil tank respirator clean, and prevent metal particles from getting stuck in the micro gaps of the regulator. When maintenance is required (symptoms usually include slow operation of the entire vehicle/stalling/abnormal pump noise+valve core strain, broken edges, or excessive fit clearance found during regulator disassembly and inspection), the entire regulator must be disassembled and assembled in a clean environment, and the valve core and corresponding valve sleeve/cylinder hole should be checked in pairs; Once there are visible scratches or size deviations, it is usually recommended to replace the original matching parts and reset all adjustment blocks/spring pre tension relationships according to the manual, rather than continuing to use sandpaper polishing.
