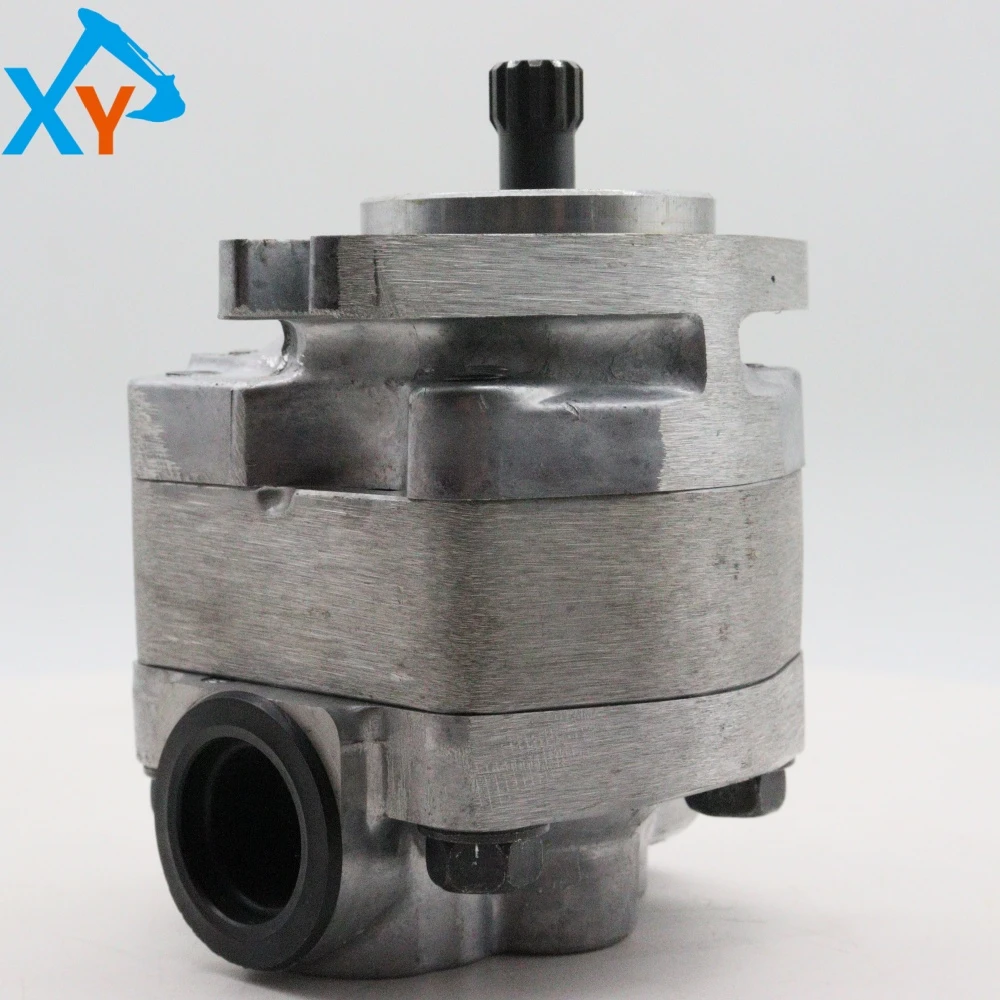

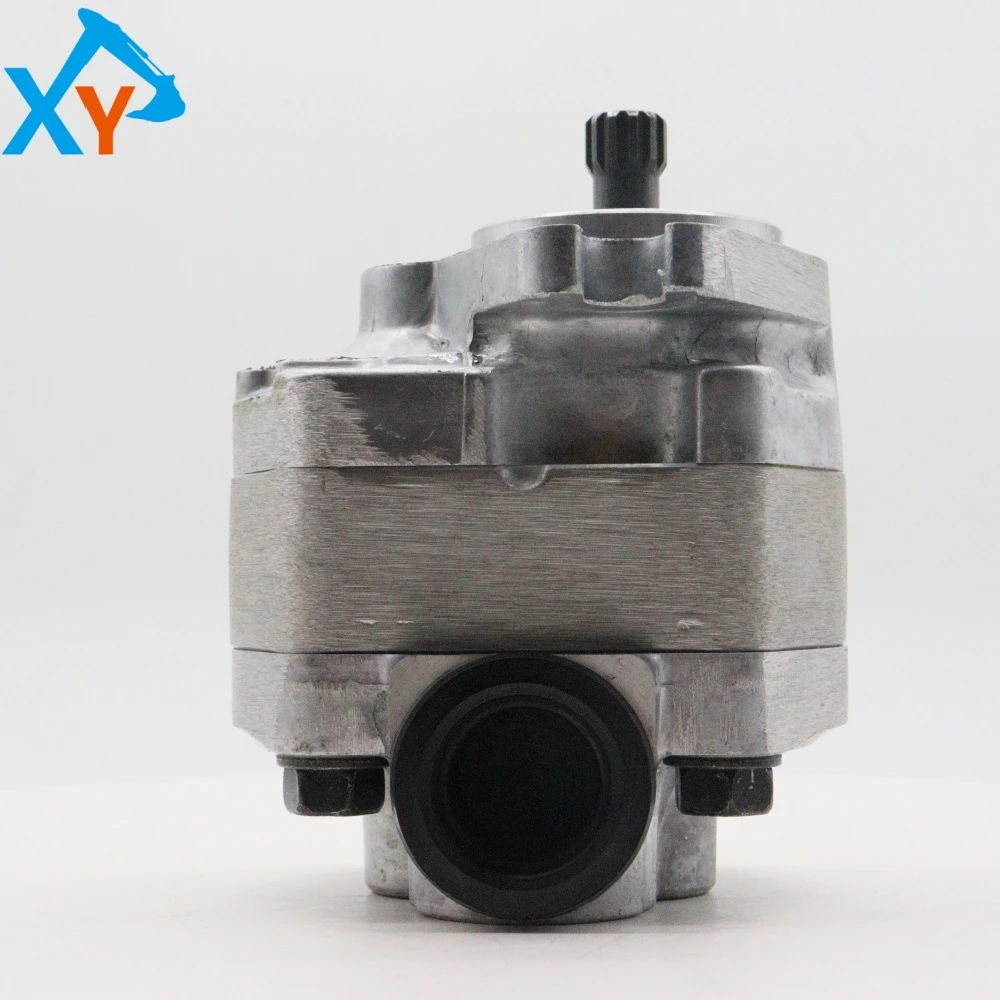

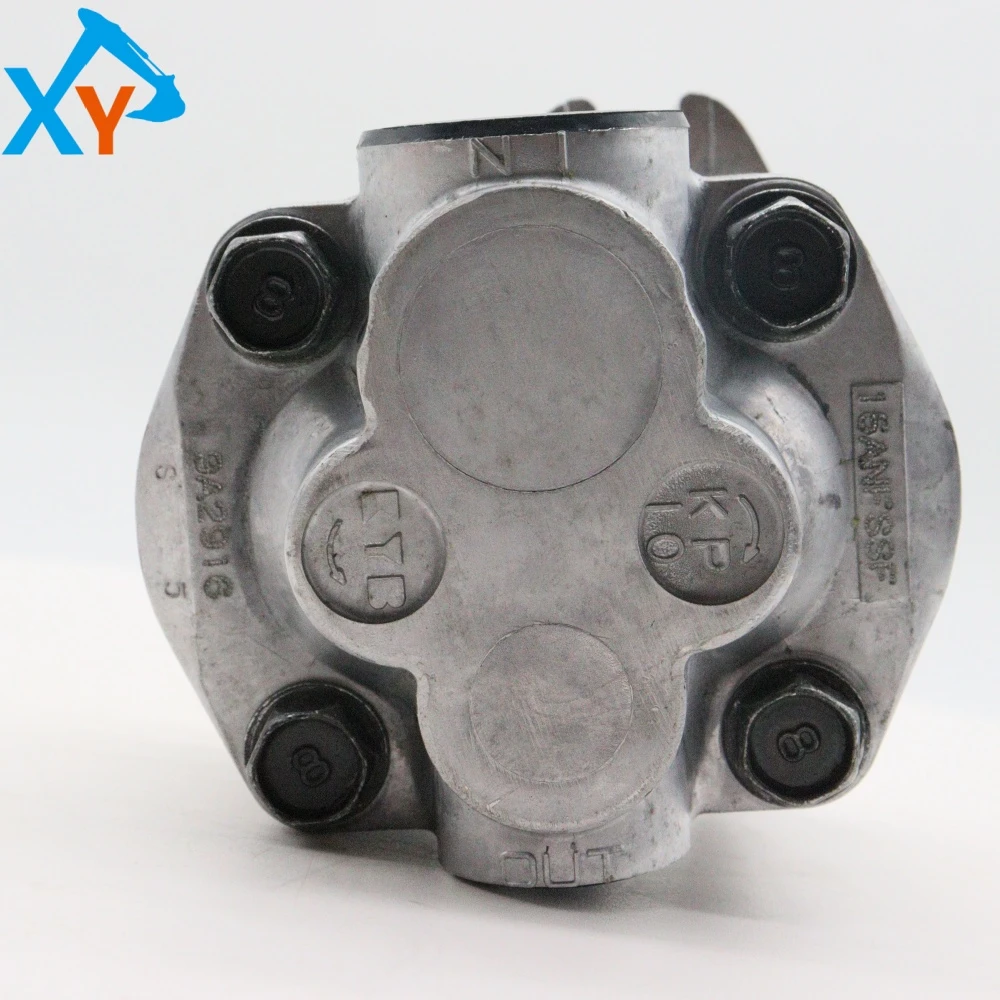

4477283 Original Excavator Hydraulic Main Pump Parts pilot Gear Pump for EX1200-5

The original Hitachi excavator pilot gear pump, with part number 4477283, is a critical component in hydraulic systems that provides power to the control circuit. This accessory is mainly suitable for Hitachi EX series large excavators, such as EX1200-5, EX1200-7 and other models. Meanwhile, according to the accessory supplier information, this part number or similar pilot gear pump is also widely applicable to many other models of Hitachi excavators, including EX200-1, EX300-1, EX220-1, EX330-5, ZX120, ZX330, ZX360, etc.


The pilot gear pump 4477283 belongs to the external meshing quantitative gear pump and is the power source of the excavator's pilot hydraulic system. Its core function is to generate stable low-pressure oil flow through the rotation of a pair of meshing gears in the pump chamber, providing pilot pressure oil for control components such as the pilot control handle and foot valve of the main control valve, thereby achieving smooth and precise control of the working device and walking mechanism. This pump is usually made of high-strength alloy steel gears and cast iron pump bodies, which have the characteristics of compact structure, reliable operation, strong anti pollution ability, and relatively low cost.


To ensure the long-term stable operation of the pilot gear pump, standardized daily and regular maintenance is required. The primary key is to maintain the cleanliness of hydraulic oil, which must be regularly inspected and replaced with hydraulic oil and filter cartridges that meet specifications to prevent pollutants from exacerbating gear and bearing wear. Regular inspections should be conducted on the condition of the joint surfaces and shaft end seals (oil seals, O-rings) of the pump body. If any signs of leakage or aging are found, the seals should be replaced in a timely manner. During operation, it is necessary to closely monitor whether there is any abnormal noise or vibration in the pump body, and monitor whether its output pressure is stable. These may be signs of internal wear or intake failure.
