4656988 Excavator Check Valve for Hitachi ZX200-3

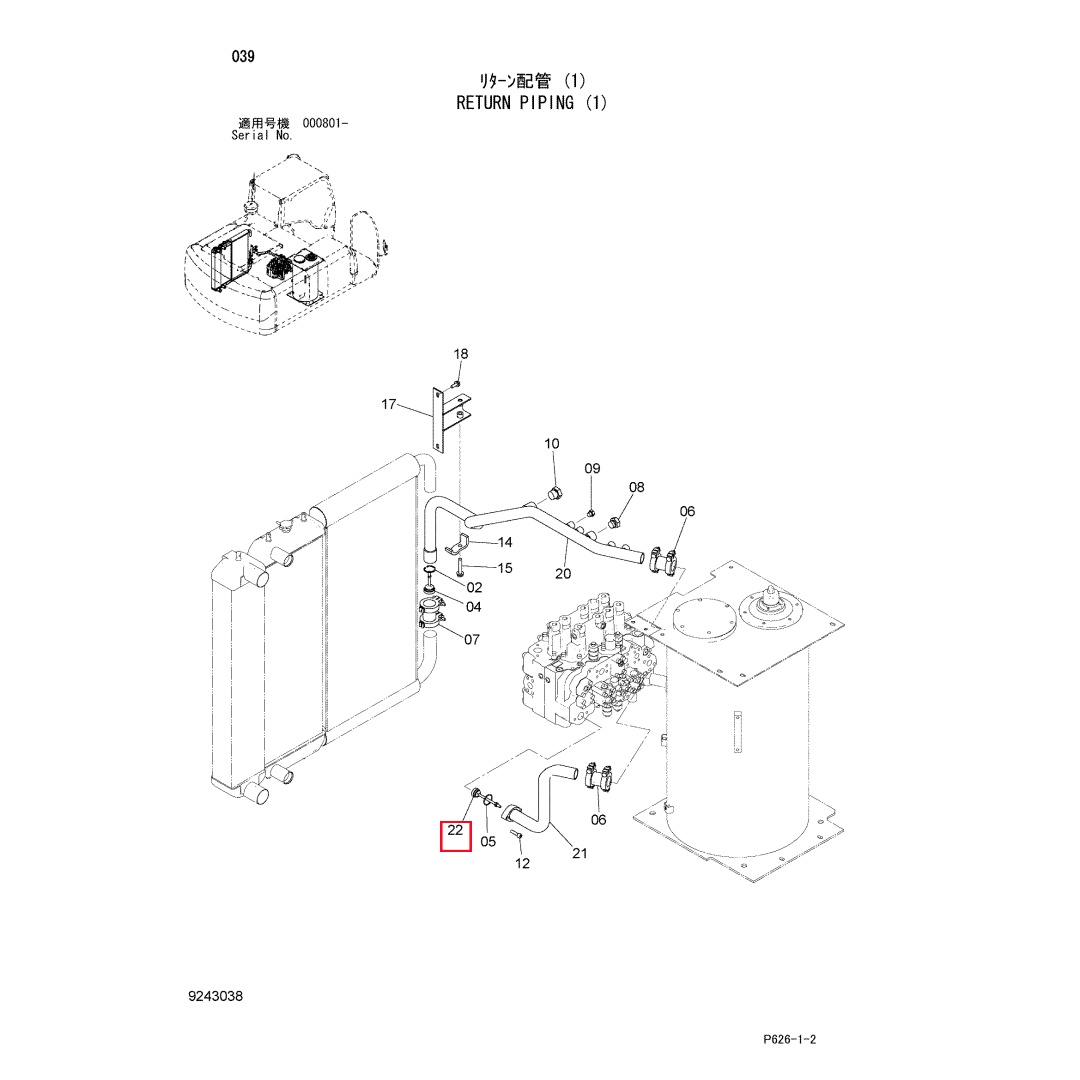

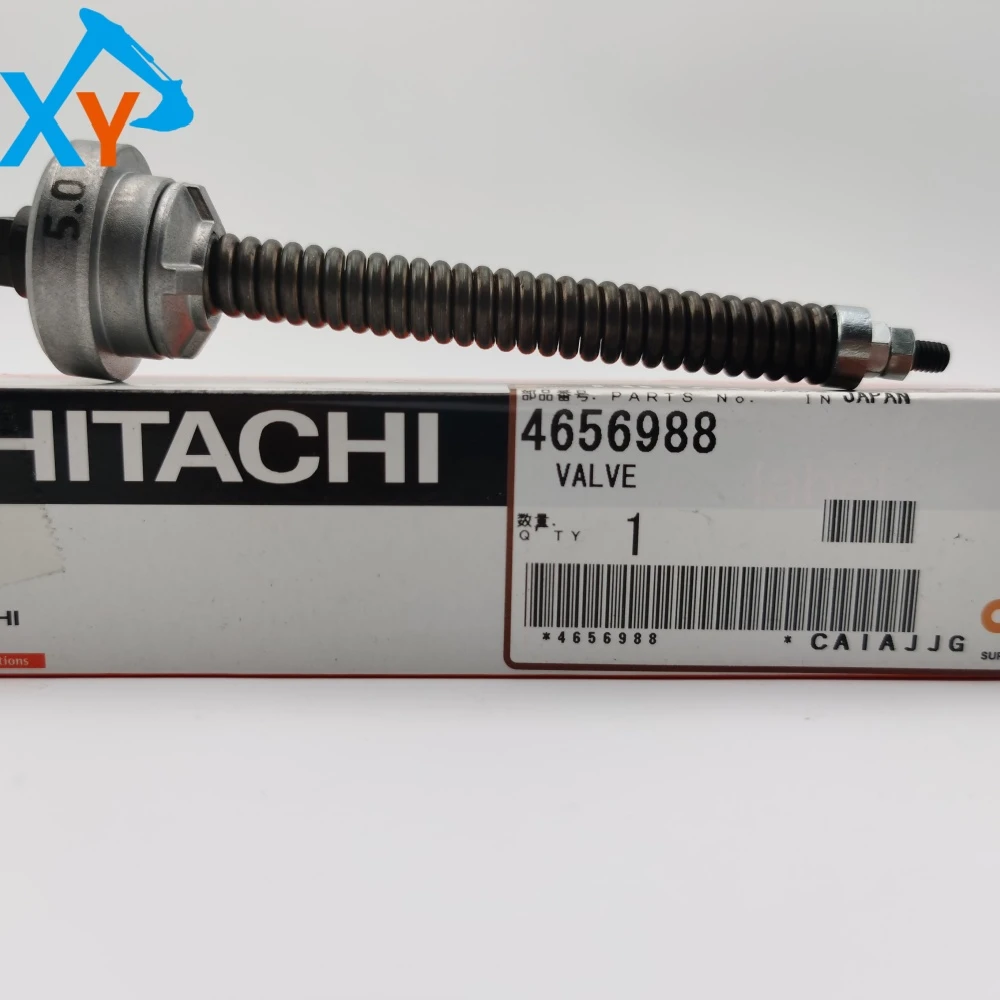

Part number 4656988 is an original oil return check valve specially designed by Hitachi for the ZX200-3 hydraulic excavator. Its universal model is clear and unique, which precisely adapts to the return oil pipeline of the hydraulic system of this model based on the part number itself. As a designated one-way control component by the original factory, its installation thread specifications, opening pressure, and flow characteristics match the depth of the ZX200-3 main control valve return port or related valve block integrated circuit. It is strictly prohibited to use it for other models of equipment or hydraulic systems. Any mismatched use may result in abnormal return oil back pressure, rapid system temperature rise, or functional failure, directly affecting the stability of the entire machine and the service life of hydraulic components.

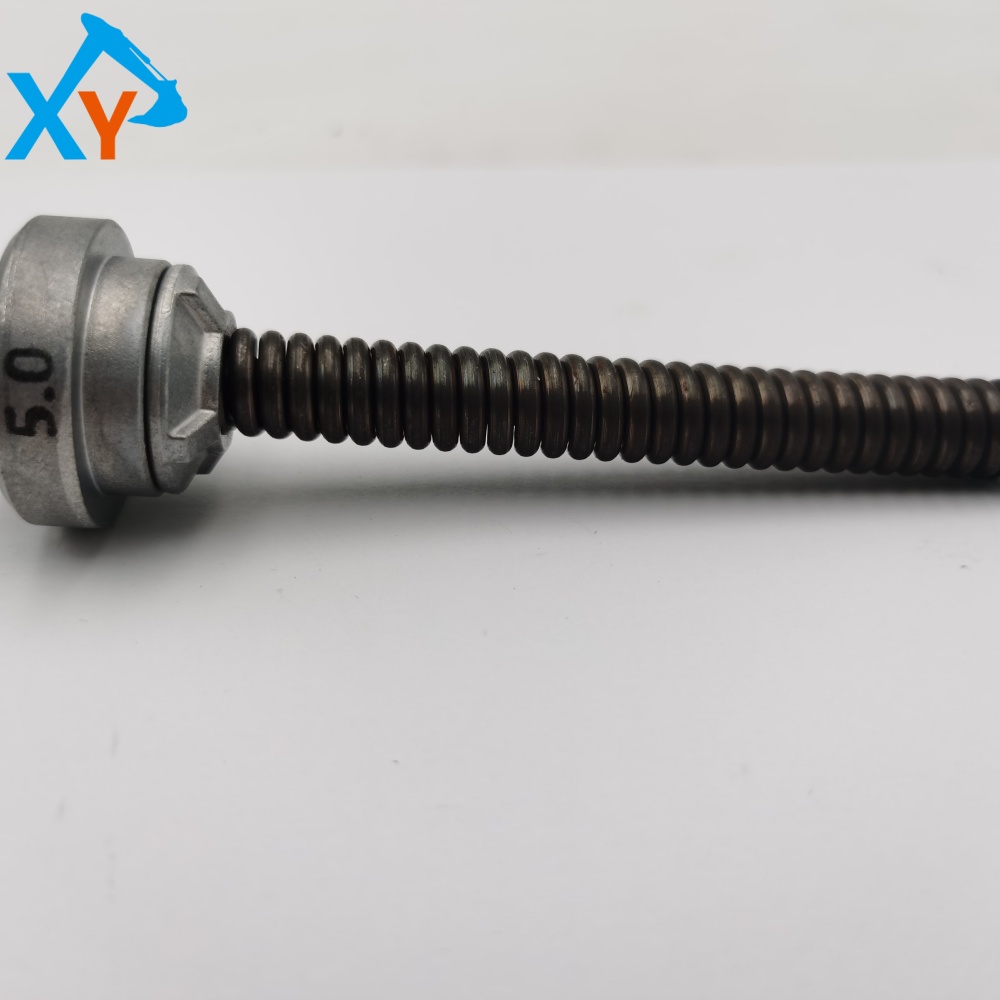

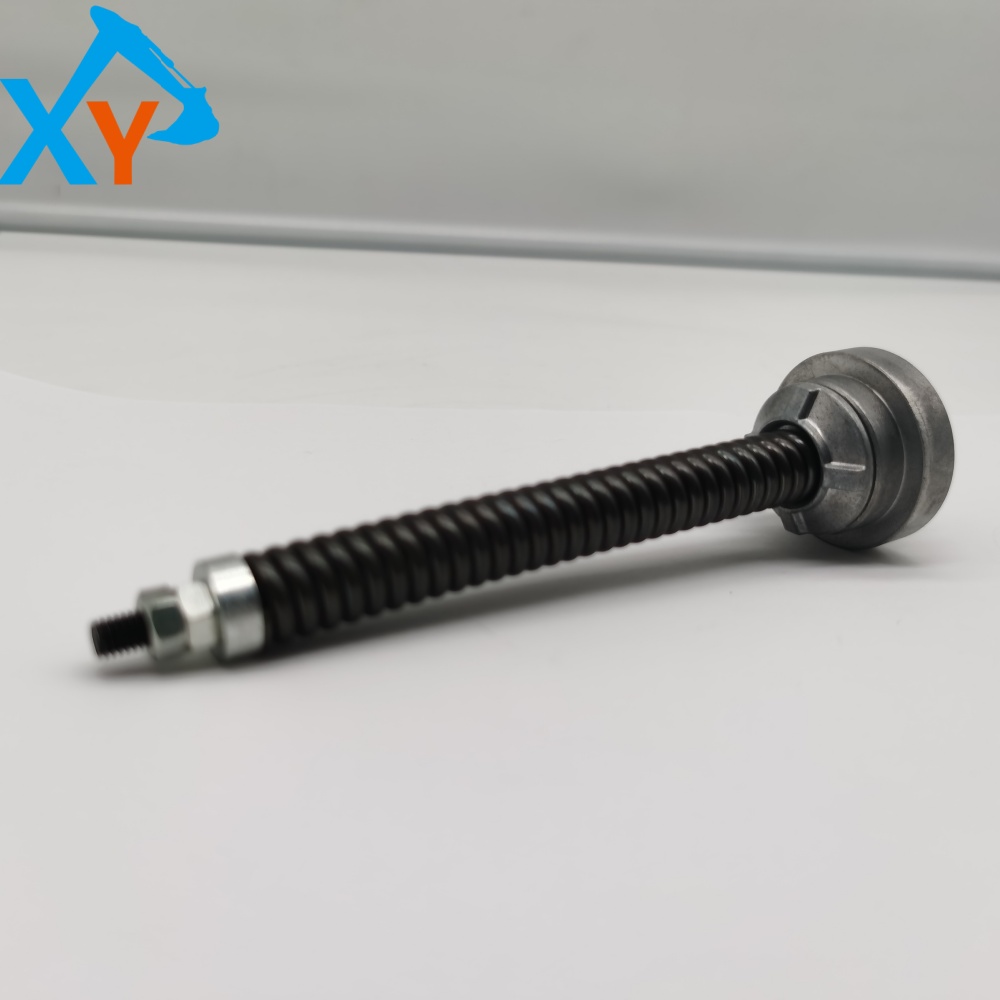

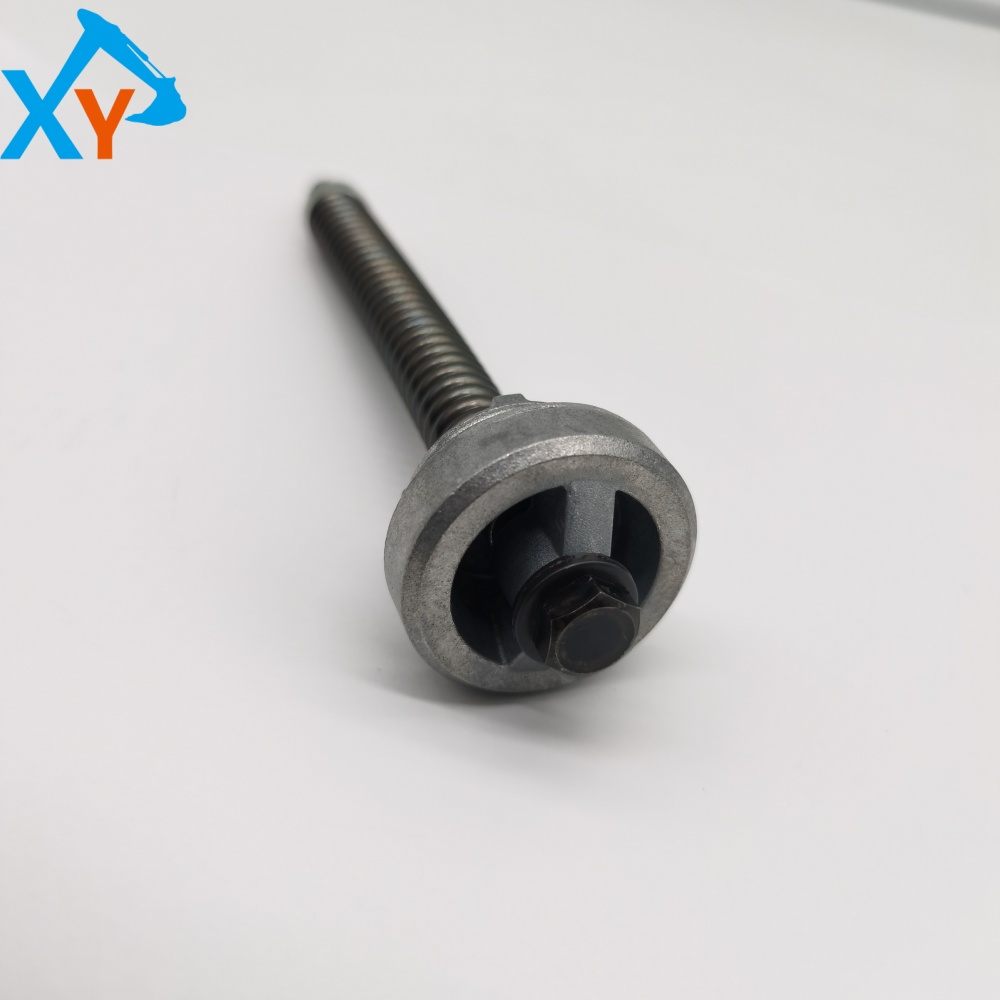

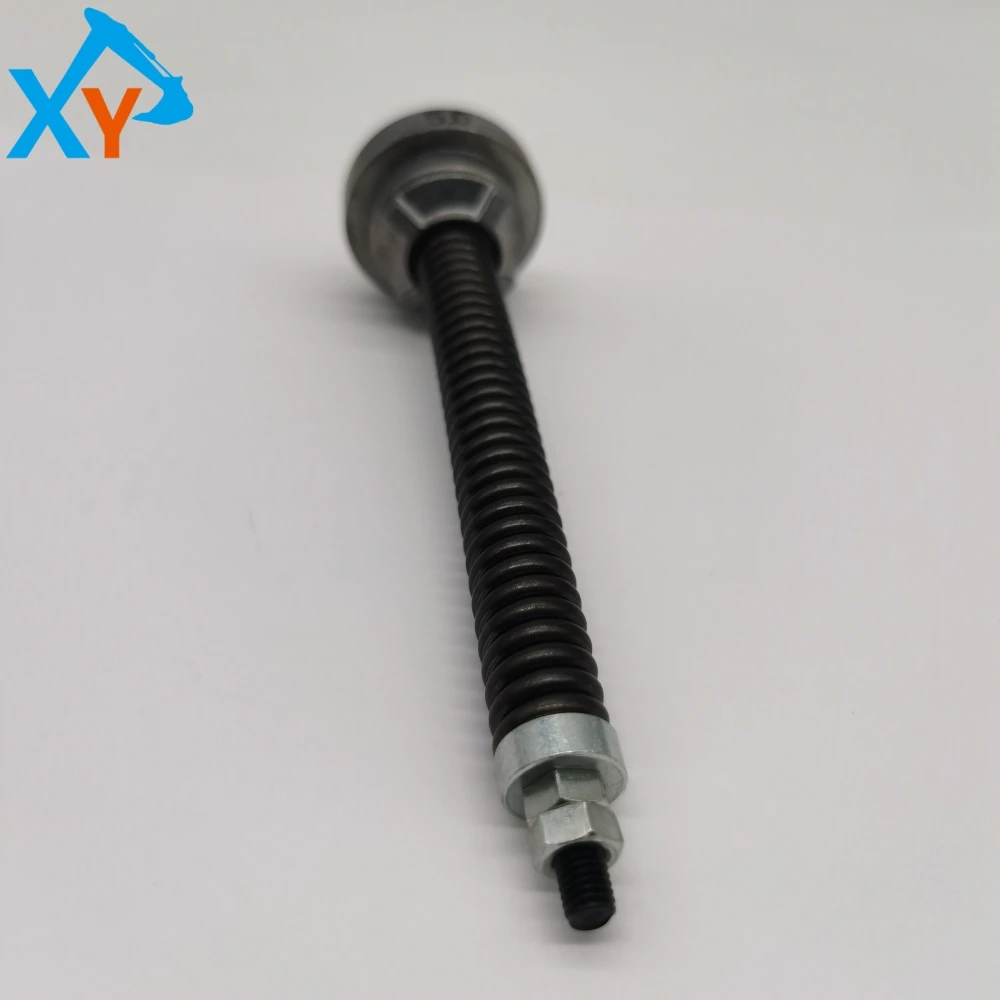

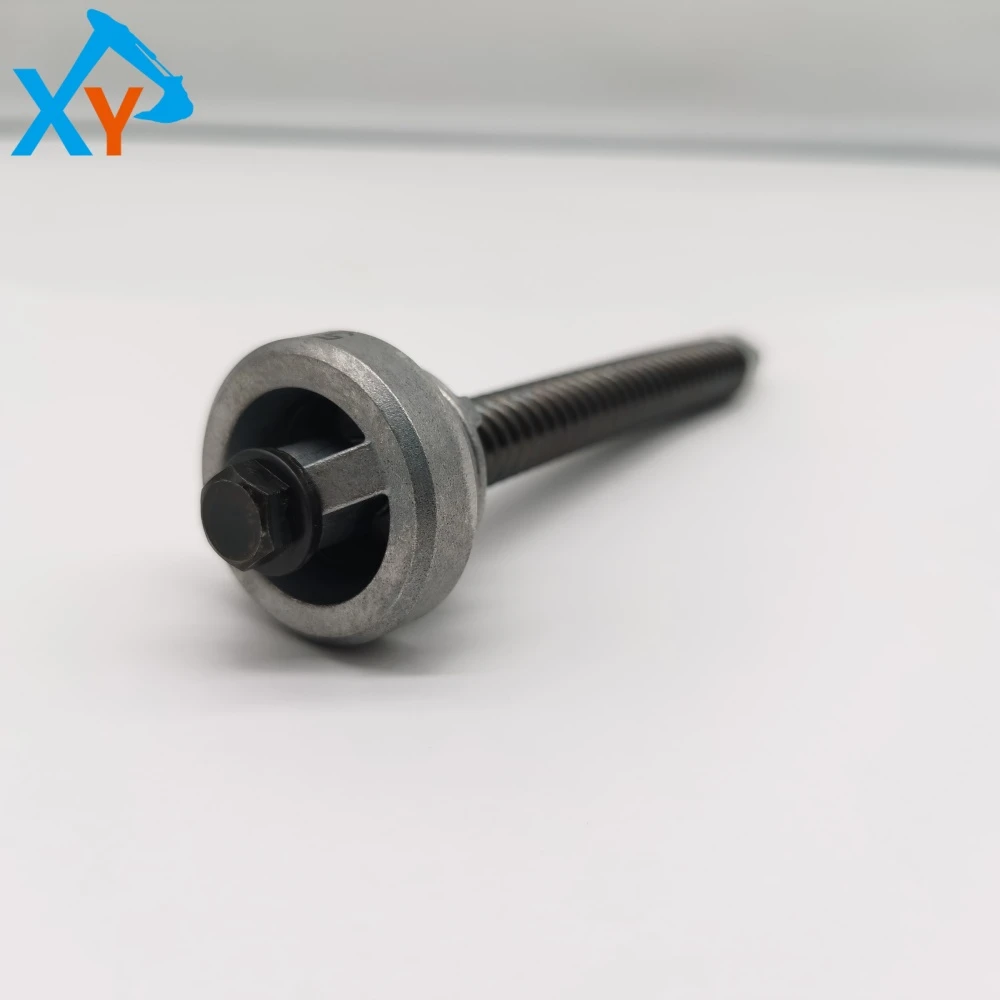

This product is a straight through steel return oil check valve. The valve body is made of sturdy silver gray metal material and is precision machined from high-strength alloy steel, with excellent compressive and corrosion resistance. The engraved "5.0" on the side of the valve body is its key pressure parameter identification, usually representing an opening pressure of 0.5 MPa. It is composed of steel valve core and precision spring inside, relying on hydraulic pressure to open the valve core for one-way conduction, which can effectively prevent hydraulic oil from flowing back when the system stops or pressure fluctuates, ensuring that the return oil pipeline maintains a certain back pressure, thereby stabilizing the system pressure, preventing air suction, protecting the hydraulic pump, and improving the smoothness of the actuator action.

Installation and inspection: Before installation, clean the system interface threads and apply a small amount of sealant to the threads. Be sure to identify the oil flow direction arrow marked on the valve body during installation to ensure correct installation. The daily inspection cycle is every 500 working hours, with a focus on checking the valve body and connections for any signs of oil leakage, and monitoring the system for any abnormal fluid flow sounds caused by the valve being stuck. Fault diagnosis: If the hydraulic system experiences poor oil return, abnormal back pressure, or slow or crawling action of related actuators, after ruling out other causes, it is suspected that the internal valve core of this check valve is stuck or the spring is malfunctioning.
