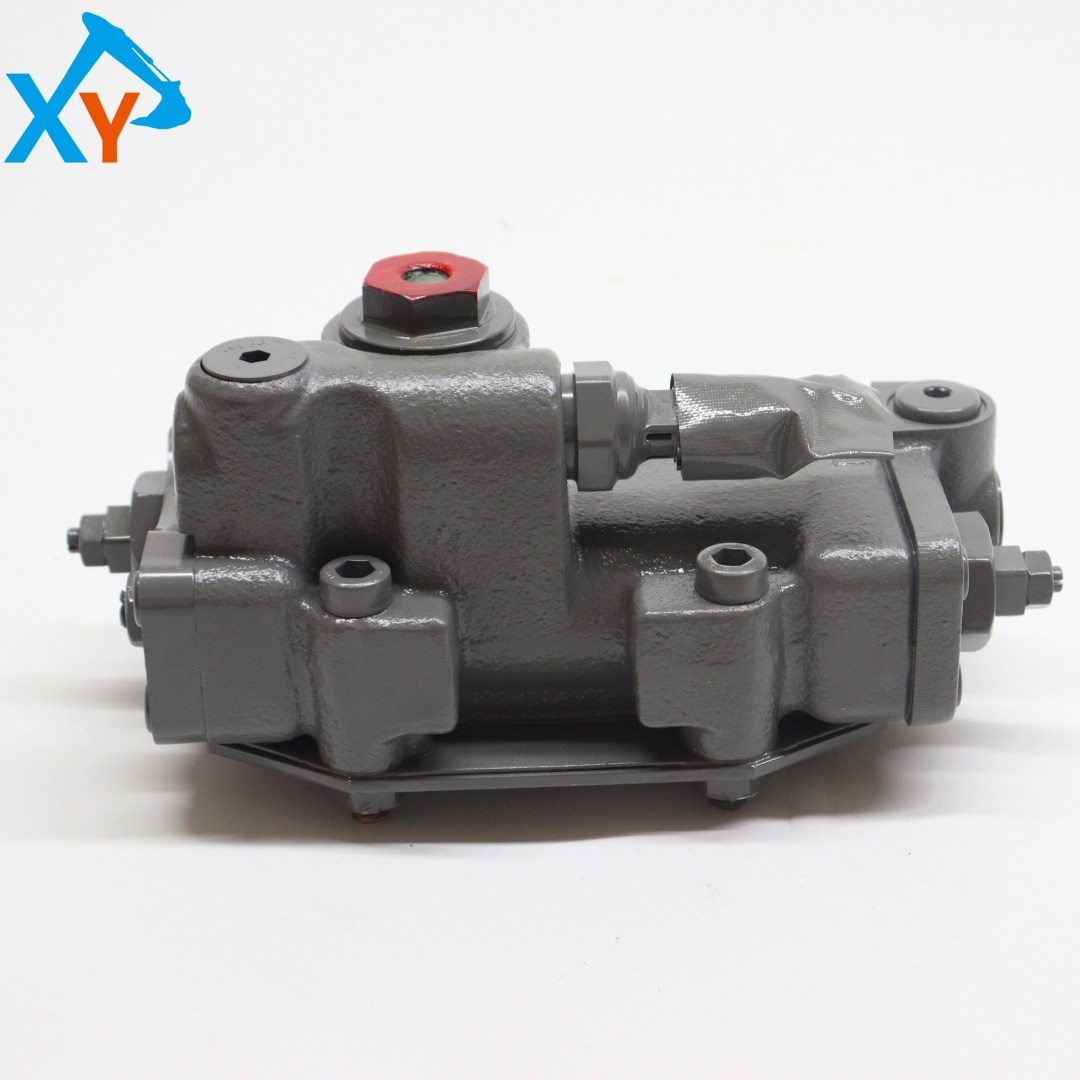

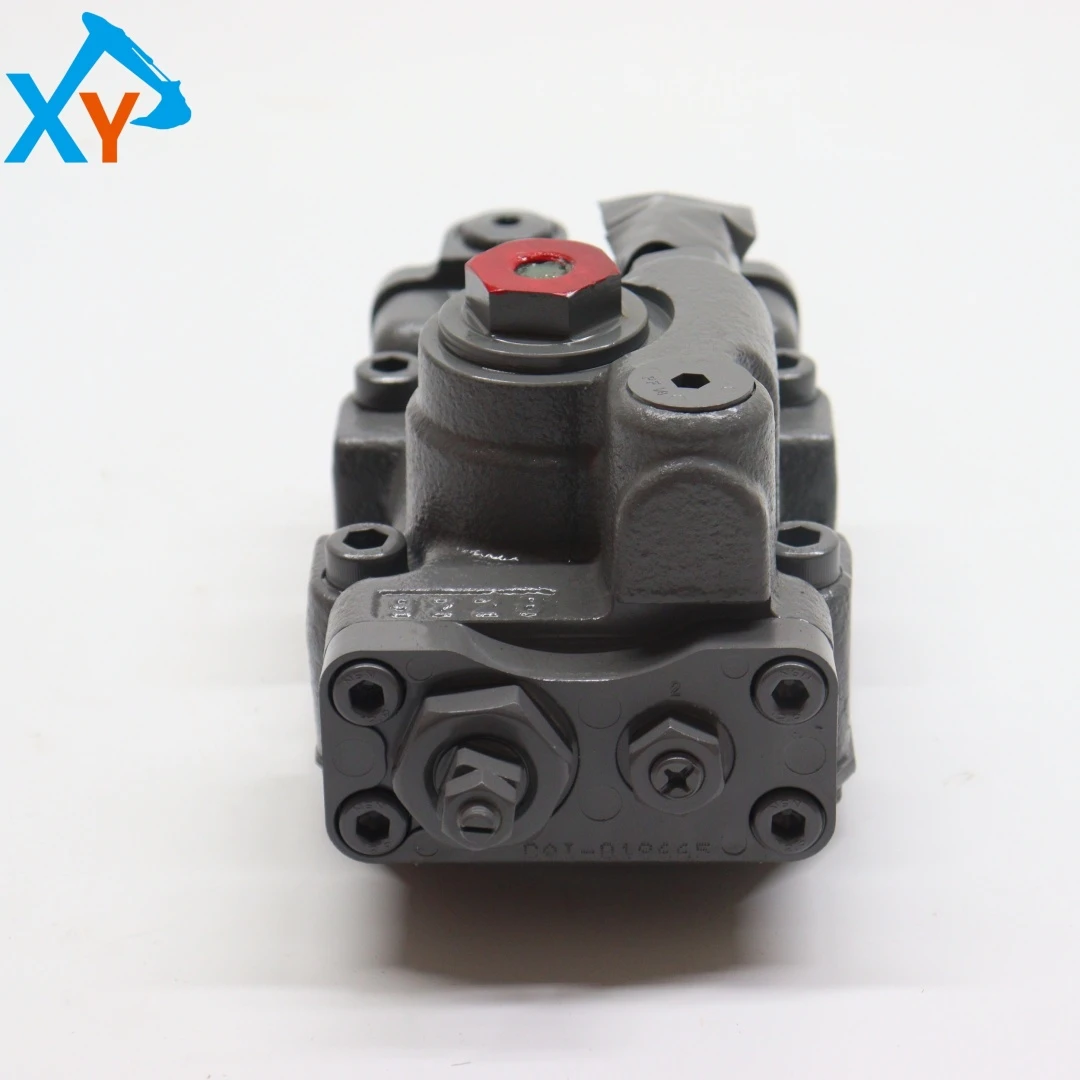

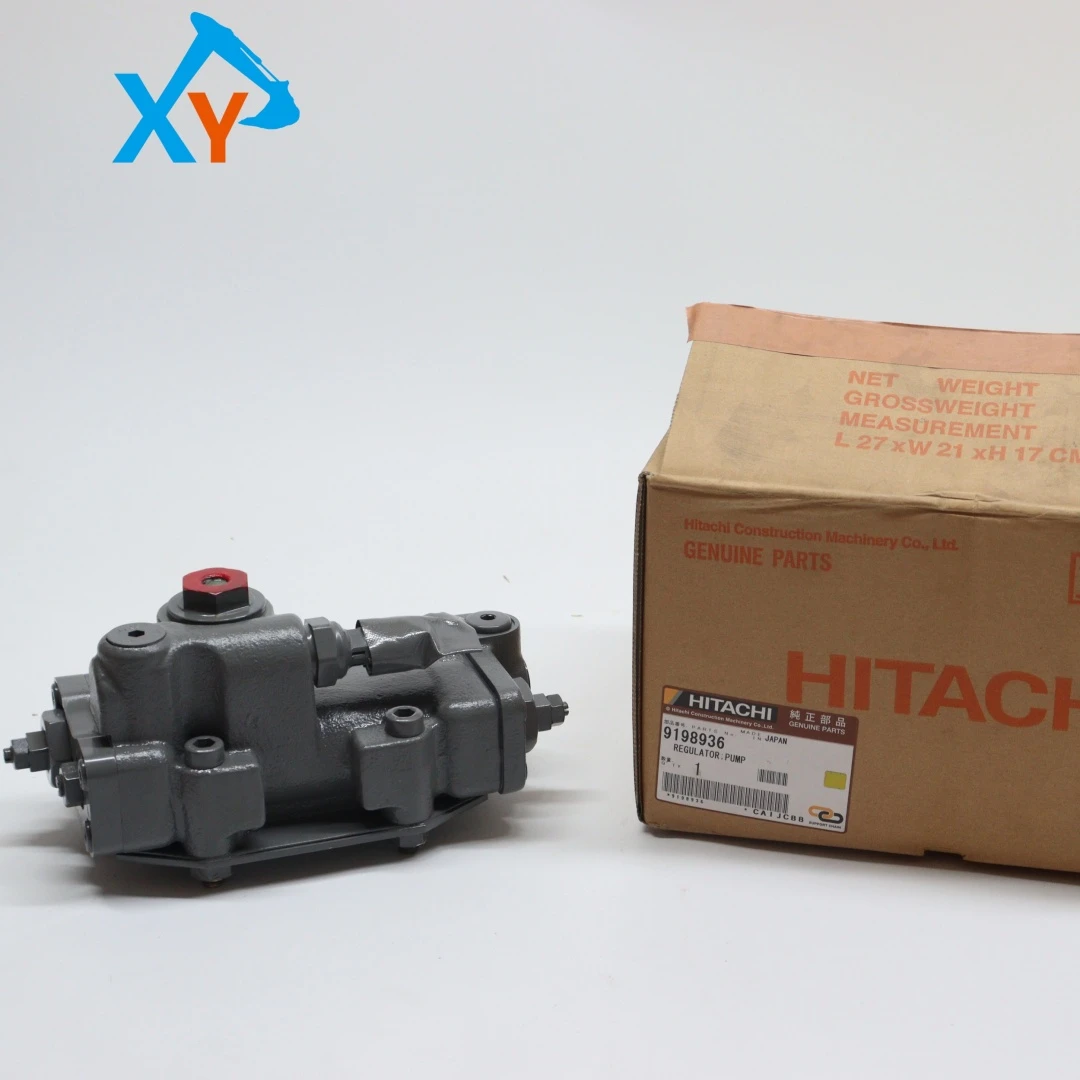

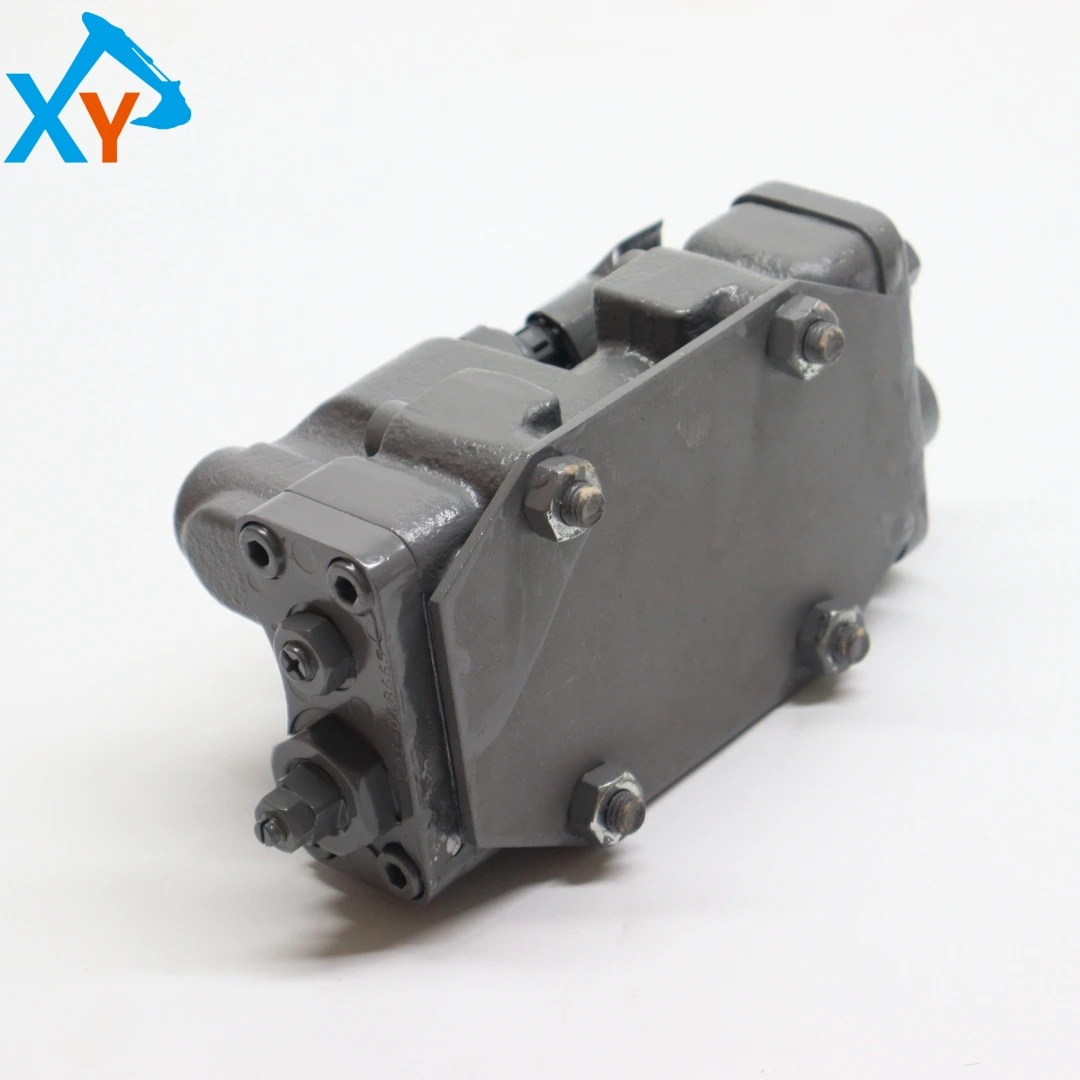

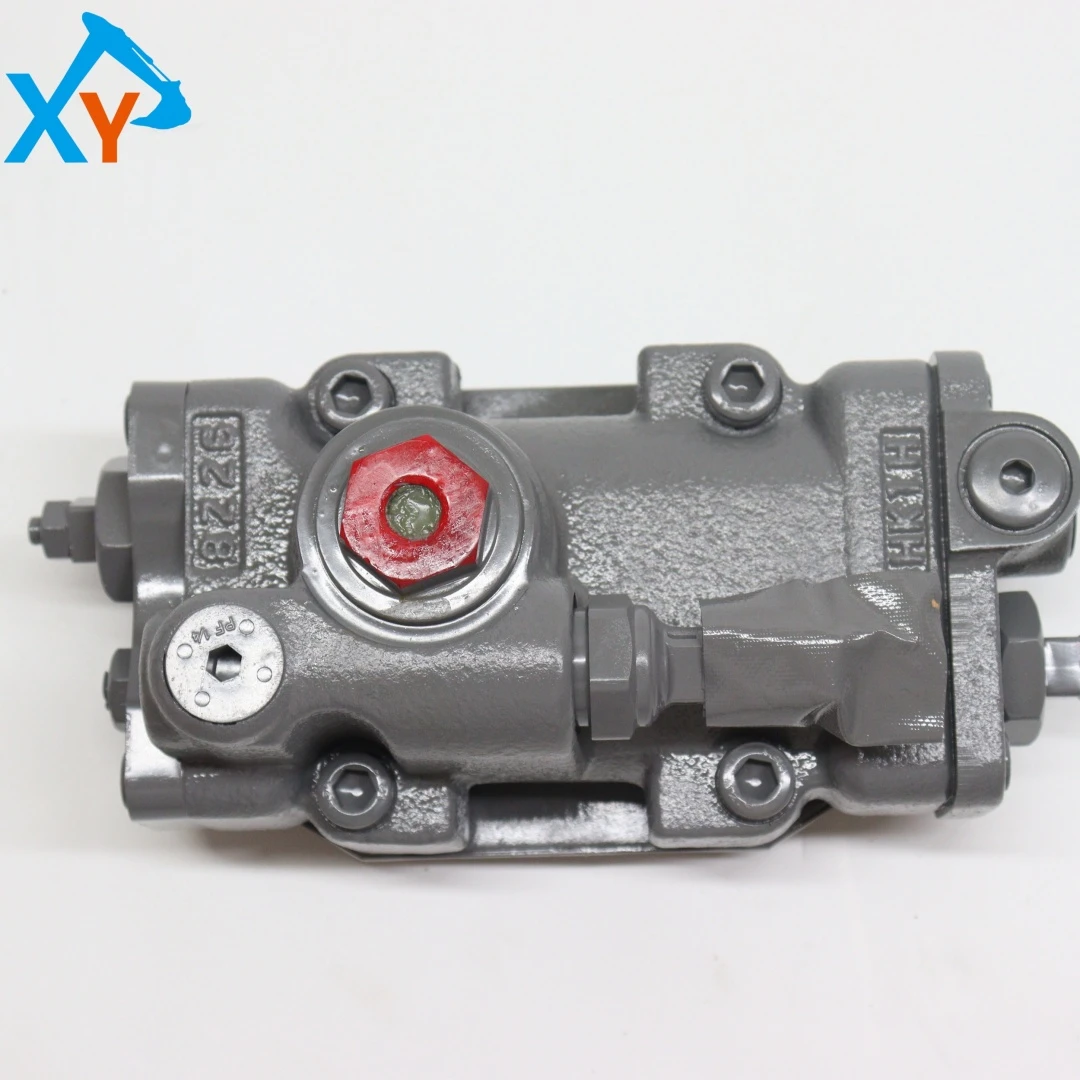

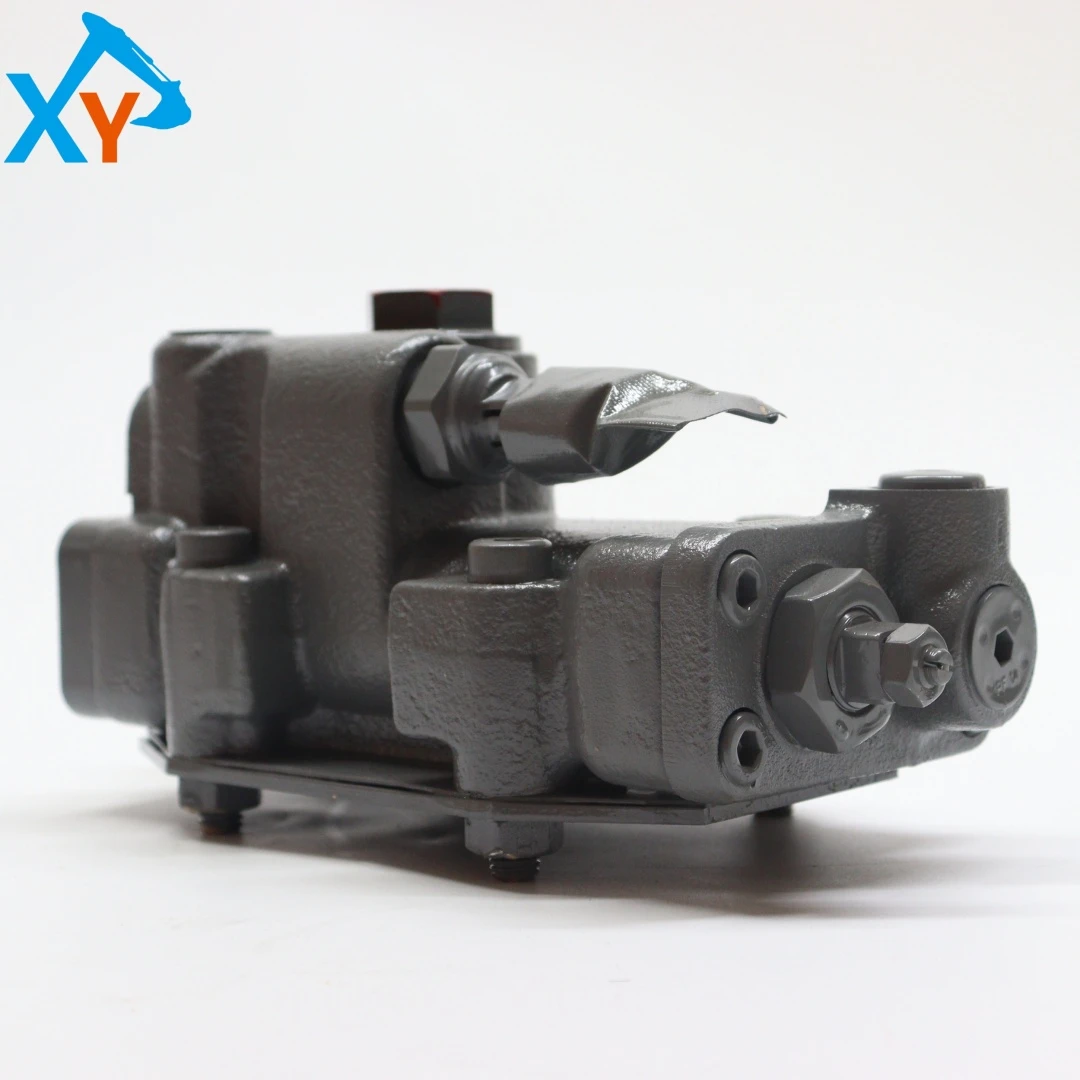

9198936 Original Excavator Hydraulic Main Pump Regulator for ZX200 ZX210

Part number 9198936 is a specialized part number for the hydraulic main pump regulator of Hitachi's original excavator. This regulator is the core control component of hydraulic main pumps (such as HPV102 series), responsible for real-time adjustment of the inclined plate angle of the main pump based on engine load and operating instructions, thereby accurately controlling the output flow rate and pressure of the hydraulic system. As an original standard component, it is mainly suitable for Hitachi ZAXIS series (such as ZAX200, ZAX200-3, ZAX210, etc.) and some EX series (such as EX200) hydraulic excavators, usually used in conjunction with specific main pump models (such as HPV102).

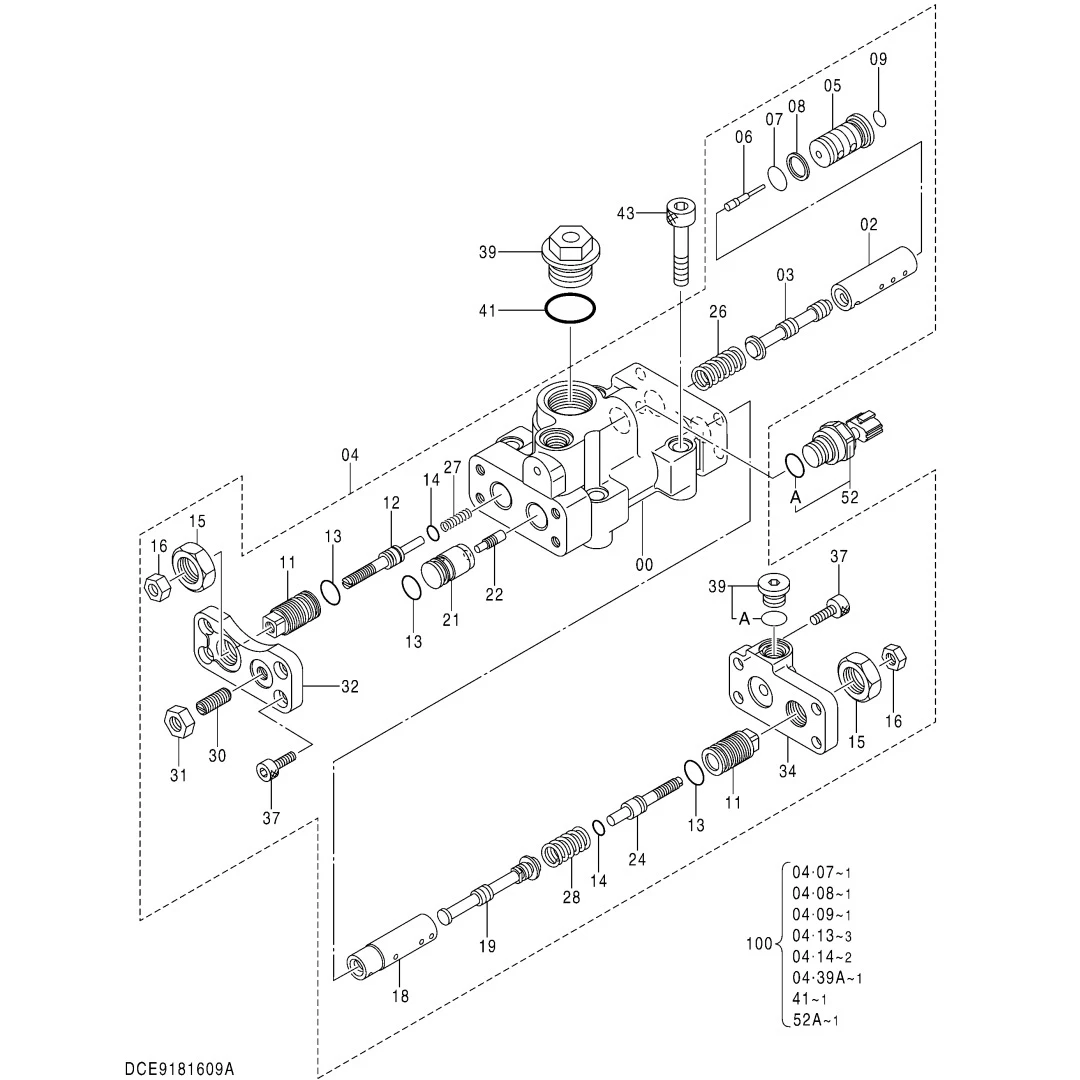

The original regulator is a precision servo mechanism that integrates mechanical, hydraulic, and electrical control functions. Its core function is to receive signals from the pilot pressure, torque control solenoid valve, and computer board, and change the inclination angle of the main pump's inclined plate by driving the servo piston, thereby infinitely adjusting the pump's displacement, achieving key controls such as power matching, flow control, and anti clogging (anti overload). As an original component, it usually consists of high-strength aluminum alloy or cast iron valve body, precision servo valve core, feedback spring, solenoid valve (such as torque control solenoid valve, maximum flow solenoid valve), and various sensing interfaces. Its design ensures that the excavator can achieve efficient and stable hydraulic power output under various working conditions, while protecting the engine and hydraulic system from overload impact. It is one of the decisive components for the overall operational efficiency, fuel economy, and reliability of the machine.

The maintenance core of this regulator lies in regularly checking its working status, maintaining cleanliness, and conducting professional parameter calibration. Regular inspection: It is recommended to check for hydraulic oil leaks outside the regulator every 2000 working hours or annually, whether the electrical connectors are loose or oxidized, and monitor for any abnormal noise during operation. When adjusting the flow rate, it is necessary to loosen the lock nut and turn the adjustment screw (clockwise increase, counterclockwise decrease), and the number of turns should usually not exceed 2 turns. Do not disassemble unless necessary: The regulator is precise inside and it is not recommended for non professionals to disassemble it. If it is confirmed that the internal valve core is worn or the solenoid valve is faulty, the entire regulator assembly is usually replaced. The cleanliness of hydraulic oil should be ensured in daily life (by regularly replacing the filter element), which is the key to extending its lifespan.
