9226736 Original Excavator Controller for ZX70

Part number 9226736 is an original controller designed by Hitachi specifically for the ZX70 series (with a total working weight of approximately 7 tons) ultra small hydraulic excavator. Its universal models usually cover small models on platforms such as ZX70-5A, ZX70-5G, and ZX60. As the "brain" of the entire electronic control system, it is responsible for coordinating the engine, hydraulic system, and various sensors.

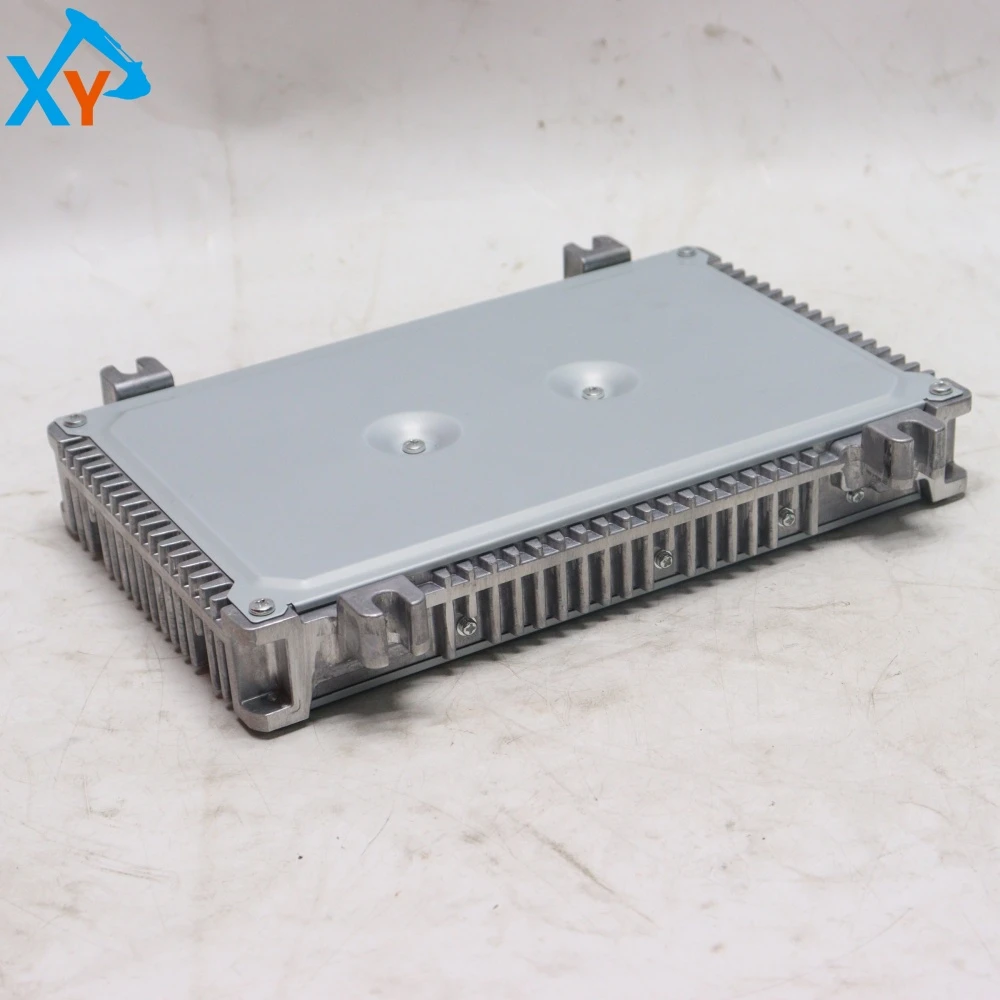

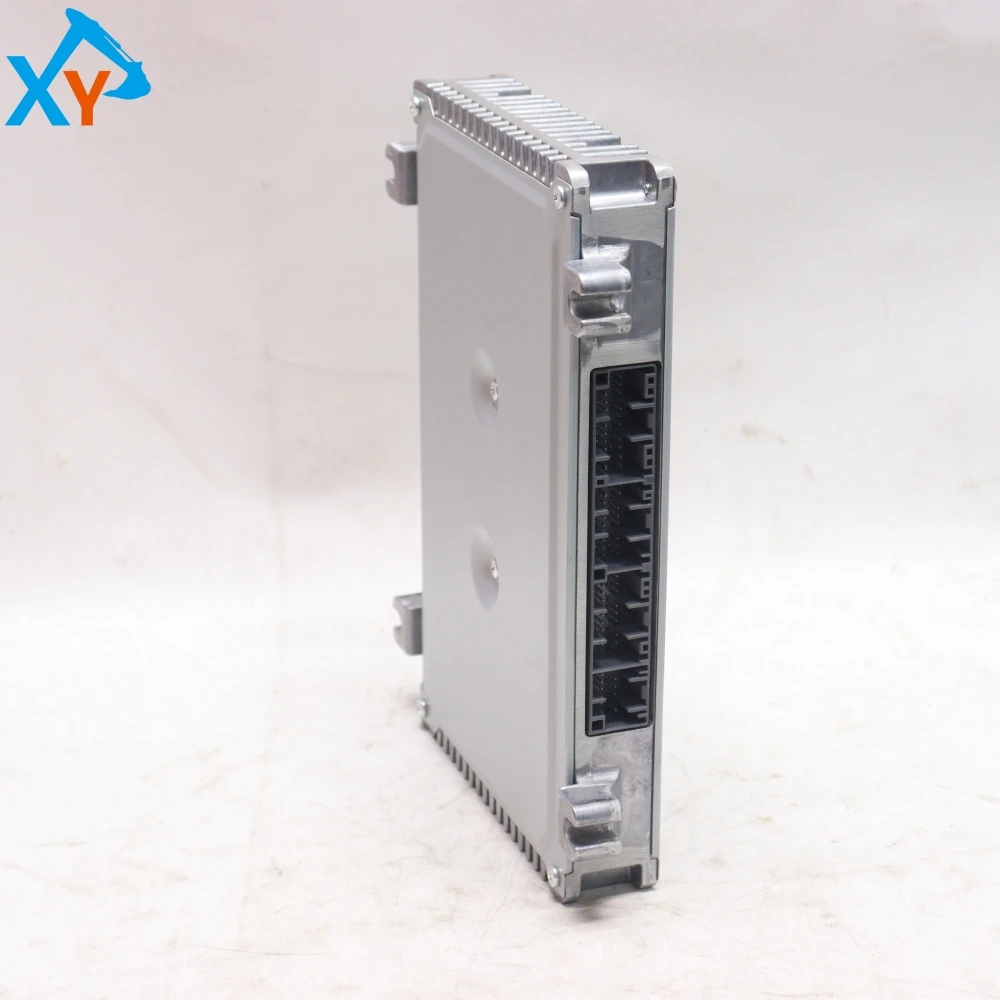

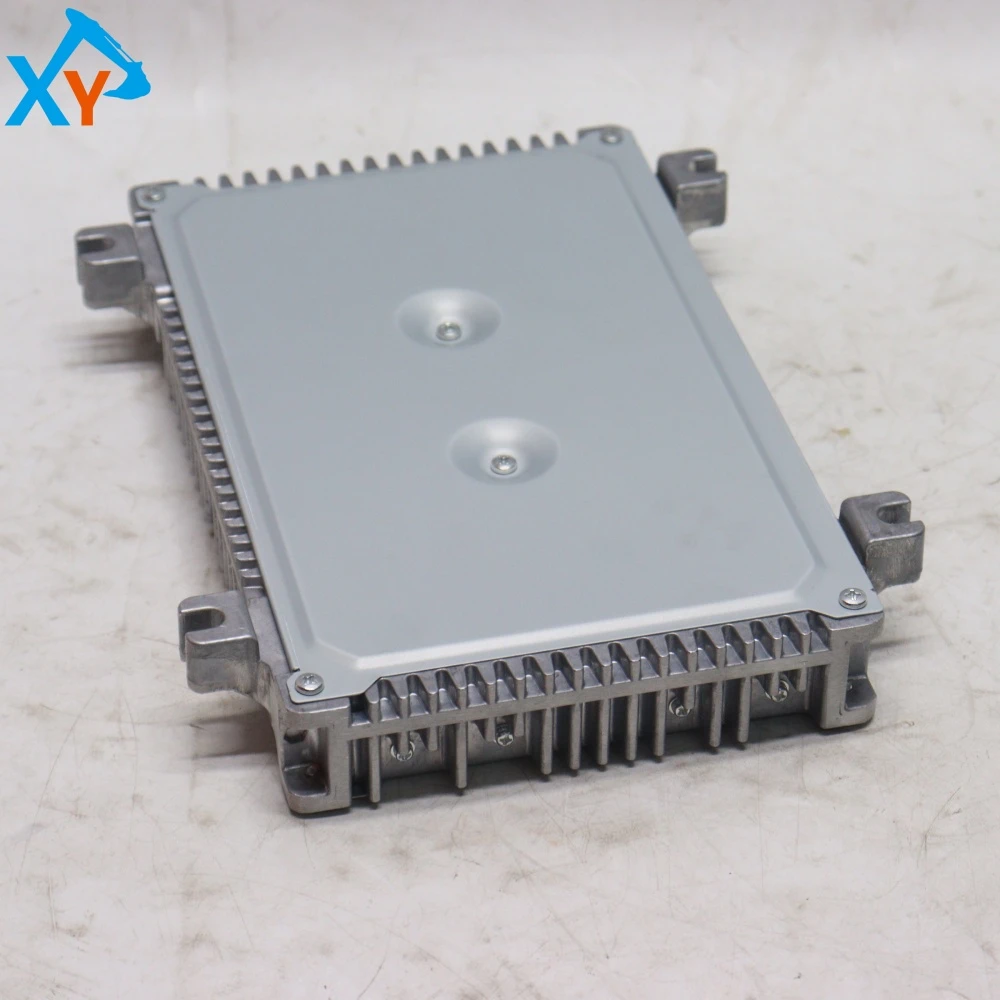

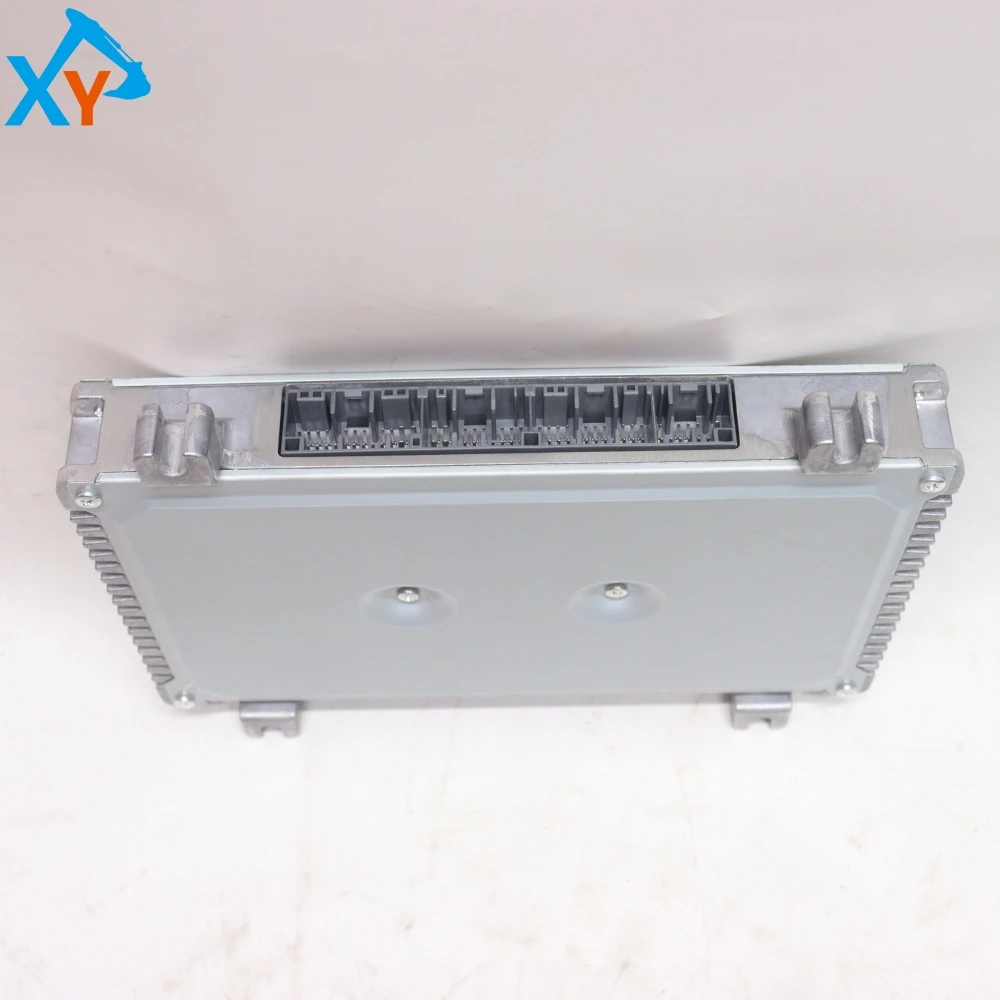

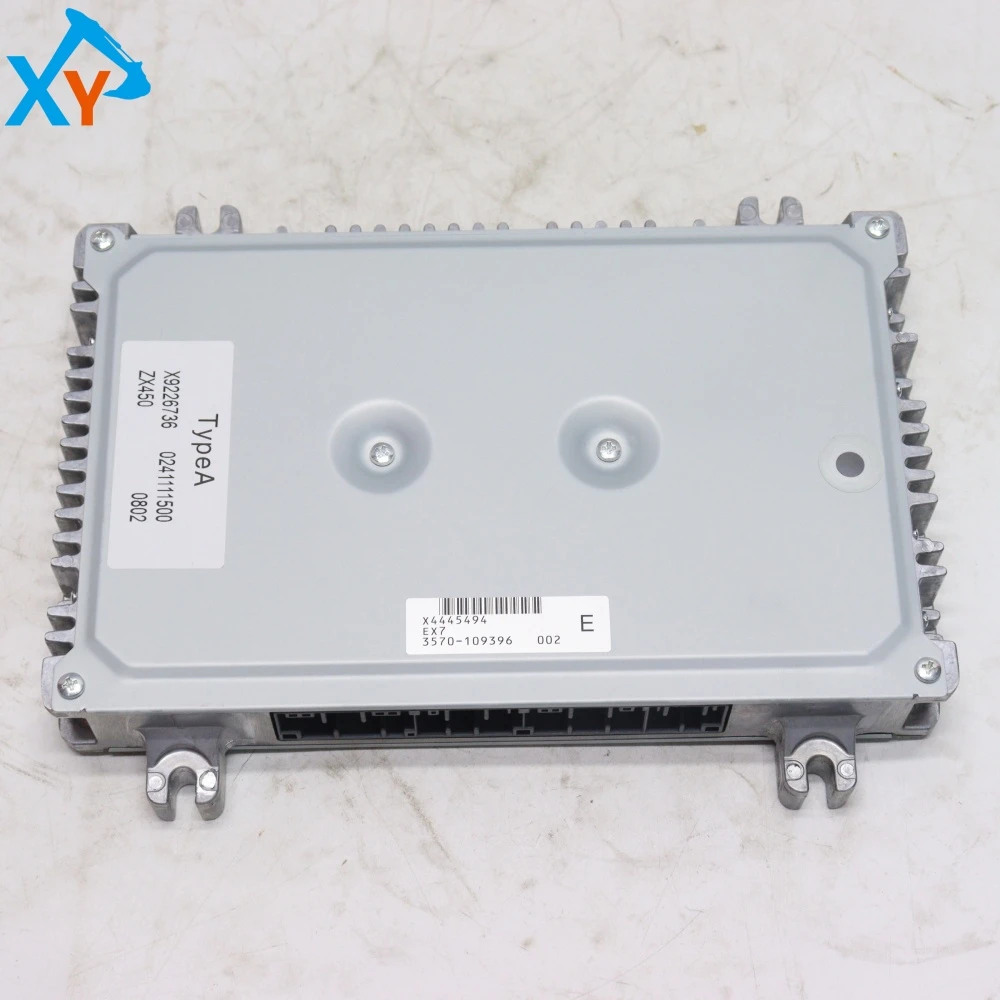

This product is an embedded car control unit with a die cast aluminum alloy shell with dense heat dissipation fins, presenting a silver gray color. This design ensures excellent heat dissipation, electromagnetic shielding, and vibration resistance in enclosed spaces. The black multi pin connector integrated at the front is used to connect with the vehicle's wiring harness. The perforated installation ears at the four corners of the shell facilitate stable installation inside the electrical cabinet. Its core is a high-performance microprocessor with a working voltage of DC 24V. It realizes data exchange and intelligent control through protocols such as CAN bus, and is the core electronic unit that ensures the efficient and stable operation of ZX70.

Replacement and programming (safety critical): 1 Safe operation: Before operation, be sure to disconnect the negative terminal of the battery and let it stand for at least 5 minutes to discharge the system capacitor. 2. Swap installation: After disassembling the old parts, install the new controller (9226736) smoothly, ensuring that the wiring harness connector is plugged in place and locked. 3. Mandatory programming matching: It is strictly prohibited to start the device directly after installation. It is necessary to use Hitachi's dedicated diagnostic tool to write specific calibration parameters of the original equipment into the new controller. This "online programming" step is essential, otherwise the equipment will not work properly.
