9230429 Original Excavator Relief Valve for Hitachi ZX330-3G

Part number 9230429 is the original safety valve provided by Hitachi for the ZX330-3G series medium-sized hydraulic excavator. As shown in the clear picture you provided, this component is a critical pressure protection element in the hydraulic system. Its universal models usually cover 3G series same platform models such as ZX330-3G, ZX350-3G, ZX370-3G, etc. As the core pressure control valve of the original factory, its opening pressure and flow characteristics are precisely matched with the safety pressure setting of the main hydraulic system (such as the main pump, walking or rotating system)

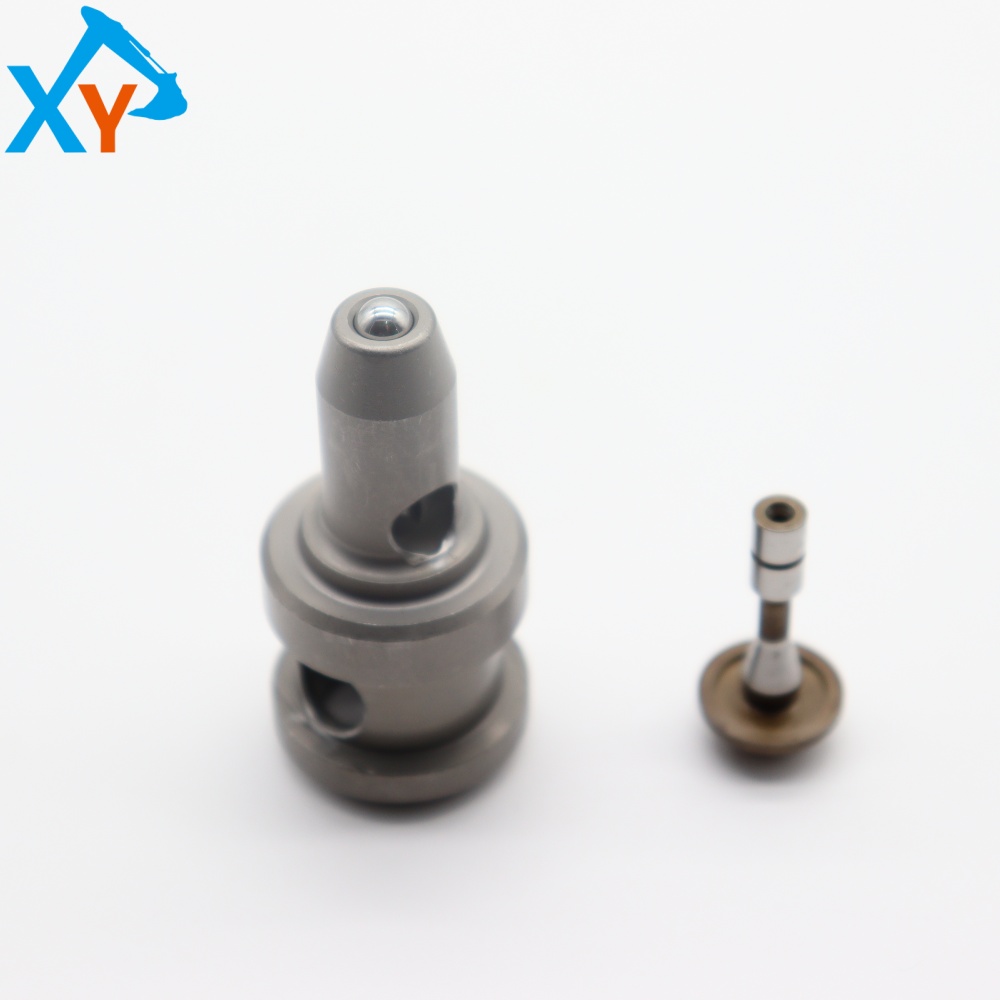

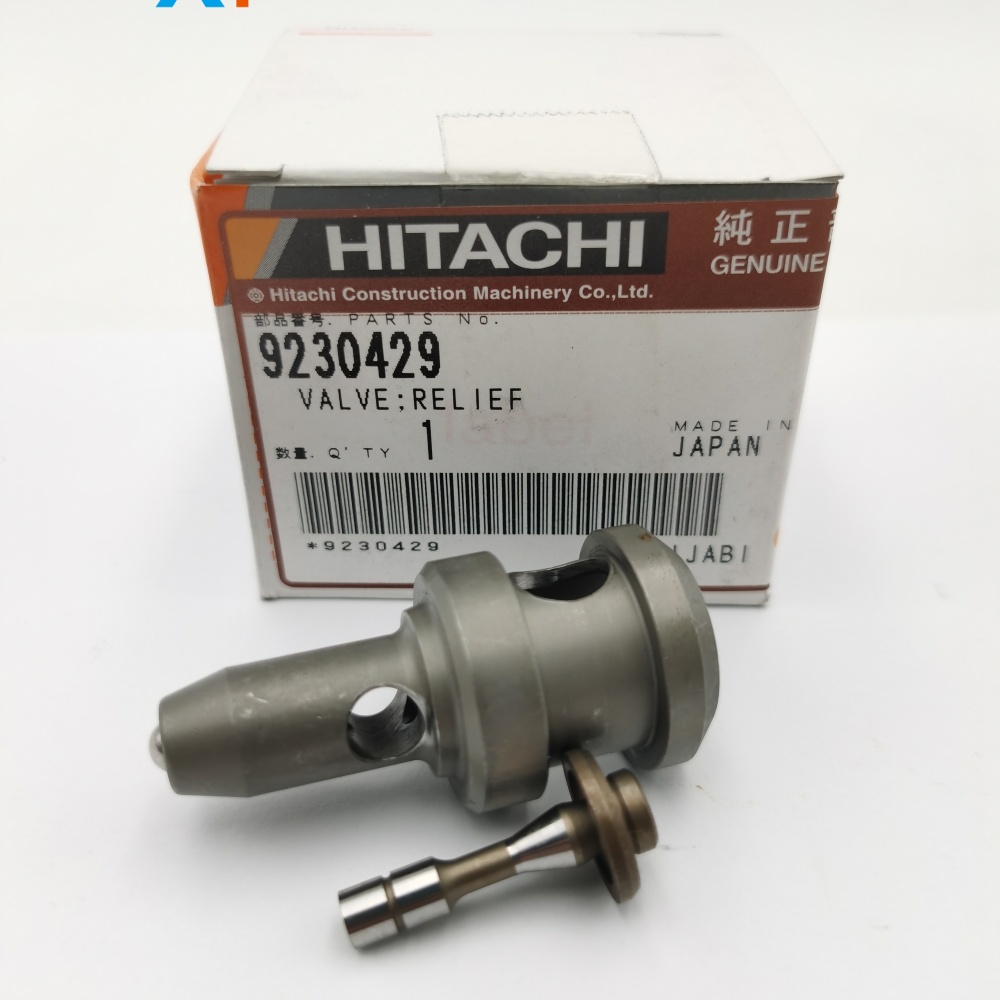

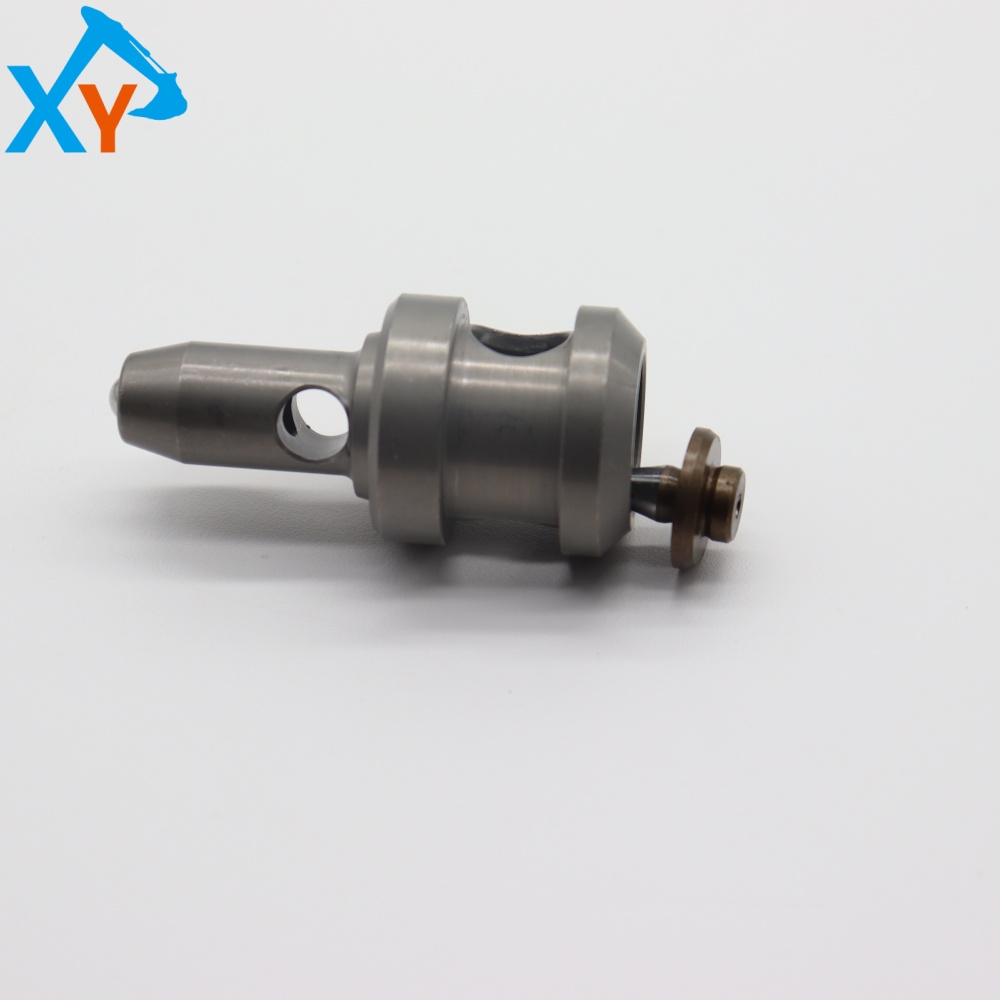

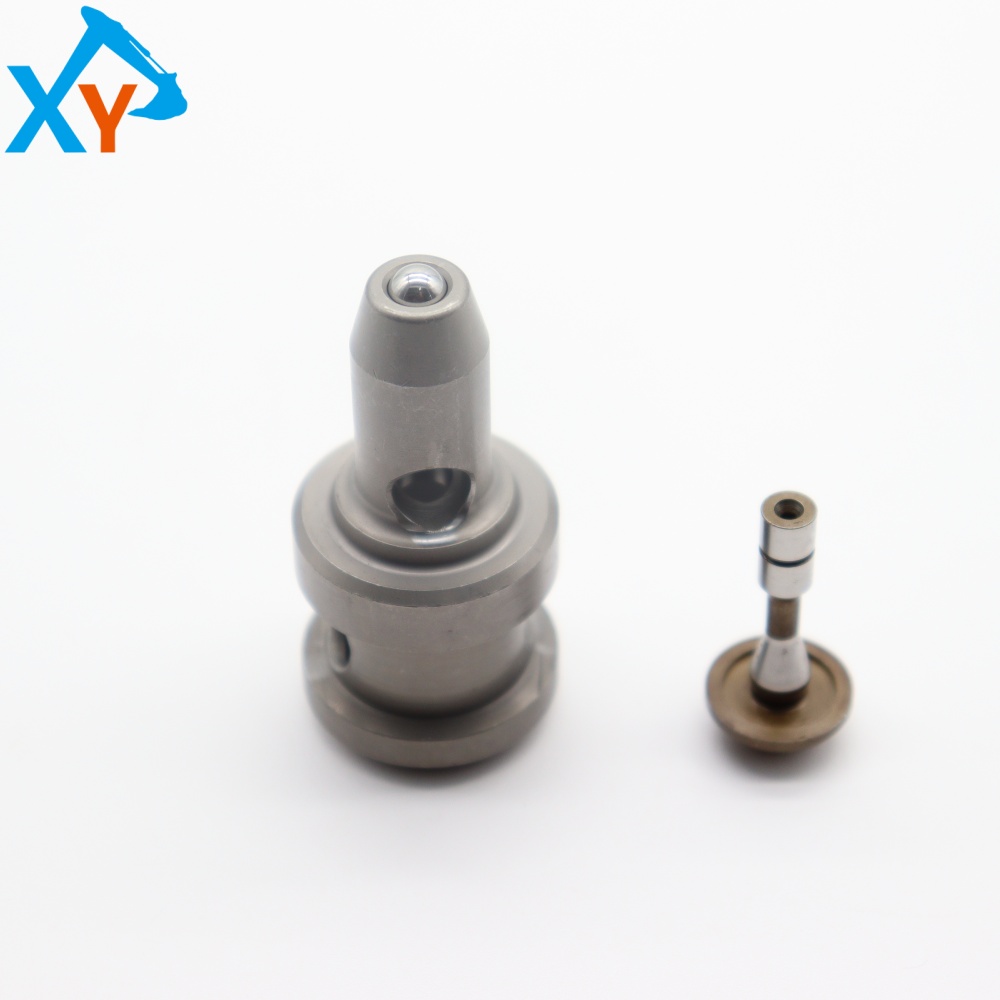

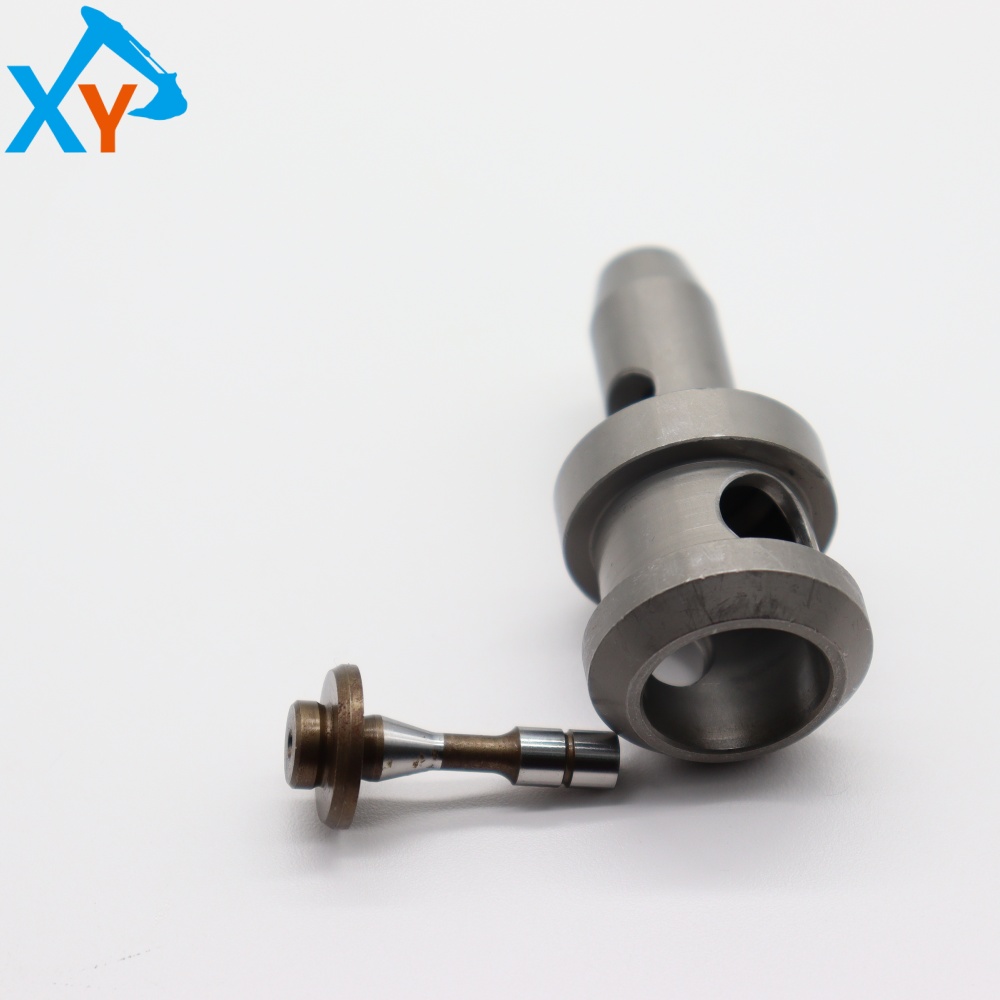

This product is a direct acting or pilot operated relief safety valve, consisting of a silver gray main valve body and a dark colored valve core (or pilot valve) component. The main valve body is made of high-strength alloy steel, cylindrical in shape, with a conical structure at the top and a central hole for pressure regulation or pilot control. Internally integrated with precision valve core, spring seat, and pressure regulating spring. Its core function is to monitor system pressure. When the pressure exceeds the preset safe value (usually 20-25MPa, depending on the installation location), the valve port immediately opens to release excess oil back to the tank, thereby stabilizing the system pressure within a safe range and protecting expensive components such as hydraulic pumps and motors. It responds quickly, seals reliably, and has precise pressure settings.

Installation and Debugging: 1 Cleaning: Before installation, the valve body installation surface and valve holes on the hydraulic manifold block must be thoroughly cleaned with a lint free cloth and specialized cleaning agent. 2. Alignment installation: Place the safety valve (9230429) smoothly into the valve hole and do not strike it. 3. Torque tightening: Use a torque wrench to tighten to the specified torque (usually 40-60 N · m). 4. Pressure testing: After installation, a hydraulic tester must be connected to verify whether its opening pressure is consistent with the system requirements under actual working conditions. It is strictly prohibited to adjust based on intuition.
