9267050 Original Excavator Parts Pilot Valve for ZX450-3

Part number 9267050, this is the original pilot valve specially designed by Hitachi for the ZX450-3 large hydraulic excavator. Its universal model YB60000571 is the core precision adjustment unit in hydraulic control systems, used for pilot pressure control of main pump proportional valves or switching of specific working modes. As the designated valve of the original factory, its installation interface, flow characteristics, and pressure setting are deeply integrated with the complex hydraulic system of ZX450-3

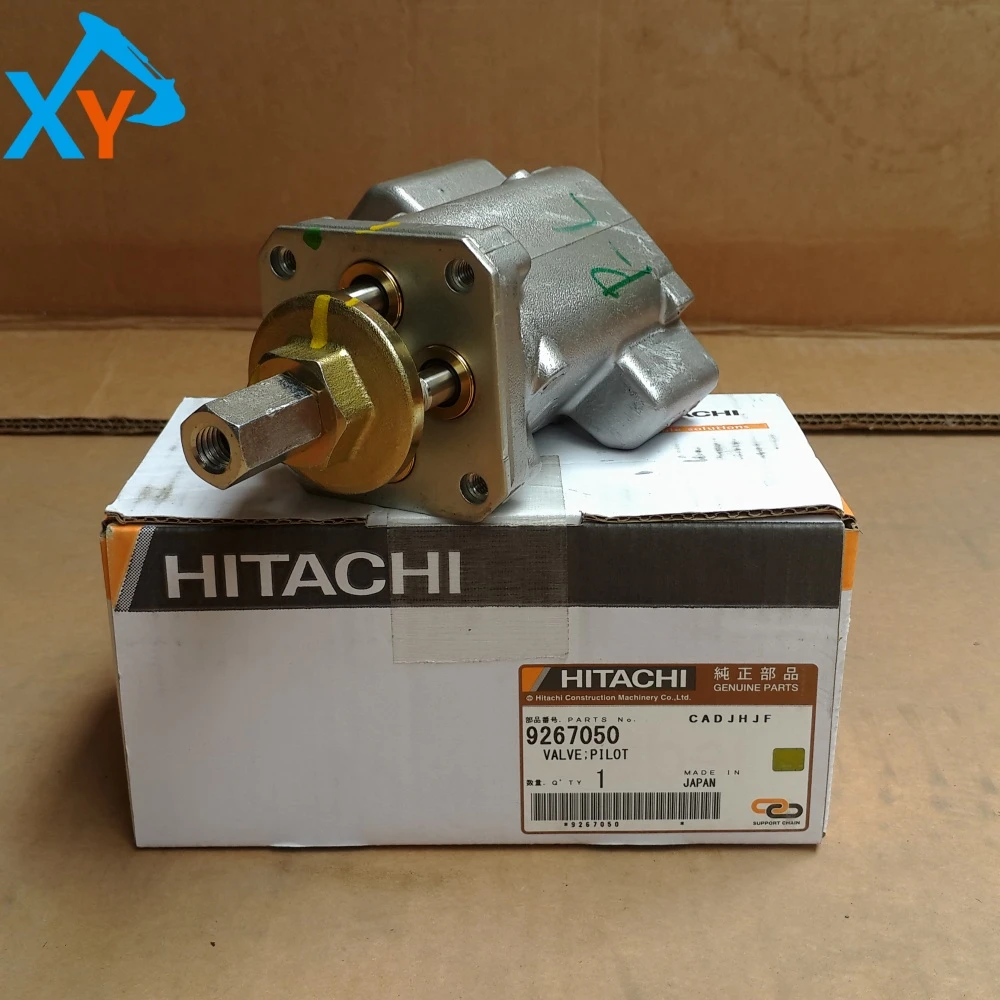

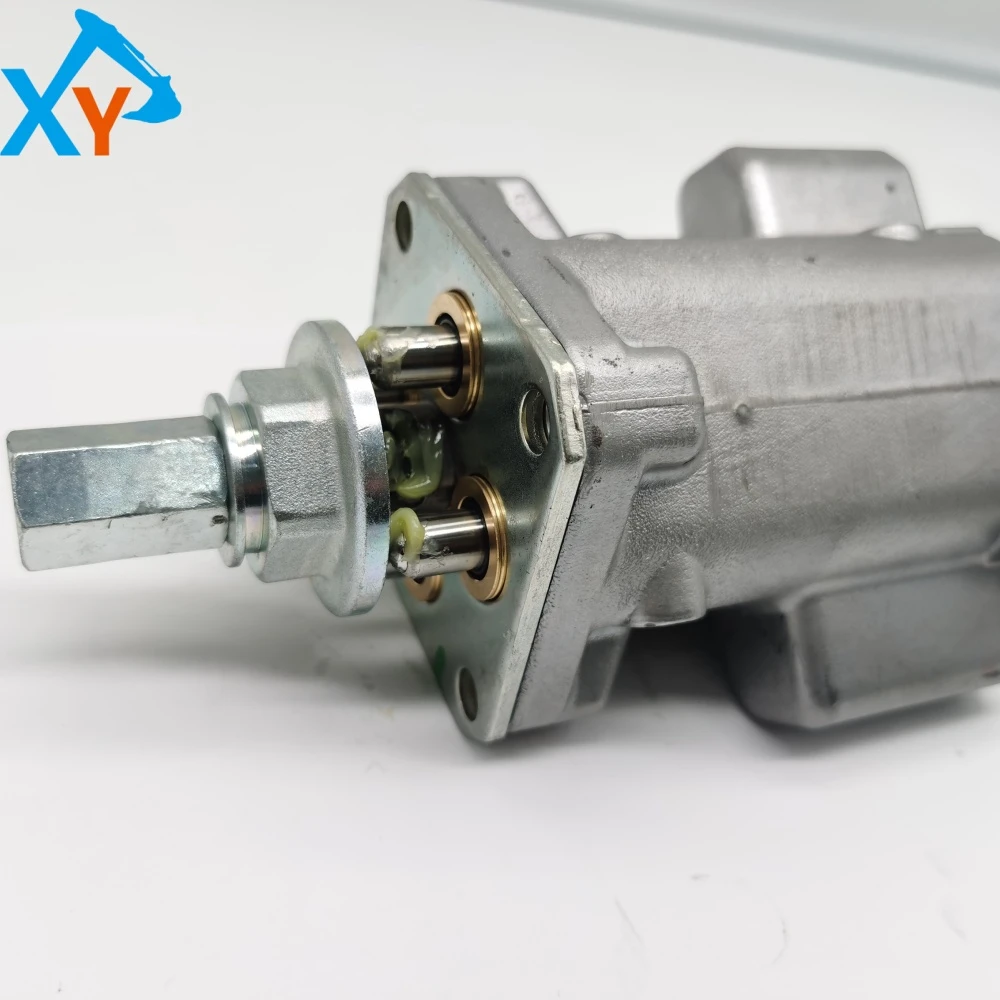

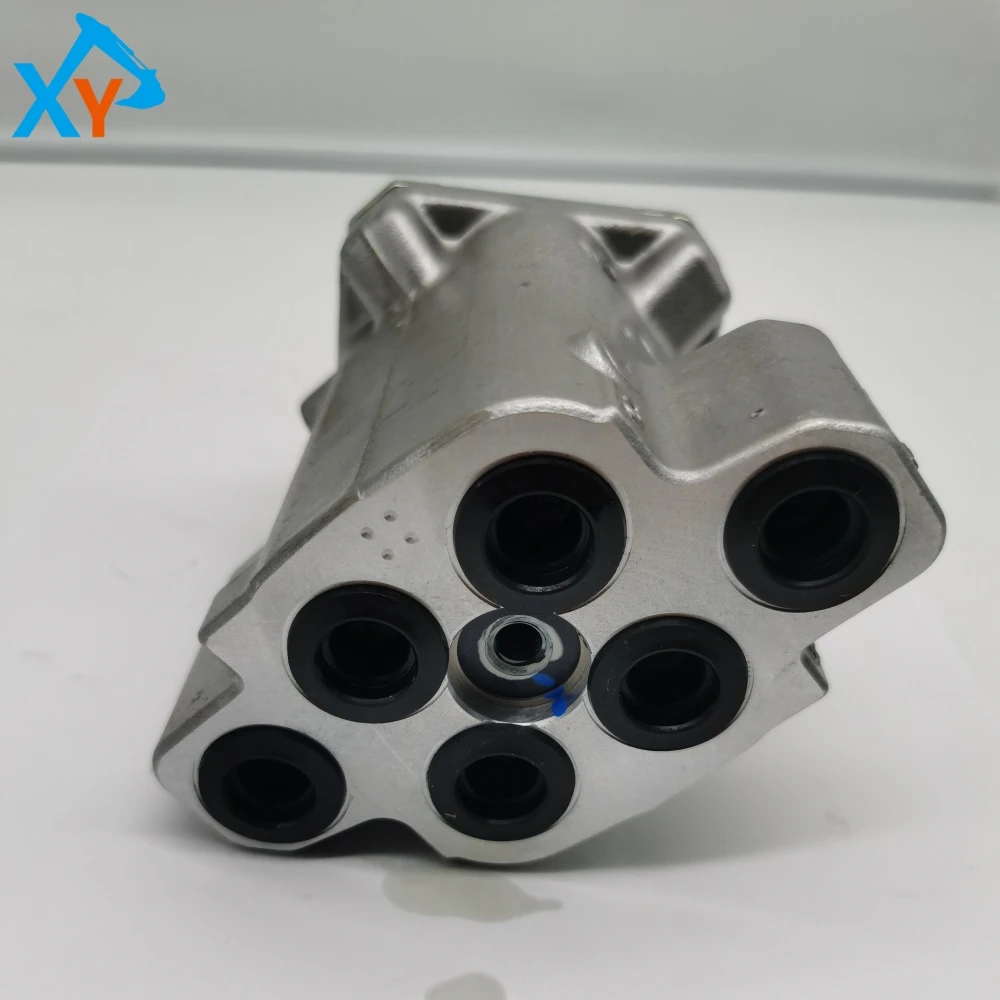

This product is a pilot pressure control valve with manual adjustment function. The valve body is made of high-strength alloy material, silver gray in color, and is sturdy and durable. The hexagonal prism protrusion at the top serves as a precision adjustment head, used for stepless fine-tuning of pressure or flow using specialized tools, which is the key to achieving precise control. The green "P-L" mark on the side is its core identity identifier, where "P" represents the pressure oil port and "L" represents the return or drain port. During installation, it must strictly correspond to the pipeline. The golden component in the middle may be a special coating or a valve sleeve/sealing part made of different materials. Its core function is to receive electrical signals or mechanical inputs, and output stable and adjustable pilot hydraulic pressure to drive the main control valve core, thereby achieving smooth, precise, and controllable movements of the excavator.

Daily inspection: Check the valve body and interface for leakage every 500 working hours. Fault diagnosis: If the corresponding control function experiences unstable pressure, slow action, or complete failure, after troubleshooting the circuit and pilot pump issues, it is suspected that the valve core inside the valve is worn, stuck, or the regulating function is malfunctioning. Timing of replacement: Once it is confirmed that the valve is damaged or its performance cannot be restored through calibration, it must be replaced.
