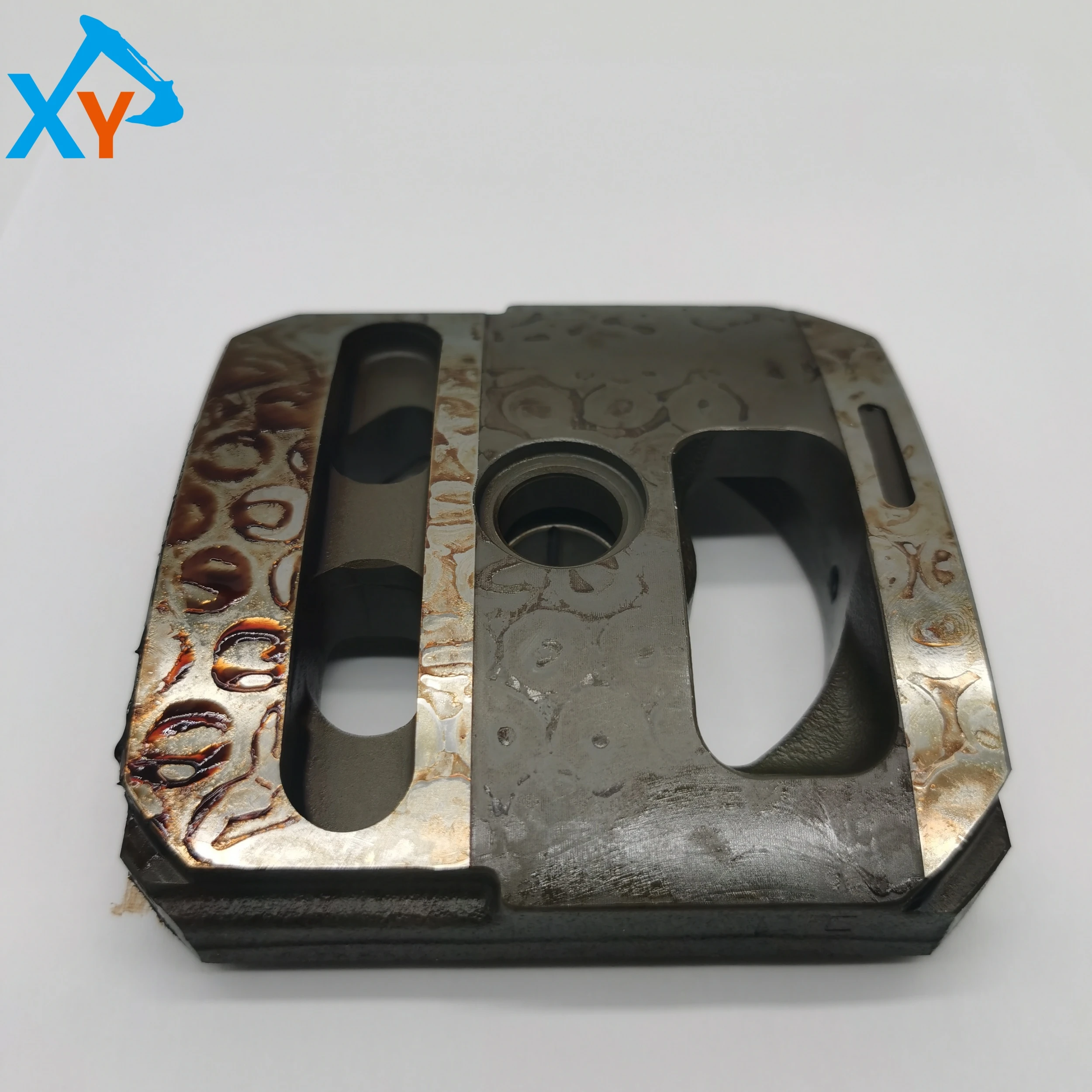

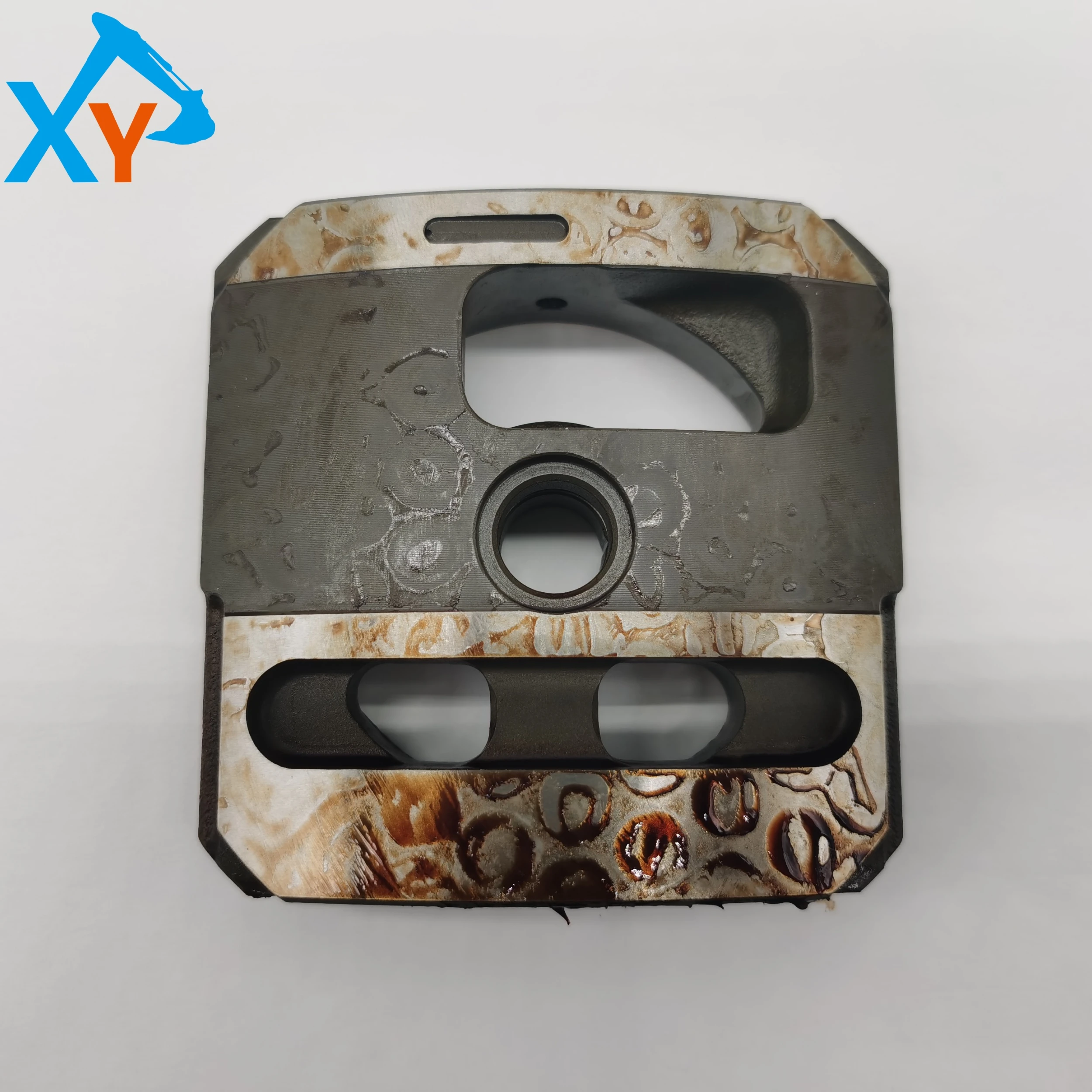

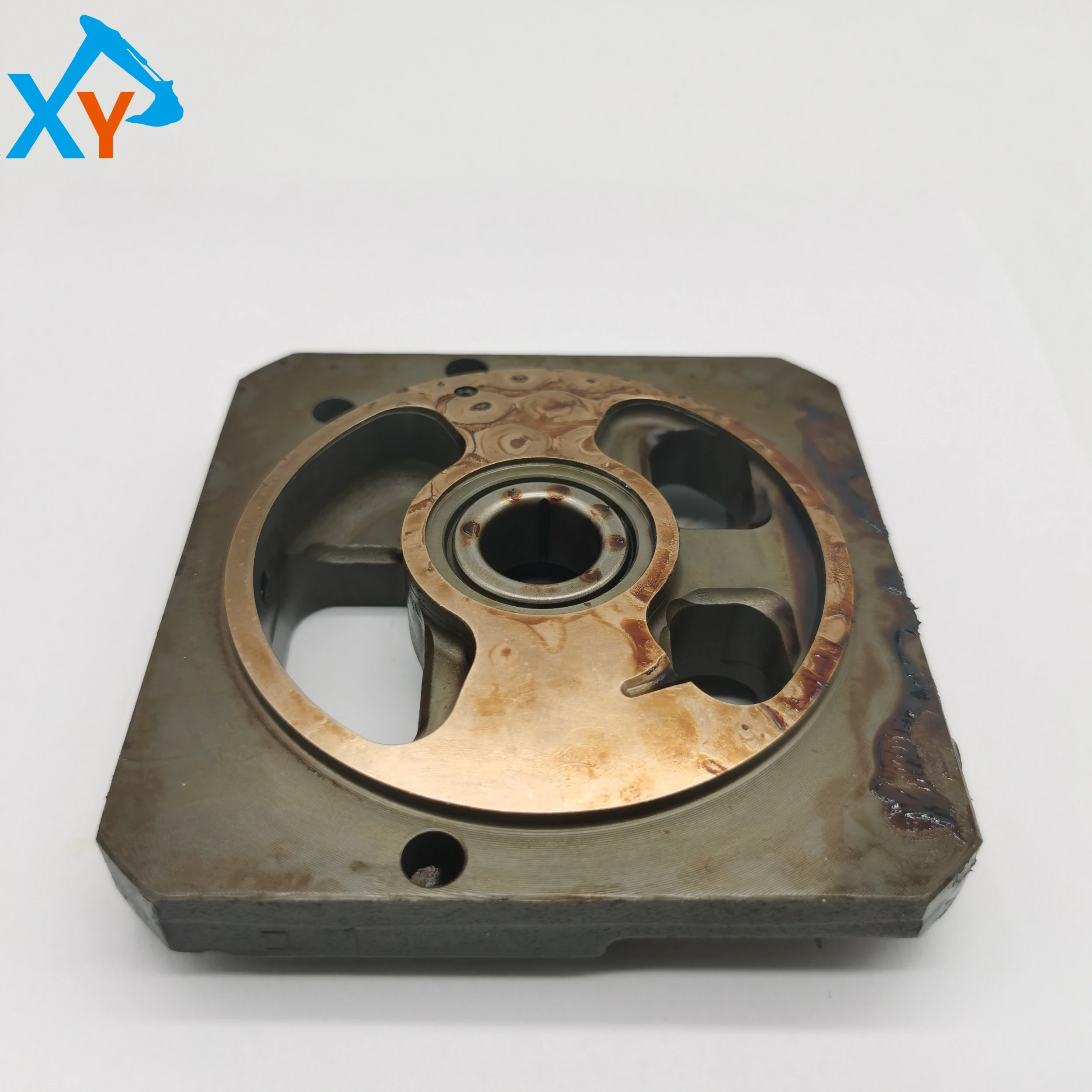

9749142 Excavator Hydraulic Main Pump Valve Plate for Hitachi ZX330-3

Part number 9749142 is the original hydraulic main pump valve plate provided by Hitachi for the ZX330-3 series medium-sized hydraulic excavator. This component is the core valve body that controls the flow of high-pressure oil inside the main pump and achieves pump variable adjustment. Its universal models usually cover three series of same platform models such as ZX330-3, ZX350-3, ZX370-3, as well as equipment using the same main pump (such as HPV series). As an original precision hydraulic control unit, the flatness of all oil passage apertures, positions, and installation surfaces are precisely coupled with other components inside the main pump (such as the cylinder body and distribution plate). It is strictly prohibited to use non original or refurbished valve plates to avoid internal leakage, abnormal pressure, or functional failure of the main pump.

This product is an integrated valve plate precision machined from high-strength cast iron (such as HT250). The valve plate has a thick plate shape, with multiple key oil passage holes, process holes, and installation screw holes distributed on the surface. The interior is cast with complex intersecting oil passages, which are used to achieve functions such as oil suction, oil pressure, variable control, and unloading. The interface between it and the distribution plate and pump casing needs to achieve extremely high flatness and smoothness to ensure high-pressure sealing. The working pressure can match the maximum pressure of the main pump (usually ≥ 30MPa).

Fault diagnosis: If the main pump has unstable output pressure and abnormal noise, after excluding other reasons, it is suspected that the internal oil passage of this valve plate is worn, connected or blocked. Replacement timing: When there are irreparable deep grooves, severe corrosion, perforation or deformation on the key sealing surface of the valve plate, it must be replaced. This is a precision basic component, and it is necessary to use the original pure valve plate (9749142) from the factory.
