A852433 Original Excavator Pipe Joint for Hitachi ZX225USLC-7

The original pipe joint A852433 is a specialized hydraulic pipeline connector for the Hitachi ZX225USLC-7 (approximately 22 ton class) crawler excavator, and the universal number is its part number. The overall working weight of this model is approximately 22300kg, and it comes standard with the HIOS IV hydraulic system. This pipe joint is mainly used to connect high-pressure hoses and hard pipes of the boom, arm, or bucket cylinder. Its thread specifications, sealing surface angles, and installation dimensions are precisely matched with the hydraulic pipeline layout of ZX225USLC-7, ensuring no leakage under high pressure of 35MPa. This item may also be compatible with similar tonnage models such as ZX220-7 and ZX240-7, but it is recommended to refer to Hitachi's original parts catalog or hydraulic schematic for verification.

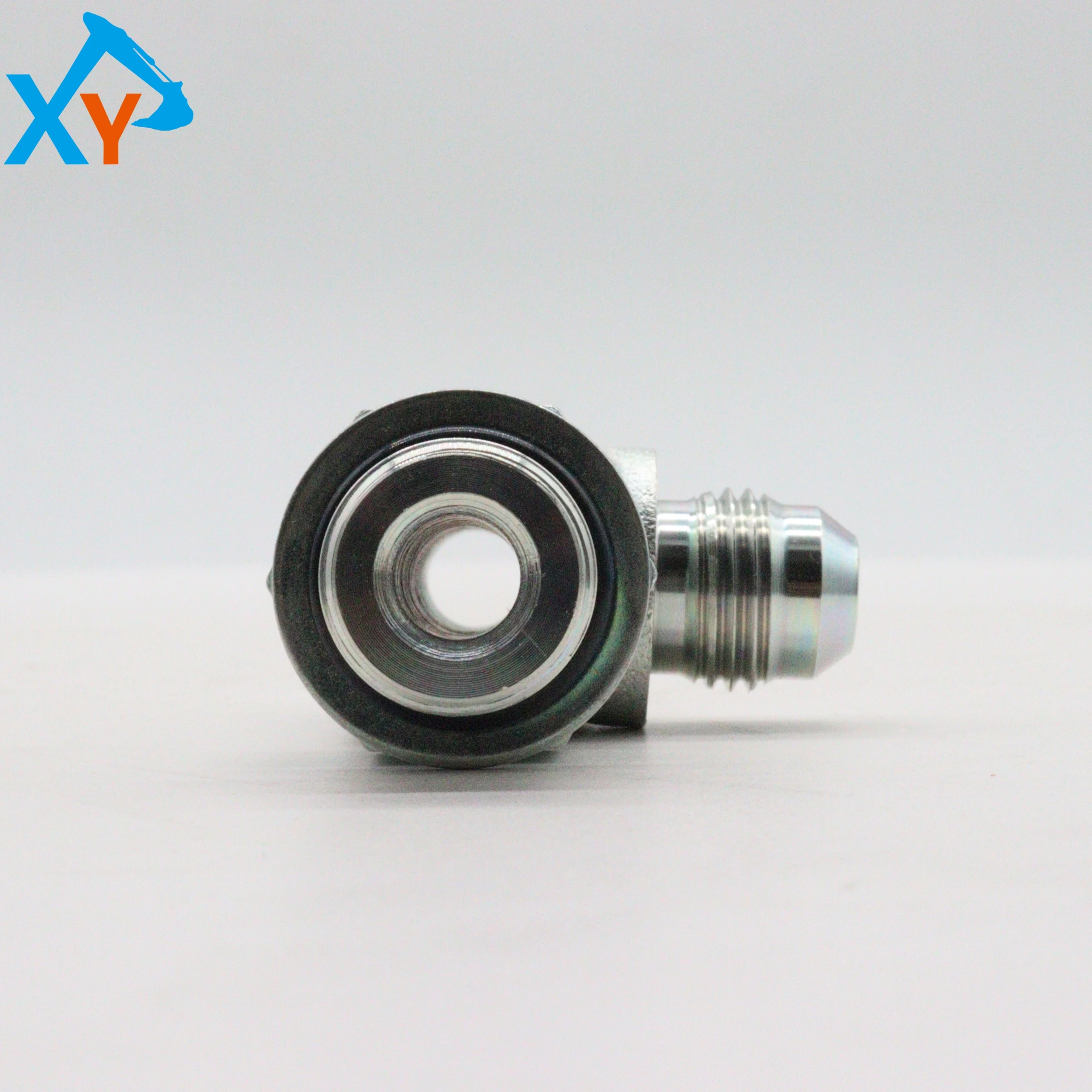

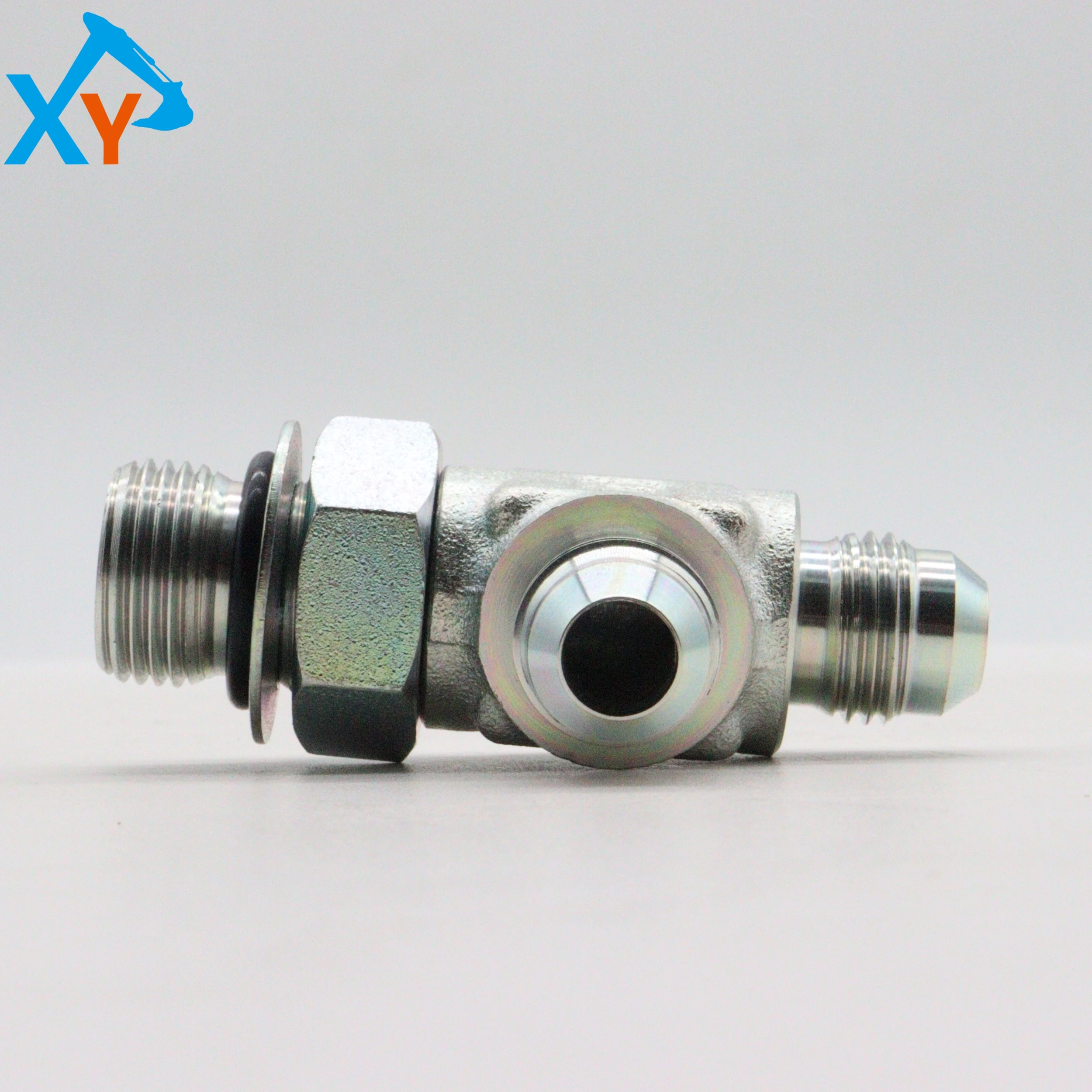

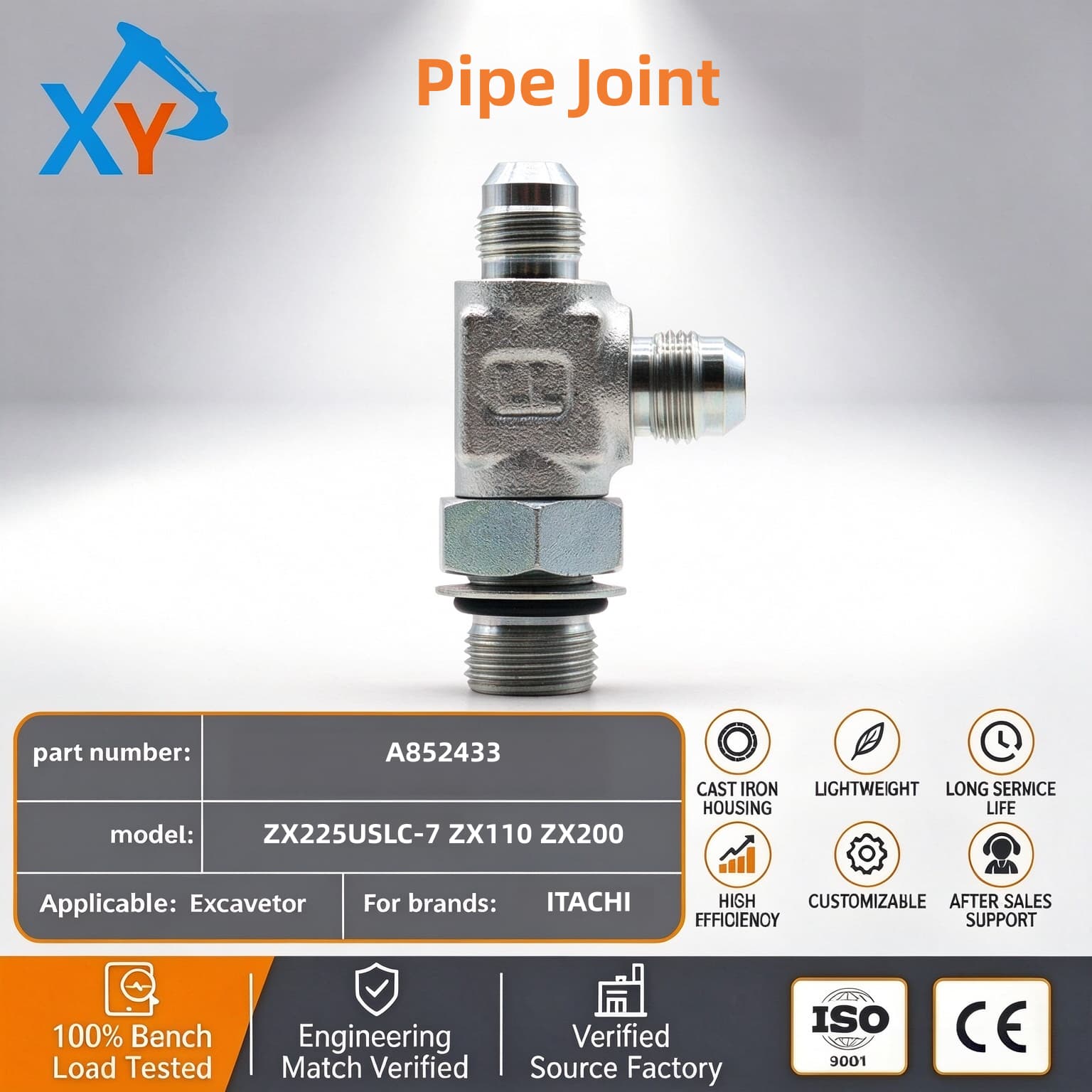

The main body of this product is made of high-strength alloy steel or forged brass, which is processed by precision CNC turning. The surface is galvanized or treated with Dacromet to present a silver gray metallic texture, with excellent corrosion resistance and wear resistance. The upper part has two standard threaded interfaces (commonly JIC 37 ° or SAE flange structures), and the middle square body is cast with brand identification to ensure authenticity. Multiple layers of metal gaskets or O-rings are pre installed at the lower connection to form multiple sealing barriers, which can effectively resist hydraulic oil pulses and mechanical vibrations. Its working pressure range covers 0-40MPa, and the blasting pressure is more than 4 times the working pressure, fully suitable for high impact working conditions such as excavator excavation and crushing.

Every 250 hours of daily work, it is necessary to check the tightness and sealing of the pipe joints. If leakage, thread damage, or body cracks are found, they should be replaced immediately. When reinstalling, clean the threads and apply an appropriate amount of thread sealant (such as Loctite 577). Use a torque wrench to cross tighten with standard torque (usually 120-180N · m) to avoid over tightening and causing the sealing ring to collapse or the threads to slip. Regularly clean the surface oil and soil of the joint to prevent dirt from entering the hydraulic system. When disassembling the pipeline, the system pressure should be released first to avoid high-pressure oil splashing. Long term storage should be placed in a dry environment and sealed to prevent collision and corrosion.
