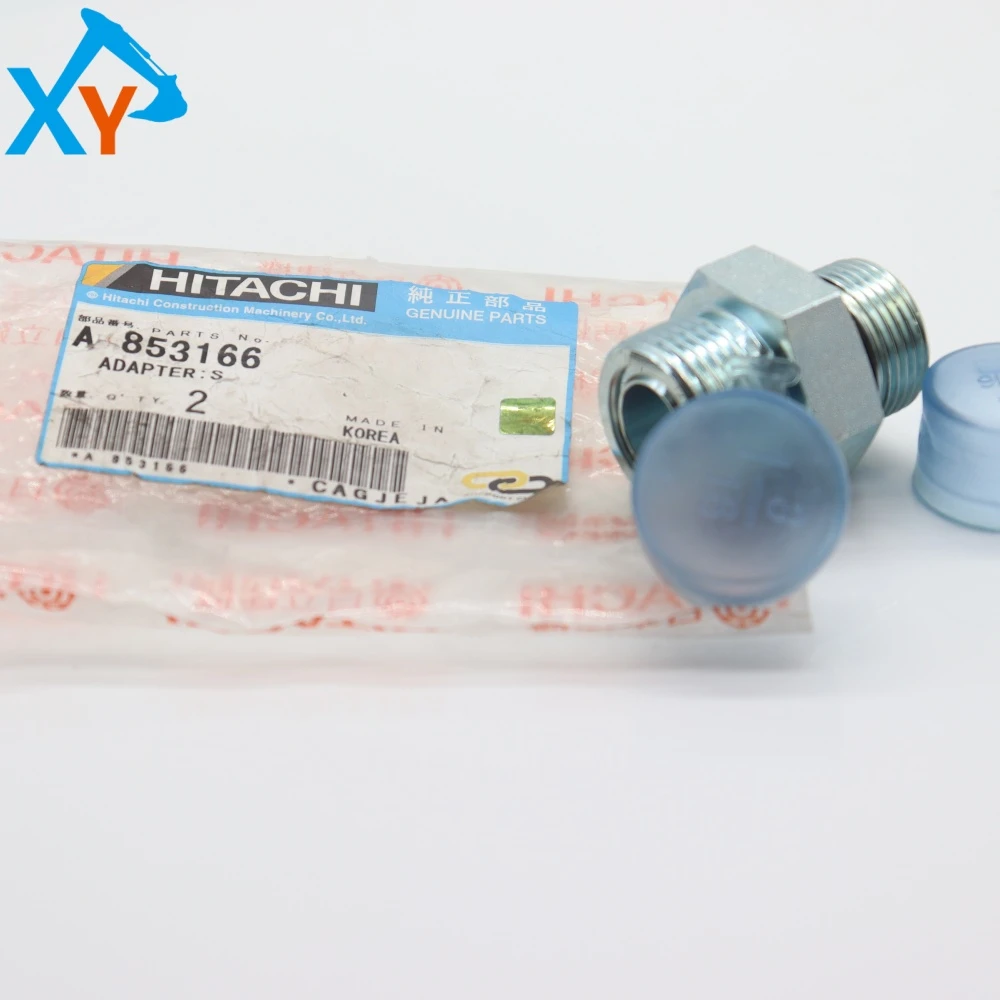

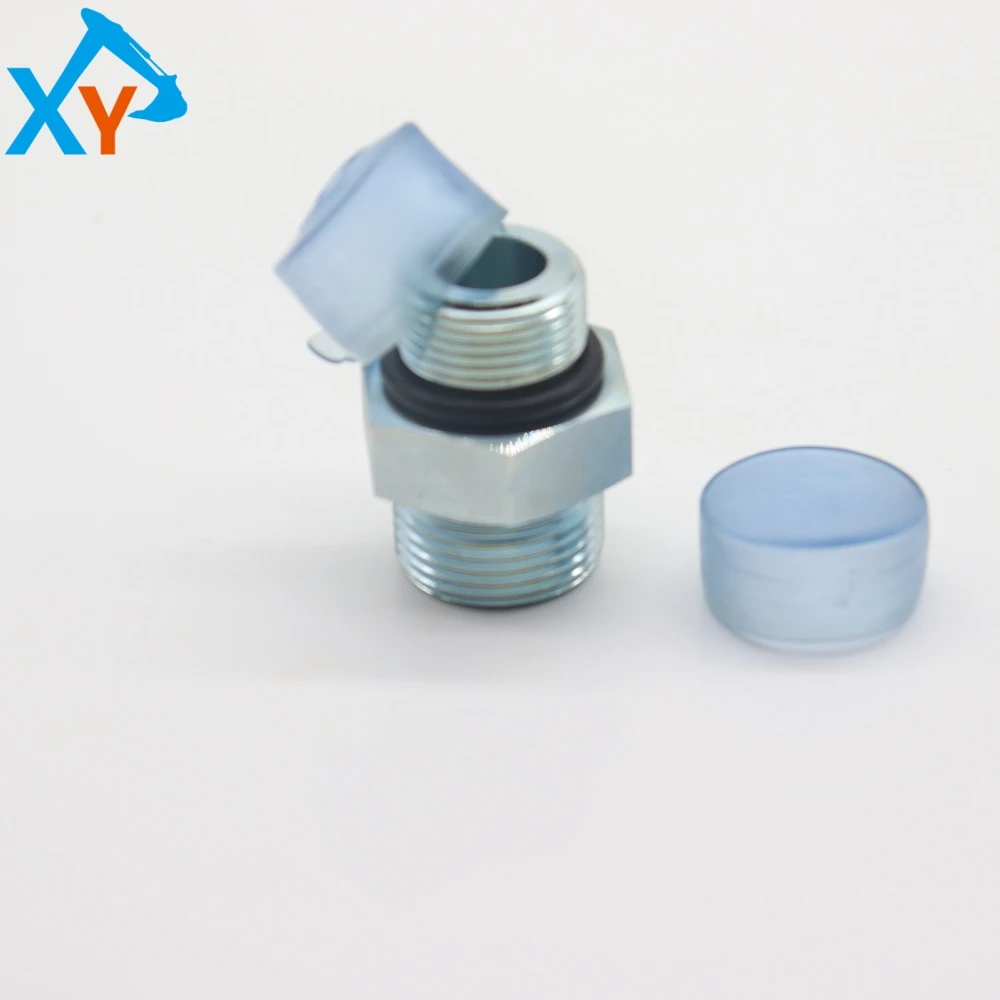

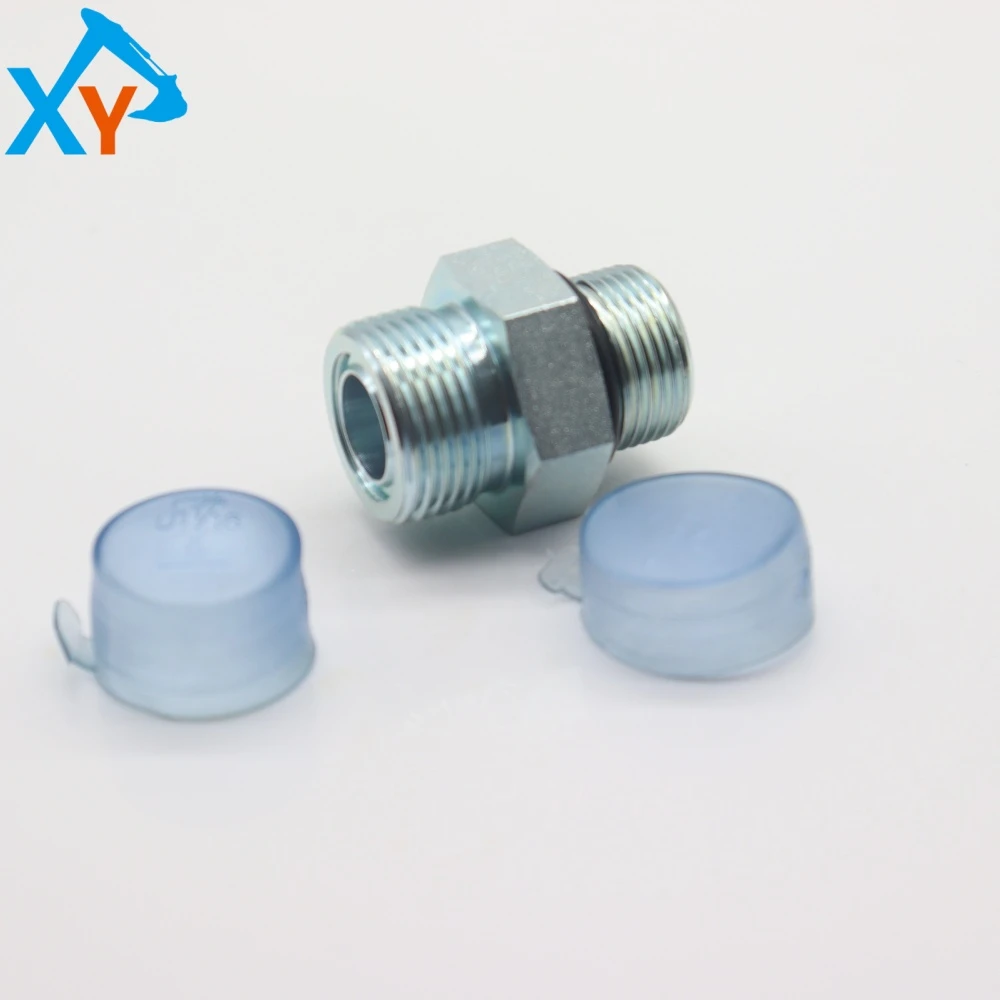

A853166 Original Excavator S-Joint ADAPTER for ZX200-5A

A853166 is the special part number for the original S-type joint adapter (also known as S-type welded adapter) of Hitachi ZX200-5A excavator. This adapter is designed specifically for the ZX200-5A model to convert its working device interface to the industry standard of symmetry (S standard), enabling fast and compatible connections with various S standard attachments such as buckets, breakers, grabs, etc. It is usually also applicable to other similar models of Hitachi ZX200 series, such as ZX200-5G, ZX200-3, etc.


The S-shaped joint adapter is the core connecting component for excavator to achieve rapid replacement of attachments. It is made of high-strength cast steel, with a compact and durable structure. Its core function is to convert the non-standard interface at the end of the excavator boom into a symmetrical interface that complies with the international S-type standard through welding or bolt fixation. The standard S-shaped interface typically includes two parallel pin holes, with pin diameters commonly ranging from 50mm to 60mm (depending on the tonnage of the model). The adapter body has an optimized geometric shape to maximize pin contact area, distribute stress, and reduce wear.


To ensure the long-term safety and reliability of the S-type connector adapter, regular inspections and maintenance are necessary. During installation, it is necessary to ensure the firmness of welding or bolt fixation, and verify the coaxiality between the adapter and the boom and accessories to avoid abnormal wear or cracking caused by unbalanced load. Before and after daily homework, the adapter body should be checked for visible cracks and deformations, especially in the weld area; Check whether the inner wall of the pin hole is smooth, whether there is excessive wear or out of roundness; Ensure that the locking mechanism (if hydraulic quick change is used, check the oil cylinder and locking pin) operates flexibly and without any jamming. It is recommended to lubricate the pin shaft and bushing every 250-500 hours of operation, and check the torque of the fastening bolts.
