YA00000543 Genuine Hitachi signal valve for Hitachi excavator ZX330-3

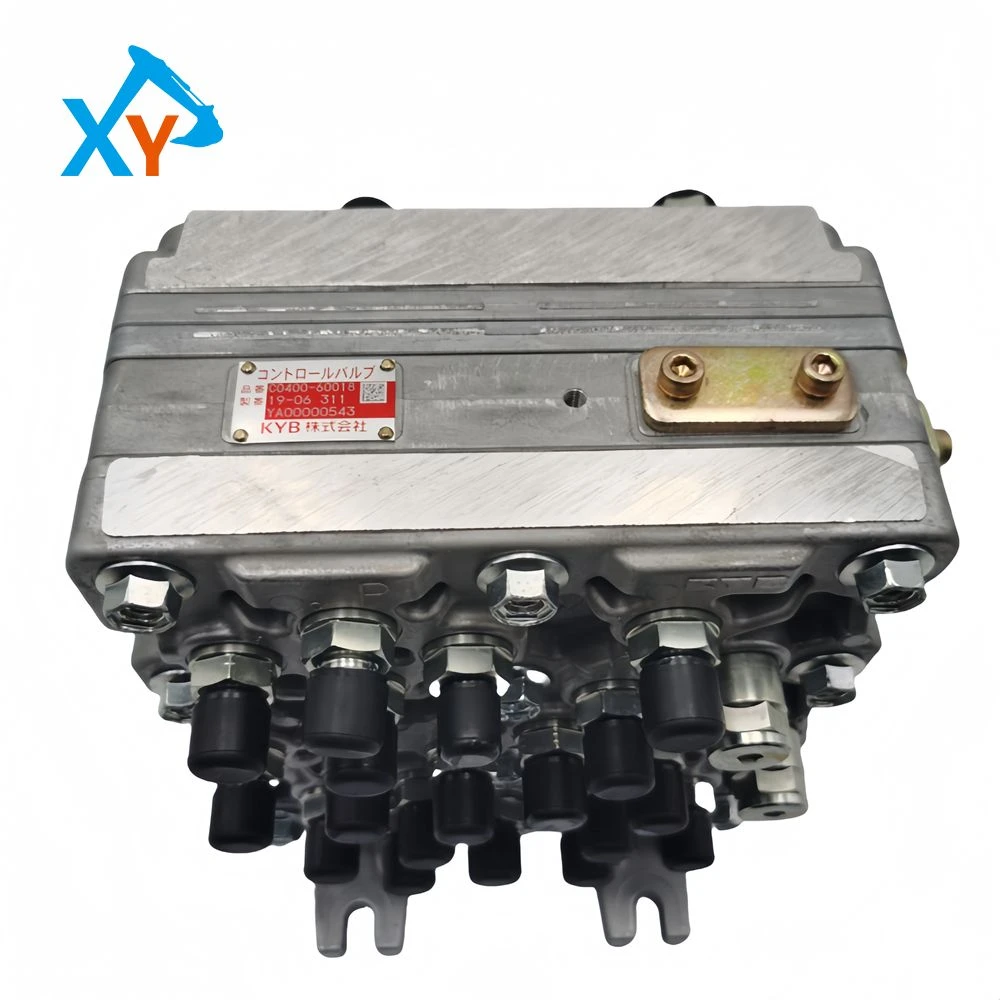

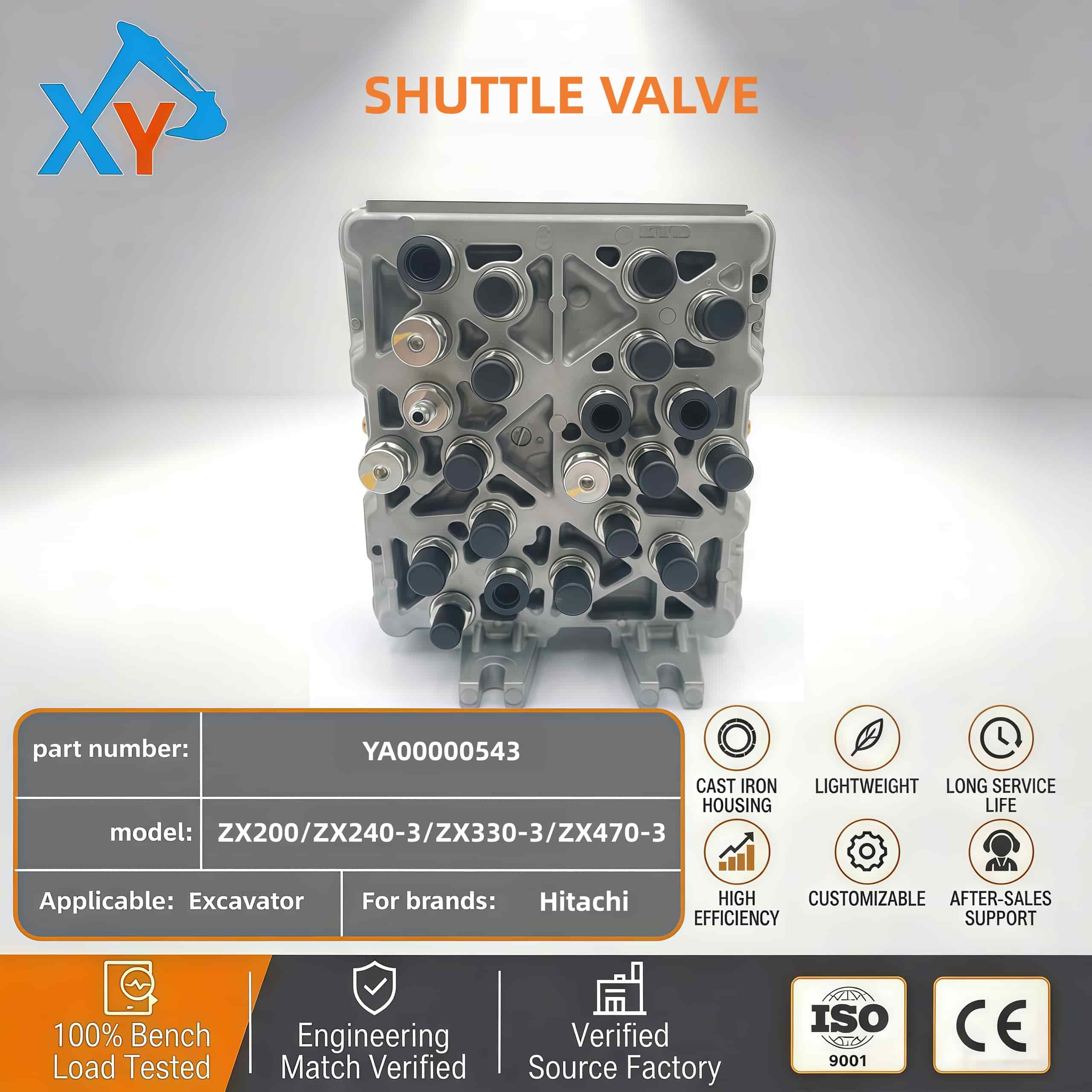

Part number YA00000543 is a dedicated red - labeled hydraulic shuttle valve (signal shuttle valve) for Hitachi ZX200/ZX330 and other models, compatible with Zaxis - 3/-5 series excavators such as ZX200-3/ZX200-5G, ZX330-3/ZX330-5G, ZX210-3/ZX210-5A, ZX250-3/ZX250-5A. It is often used in the pilot circuit of the main control valve, travel high - low speed switching or safety lock circuit. The valve body is made of high - strength forged carbon steel, and the seals are oil - resistant nitrile butadiene rubber (NBR). The interface specification is G1/4 thread, the working pressure range is 0.5-35MPa, the pressure resistance level is 50MPa, the working temperature is -30℃ to 100℃, and the medium is compatible with 46# anti - wear hydraulic oil. The red label indicates that it is an original genuine product/high - pressure compatible model. It is responsible for selecting the one with higher pressure from two or more hydraulic signals for output, ensuring reliable pilot control and action interlocking.

Its core functions are pressure signal selection and priority switching. It is often used in scenarios such as pilot pressure feedback, travel mode switching control, boom/stick compound action interlocking, and safety lock circuit pressure monitoring. It adopts an internal spring - return valve core structure with a response time of ≤50ms and a leakage rate of ≤0.1mL/min (under 35MPa working condition). The valve body is subjected to blackening anti - rust treatment, and the interface thread accuracy reaches grade 6H. It is suitable for high - pressure pulse working conditions, with a fatigue life of ≥1 million cycles and a seal aging - resistant life of ≥5000 hours. It is suitable for harsh working conditions of construction machinery such as heavy dust, vibration and large temperature difference, ensuring long - term stable operation without leakage.

Before replacement, release the circuit pressure. When disassembling, use a torque wrench to remove the interface oil pipe at 15-20N·m, clean the mounting surface and check the seals. When installing, replace the new O - ring, tighten the bolts symmetrically in a diagonal order, control the torque at 18-22N·m. After installation, conduct a pressure test (hold pressure at 25MPa for 5 minutes without leakage) and check for signal abnormalities. This red - labeled shuttle valve can reduce the signal error rate of the hydraulic circuit by more than 90%, reduce the risk of action jamming and misoperation, improve the coordination of compound actions, reduce the failure rate of the main valve and pilot system, and extend the service life of hydraulic components.
