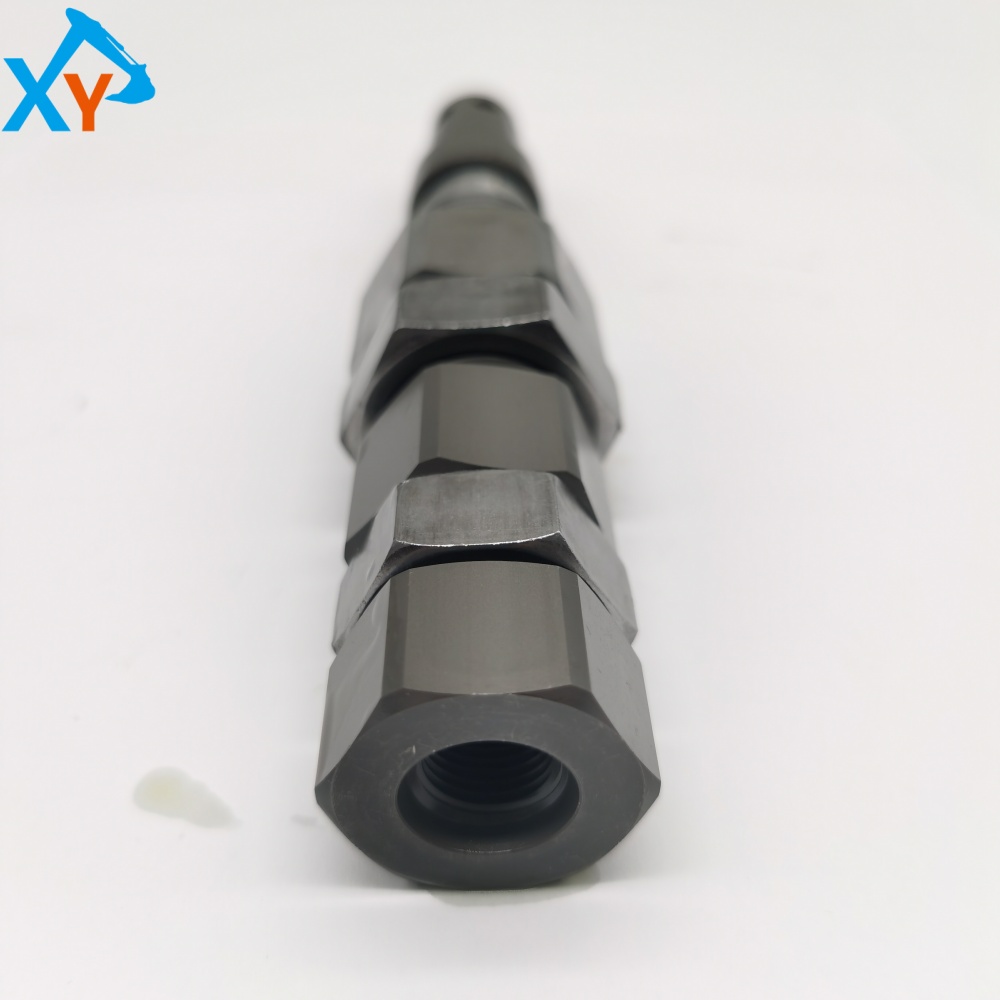

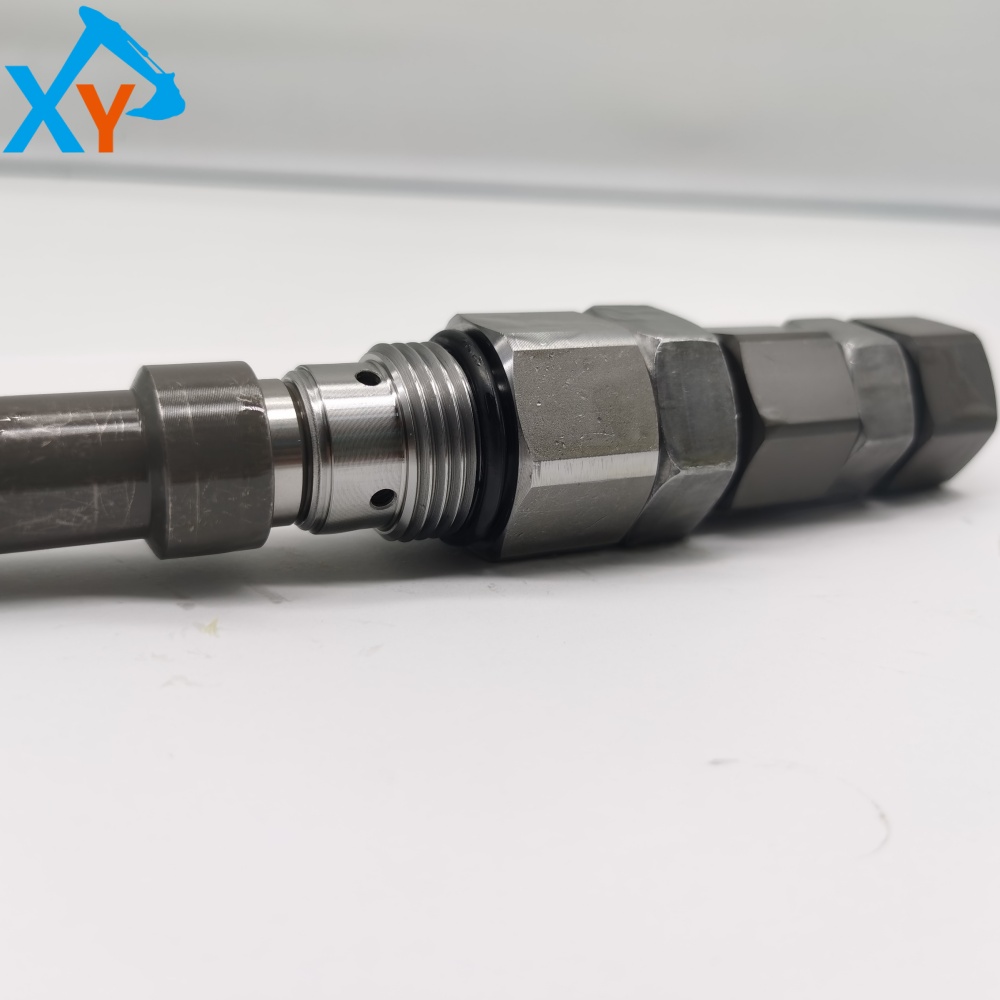

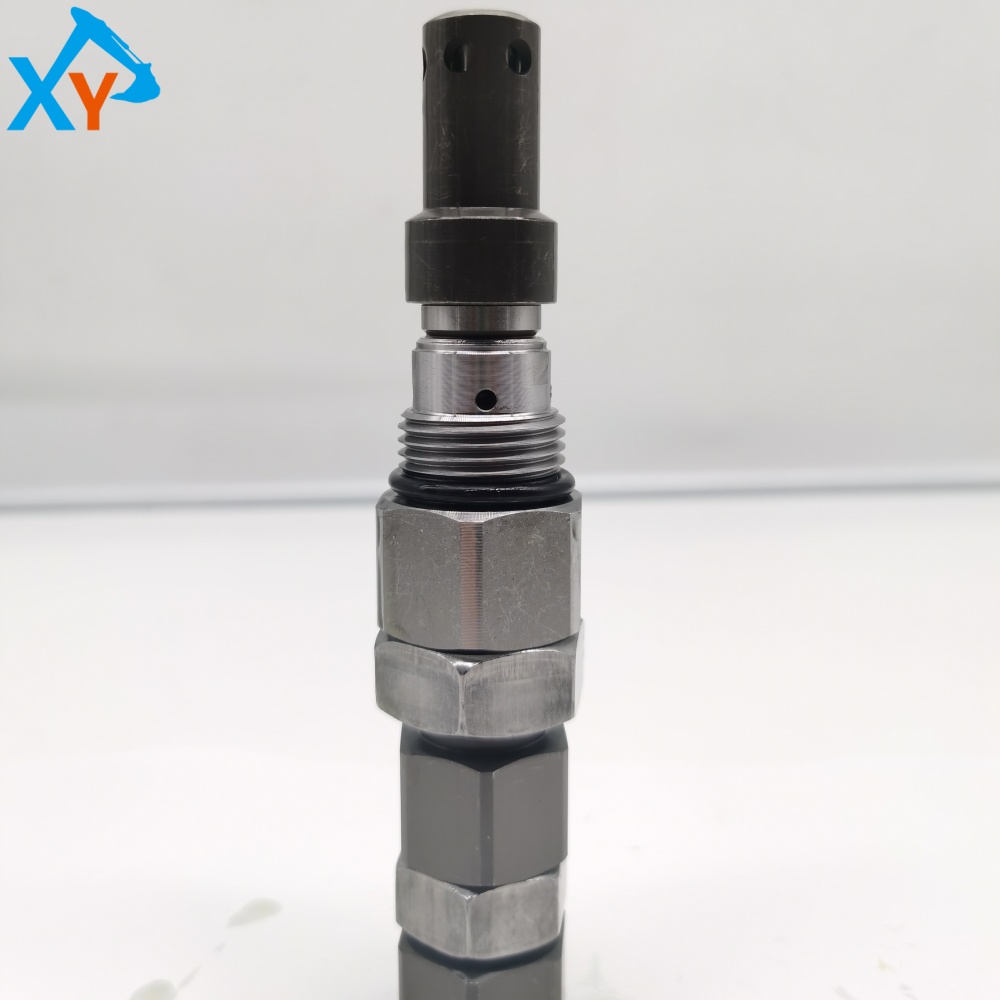

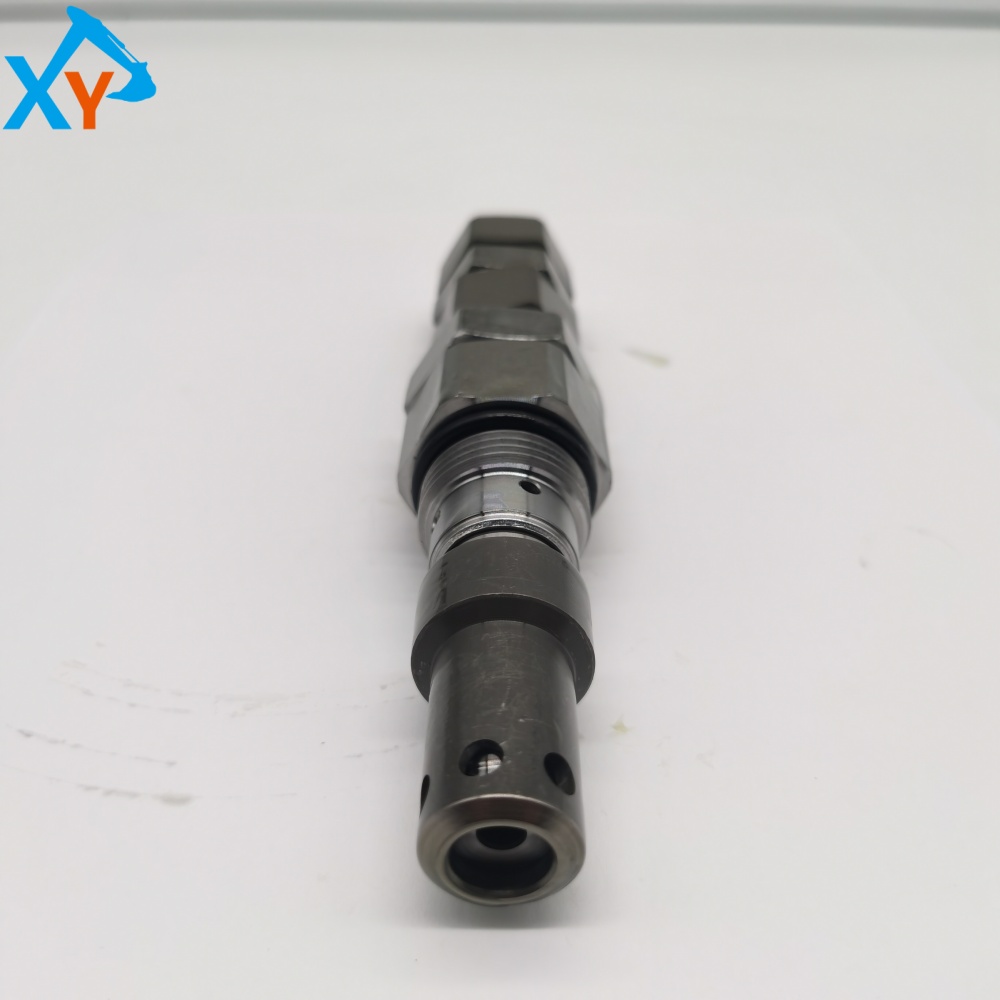

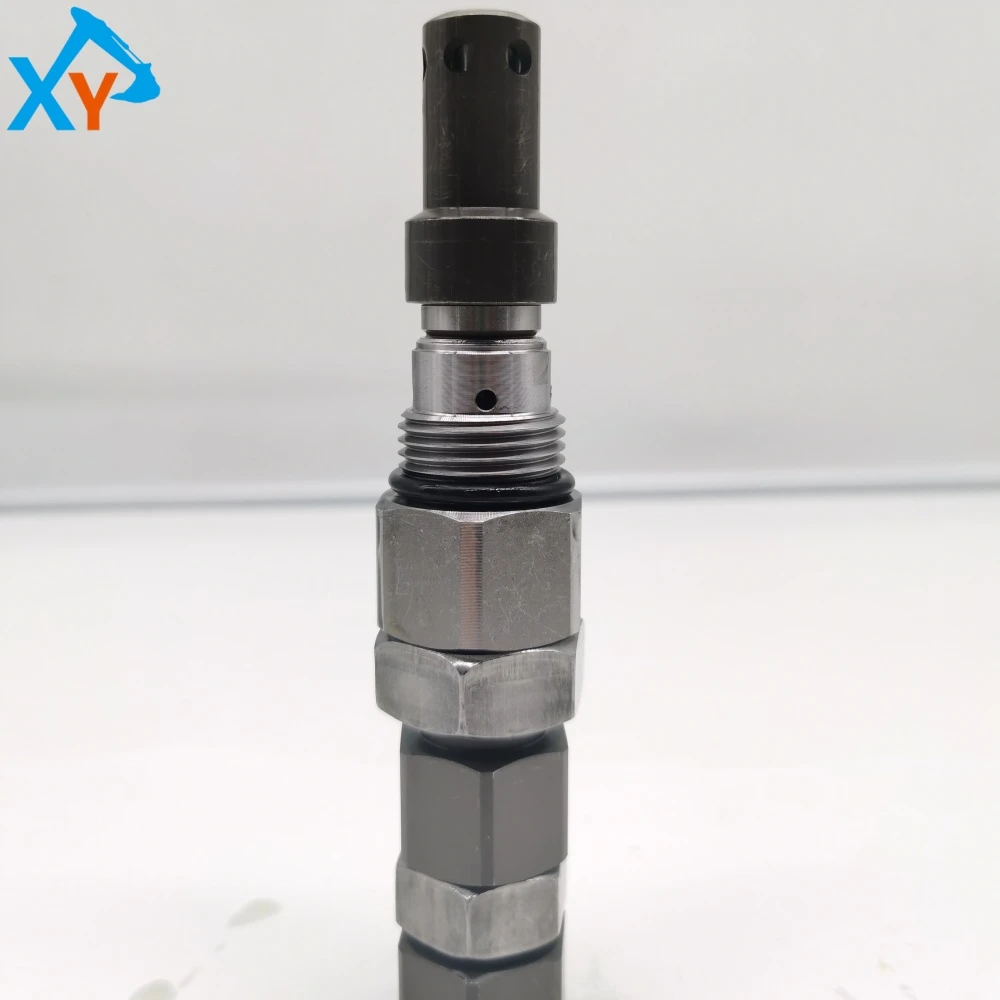

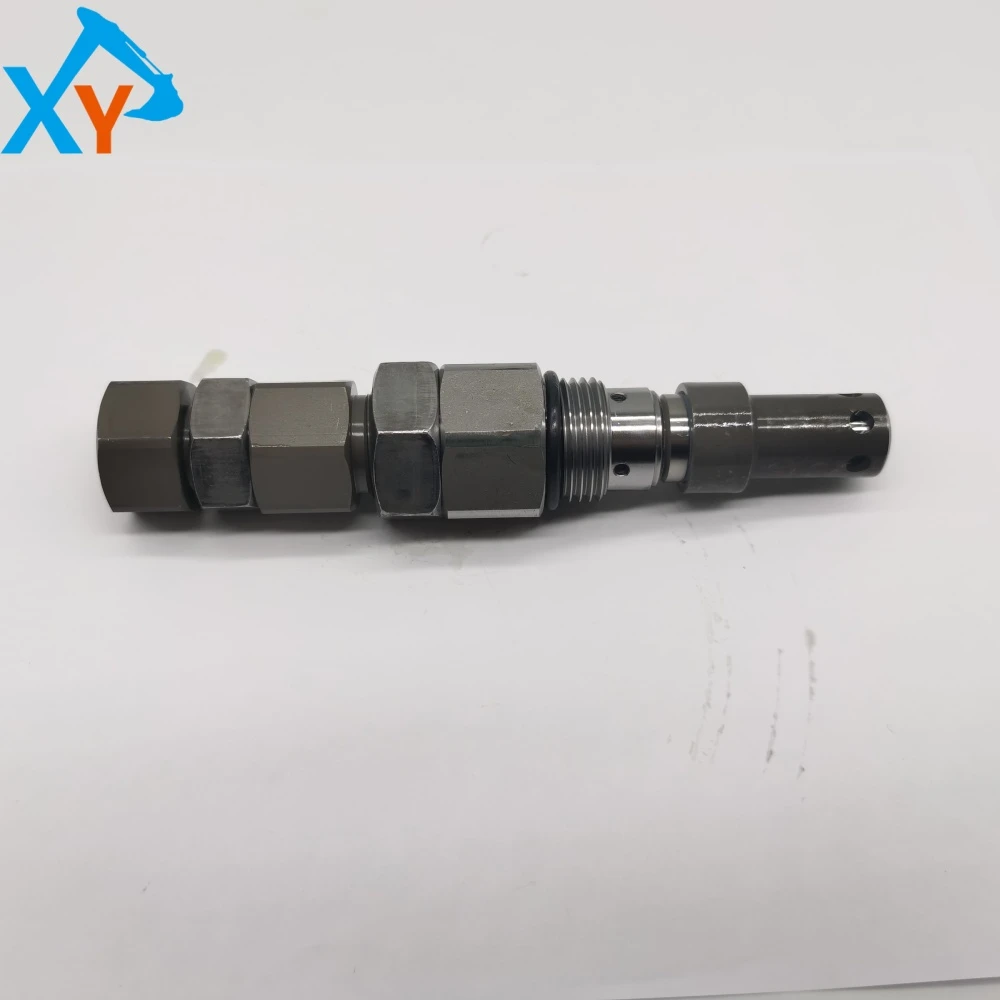

YA00011313 Excavator Relief Valve for ZX200-5G

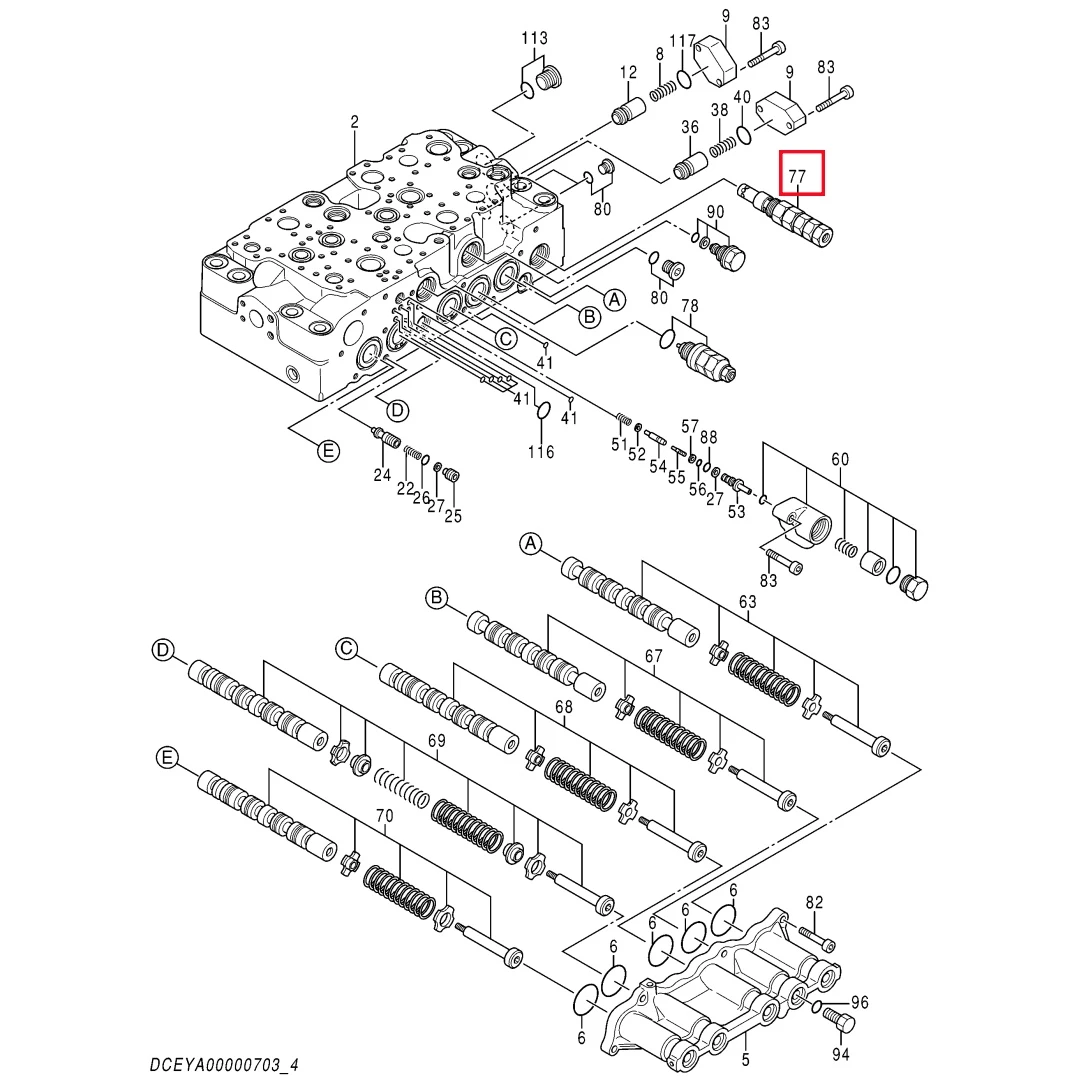

The Hitachi original safety valve (part number: YA00011313) is the core pressure protection component on the hydraulic main control valve (multi way valve) of Hitachi excavators. According to market information, this part is mainly suitable for Hitachi's medium-sized excavators ranging from 20 tons to 30 tons, specifically covering "electric direct" or "electronic injection" series models such as ZX200-3, ZX210, ZX240, ZX270, ZX300, etc. As an original overflow valve/safety valve, it is usually integrated inside the main control valve block, and its common part number may vary from supplier to supplier, but the original part number YA00011313 is a key identifier to ensure accessory matching and performance reliability.

This safety valve belongs to the main safety valve (main relief valve) of the hydraulic system, and its core function is to set and limit the maximum working pressure of the entire hydraulic system. When the system pressure exceeds the preset value (such as 320-350 kg/cm ²) due to sudden load changes or abnormal increases, the valve core overcomes the spring force under hydraulic action and opens, releasing some high-pressure oil back to the oil tank, thereby protecting key components such as hydraulic pumps, cylinders, motors, and pipelines from overpressure damage. It usually adopts pilot control or direct acting structure, consisting of precision machined valve body, valve core, pressure regulating spring and regulating mechanism.

The maintenance core of this valve lies in regular pressure calibration, preventive cleaning, and standardized disassembly and assembly. Regular inspection: It is recommended to use a hydraulic tester every 1000 working hours or annually to check whether the set pressure of the main safety valve is within the standard range (refer to the specific model maintenance manual). Maintenance standard: Before disassembling the valve body, it is necessary to clean the outside and release the system pressure. After disassembly, thoroughly clean all parts with clean diesel or specialized cleaning agents, check for wear and tear on the valve core and seat, and fatigue or rust on the spring. If there is a pressure deviation, it can be reset according to the manual standards by adjusting the screw (if any).
