YB00000114 Excavator Coupling Assy for ZX200-5A

YB00000114 coupling assembly is a key connecting component of the hydraulic system of Hitachi ZX200 series excavators. This assembly is mainly suitable for excavators of Hitachi ZX200-1, ZX200-3, ZX200-5A, ZX200-5G and other models. In addition, it is also compatible with models of similar tonnage from brands such as Hitachi ZX130K-3, ZX135US, ZX180LC, and ZX240-3. As an original accessory, its common part numbers include 4641504, 4671573, 4702172, 4463992, etc. When purchasing replacement parts, confirm that any of these part numbers can ensure precise matching with the engine flywheel and hydraulic pump input shaft, ensuring reliable connection of the transmission system.

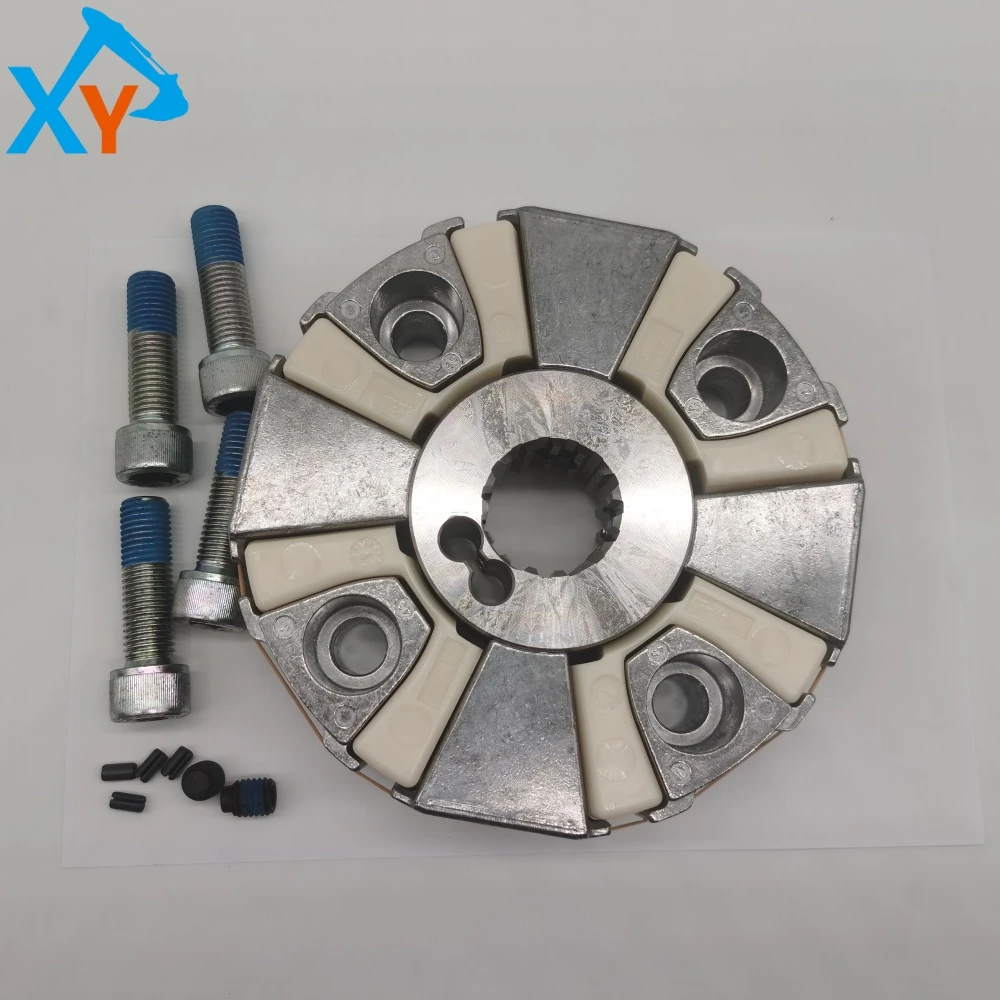

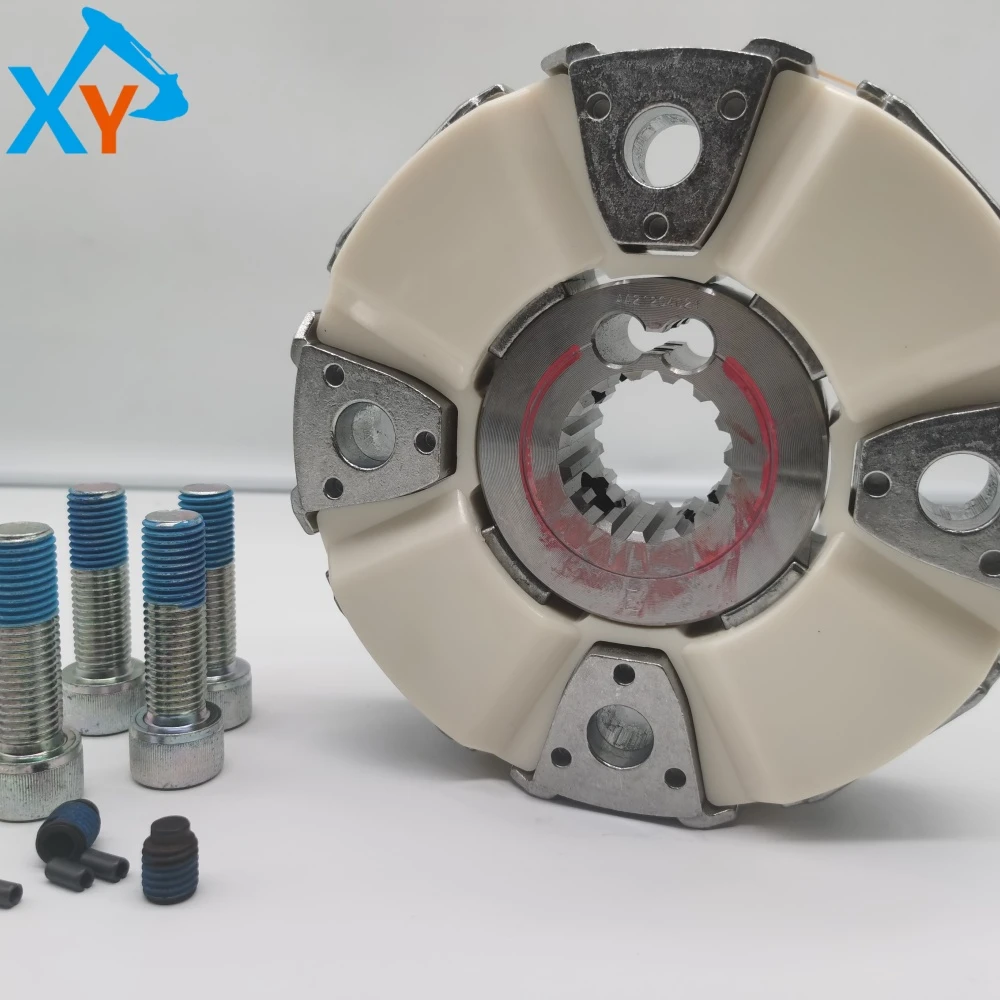

The coupling assembly is the core hub of the excavator power transmission system, responsible for smoothly and efficiently transmitting the power of the engine flywheel to the hydraulic main pump. It is usually made of elastic materials such as nylon, which not only effectively transmits torque, but also has the functions of buffering, vibration reduction, and improving the dynamic performance of the shaft system. Its structure generally includes components such as connecting glue (elastomer), spline teeth, aluminum connecting blocks, and fastening screws. This design concept of "using softness to overcome rigidity" aims to protect the two expensive core components of the engine and hydraulic pump - when the transmission system experiences slight misalignment or impact, the coupling itself can absorb energy through moderate deformation or damage, thereby avoiding more serious damage to the engine or pump.


The service life of the coupling assembly is closely related to installation accuracy and maintenance quality. During installation, it is necessary to ensure extremely high coaxiality, that is, the centerline of the engine output shaft and the hydraulic pump input shaft must be aligned. Excessive coaxiality error can lead to abnormal vibration, increased noise, accelerated wear of bearings and seals, and even damage to couplings in a short period of time. In daily maintenance, it is necessary to regularly check the elastic body (connecting rubber) of the coupling for cracks, aging, or permanent deformation, check whether the spline teeth are worn, and ensure that all fastening bolt torques meet the standard.
