3014661300 Original Loader Solenoid Valve for ZW40

The part number is 3014661300, which is an original solenoid valve specially designed by Hitachi for the ZW40 series wheel loader. This component is the core electro-hydraulic conversion element in hydraulic systems that controls the opening and closing of oil circuits, direction switching, or achieves specific safety functions such as brake release and differential lock. Its universal model usually covers ZW40 same platform models, and may also be applicable to ZW30, ZW50 and other series loaders with similar tonnage and hydraulic system design. As an original precision control valve, its interface thread specifications, voltage and current characteristics are fully matched with the hydraulic circuit and circuit system of the entire vehicle

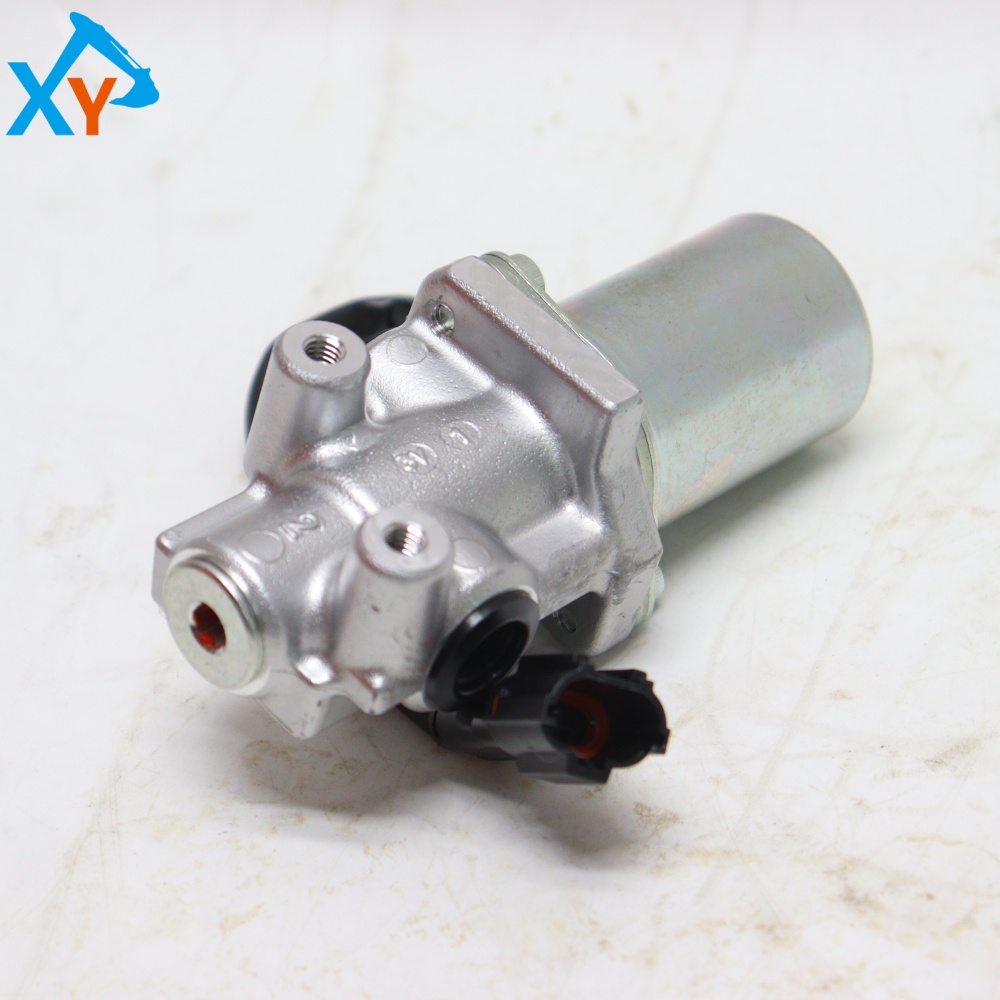

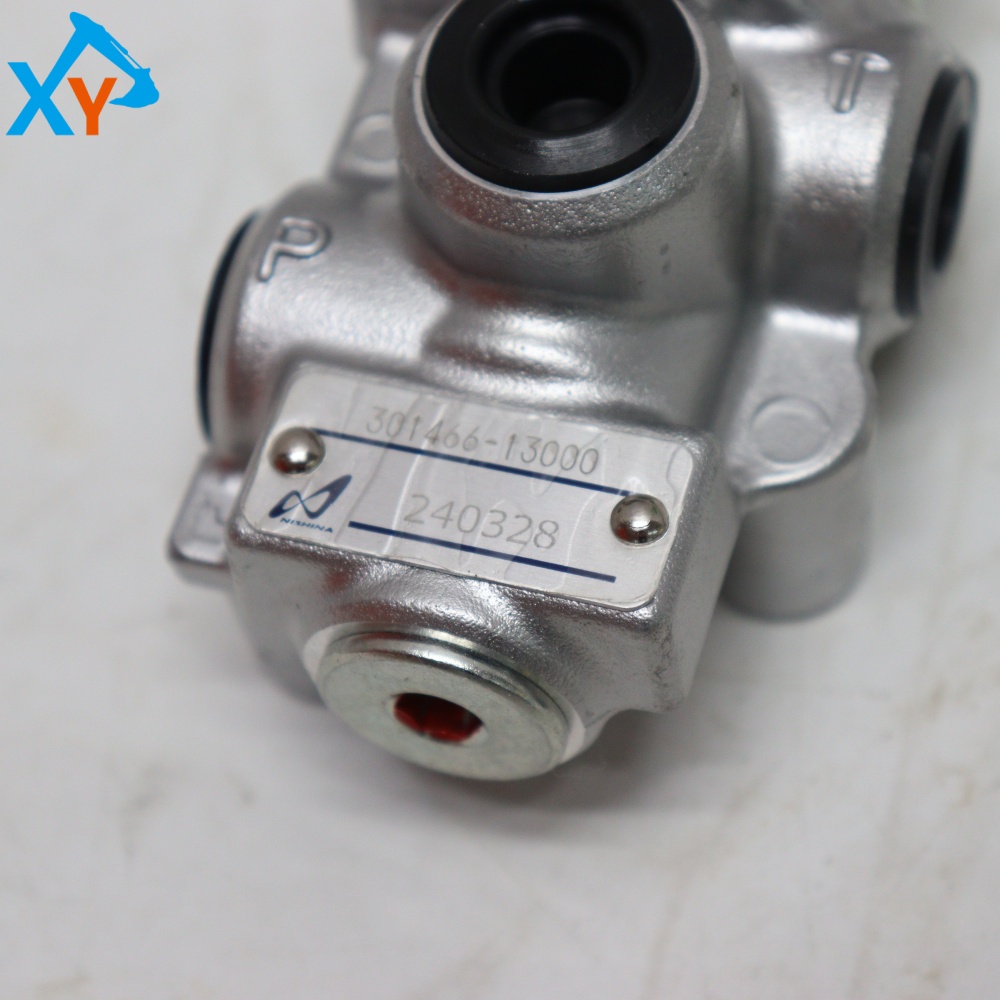

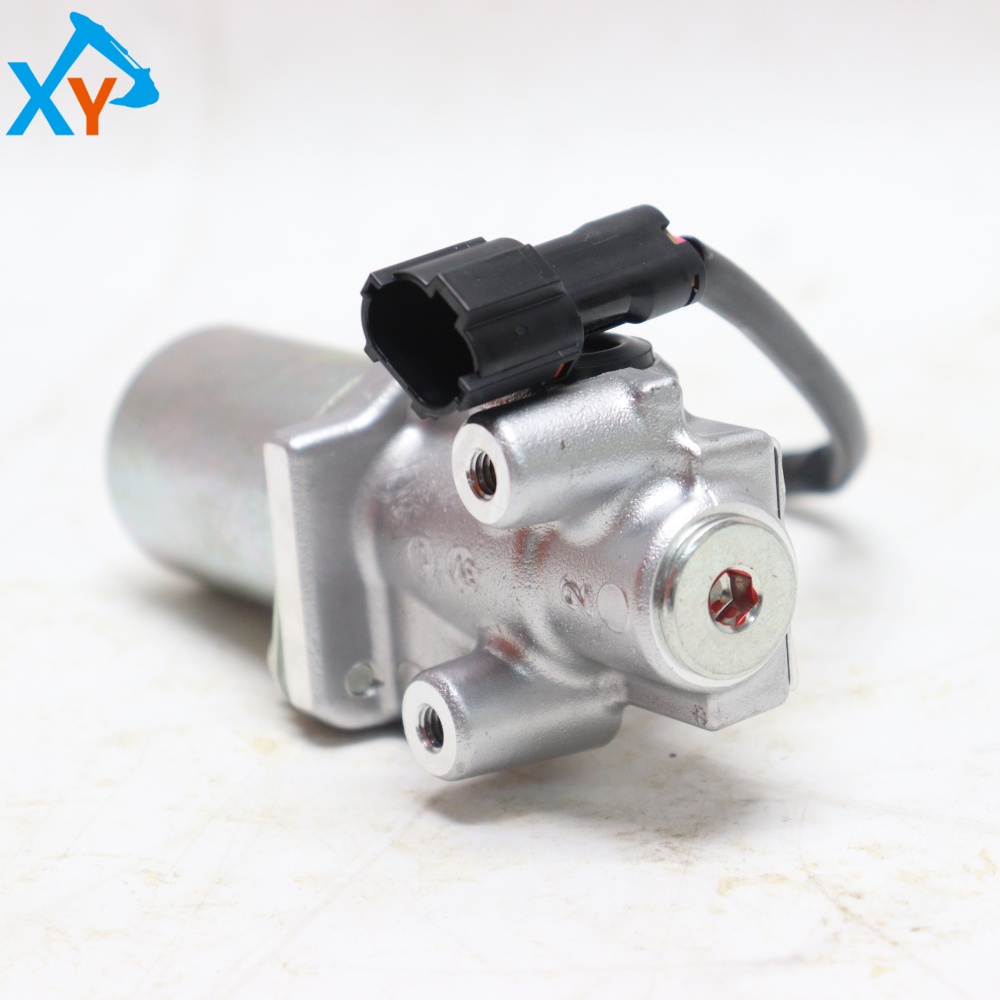

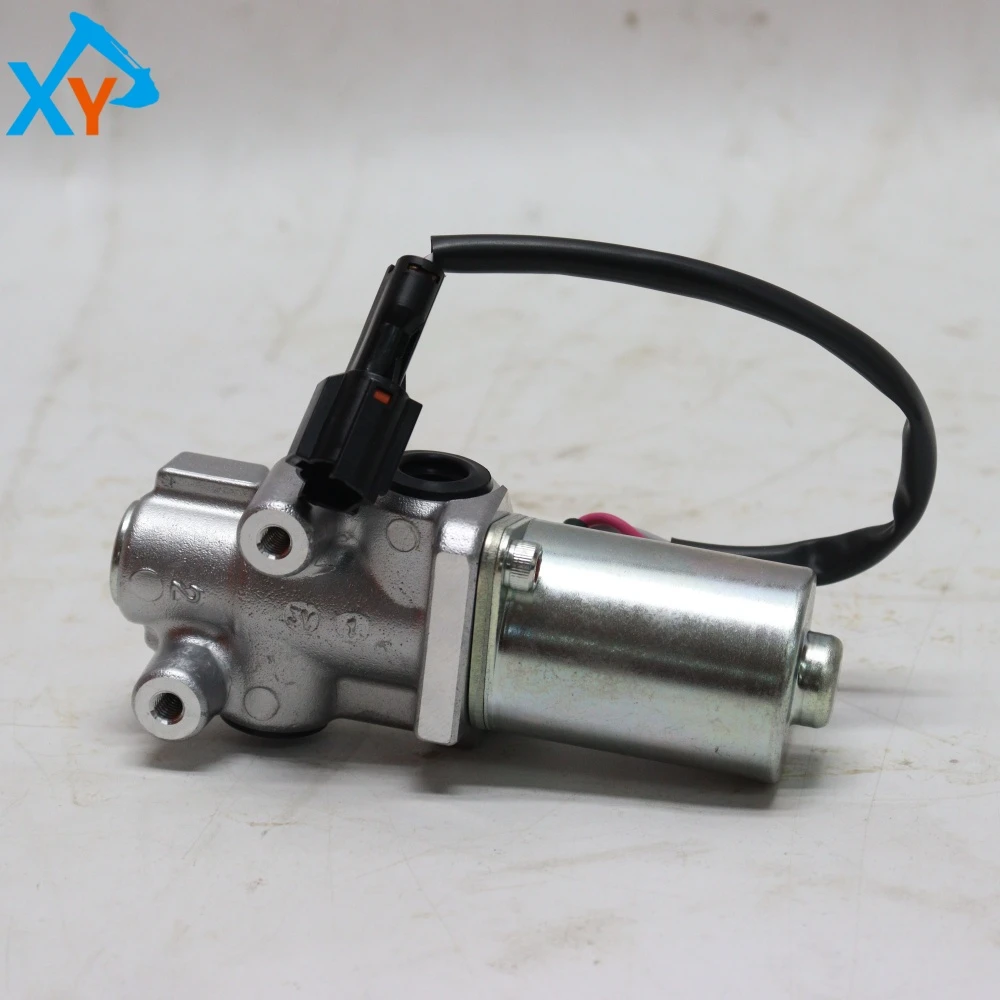

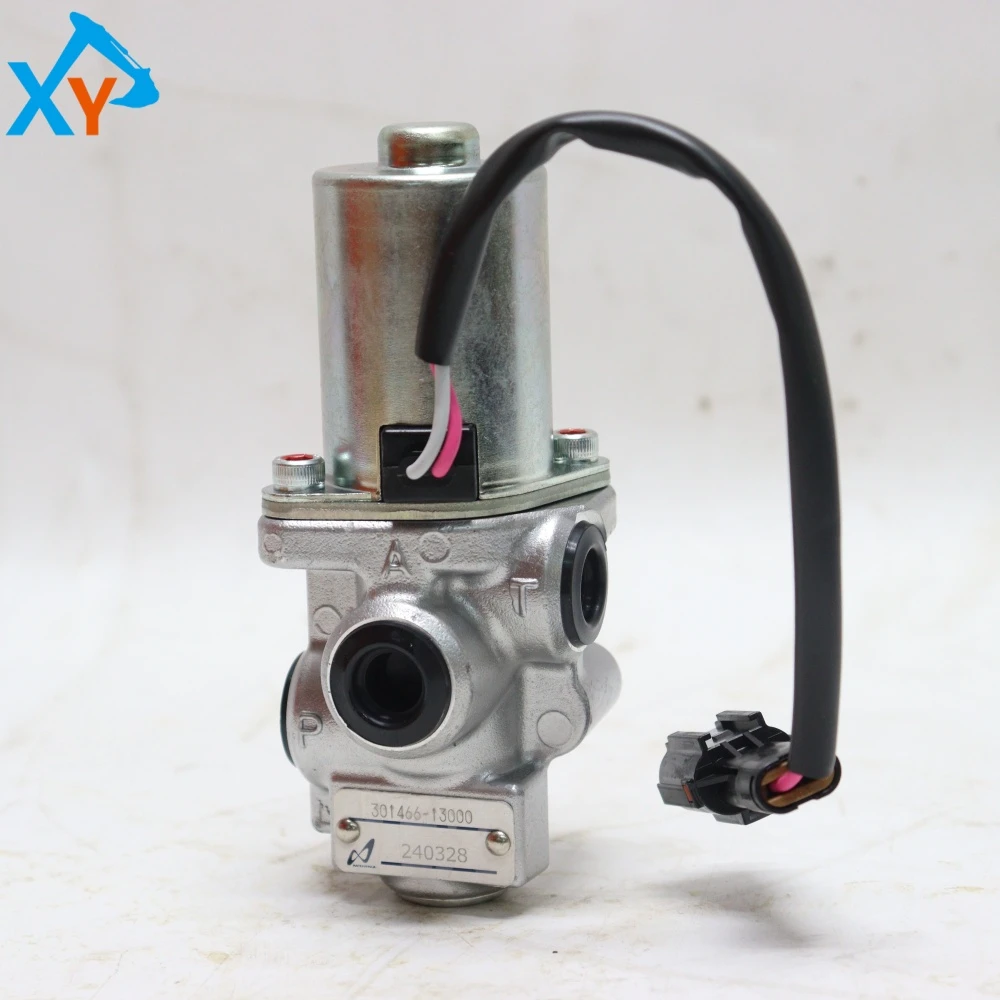

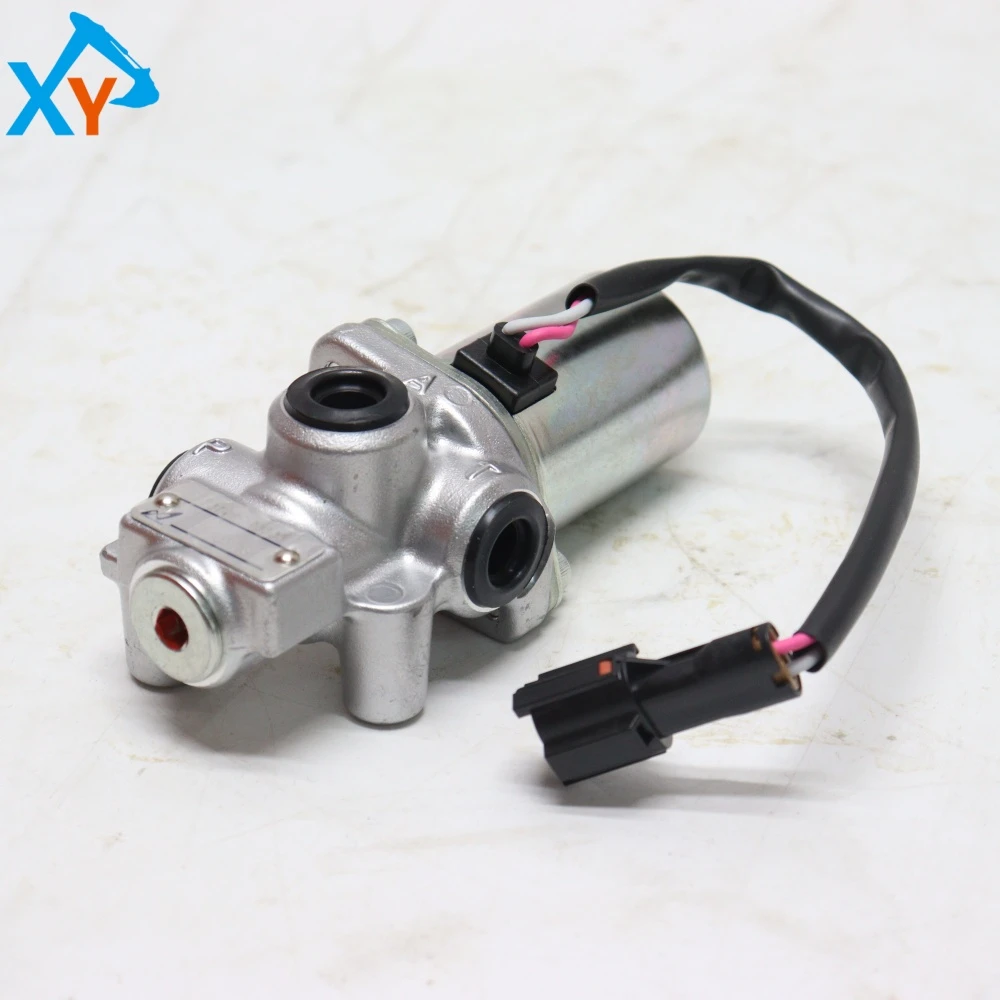

This product is a wet plug-in type two position three-way (or similar function) solenoid valve. The main body is a silver gray precision machined combination gold valve body, with multiple standard oil ports (P-pressure port, A/B-working port, T-return port) distributed on the surface. One of the interfaces has a red marking point, usually indicating the key interface or installation direction. The black cylinder integrated on the valve body is an electromagnetic coil component with a built-in sealing structure. Two pink and one white oil and high temperature resistant wires are led out of the coil, and the ends are collected in a black waterproof connector. Its working voltage is usually DC 12V or 24V, with a high protection level (such as IP67), rapid response, and precise coordination between the internal valve core and valve sleeve to ensure reliable operation in vibration and oil contaminated environments, achieving precise electrical control of the hydraulic system.

Installation and wiring specifications: 1 Cleaning: Before installation, ensure that the valve body mounting hole and the oil circuit block joint surface are absolutely clean, free of iron filings and impurities. 2. Replace the seal: A brand new, size matched O-ring must be used and coated with clean grease. 3. Alignment tightening: Place the solenoid valve (3014661300) vertically into the valve hole, and use a torque wrench to tighten the installation bolts diagonally to the specified torque (usually 8-15 N · m) to avoid deformation of the valve body. 4. Circuit connection: Ensure that the connectors are properly inserted and locked to prevent water ingress and vibration loosening. Fault diagnosis: If the corresponding function fails, first check the fuse, circuit power supply, and connectors; Secondly, a multimeter can be used to measure the coil resistance to determine if there is an open/short circuit; Finally, you can turn on the power and listen for a "click" sound when the coil engages. If the coil is normal but there is no oil circuit action, the valve core may be stuck.
