3018461112 Original Loader Joystick for ZW50

The part number is 3018461112, which is an original control lever specially designed by Hitachi for the ZW50 series wheel loader. This component is the core control unit of the loader's working devices, such as bucket lifting and retraction. Its universal model usually covers ZW50 same platform models, and is also applicable to ZW55, ZW60 and other series loaders with similar tonnage and cab console layout. As a key human-machine interaction component of the original factory, its base mounting hole position, handle angle, stroke, and valve core linkage mechanism are precisely matched

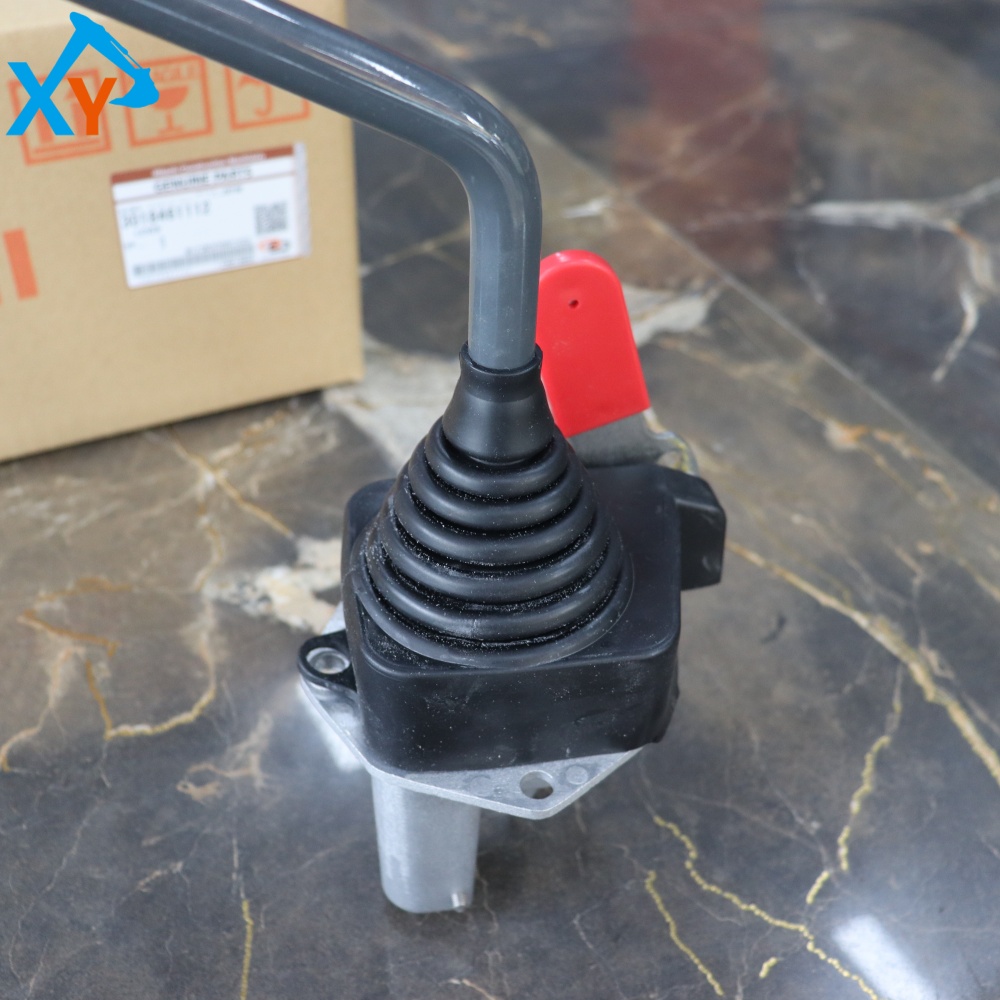

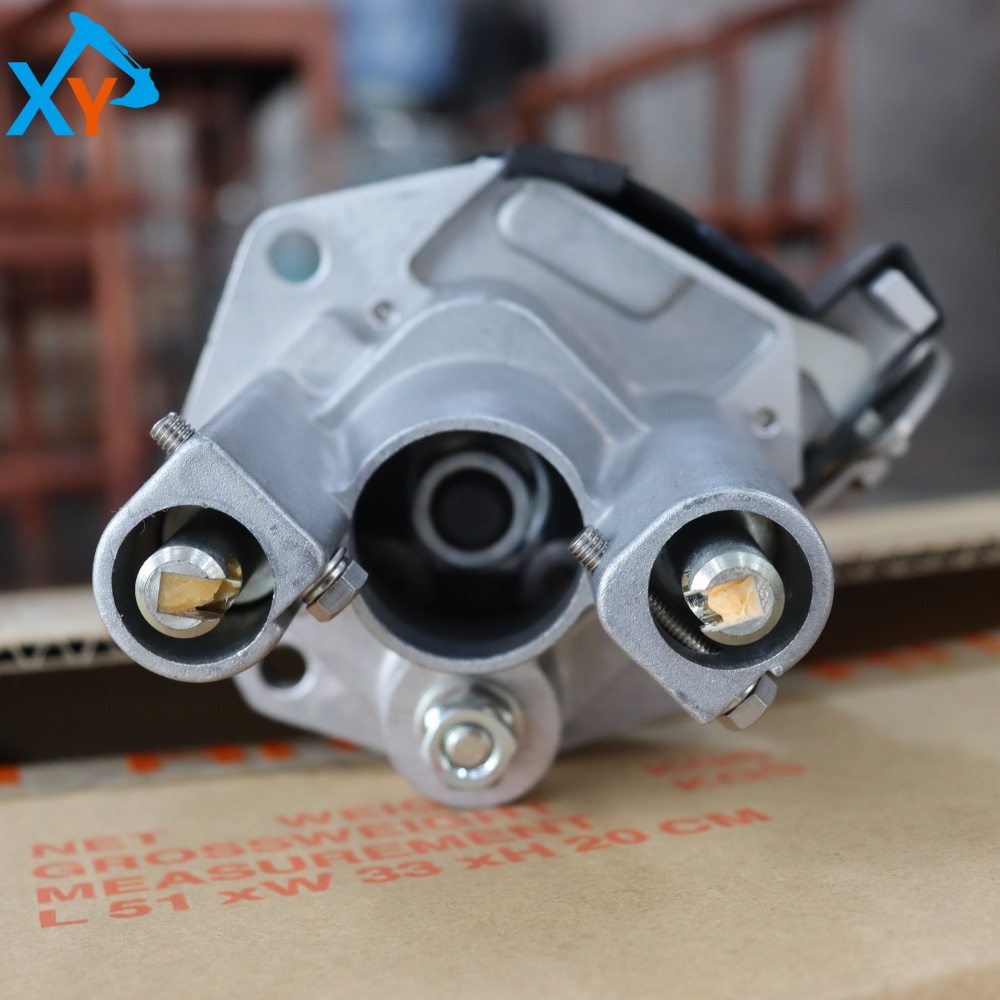

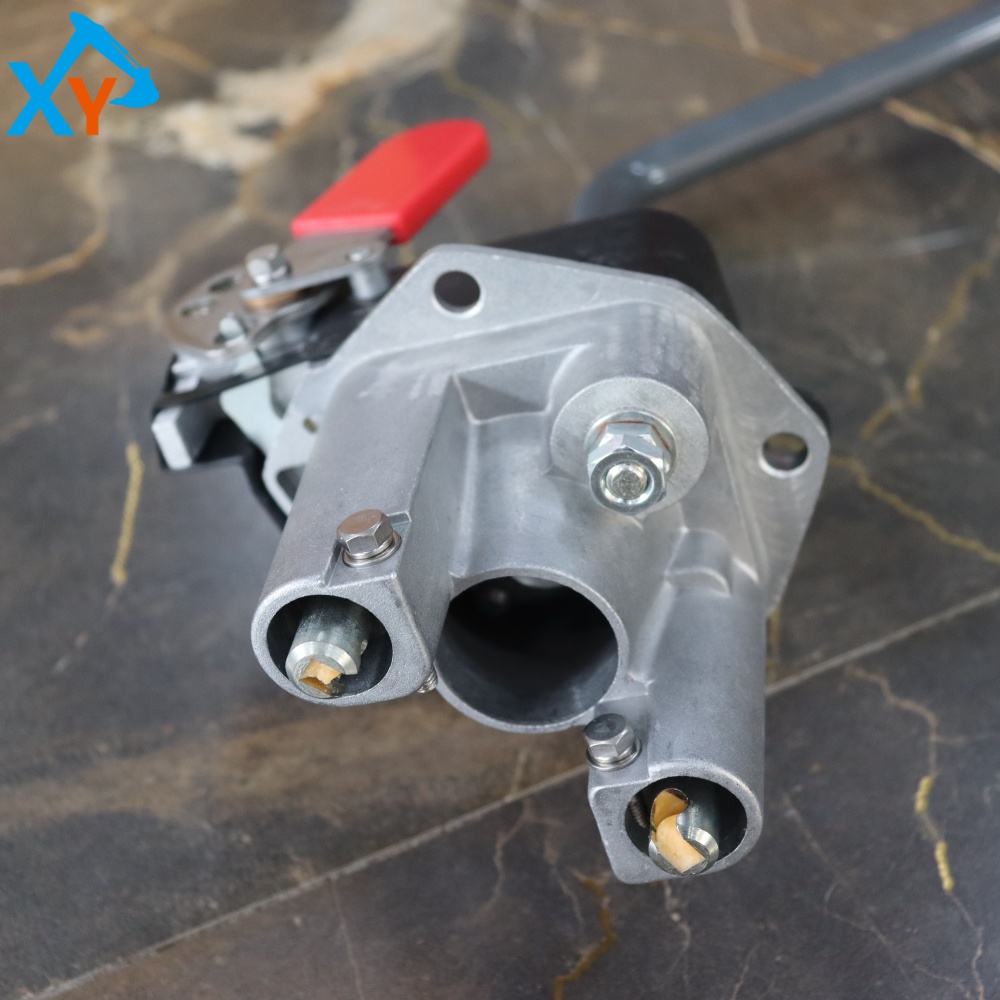

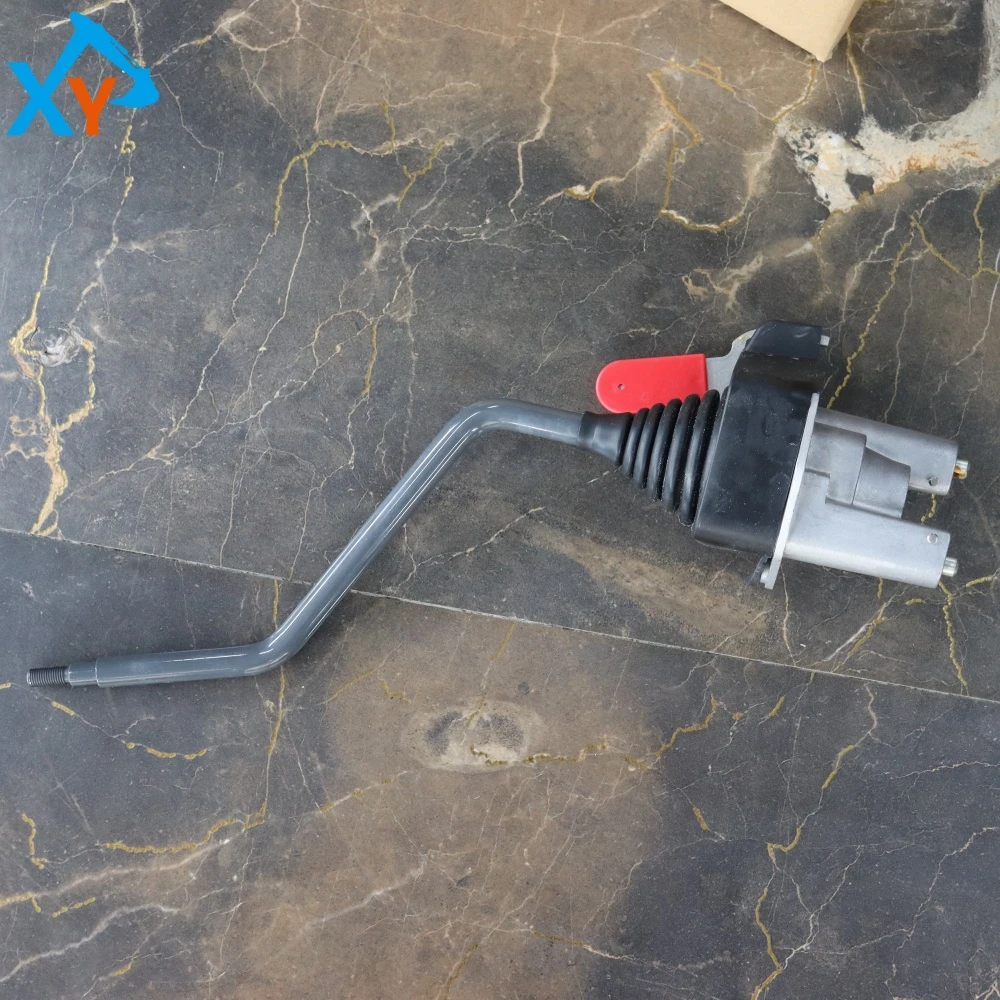

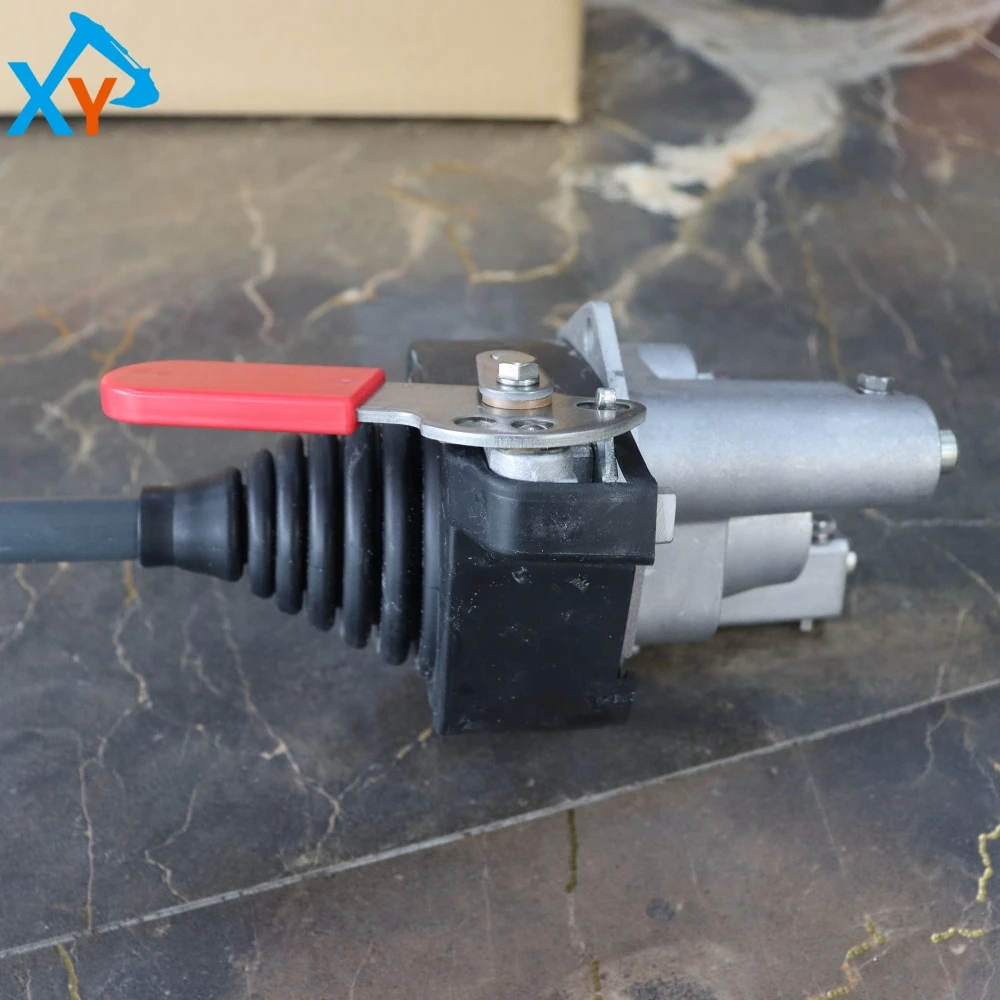

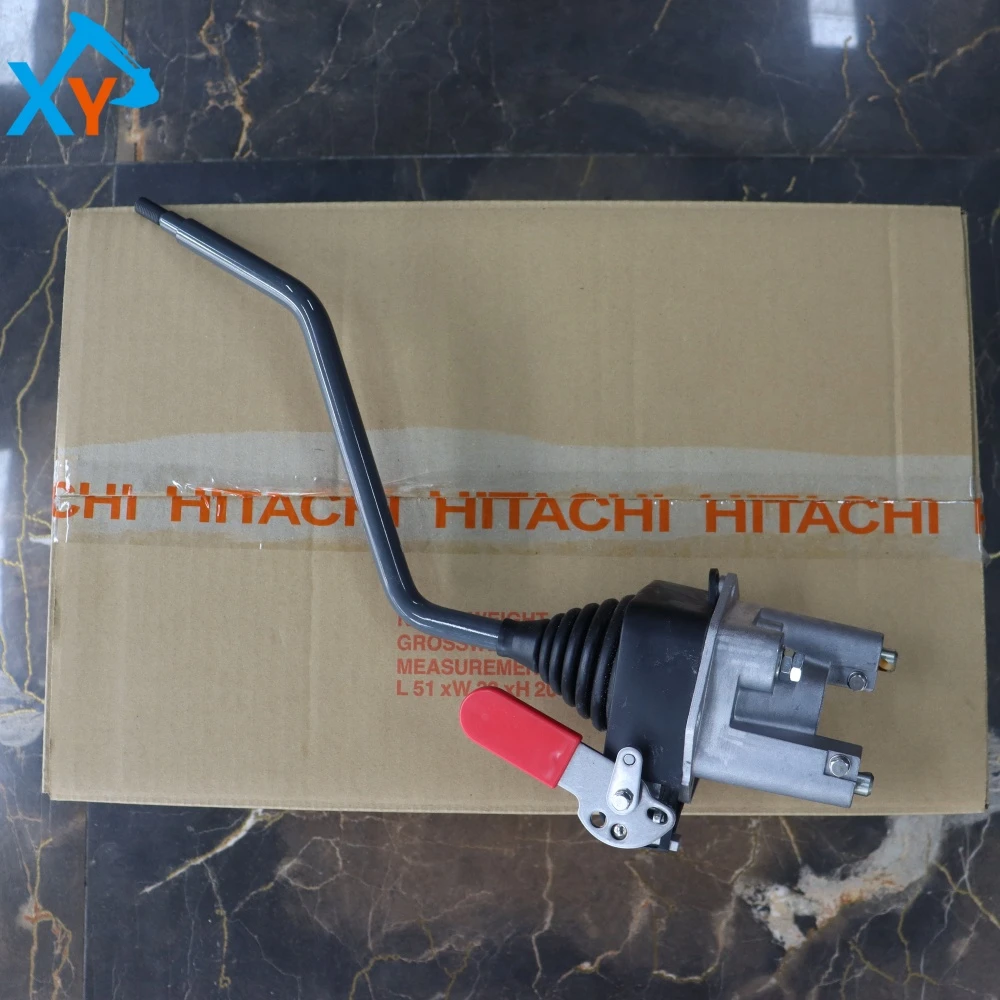

This product is a mechanical linkage control lever assembly, with a black handle and a rubber dust cover covered with a spiral texture on the surface, providing anti slip and comfortable grip. There is a prominent red plastic gear lever or limit block mounted on the metal rod below the handle, which is used to indicate or limit the operating stroke of the handle. The bottom of the assembly is a sturdy black engineering plastic or metal base, which integrates a reset spring, positioning mechanism, and precision linkage mechanism connected to the multi way valve pilot spool. Its core function is to accurately and linearly convert the driver's hand push and pull movements into control of the pilot valve spool through internal linkages, thereby achieving precise control of the direction and speed of the working device's actions. The overall design conforms to ergonomics and is durable and reliable.

Installation and Debugging: 1 Alignment installation: Ensure that the installation surface of the driver's cab is clean before installation. Align the control lever assembly (3018461112) with the mounting hole and pre tighten the fixing bolts. 2. Connection and adjustment: Connect the linkage rod or flexible shaft between the connecting rod and the pilot valve to ensure a secure connection and smooth movement without interference or jamming. Adjust the connection length so that when the handle is in the neutral position, the corresponding pilot valve core is also in the neutral position. 3. Torque tightening: Use a torque wrench to tighten the base fixing bolts to the specified torque (usually 20-30 N · m). Daily inspection: Every 250 working hours, check whether the control lever is loose, whether the handle dust cover is damaged, whether the operation is smooth, and whether the return is quick and thorough. Regularly drip a small amount of lubricating oil at the active joints.
