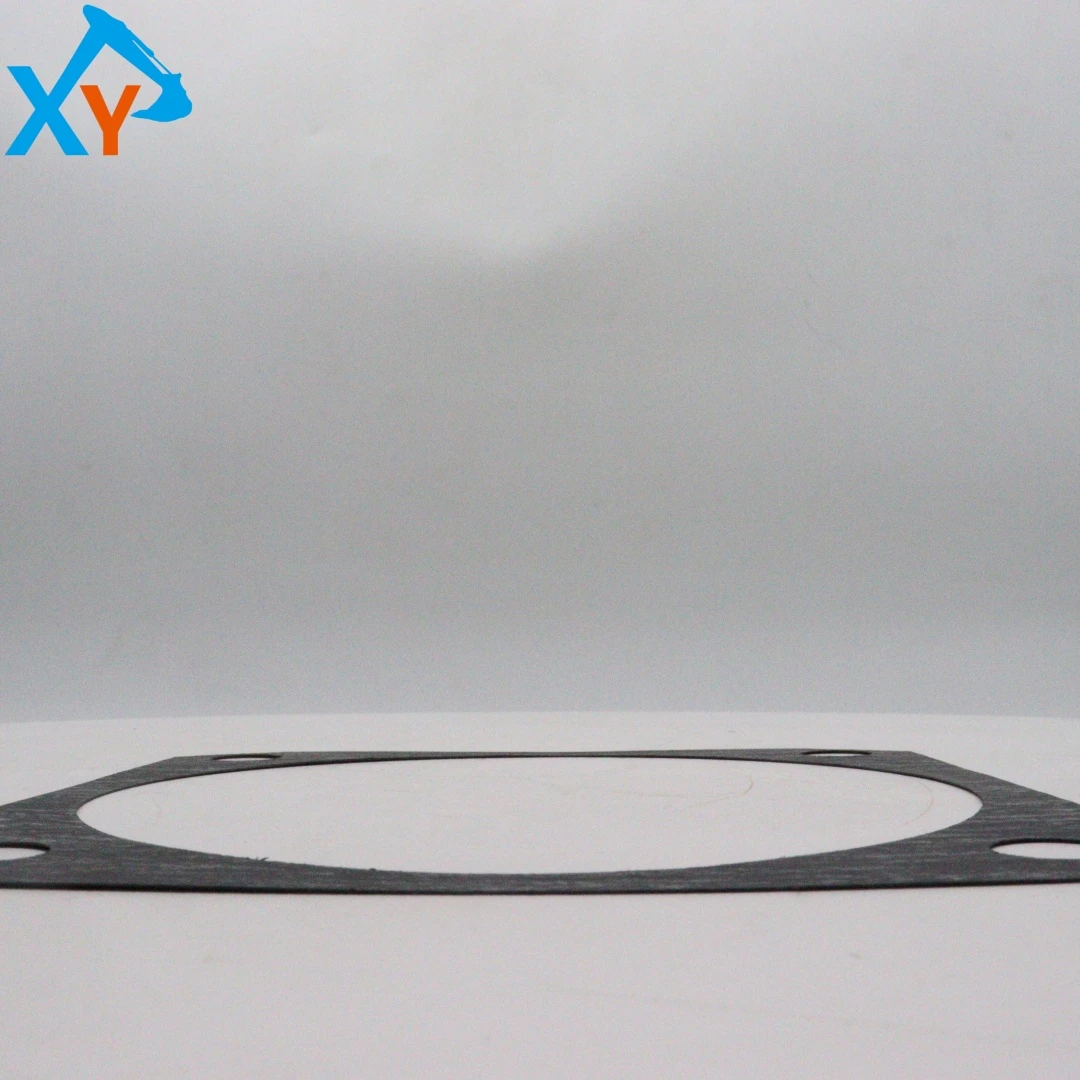

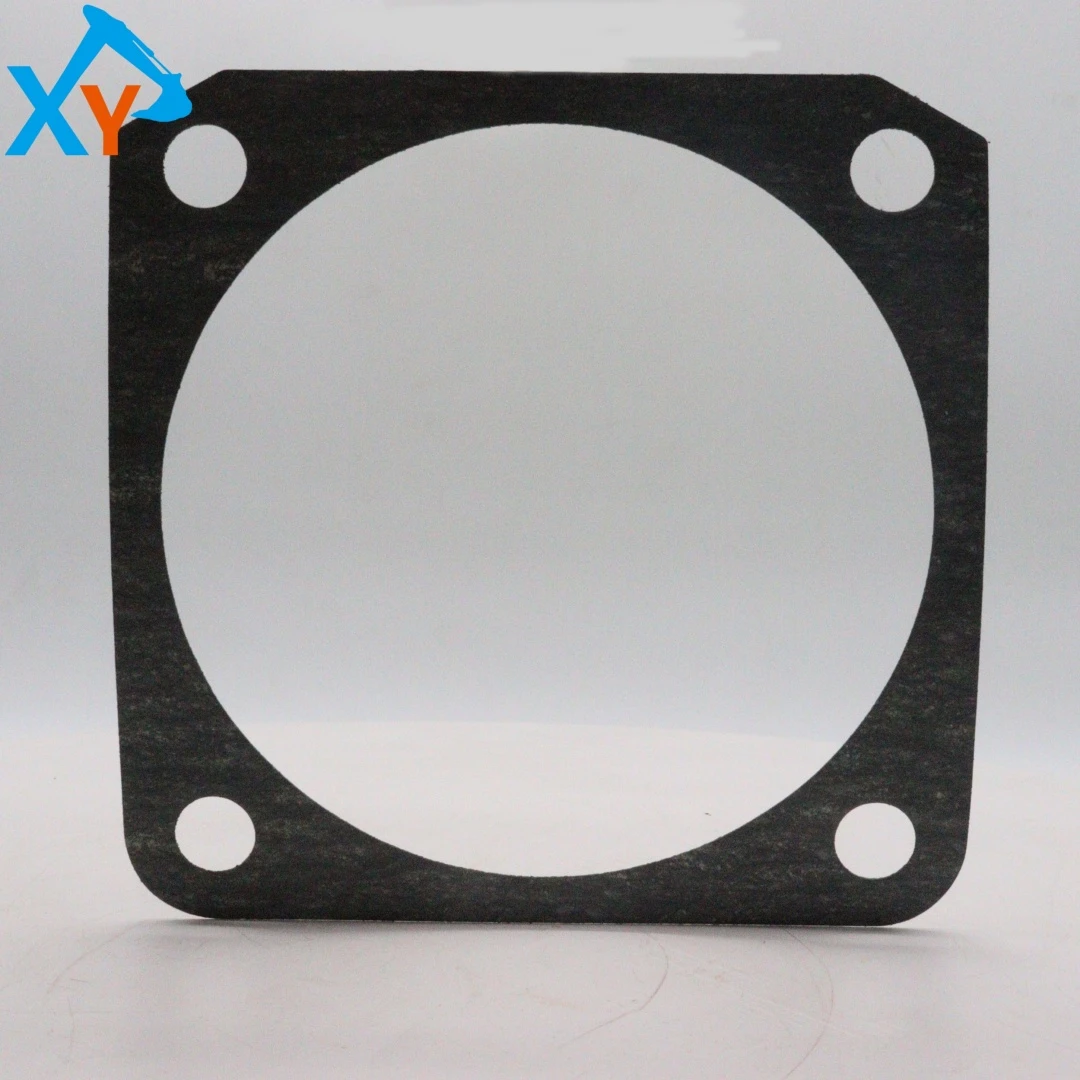

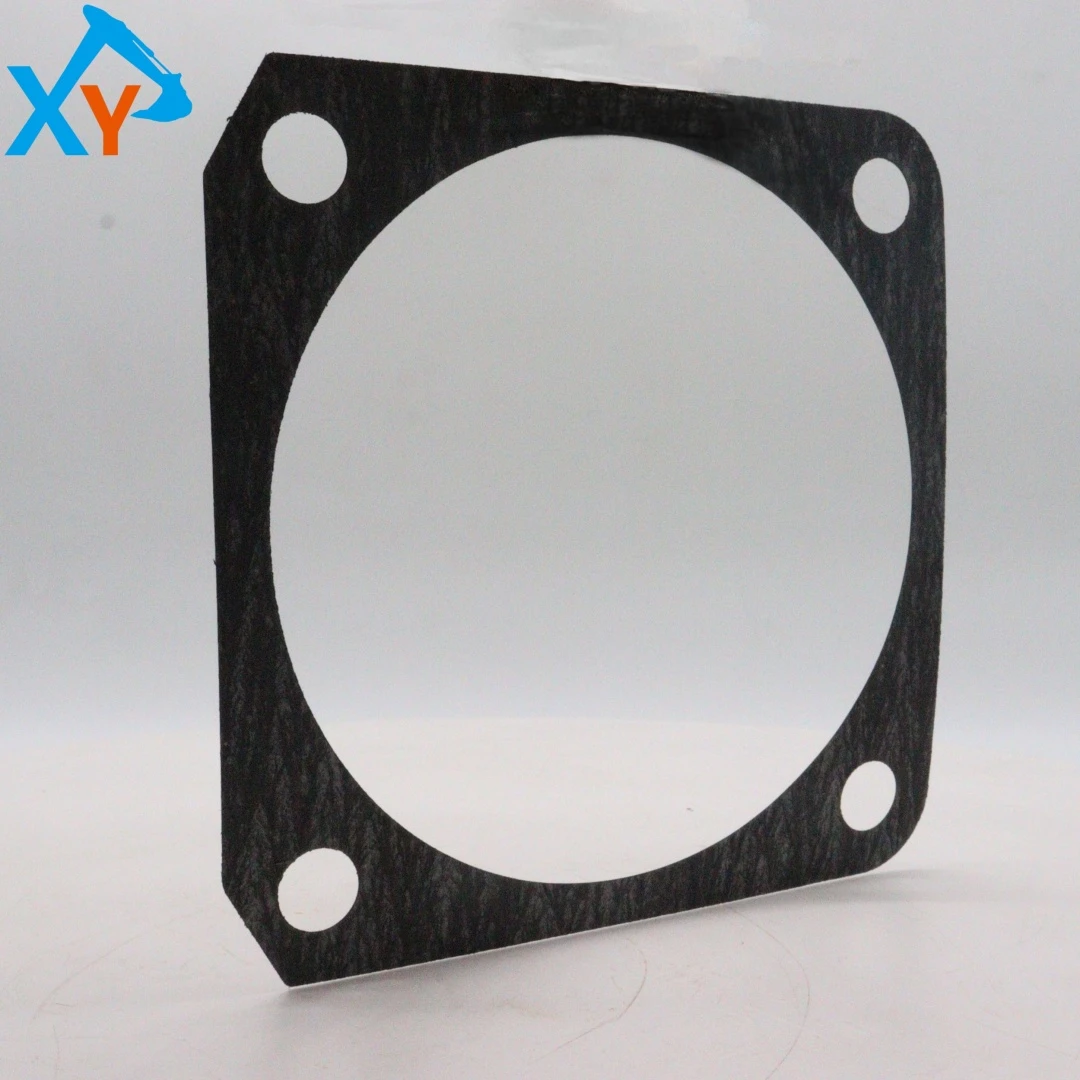

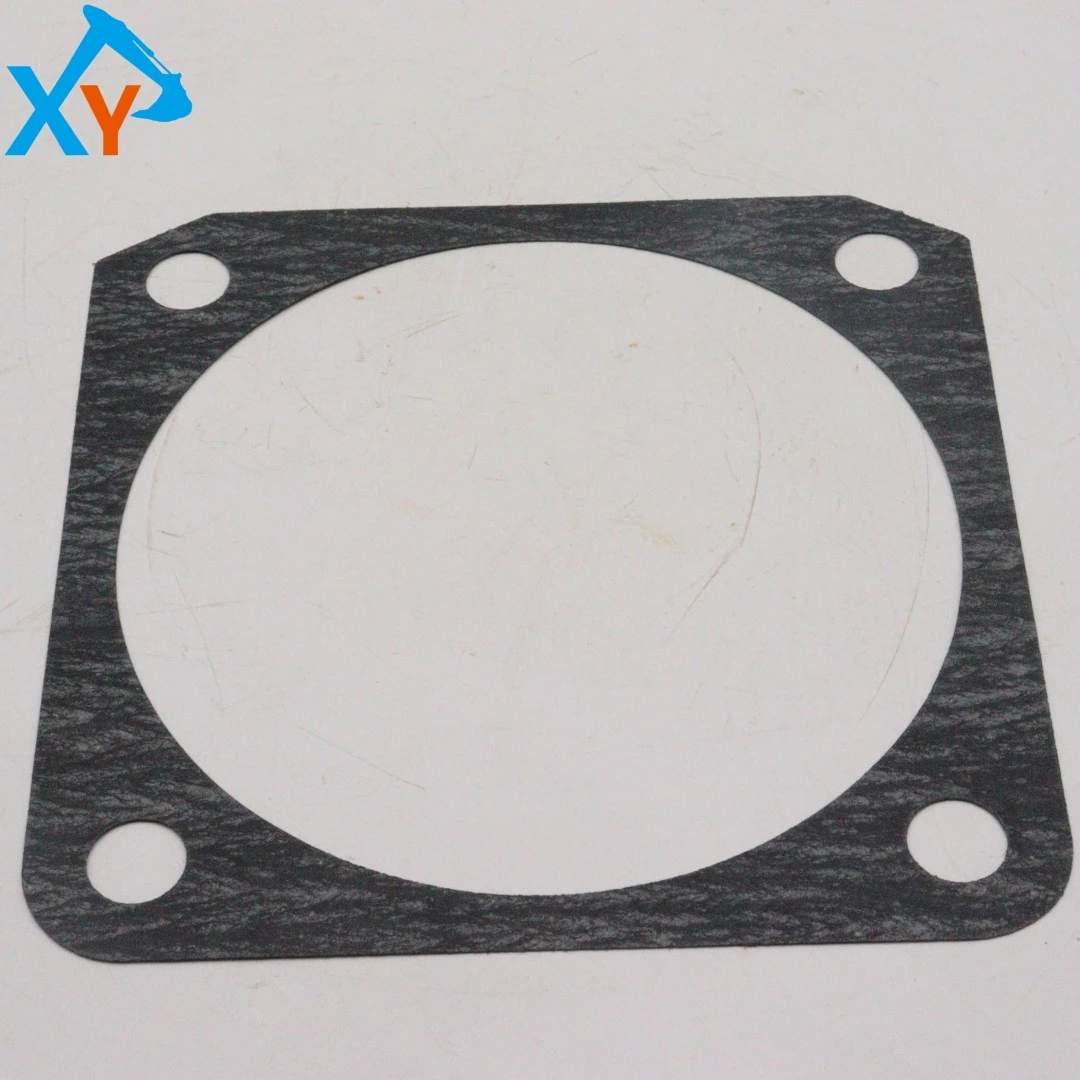

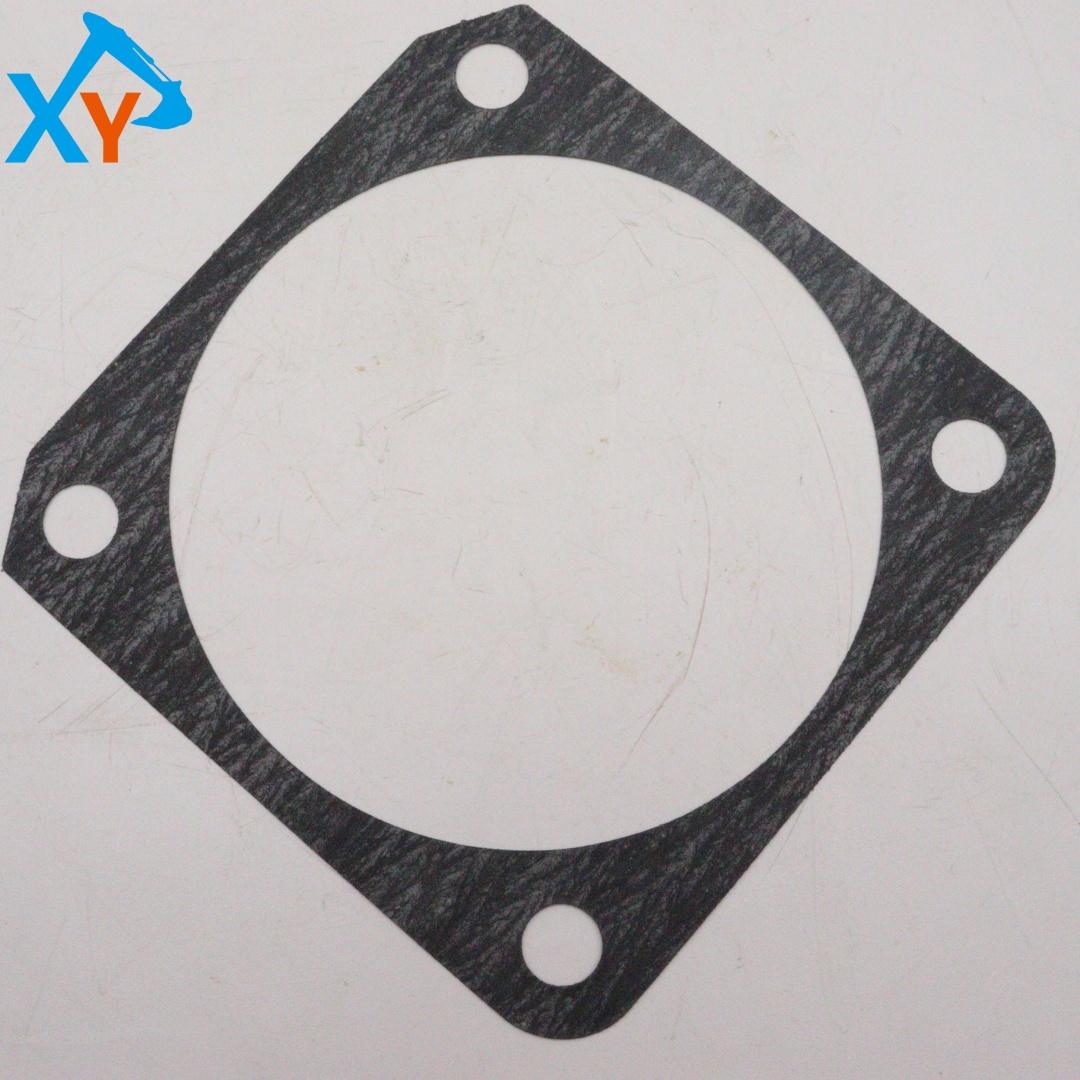

3199020370 Original Loader Gearbox Gasket for Hitachi ZW310-6

Part number 3199020370 is a specialized part number for the gearbox gasket of Hitachi's original loader. This gasket is a key sealing component for the joint surface of the loader gearbox, transfer case, or drive axle gearbox housing. It is mainly used to fill the micro unevenness between two metal flange surfaces, form a reliable static seal, prevent gear oil leakage, and effectively block external dust, water, and impurities from entering the interior of the housing. As an original standard component, it is mainly suitable for Hitachi's multiple series of wheel loaders, such as the ZW series (such as ZW140, ZW180, ZW220, ZW250, etc.).


The original gearbox gasket belongs to high-performance static sealing gasket. Its core function is to produce uniform plastic deformation after tightening the bolts of the box according to the specified torque, accurately fill all micro defects on the flange surface, and achieve long-term, leak free sealing. As an original component, it is usually manufactured using high-quality oil resistant asbestos rubber sheets, asbestos free fiber-reinforced composite materials, or composite laminates with metal skeletons. It has excellent resistance to heavy-duty gear oils (such as GL-5), excellent compression resilience and creep relaxation resistance, as well as good high and low temperature resistance (working temperature range usually up to -40 ° C to 200 ° C).


The maintenance core of the gearbox gasket lies in regular inspection, preventive replacement, and extremely standardized installation process. Inspection and replacement timing: Gaskets are disposable and non reusable seals. Daily maintenance should be combined with regular inspection to check for oil stains or leakage marks around the joint surfaces, drain plugs, and observation holes of the gearbox. When disassembling and repairing the gearbox at any level (such as replacing gears, bearings, synchronizers) or discovering leaks on the mating surfaces, new gaskets must be replaced. Dismantling and installation specifications: When dismantling old gaskets, carefully remove them with a plastic or copper scraper, and absolutely avoid using sharp tools to scratch the sealing surface of precision machined aluminum alloy or cast iron flanges.
