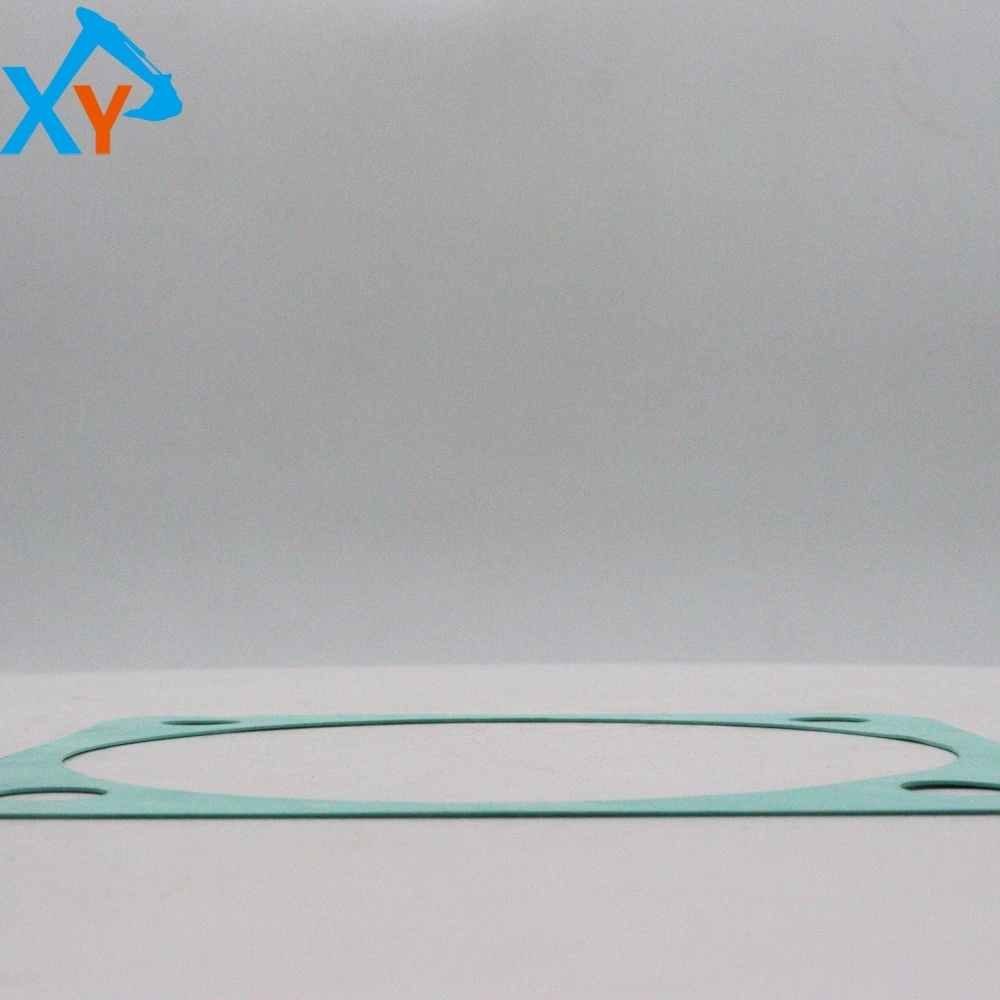

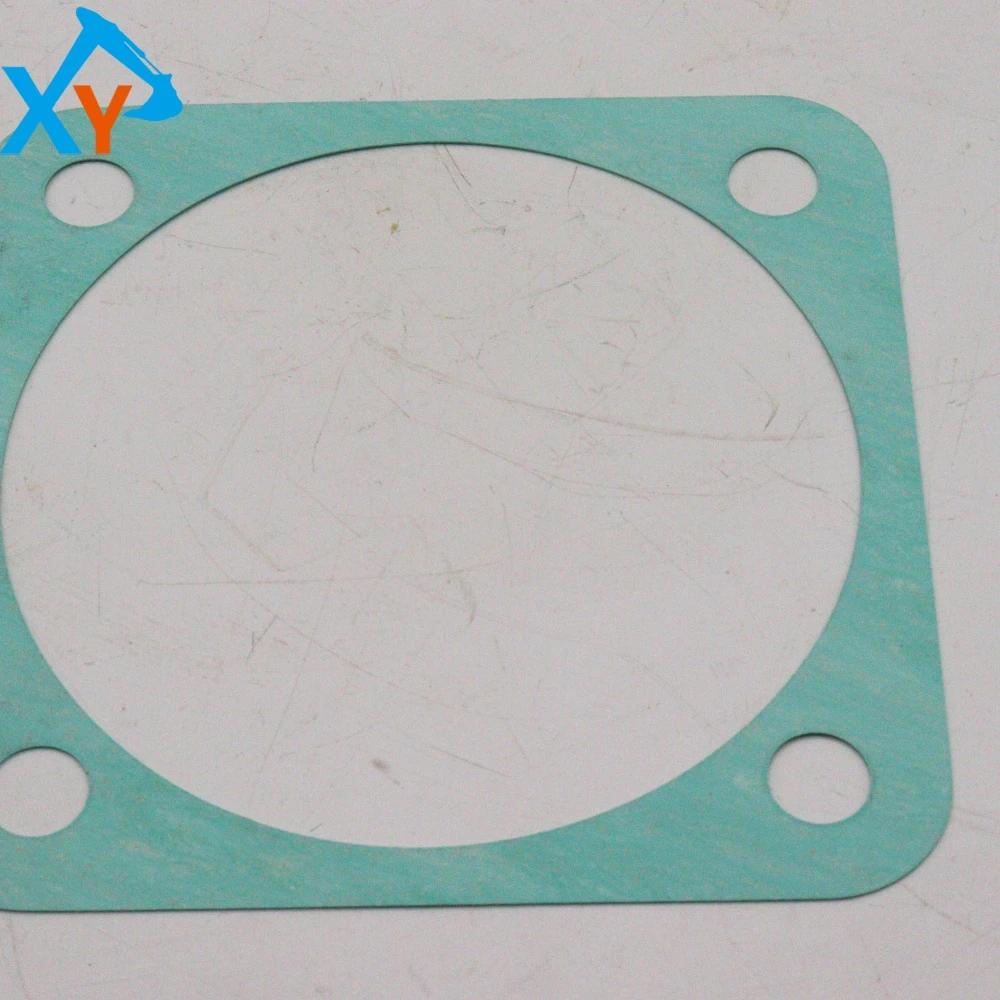

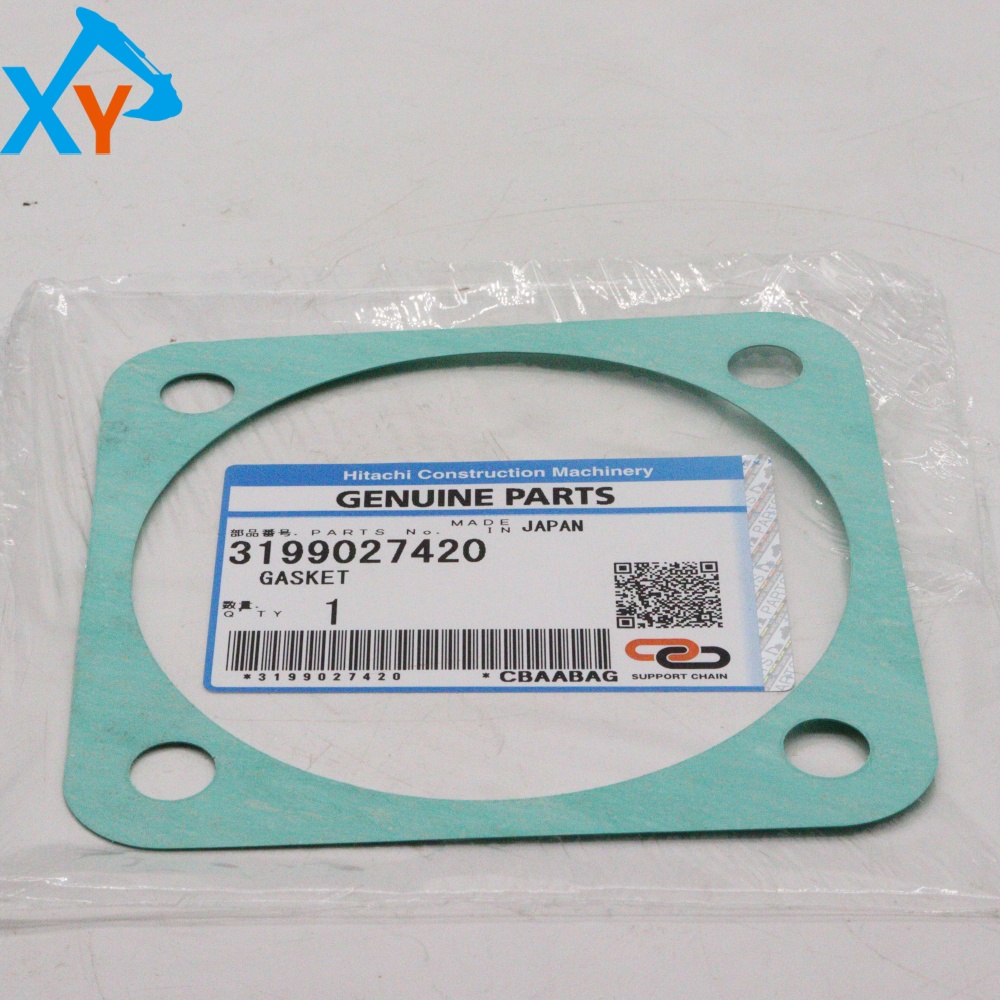

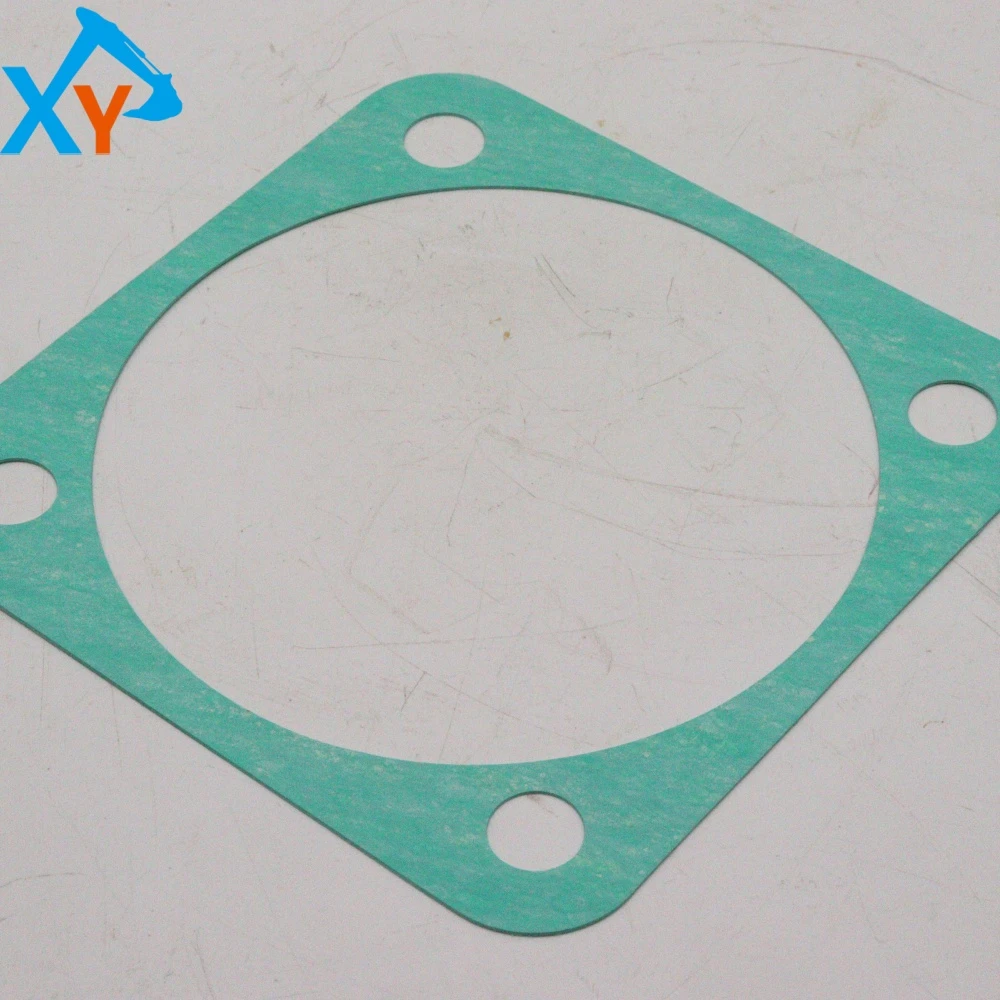

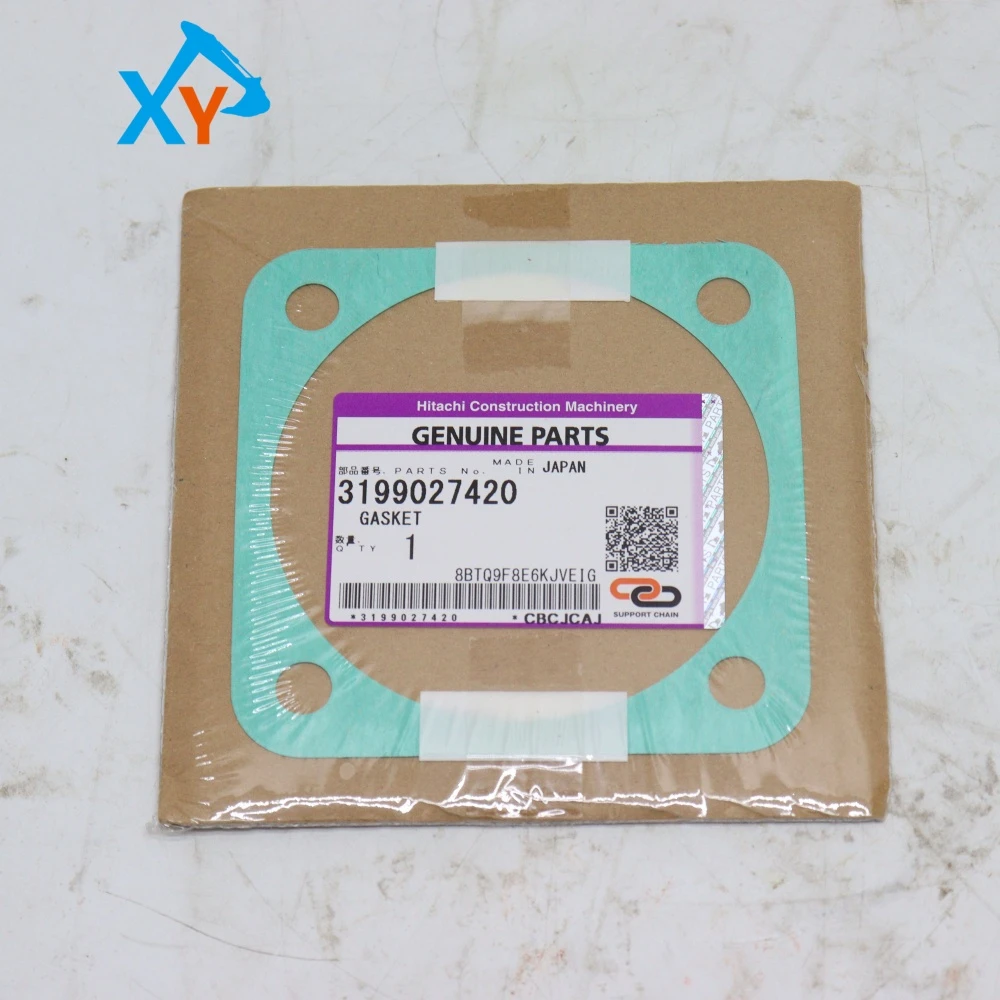

3199027420 Original Loader Gearbox Gasket for ZW370 ZW330

Part number 3199027420 is a specialized part number for Hitachi's original loader gearbox gasket. This gasket is a key sealing component for the joint surface of the loader gearbox, transfer case or drive axle gearbox housing. It is mainly used to fill the micro unevenness between two metal flange surfaces, form a static seal, prevent gear oil leakage, and block external dust and moisture from entering. As an original standard component, it is mainly suitable for Hitachi's multiple series of wheel loaders, such as the ZW series (such as ZW140, ZW180, ZW220, ZW250, ZW310, ZW330, ZW370-G, ZW550-G, etc.). This part may correspond to the specifications of commonly used oil resistant asbestos gaskets or composite gaskets in the aftermarket, but to ensure that the sealing performance, oil resistance, compression resilience, and dimensional accuracy fully meet the original design requirements, it is necessary to verify the specific loader model, gearbox model, and installation position (such as the upper/lower box joint surface, side cover, etc.).


The original gearbox gasket is usually a semi metallic or non-metallic static sealing gasket. Its core function is to produce plastic deformation after the bolts of the gearbox are tightened, fill the small gaps on the joint surface, and achieve long-term reliable sealing. As an original component, it may be manufactured using oil resistant asbestos rubber sheets, asbestos free composite materials, or composite gaskets with metal skeletons, which have excellent resistance to gear oils (including heavy-duty gear oils such as GL-5), good compression resilience, creep relaxation resistance, and a certain temperature resistance (usually suitable for working temperatures ranging from -30 ° C to 150 ° C). Its precise thickness, inner and outer diameter dimensions, and bolt hole positions ensure a perfect match with the box flange.

The maintenance core of the gearbox gasket lies in regular inspection of the sealing status, standardized replacement during gearbox disassembly and maintenance, and ensuring installation quality. Inspection timing: Gaskets are disposable seals and are generally not recommended for reuse. Regularly check the joint surface of the transmission case, observation holes, and around the oil drain plug for oil stains or leaks in daily life. Replacement specification: When conducting transmission overhaul, replacing gears or bearings, or discovering oil leakage on the mating surface of the gearbox, gaskets must be replaced. When dismantling the old gasket, a plastic scraper or specialized tool should be used to avoid damaging the flange sealing surface.
