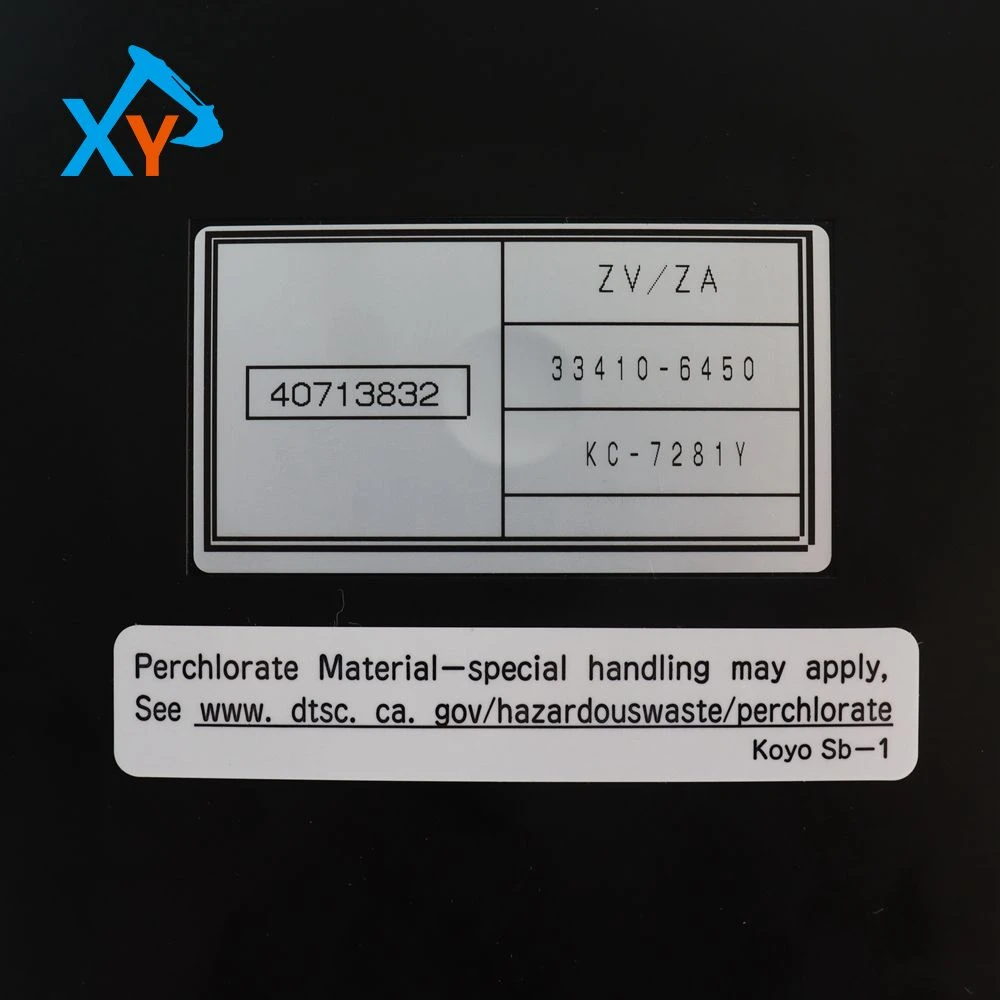

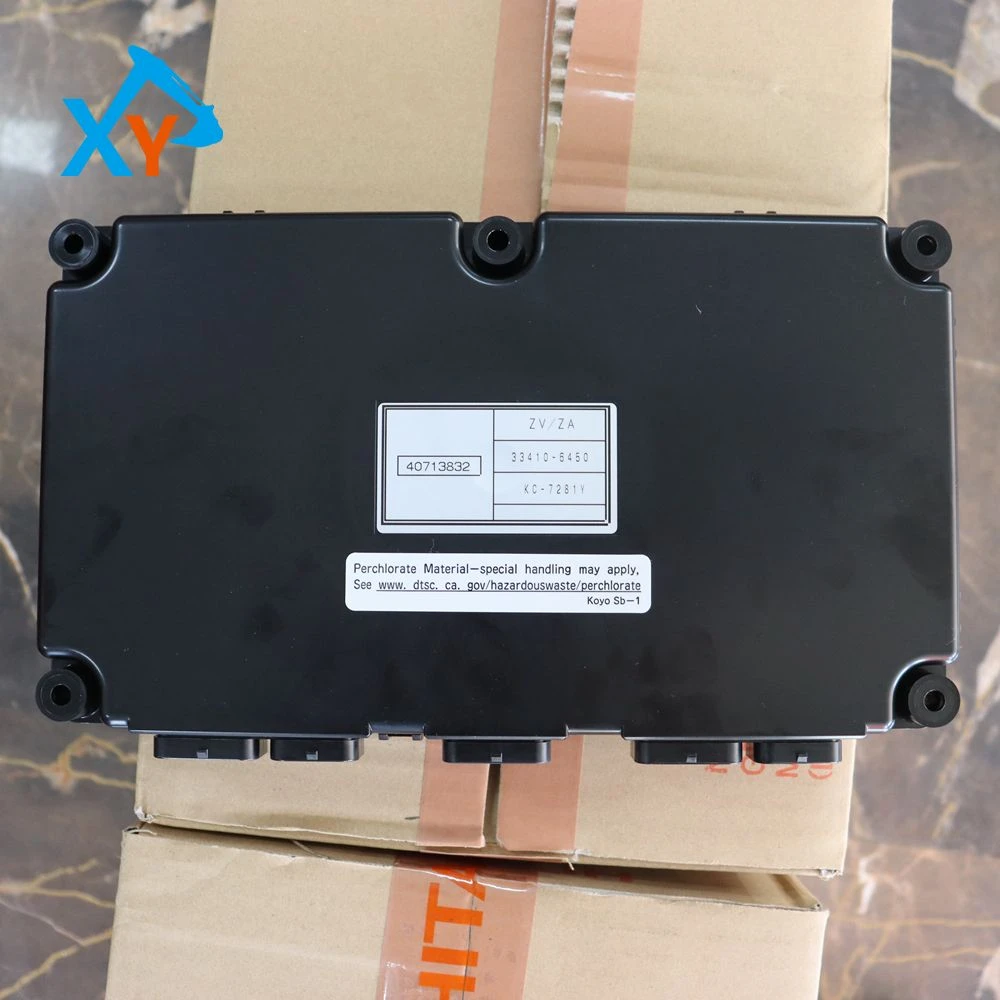

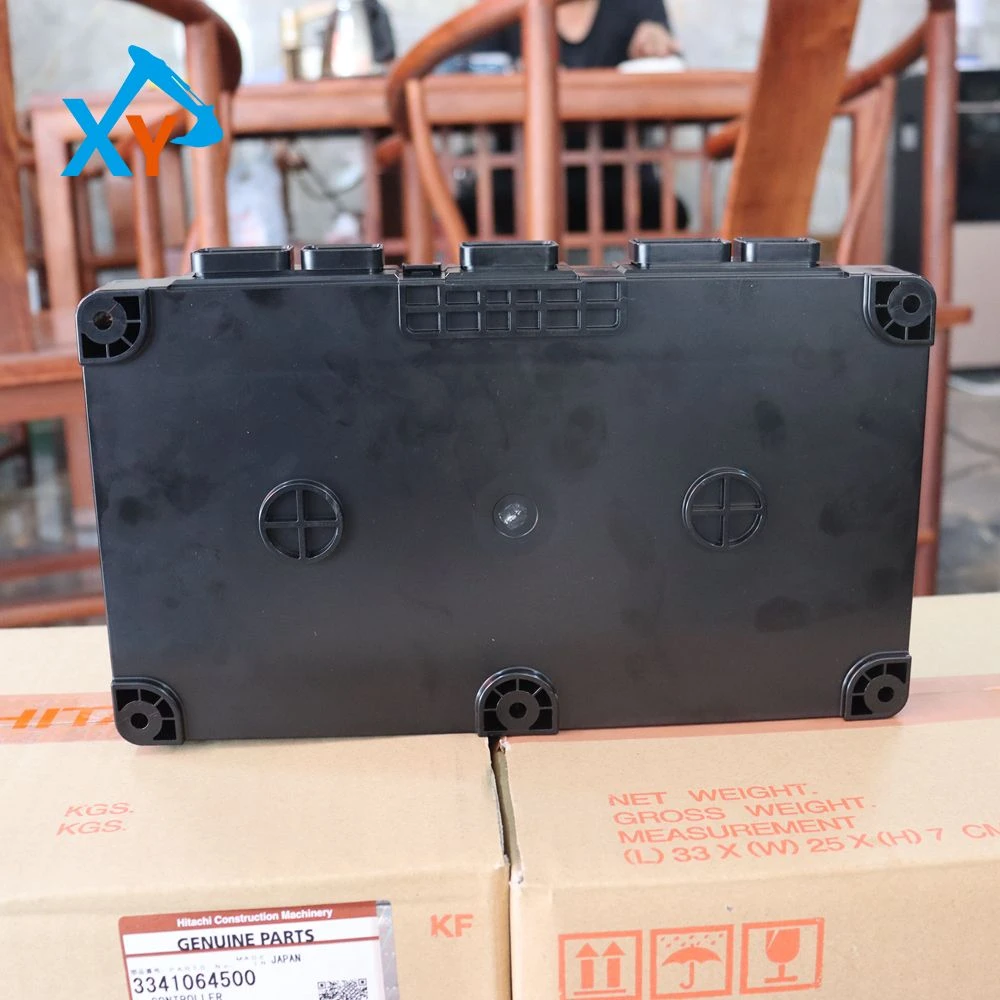

3341064500 Original Hitachi controller for Kawasaki loader 70Z4-2

Part number 3341064500 is a dedicated main controller (vehicle core control module) for Hitachi/Kawasaki 70Z4-2-MC-CU wheel loaders, compatible with Kawasaki 70Z4-2/70Z4-2A/70Z4-2B, Hitachi ZW220-5/ZW250-5 and other 70Z4 series loaders, as well as 70Z4-3/70Z4-3A/70Z4-3B. It is suitable for the electro-hydraulic control system of Isuzu 6WG1/6UZ1 engine, adopting a 32-bit dual-core processor and integrating CAN 2.0B bus communication module. It has 32 input channels (including analog/digital/frequency signals), 24 output channels (including solenoid valve drive/relay output), operating voltage DC24V (fluctuation range 18-32V), power consumption ≤30W, operating temperature -40°C to 85°C, and protection class IP67. It is responsible for the coordinated control of the vehicle's power, hydraulic, transmission and electrical systems, ensuring precise compound actions and safe operation.

Core functions include precise engine speed and torque regulation, dynamic hydraulic pump flow and pressure control, automatic transmission shift logic management, compound action coordination of working devices (boom/stick/bucket), safety interlock (seat belt, door switch, pilot lock), fault diagnosis (self-diagnosis code storage ≥80), operation mode switching (loading/transport/breaking), data recording (operating hours, pressure, temperature, fuel consumption) and accessory control (air conditioning, lighting, wiper). The processor adopts an industrial-grade chip with strong anti-electromagnetic interference capability. The PCB board is coated with three-proof (moisture-proof, mold-proof, anti-salt spray) coating, and key interfaces are gold-plated. The Mean Time Between Failures (MTBF) is ≥12000 hours, supporting online calibration and program upgrade. It is suitable for harsh working conditions such as dust, humidity and vibration, ensuring long-term stable operation.

Replacement requires matching the program version of the machine model. Disconnect the negative pole of the battery before disassembly, and avoid live operation when plugging or unplugging connectors. Ensure the connector latches are in place during installation, tighten the bolts symmetrically to 8-10N·m. After installation, use a dedicated diagnostic tool to complete CAN communication matching between the ECU and the controller, parameter calibration and fault code clearing. This main controller can reduce the incidence of vehicle electrical and hydraulic faults by more than 45%, reduce the coordination error of power and transmission systems, improve the operating efficiency by about 15% under working conditions such as loading and transportation, shorten fault troubleshooting time and reduce maintenance costs.
