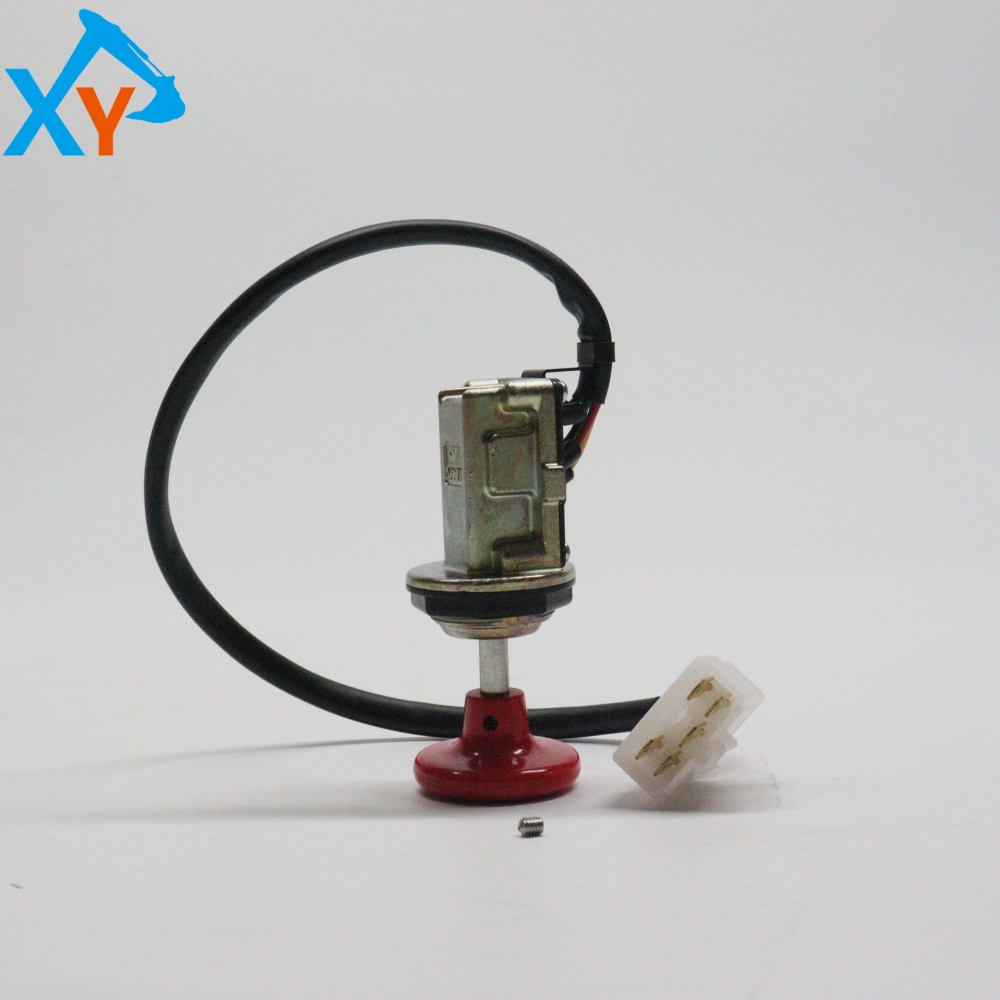

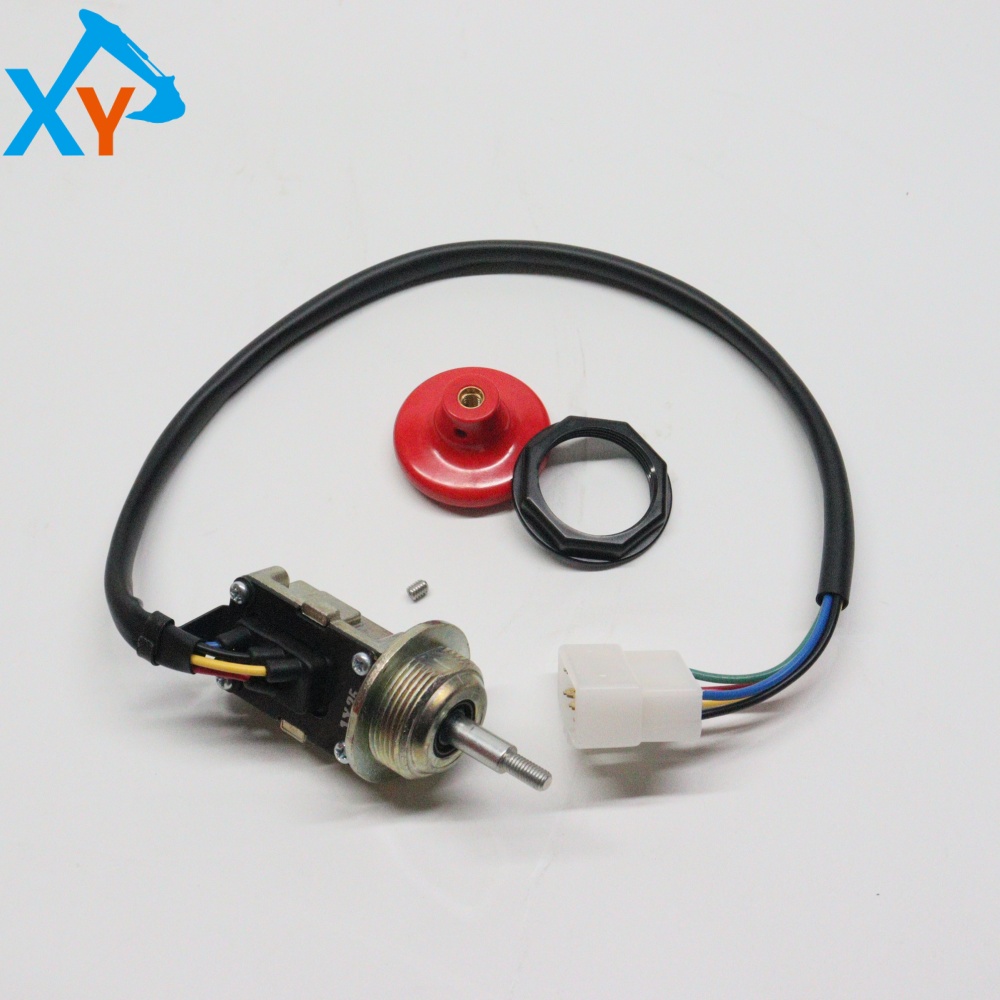

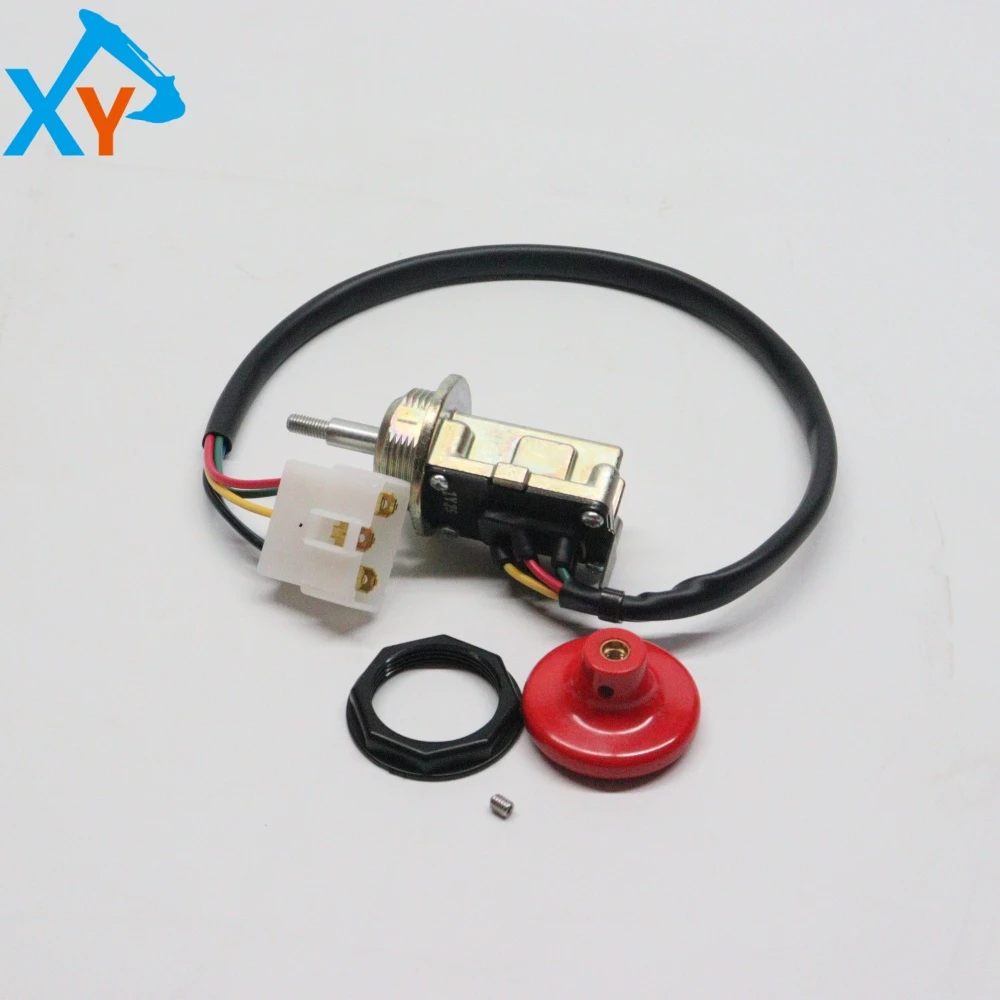

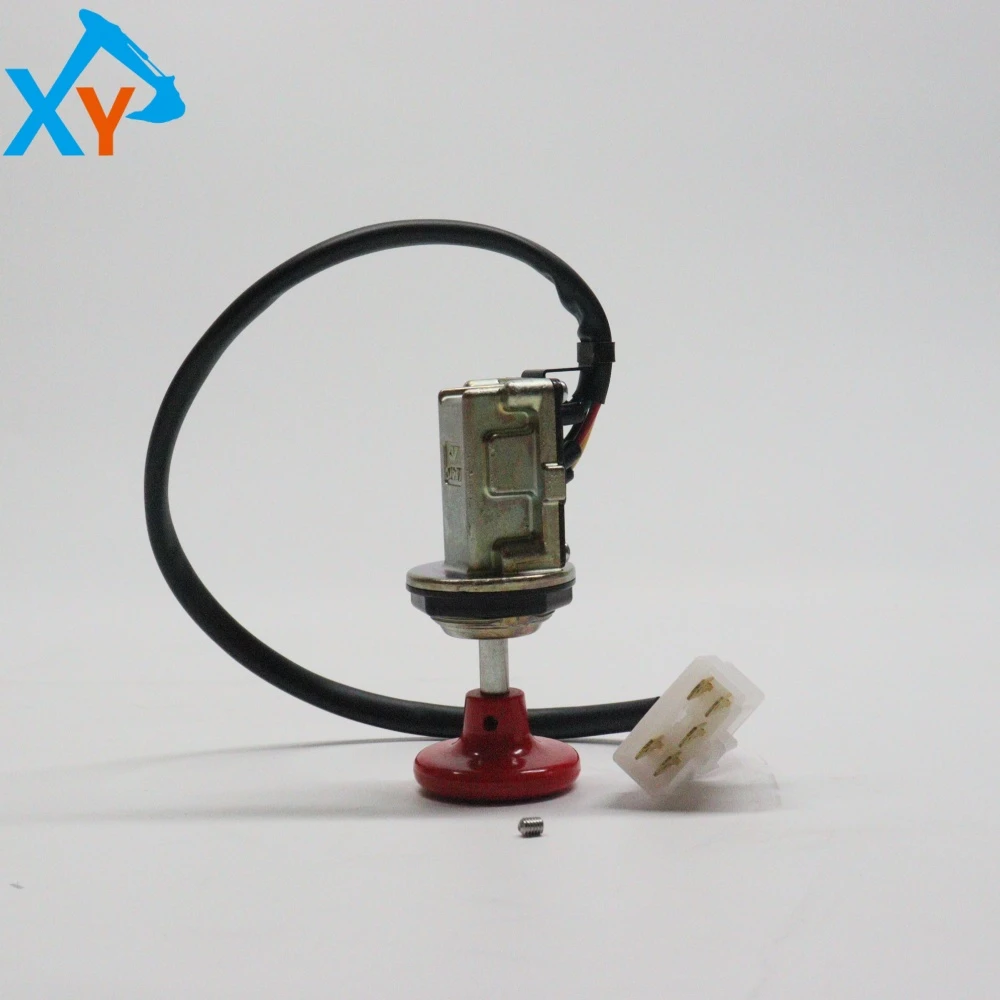

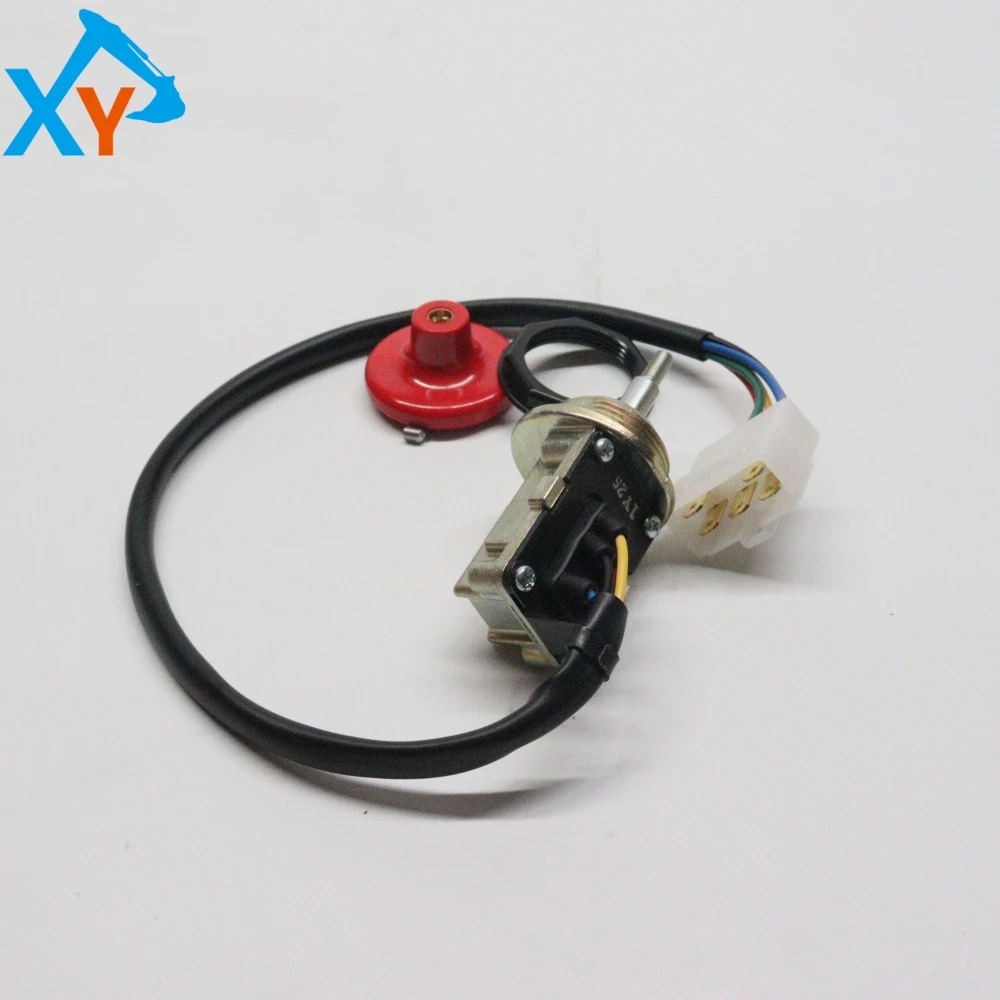

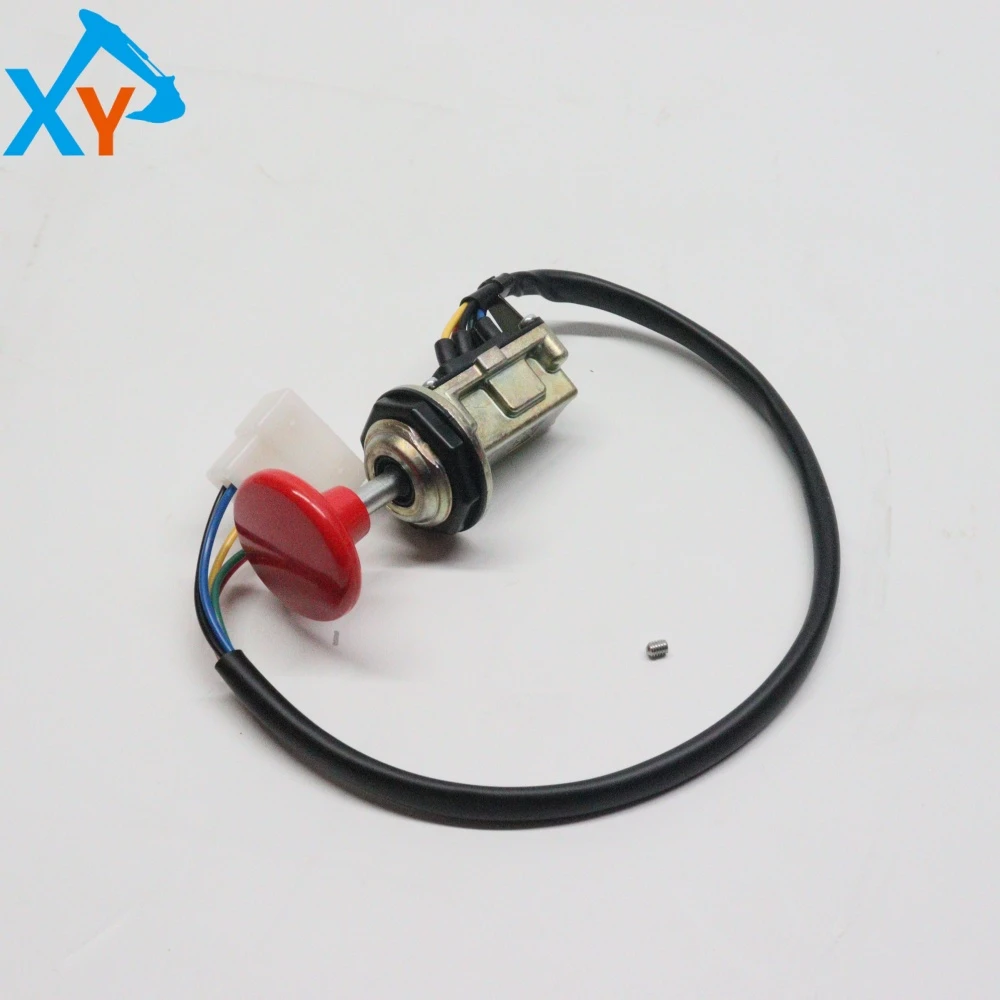

3504860050 Loader Switch for ZW330

Part number 3504860050 is the original switch provided by Hitachi for wheel loaders such as ZW330. According to the Hitachi parts system rules, this component is usually also suitable for models in the ZW310, ZW360, ZW370 and other series. As an operating unit of an electrical or control system, it may be used for functions such as lighting, wipers, accessory power supply, and working mode selection. The specific functions need to be determined based on its installation position on the equipment. Its universal number (substitute part number) includes similar models such as 3504860049 and 3504860051, but the use of non-standard spare parts is strictly prohibited to avoid electrical system failures or equipment damage.

This product is a Hitachi pure switch, made of high-strength plastic or metal shell and high-performance contact materials. The working voltage is usually DC12V or DC24V, the rated current is 5-20A, the insulation resistance is ≥ 100M Ω, and the withstand voltage is ≥ 500V AC. The typical structure is of the rocker type, button type, or rotary type, with a protection level of up to IP54 or IP65, suitable for high vibration, dusty, and humid working environments of loaders. Hitachi pure switches have significant advantages in contact reliability, durability, and sealing: mechanical life>100000 times, contact resistance<20m Ω, contact material is silver alloy or gold-plated, ensuring low contact resistance and high conductivity.

Replacement cycle: It is recommended to check every 5000-8000 working hours or replace it promptly based on the fault symptoms (such as switch failure or poor contact). Daily inspection: Check the appearance of the switch for damage, whether the buttons are flexible, and whether the indicator lights are normal every week. Fault manifestations: Switch faults may cause corresponding functional failures (such as lights not turning on, wipers not working), electrical system short circuits, and blown fuses. Replacement steps: 1 Disconnect the negative terminal of the battery; 2. Mark the position of the switch harness connector; 3. Disassemble the fixing screws and remove the old switch; 4. Clean the installation surface and install the new switch in its original position; 5. Connect the wiring harness, restore power, and test functionality.
