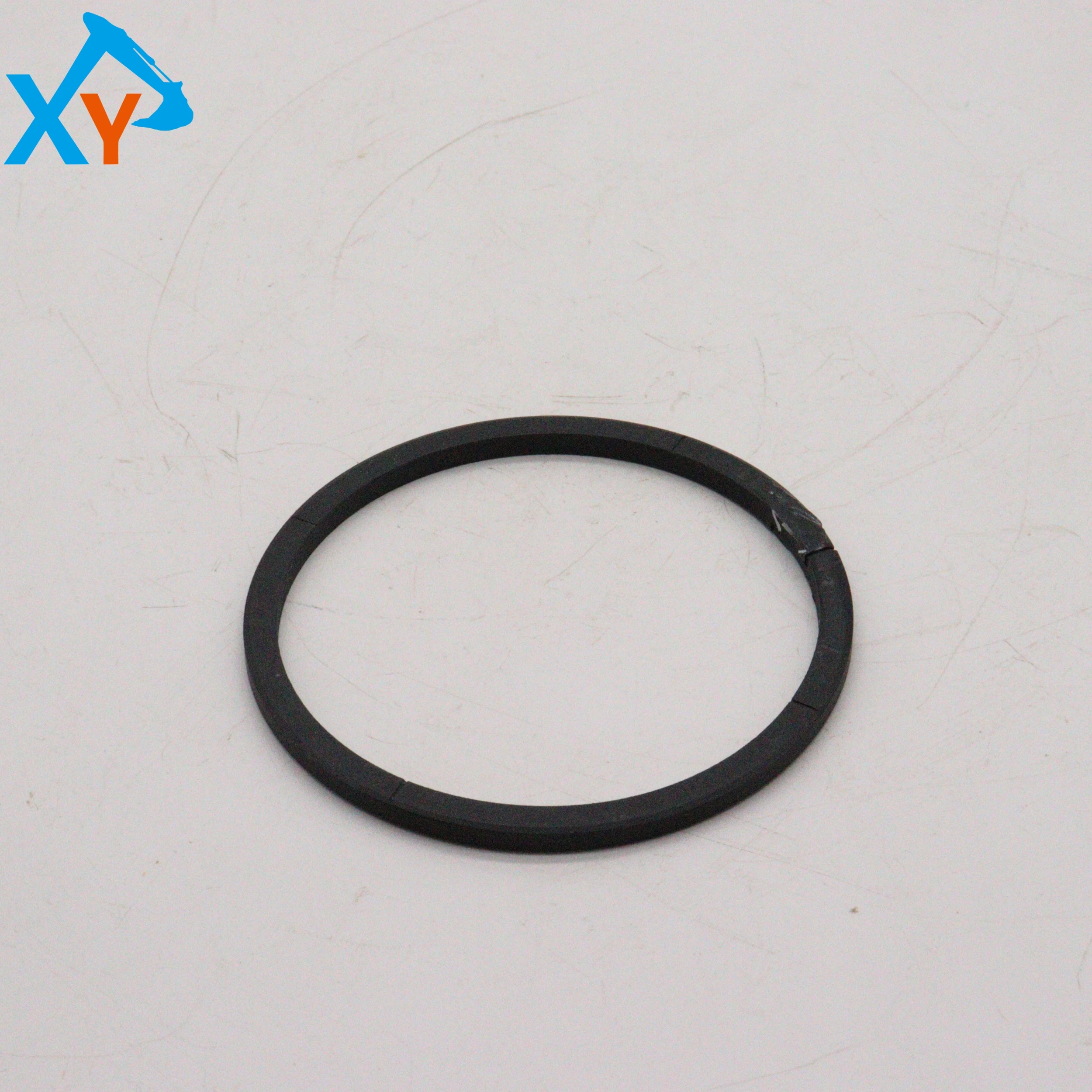

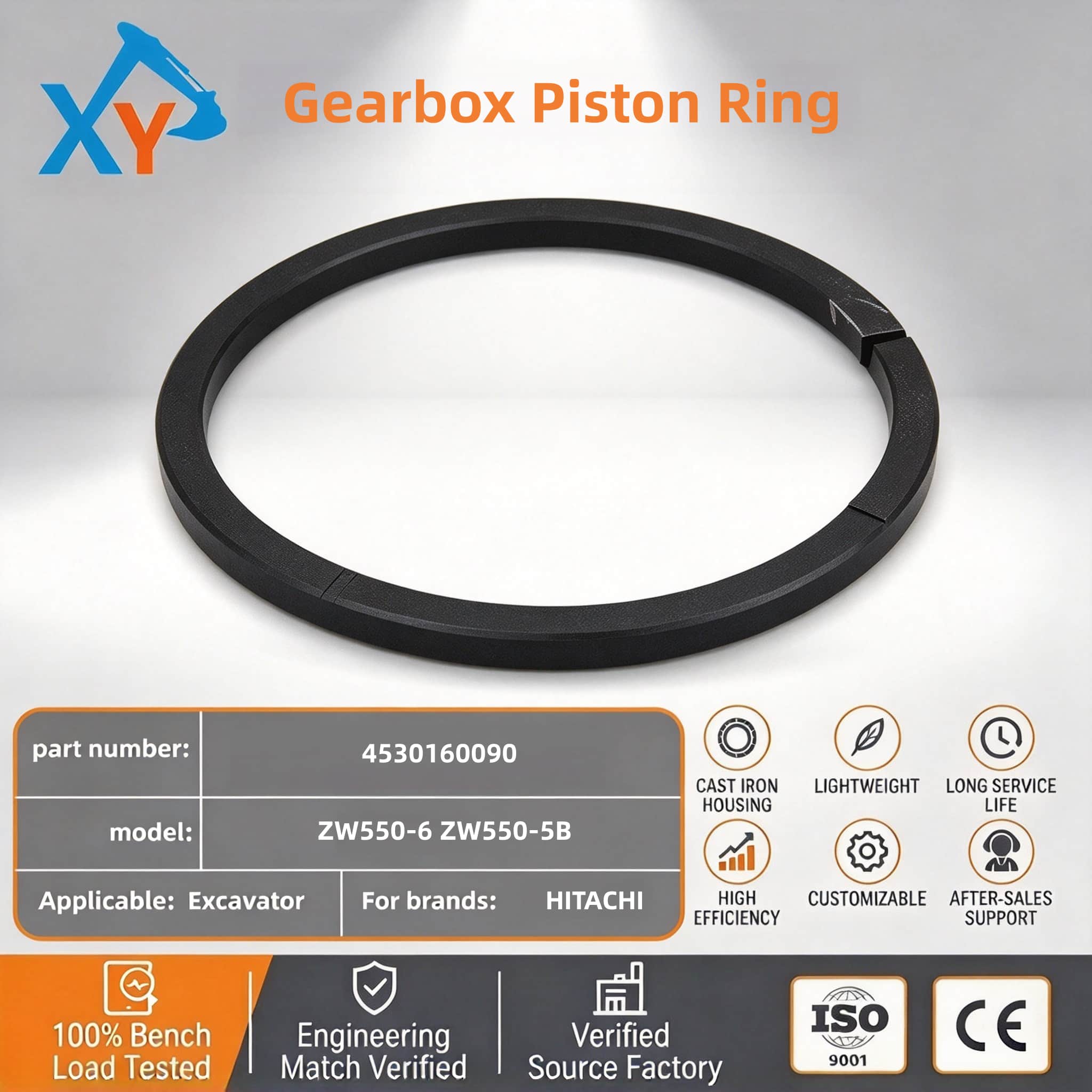

4530160090 Original Loader Gearbox Piston Ring for Hitachi ZW550-6

The original gearbox piston ring 4530160090 is designed specifically for the Hitachi ZW550-6 (approximately 5.5 ton class) wheel loader and is a critical sealing component for the gearbox or hydraulic system of this model. This universal number is the unique identifier for genuine Hitachi components, ensuring a perfect match with the piston groove size, thermal expansion coefficient, and working pressure of the host gearbox. When ordering or replacing, it is necessary to verify the universal number and confirm the matching piston, cylinder liner, and other component models to ensure system sealing performance and transmission efficiency.

This product is made of high-strength alloy steel material unique to Hitachi Metals Co., Ltd. The surface is precision ground and treated with a special coating, which combines excellent wear resistance, high temperature resistance, and impact toughness. Its cross-sectional design is rectangular or trapezoidal, relying on elasticity to tightly adhere to the cylinder wall, achieving dynamic sealing in the high-pressure oil environment of the gearbox, preventing internal leakage and controlling the thickness of the lubricating oil film. The product has undergone strict bench testing by the original factory and can withstand the alternating load and high temperature caused by frequent gear shifts. It is the core component that ensures the smooth and efficient operation of the ZW550-6 transmission system.

Before installation, the piston ring groove and cylinder wall must be thoroughly cleaned. It is strictly prohibited to use sharp tools to scratch the working surface, and assembly should be carried out in the prescribed order and opening direction. In the initial stage, a hot running in period of about 6 hours should be carried out to form a good fitting surface between the ring and the cylinder wall, which can extend the service life by 20% -30%. During daily operation, it is necessary to keep the gear oil clean, regularly replace the filter, and avoid overloading and rapid acceleration operations. The opening clearance and side clearance of the ring should be checked every 1000 working hours. If it exceeds the wear limit or breaks or loses elasticity, the original 4530160090 ring should be replaced immediately, and the piston and cylinder liner status should be checked at the same time to ensure the matching of the entire friction pair.
