6524032215 Original Loader Back-up Ring for Hitachi ZW550

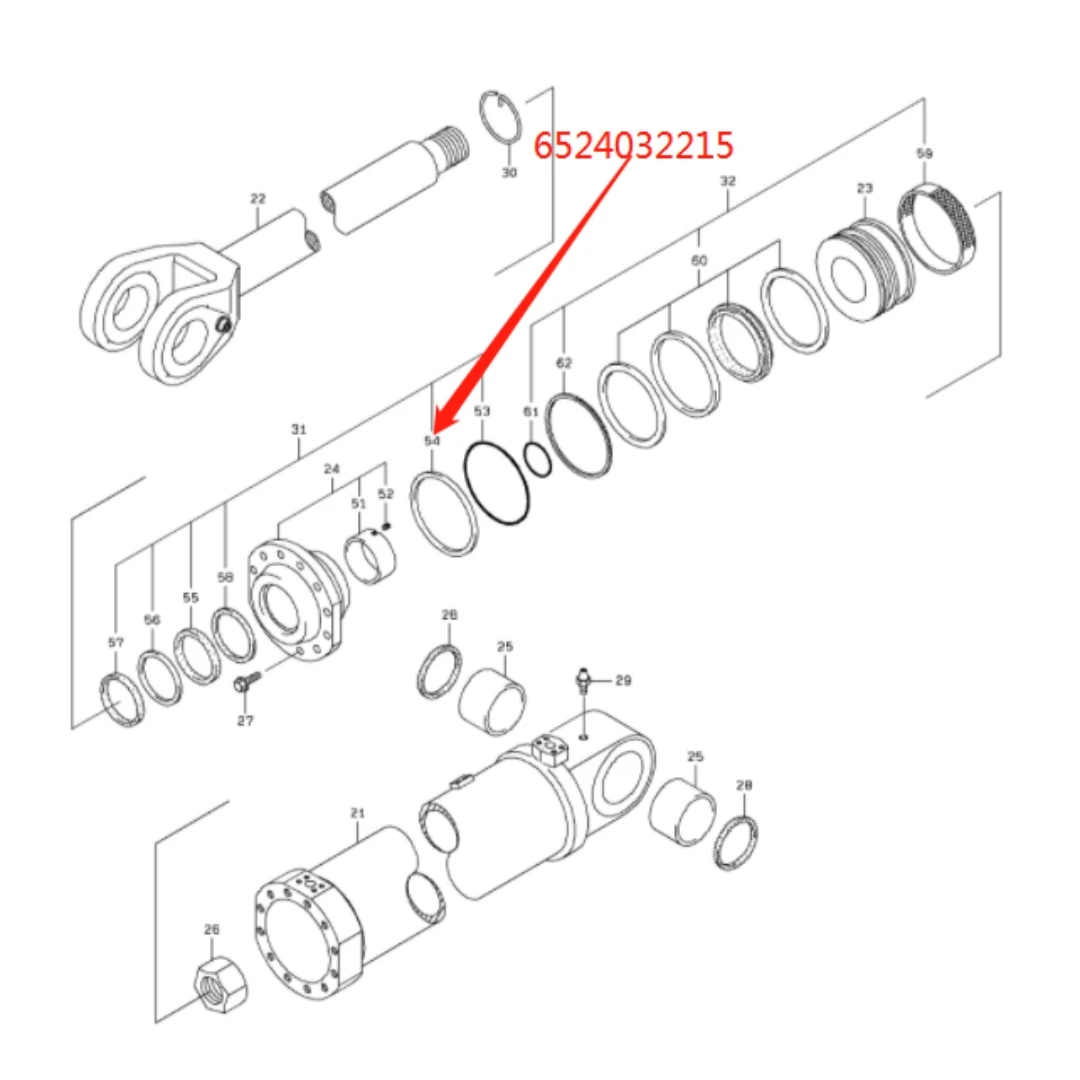

Part number 6524032215 is the original support ring provided by Hitachi for the ZW550 (or ZW550-G) large wheel loader. Support ring (also known as guide ring or retaining ring) is a key basic component in hydraulic cylinder, piston or bearing assembly, mainly used to provide precise radial support and guidance between moving parts, prevent direct contact friction of metal parts, and withstand lateral loads. As a precision component of the original factory, its material formula, inner and outer diameter tolerance, wear resistance, and temperature resistance are strictly matched with the working conditions (high pressure, high-frequency reciprocating motion, impact load) of the specific installation position.

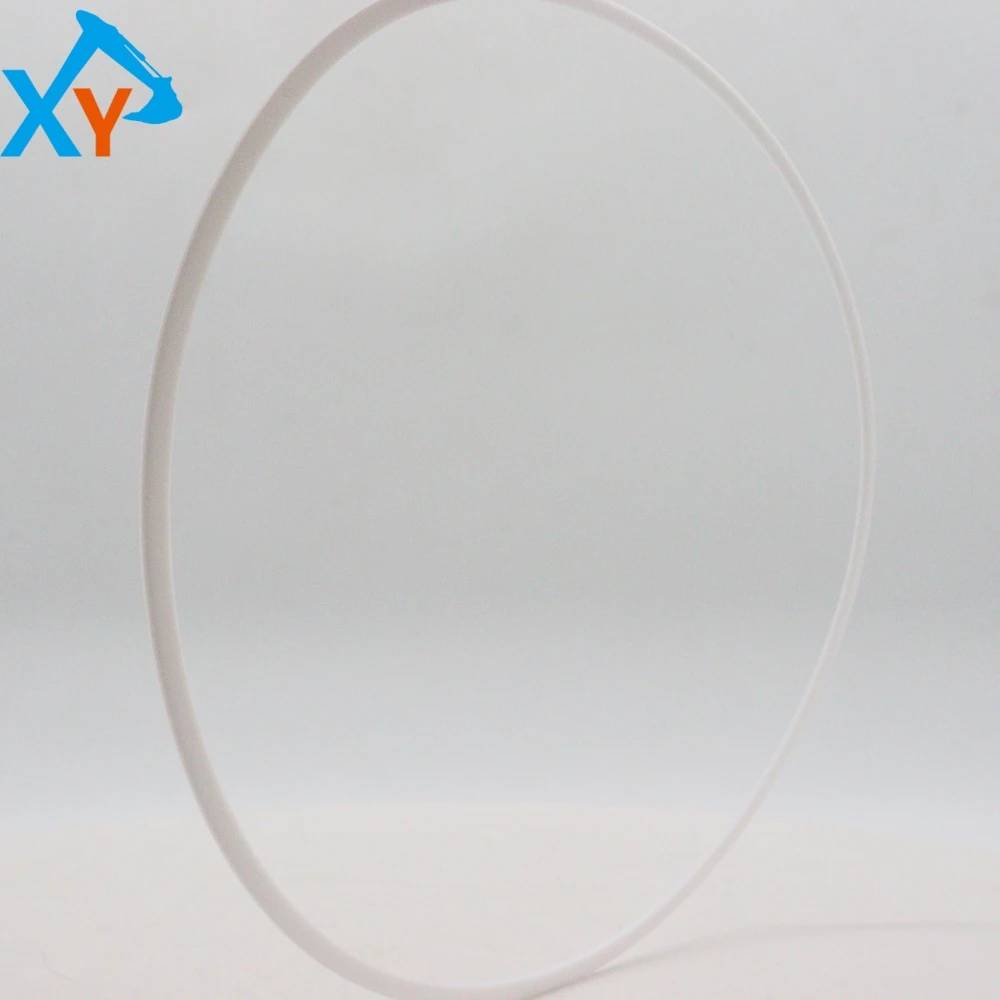

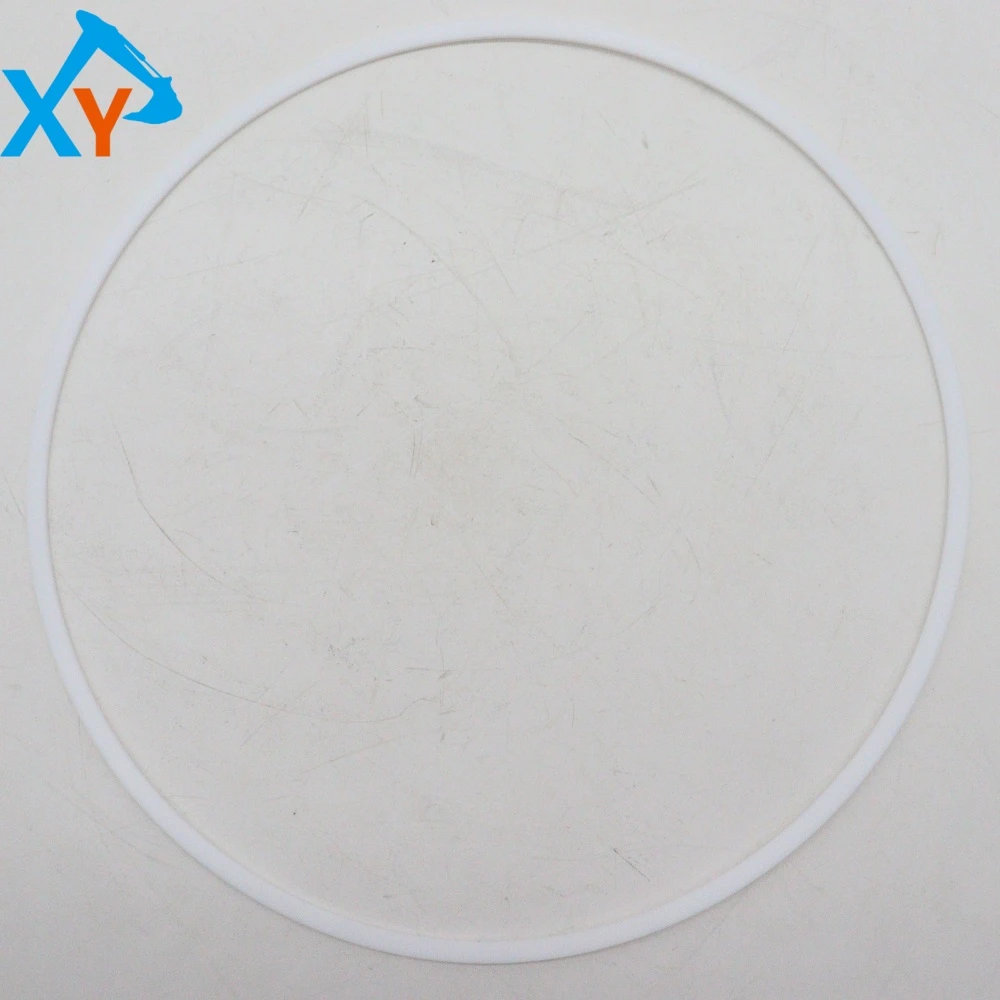

This product is a circular wear-resistant guiding element, usually made of high-strength engineering plastics (such as polyoxymethylene POM, polyamide PA), bronze composite materials, or surface treated steel rings. Its core function is to provide low friction sliding support between the piston and cylinder, piston rod and guide sleeve, accurately guide the movement trajectory of the piston/piston rod, absorb lateral forces, and protect the main seal from eccentric compression. As an original component, its dimensional accuracy, roundness, surface smoothness, creep resistance, and hydraulic oil resistance all meet Hitachi's strict standards, ensuring stable guiding function and low wear rate in heavy loads and high-speed reciprocating motion for a long time.

Inspection and replacement: When the hydraulic cylinder moves slowly, crawls, or makes abnormal noises, or when severe wear (significantly reduced thickness, deep grooves on the surface), cracking, deformation, loss of elasticity, or surface material peeling is found on the support ring during regular disassembly and inspection, it must be replaced. Simple judgment method: visually inspect whether the wear of the support ring is uniform and whether there is any damage; Measure whether its thickness is still within the allowable tolerance. Attention: The support ring is a wear-resistant component, but it is usually replaced synchronously with the sealing component; When storing, it is necessary to avoid light, moisture, pressure, and high temperature environments; When replacing the support ring, it is strongly recommended to simultaneously check the surface smoothness and dimensions of the matching cylinder/piston rod.
