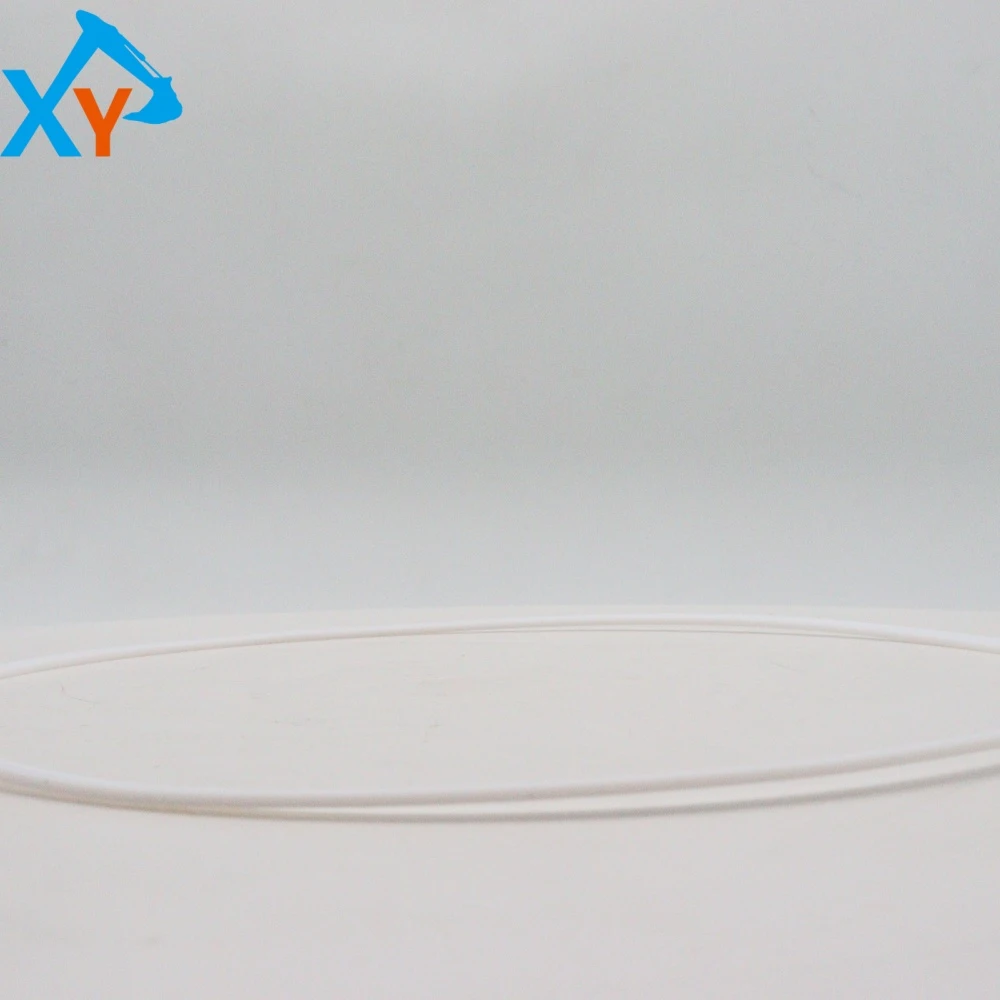

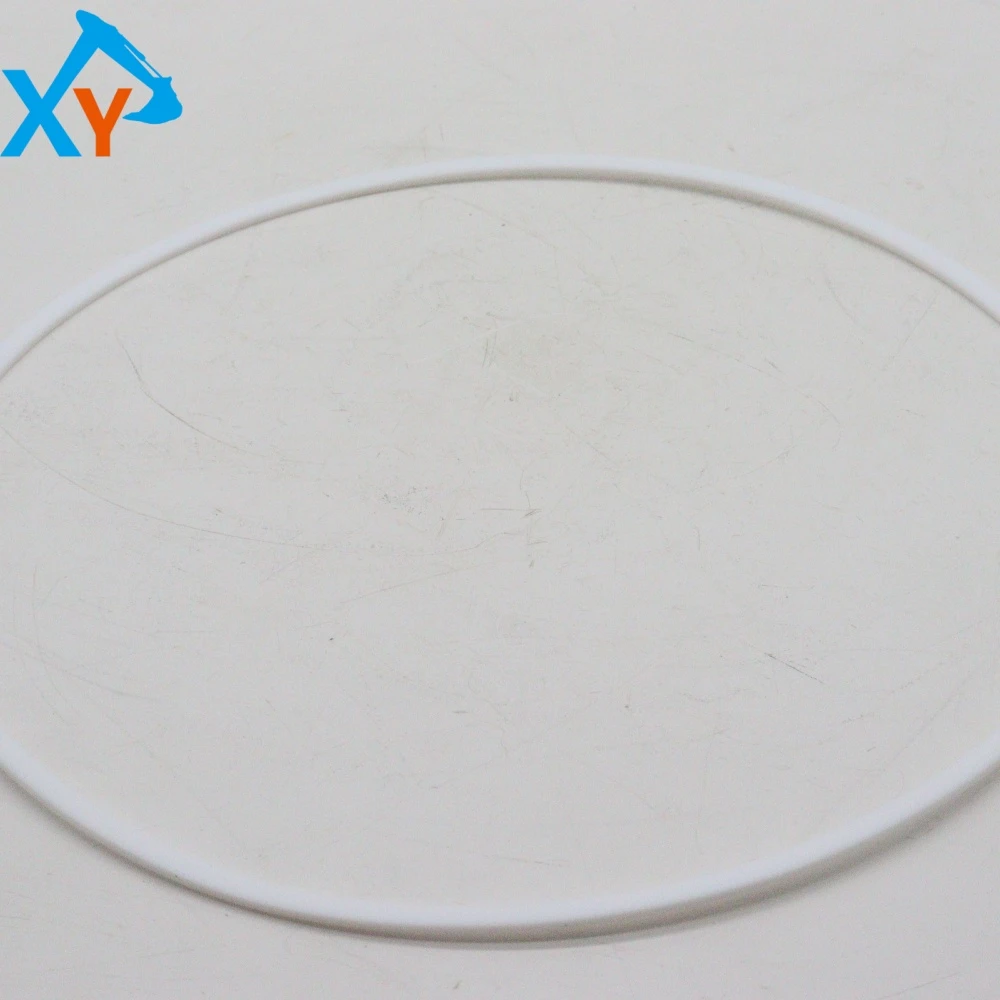

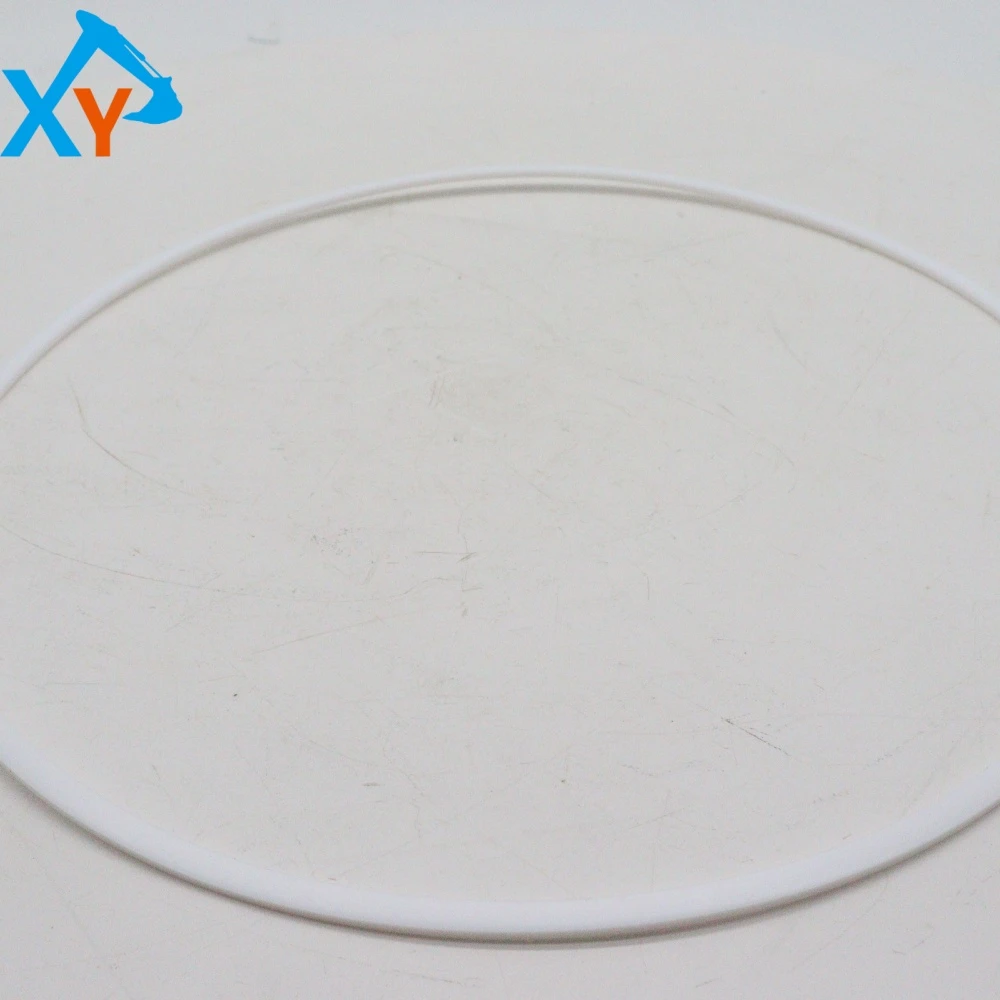

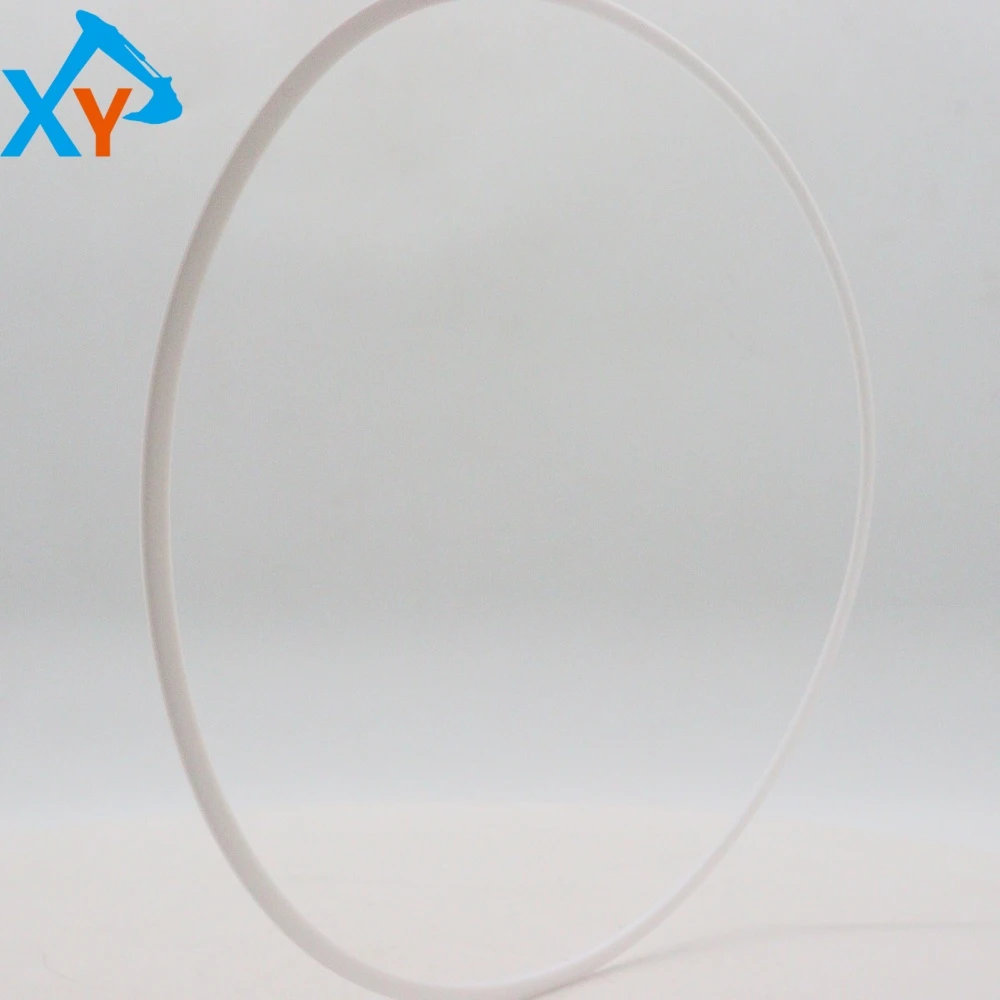

6524032215 Original Loader Ring Back-up for Hitachi ZW550

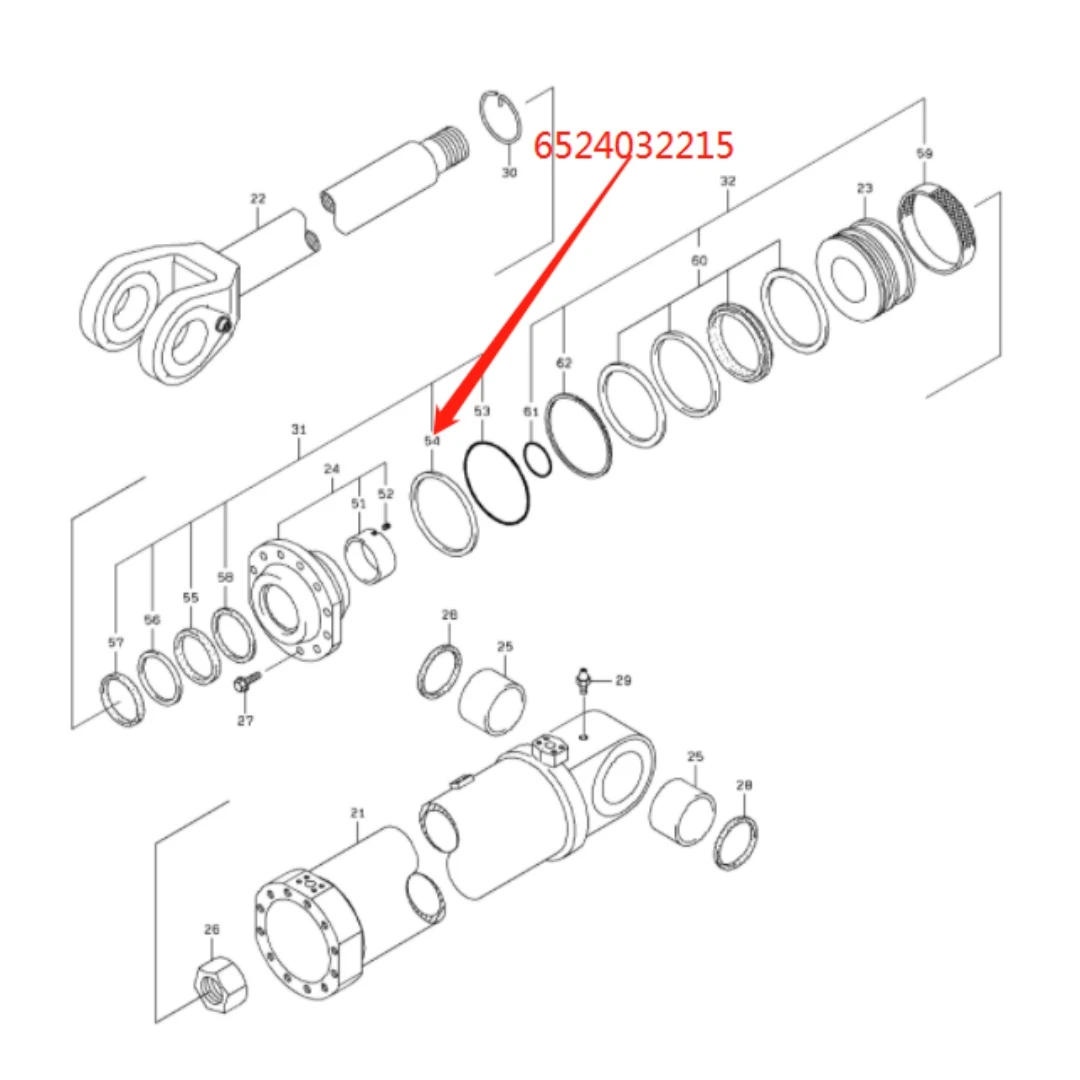

The Hitachi original loader spare ring (part number: 6524032215) is a key auxiliary sealing component used to support O-rings or seals in the hydraulic system or engine of the Hitachi ZW550 series large wheel loader. As an original standard component, it is mainly suitable for 47 ton heavy-duty wheel loaders such as Hitachi ZW550-G and ZW550-6. It is usually used in conjunction with O-rings of specific specifications and installed in sealing grooves of hydraulic cylinder pistons, piston rods, valve blocks, or high-pressure pipeline joints.

This backup ring is the "anti extrusion guard" of the high-pressure sealing system. Its core function is to be installed on the low-pressure side of the O-ring or elastic seal, providing rigid support when the system is subjected to high pressure (usually up to 40MPa or higher), preventing the soft O-ring from being squeezed into the small gaps between the piston and cylinder, piston rod and guide sleeve, thereby avoiding seal failure due to compression shear, greatly extending the service life of the main seal and ensuring leak free operation of the system. As an original component, it strictly follows Hitachi's quality standards and is usually precision machined from high-strength, low friction engineering plastics. It has excellent resistance to compression, wear, chemical corrosion, and self-lubricating properties.

The maintenance core of this backup ring lies in regularly checking its integrity and replacing it synchronously with the main seal. Inspection timing: It is recommended to carefully inspect the spare ring for cracks, severe wear, deformation, or permanent indentation during each major overhaul of the hydraulic cylinder, replacement of the piston or rod seal. Replacement principle: The spare ring is a disposable component and should be replaced in pairs with the corresponding O-ring or main seal. Even if the appearance is intact, its fatigue resistance may have decreased.
